S563 in horizontal / landscape mode

Avatar
SAT Norte Europa
  • Updated
Follow

How to set the display to horizontal or landscape mode?

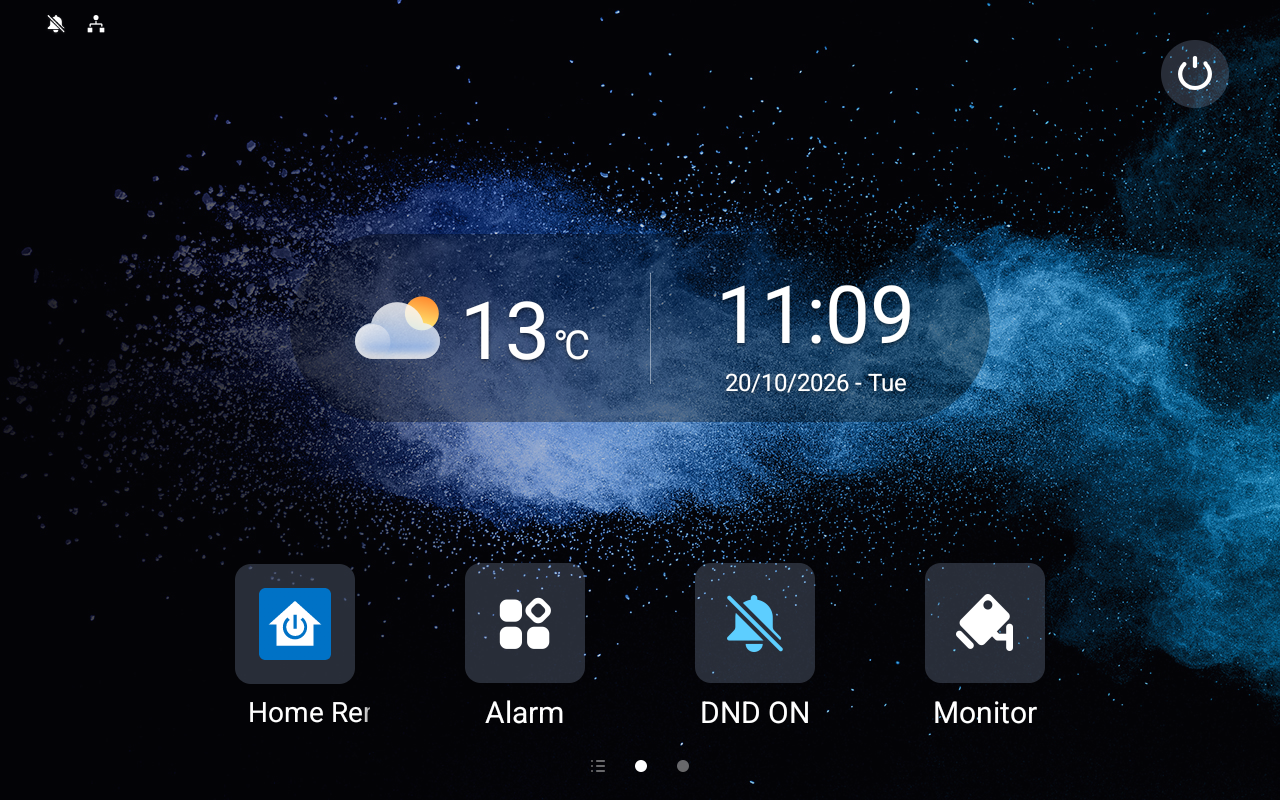

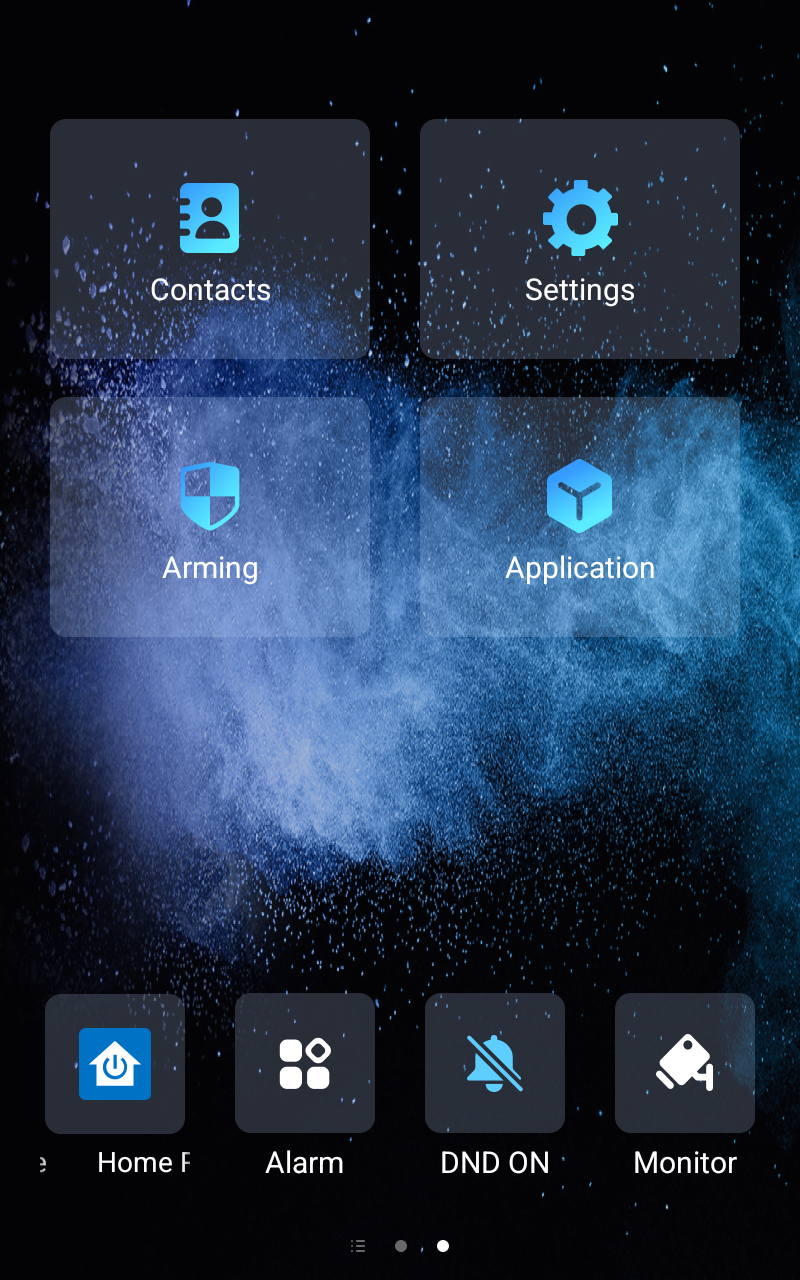

Vertical.png      Horizontal.png

  1. Open the S563 web interface.
  2. Add /#/8848 after the IP address. Akuvox gives this format: http://DEVICE-IP/#/8848
  3. Log in if necessary.

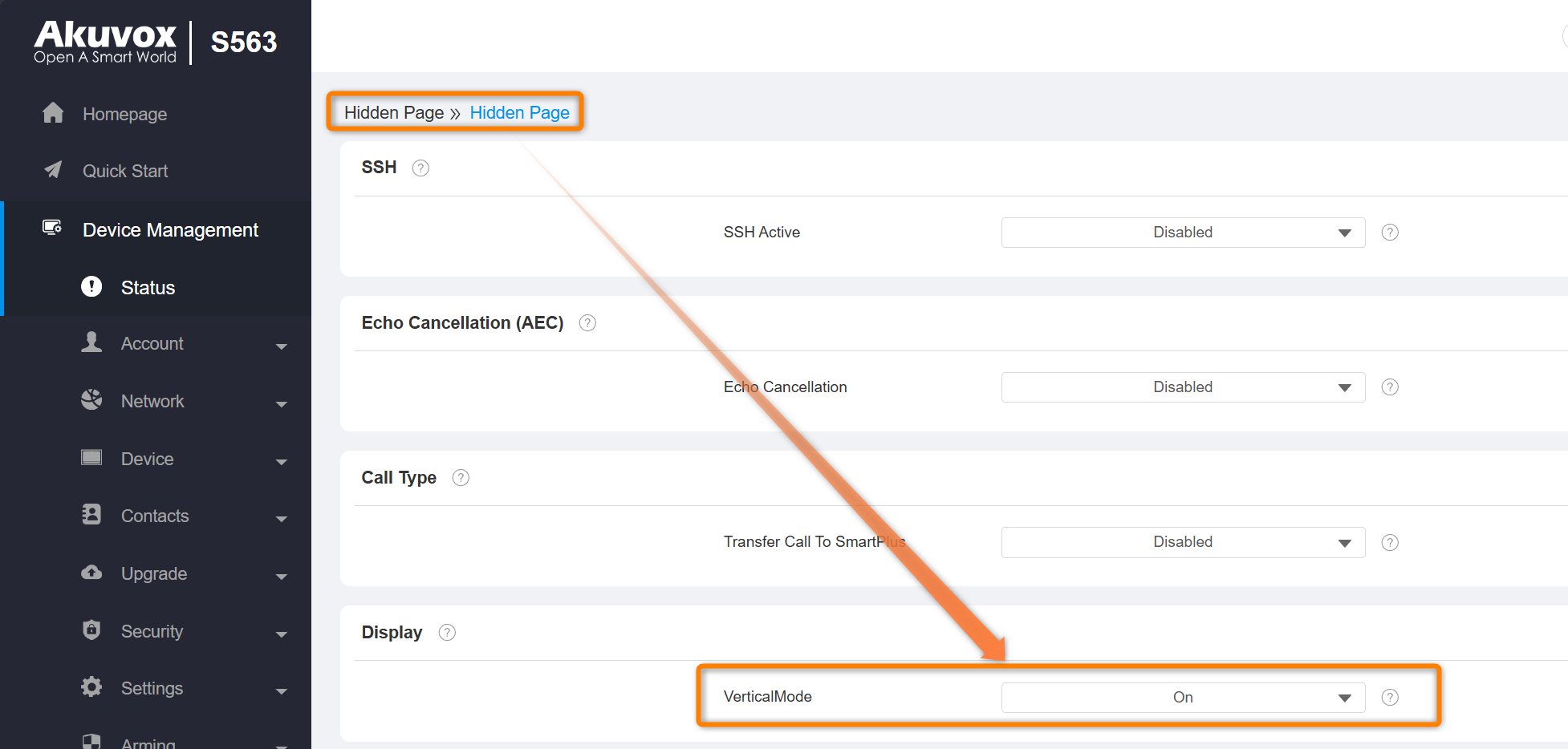

  4. Find the Display section.
  5. Look for Vertical Mode.
  6. To use the S563 horizontally (landscape), or Vertical Mode.
  1. Click Submit.

Akuvox states that Vertical Mode is supported from firmware 563.30.14.306 onward. Your device is on 563.30.15.502, so your firmware meets that documented requirement.
