Overview
The Akuvox S567 indoor monitor includes a built-in PBX (Private Branch Exchange) function, allowing intercom devices to communicate internally without requiring an external SIP server or the cloud.
This article explains how to configure and use the PBX feature via the web interface, including extension management and call handling.
Prerequisites
- Akuvox S567 powered and connected to the network
- Access to the device’s web interface
- Firmware supporting PBX functionality
- Administrator credentials
Accessing the Web Interface
- Find the IP address of the S567 using the Akuvox IP scanner software
- Open a web browser.
- Enter the IP address:
- Log in with admin credentials.
Enabling the PBX Function

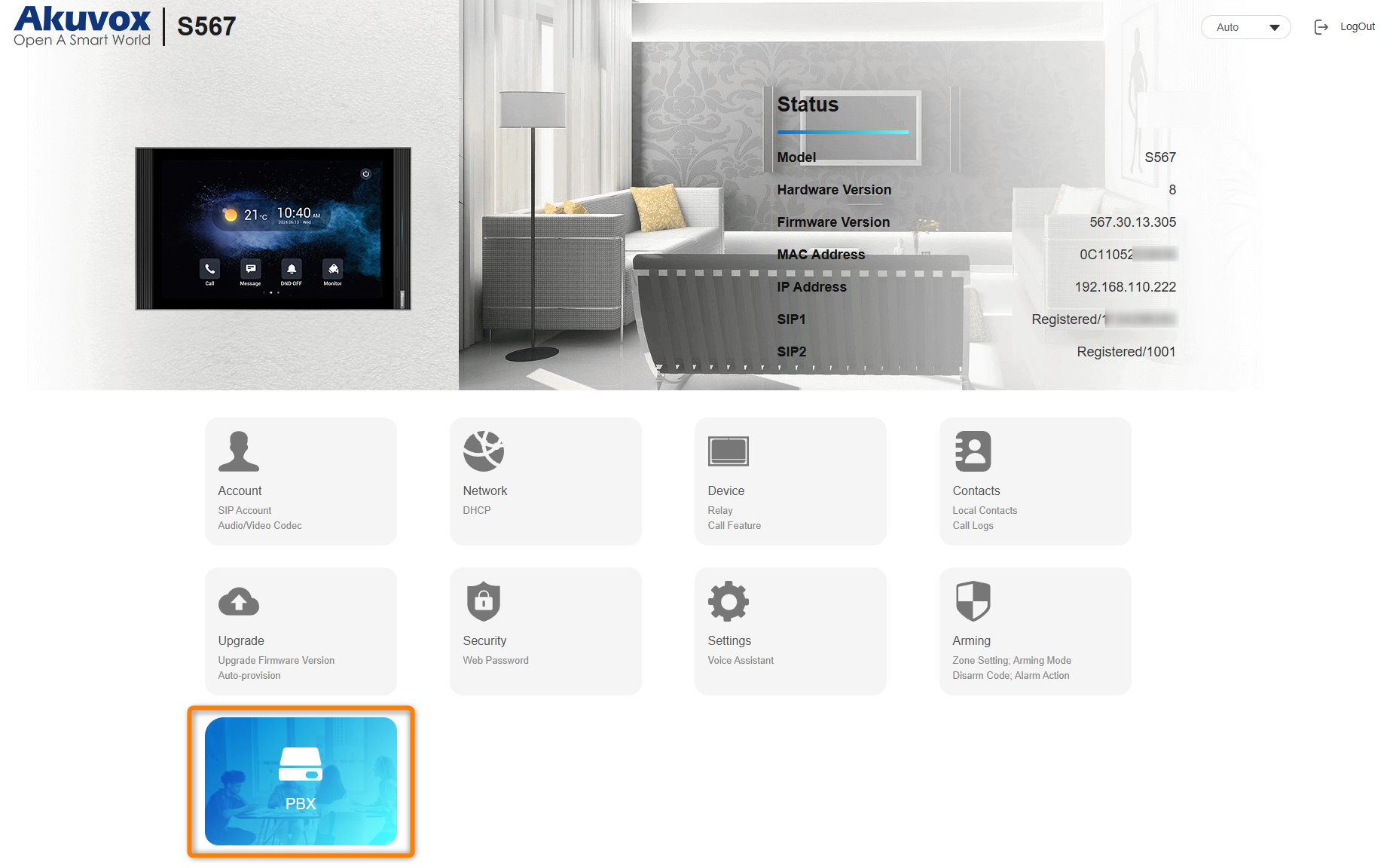

- Navigate to:

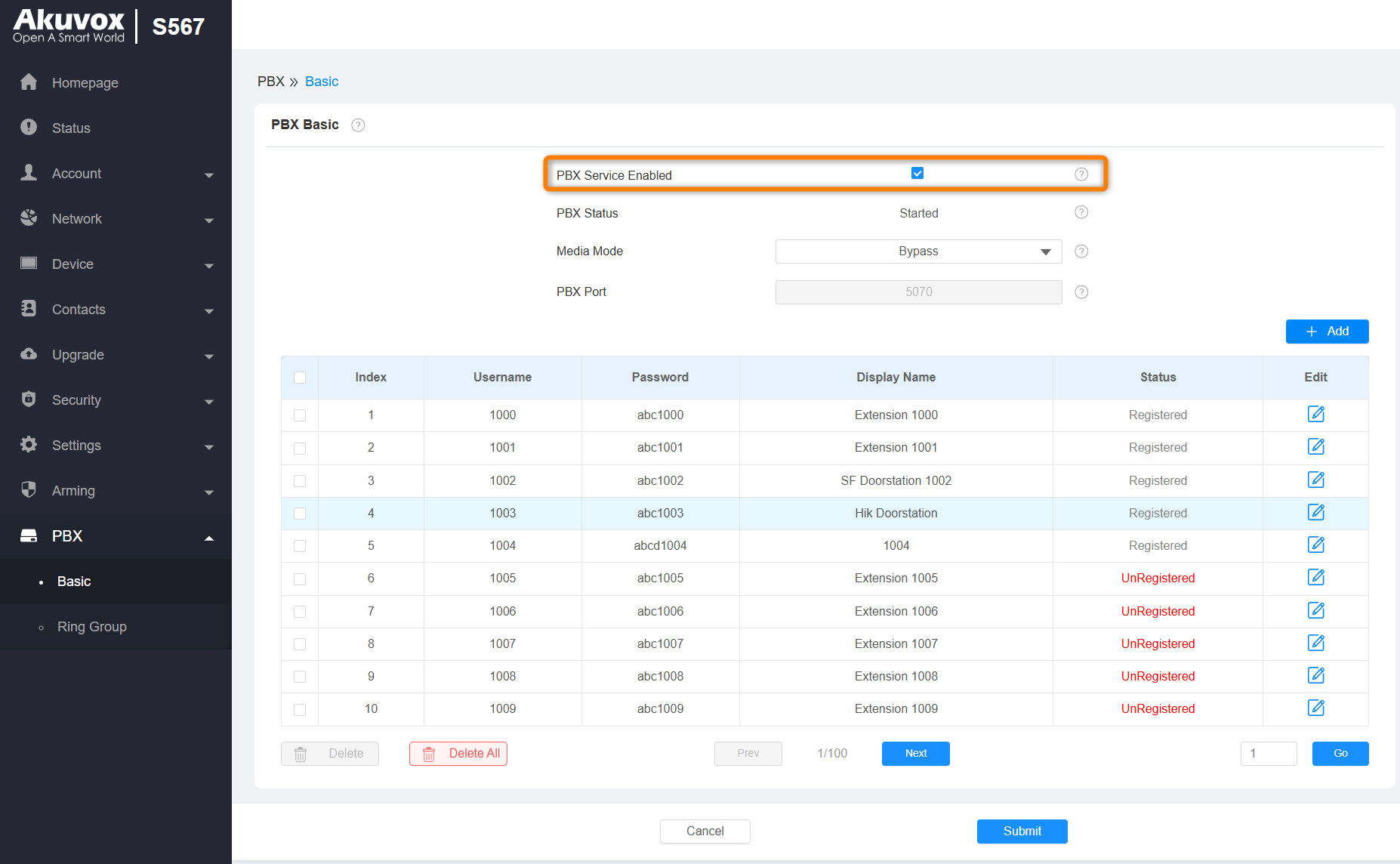

- Enable the PBX Server option.
- Click Save / Apply.
Once enabled, the S567 acts as a local SIP server, handling registrations and calls internally.
Example Setup
| Device | Extension |
|---|---|
| Indoor Monitor 1 | 1001 |
| Indoor Monitor 2 | 1002 |
| Door Panel | 2001 |
Registering Devices to the PBX
On each Akuvox device:
Monitor

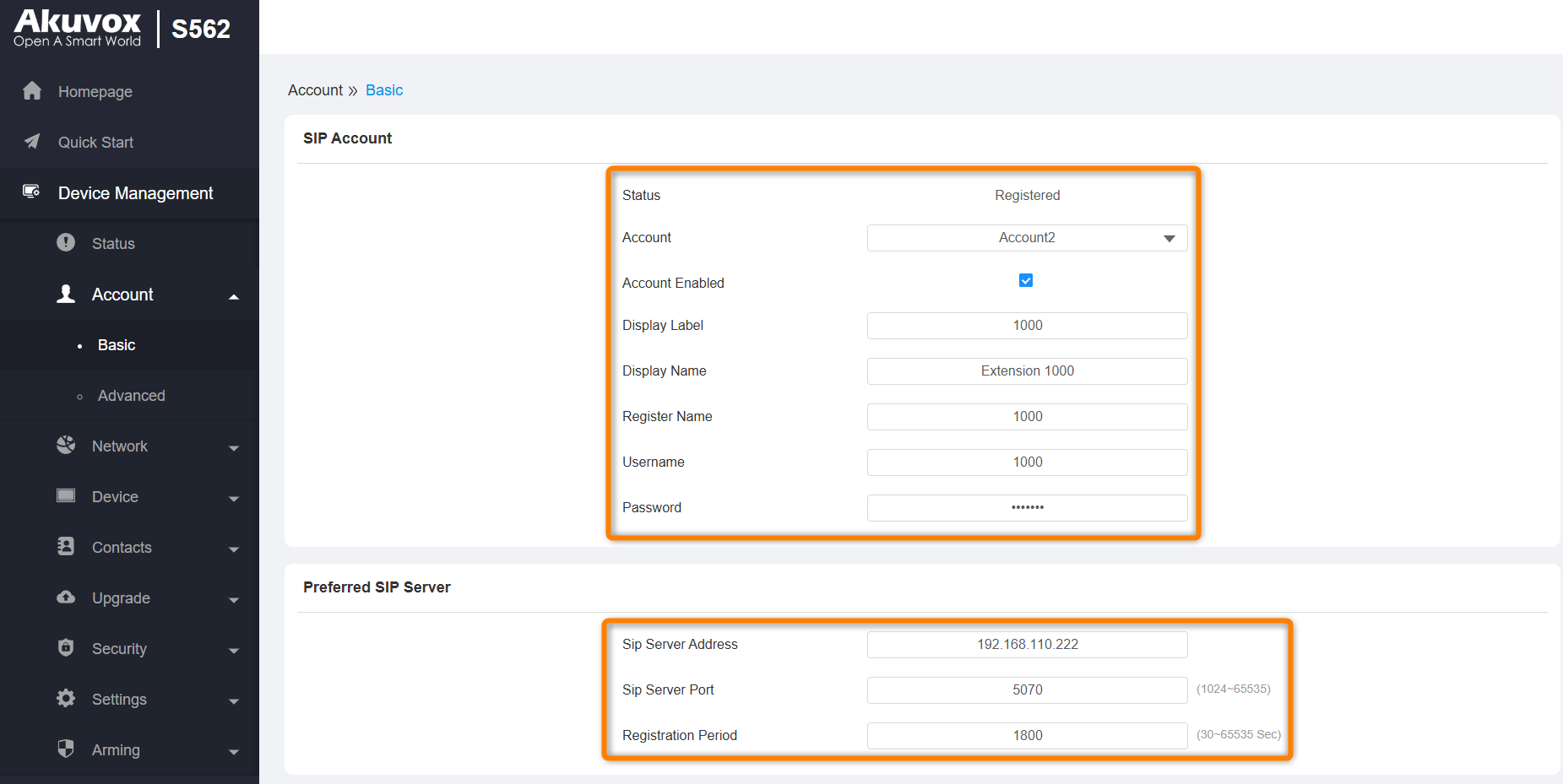

- Go to: Settings Account → Basic Account
- Configure:
- Account: Account 1 or 2
- Account Enabled: Enable
- Display Label: 1000 Is for screen line info on the monitor itself
- Register Name: Needs to be the same as the user name
- Username: Extension number
- Password: Extension password
- SIP Server: IP of the S567 (PBX host)
- SIP Port: Default (usually 5070)
- Registration Period: Default (usually 1800)
- Save and confirm registration status.
Doorstation

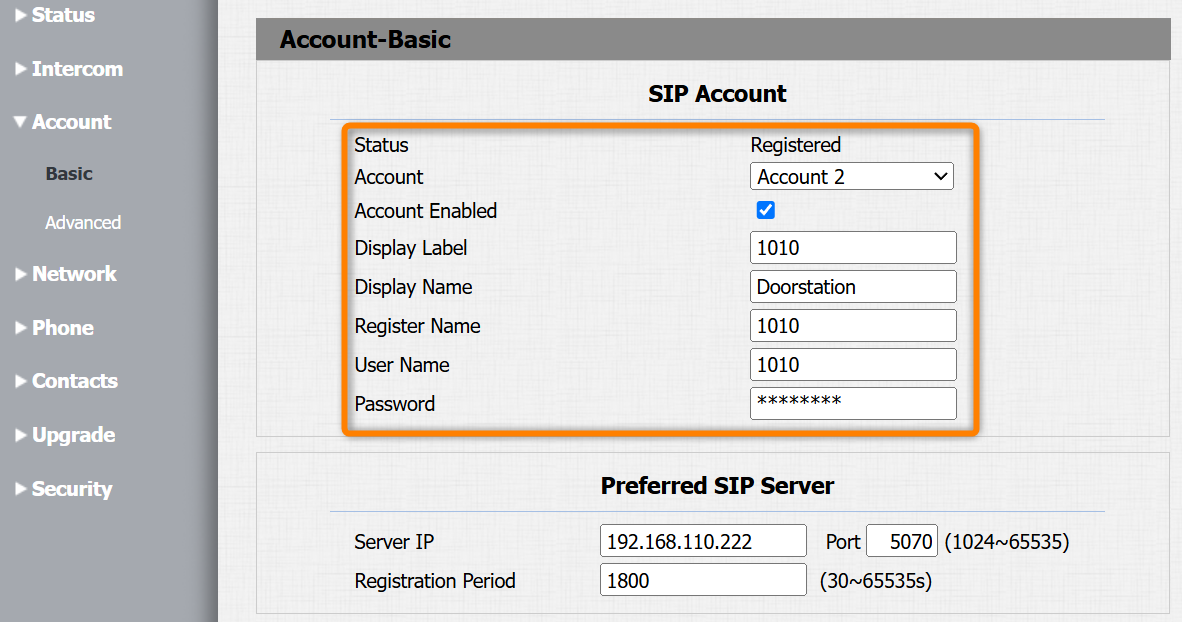

- Go to: Settings → Account → Account 2 when also using the Akuvox cloud server in Account 1
- Configure:
- Account: Account 1 or 2
- Account Enabled: Enable
- Display Label: 1010 It is for screen line info on the monitor itself
- Display Name: Is not related to the VoIP server
- Register Name: Needs to be the same as the user name
- Username: Extension number
- Password: Extension password
- SIP Server: IP of the S567 (PBX host)
- SIP Port: Default (usually 5070)
- Registration Period: Default (usually 1800)
- Save and confirm registration status.

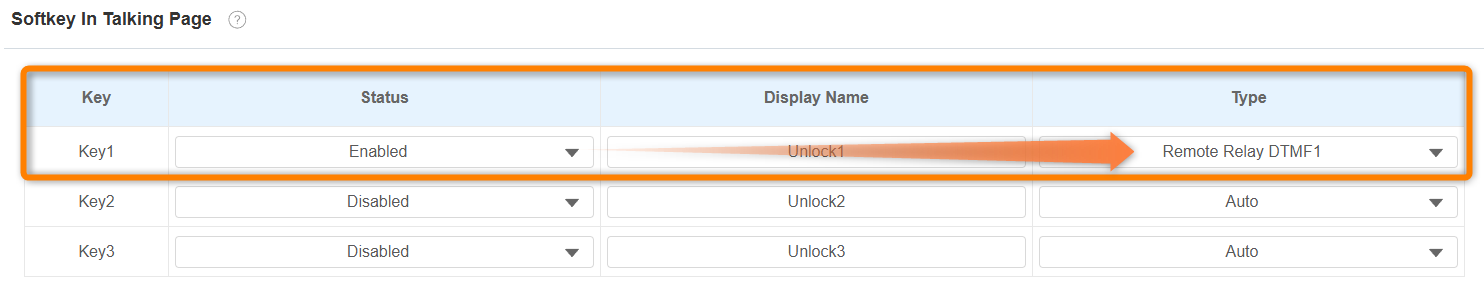

- Unlock functionality
Dial Manager Setup
Note: If the device is also connected to the Akuvox Cloud (SIP/VoIP server), this configuration can be useful for remote maintenance and for receiving calls through the Akuvox mobile app.
When multiple SIP accounts are configured, the device always uses Account 1 as the default account for outgoing calls.
How to stay connected to the Akuvox Cloud while calling indoor monitors through the Monitor PBX VoIP Server

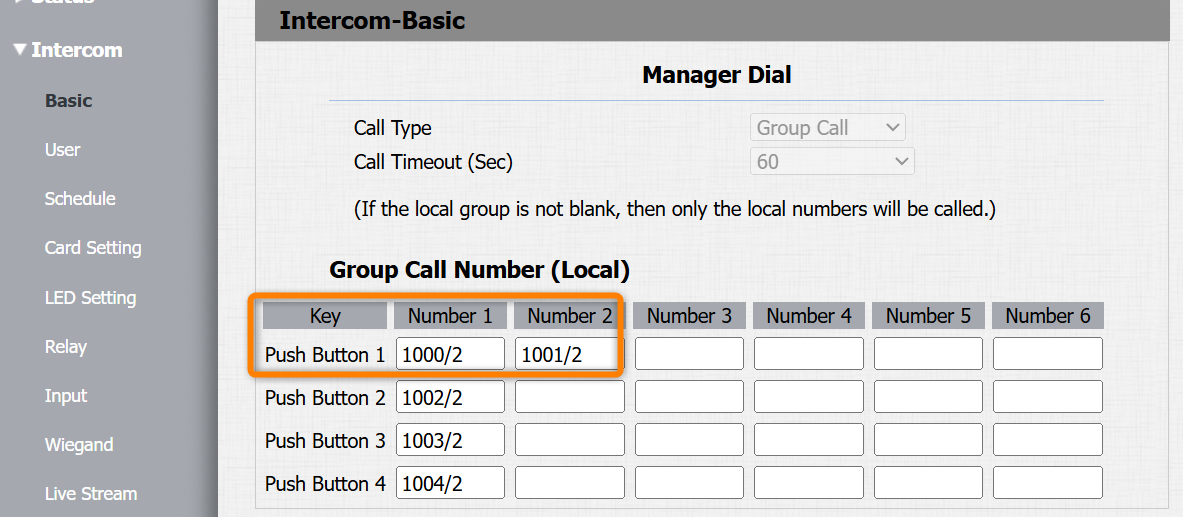

To keep the device registered to the Akuvox Cloud and still place calls through the monitor's local PBX VoIP server, configure the call destination to use the extension associated with Account 2.
For example, if extension 1000 was created in the PBX configuration, dial: 1000/2
/2 instructs the device to place the call using Account 2, which is registered to the local Monitor PBX VoIP server, while Account 1 remains connected to the Akuvox Cloud. This allows both services to operate simultaneously.Testing the Setup
- Check extension registration:
- Perform a test call:
- Monitor to monitor
- Panel to monitor
- Verify audio, video, and door unlock functionality.
Troubleshooting
Device not registering
- Check SIP server IP
- Verify extension credentials
- Ensure PBX is enabled
No audio/video
- Check network (VLAN, firewall)
- Confirm codec compatibility
Call not reaching extension
- Verify dial number
- Check extension status (registered)
Best Practices
- Use structured numbering (e.g., 1xxx indoor, 2xxx panels)
- Assign strong passwords to extensions
- Keep firmware updated
- Limit PBX usage to small/medium installations
Conclusion
The Akuvox S567 PBX function provides a simple and powerful internal communication system without requiring external infrastructure. Proper configuration of extensions and SIP accounts allows seamless communication between monitors and door panels.
