Note:
This sample is made with a SF-NVR8208-4FACE NVR Firmware version: V5.0 build 200826
how to configure time-lapse recording on a Safire NVR or XVR?

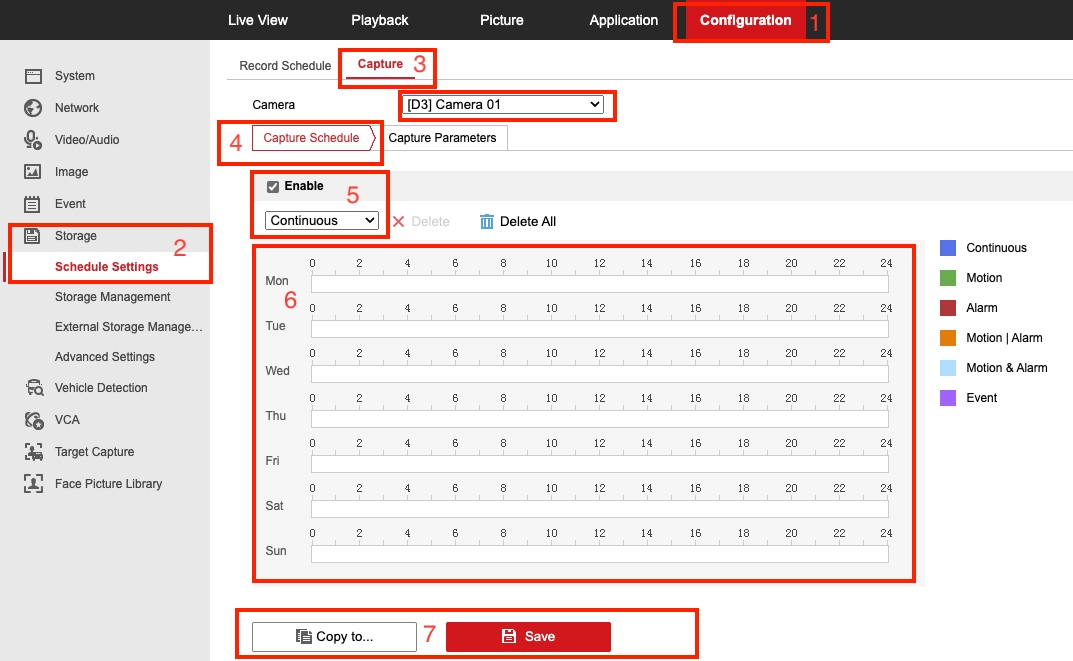

1. Open the recorder's configuration page via Safire Control Center or Internet Explorer.
2. Via storage > Schedule Settings
3. Open the Capture tab
4. When in the Capture Schedule the recording type is selected (5)
6. Select the time and days of the week
7. Copy to other cameras when necessary and save

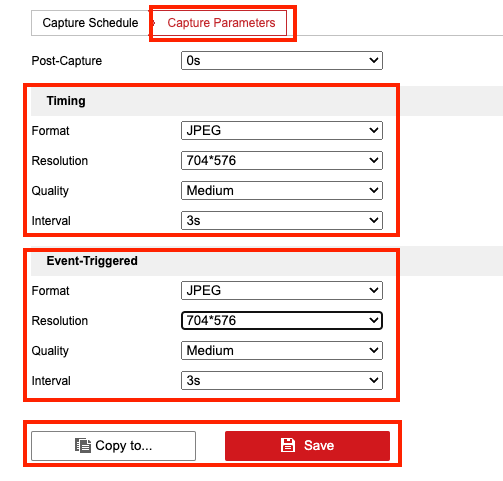

8. Go to the Capture Parameters tab and set resolution, quality and interval for time and or trigger event Save and or copy settings to other cameras
