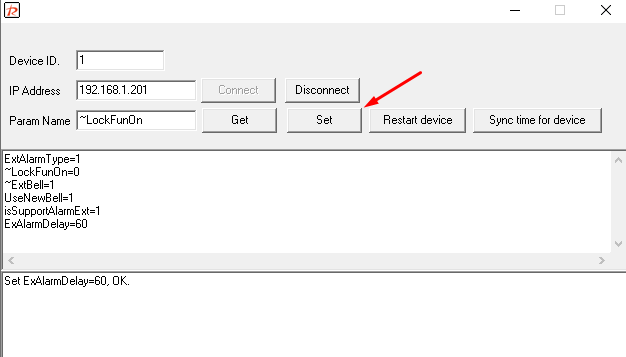

To configure the terminal for the relay output to be activated by a schedule, it is first necessary to make some changes with the SetParamToolsoftware:
The changes to be made are as follows:
ExtAlarmType=1~LockFunOn=0~ExtBell=1UseNewBell=1isSupportAlarmExt=1ExAlarmDelay=60
(this is the alarm duration time in seconds)
Once this is done, we would have to make the following configurations:

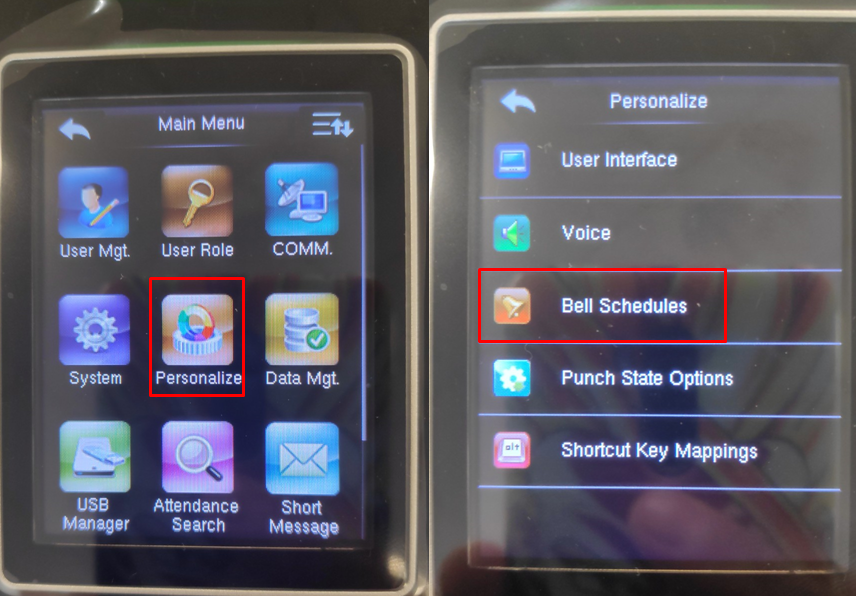

- Customize - Siren Time - Options. Here what we are going to configure is which relay output we want to be activated when the time we will set later arrives:
Of the two outputs we have:

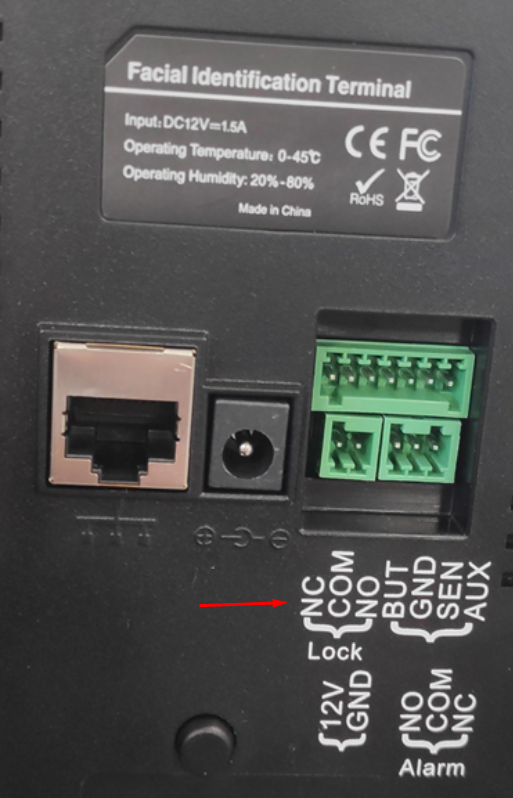

- NC1: is the door terminal relay output

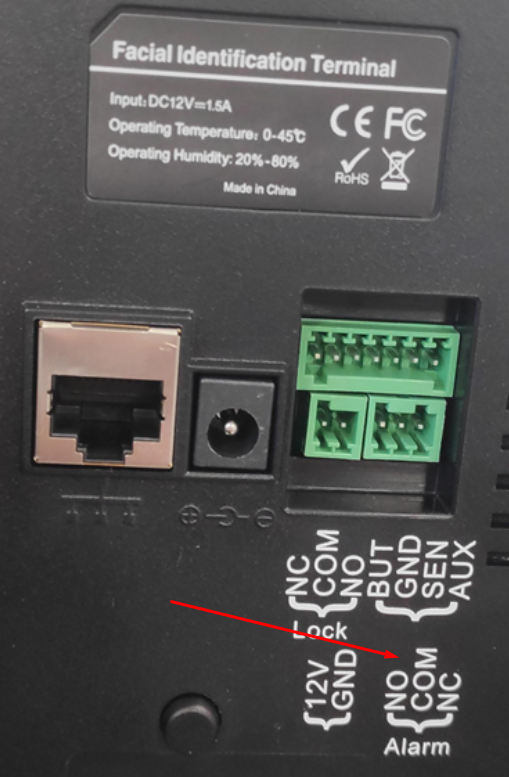

- NC2: is the alarm output of the equipment

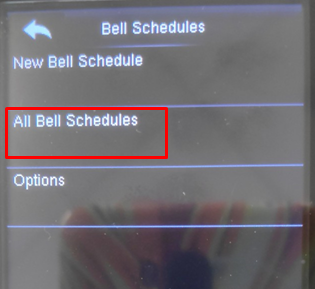

- Once we have decided which of the two outputs we want to activate, we will go on to set the siren times. Go to Customize - Siren time - New siren. IMPORTANT: specify internal and external siren, or at least the external one.
