Safire Smart NVR - Add users / user group local / remote and add the XVR in the mobile app.
When there is an administrator and user that can have access to the Recorder.
For this, there are the following options:
Adding and editing permission groups
1. Local:
Via the recorder:
Adding user levels
Adding users
Via the recorder web interface:
Adding user levels
Adding users
2. Remote:
Via NAT https://www.autonat.com/ this without port forwarding:
Adding user levels
Adding users
Via Safire Smart VMS:
Adding users
Local via the recorder
Adding and editing permission groups

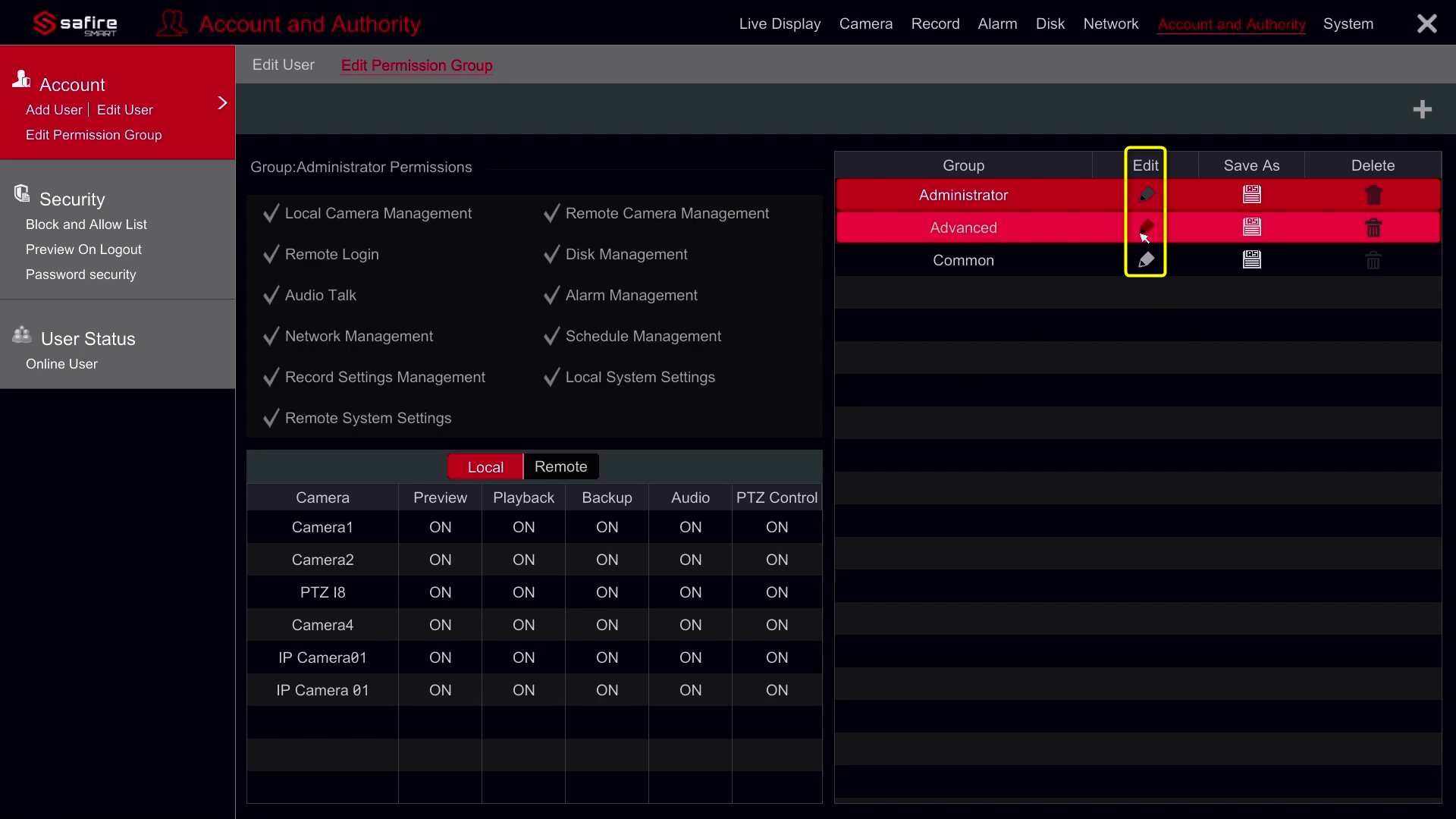

The first task is to check edit or add a user group
Via setting > Account > Edit Permission Group
Click on the edit icon to edit the rights for that group

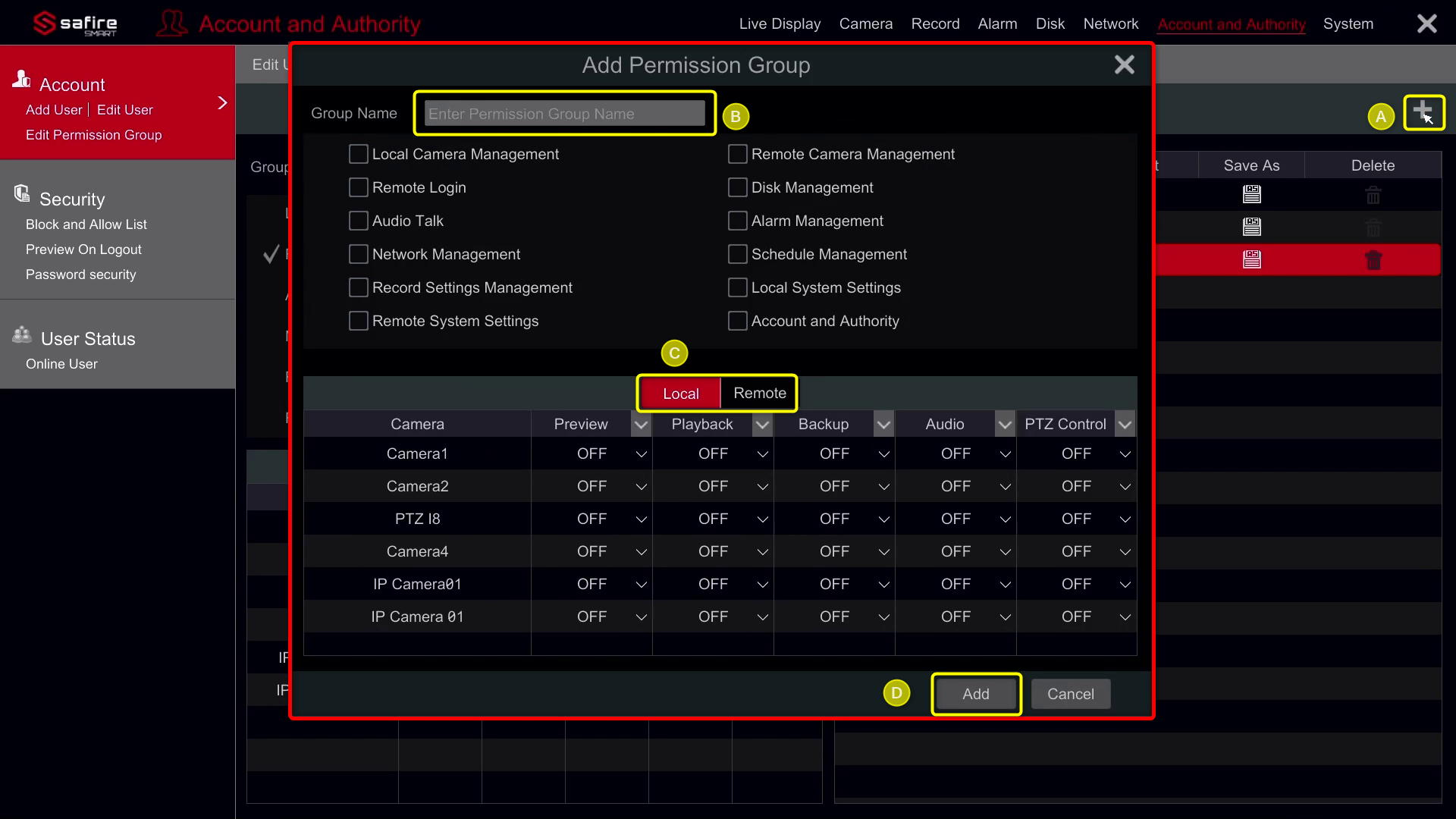

Adding a permission group:
A. Click on the plus icon in the top right
B. Give the group a name and set the basic permissions
C. Then for the camera via local access and remote access
D. When done, click on Add

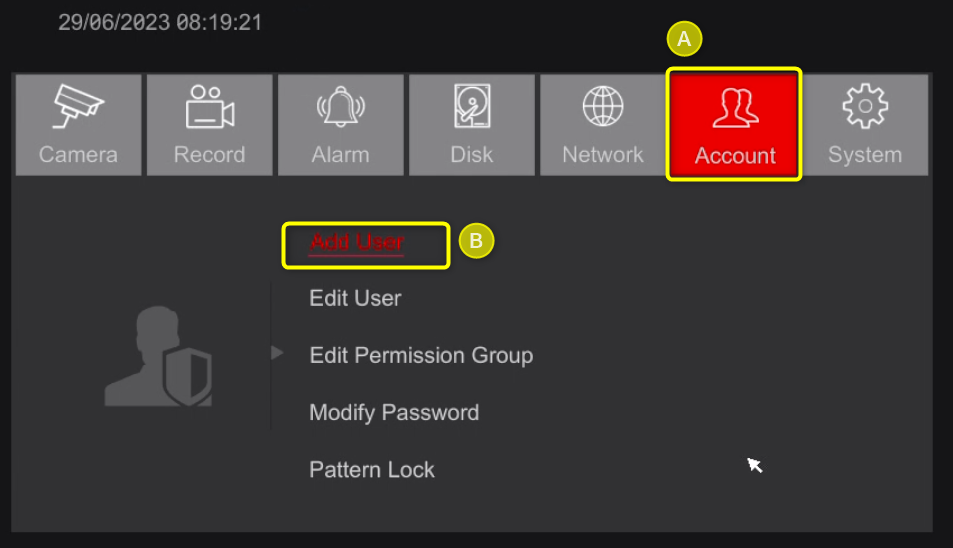

Adding new users
A. Go to account in the settings menu
B. Then Add User

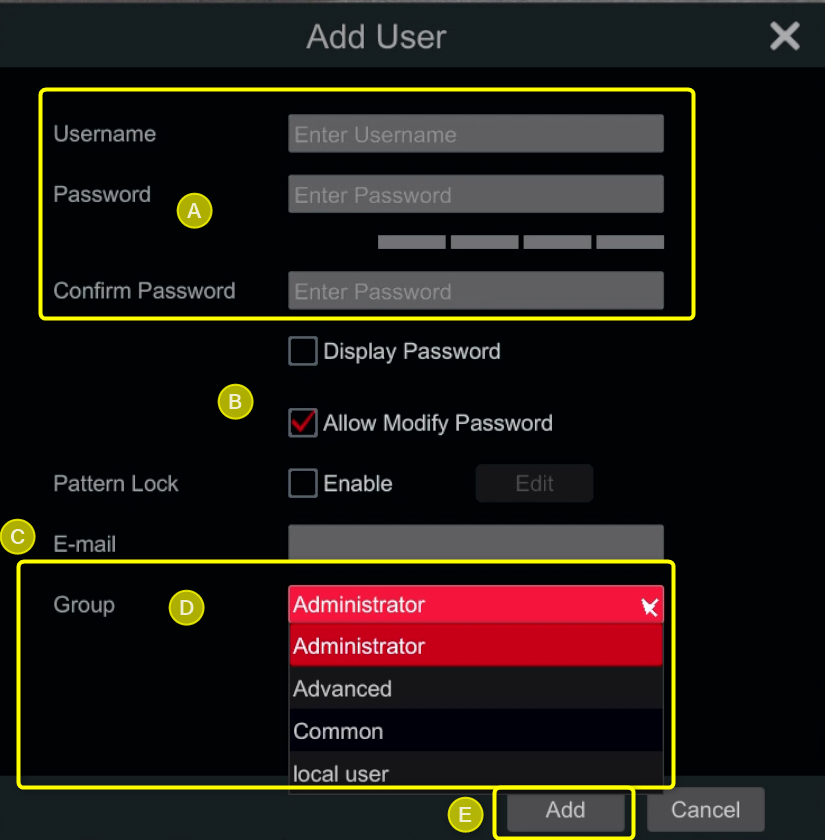

A. Enter a username and password
B. Select the options of choice
C. The e-mail address is not mandatory
D. Select the access group of permissions for this user
E. Click on Add to add and save
Local via the web interface:
Open the config page from the recorder in the web browser using the IP address from the recorder.
Then she same steps as in the instructions above.
Add user group via Web interface
Add users via Web interface
Remote
Via NAT https://www.autonat.com/ this without port forwarding
https://www.autonat.com/

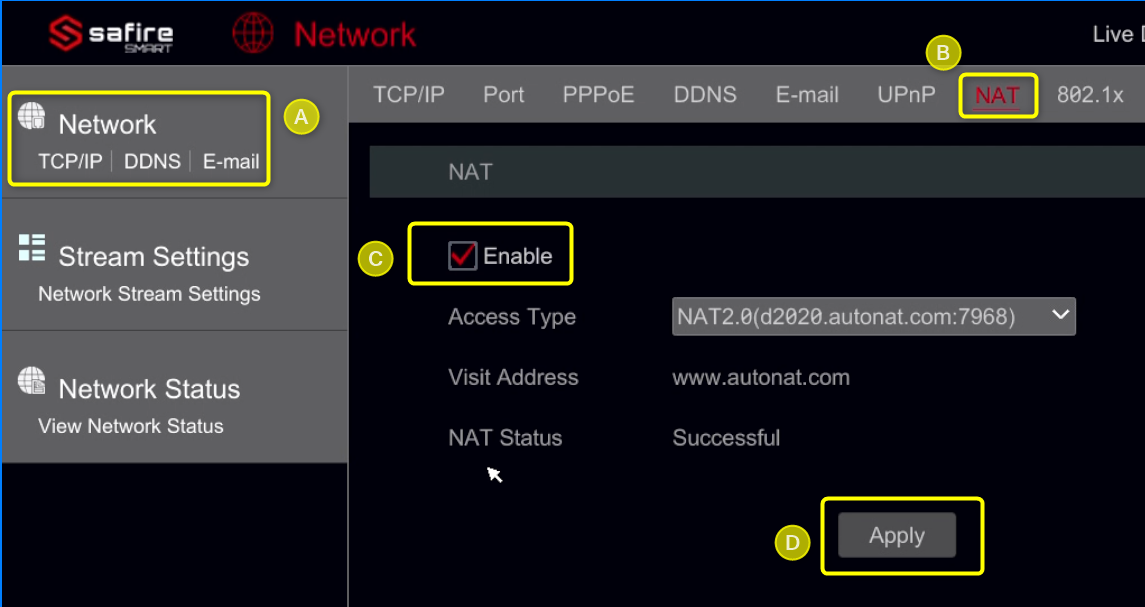

Before using the P2P web interface, check if the NAT P2P is active.
A. Open the Network tab via the config menu
B. Select the NAT tab
C. Make sure it is Enabled
D. Then Apply to save
F. Below you can see the device serial number as well, write or save this serial number this is needed in the next step
A. Open the https://www.autonat.com/ in MS Edge

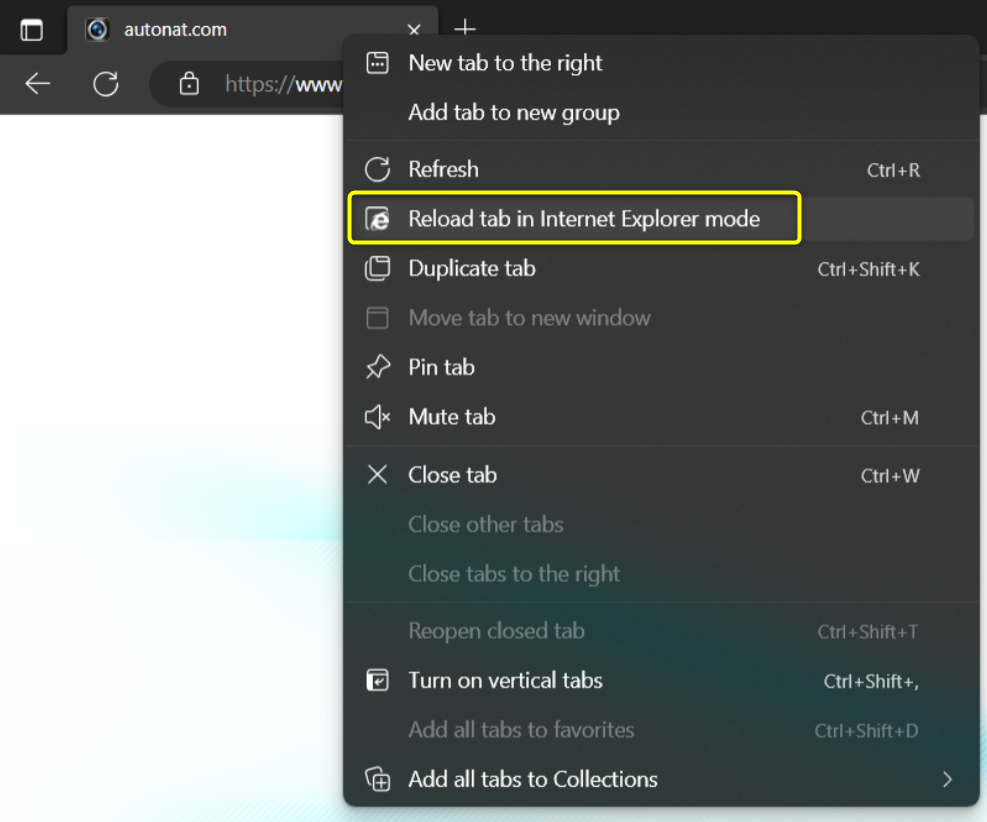

B. Reload the tab in Internet Explorer mode
When connecting for the first time, you need to install the web components, follow the instructions in the web browser.

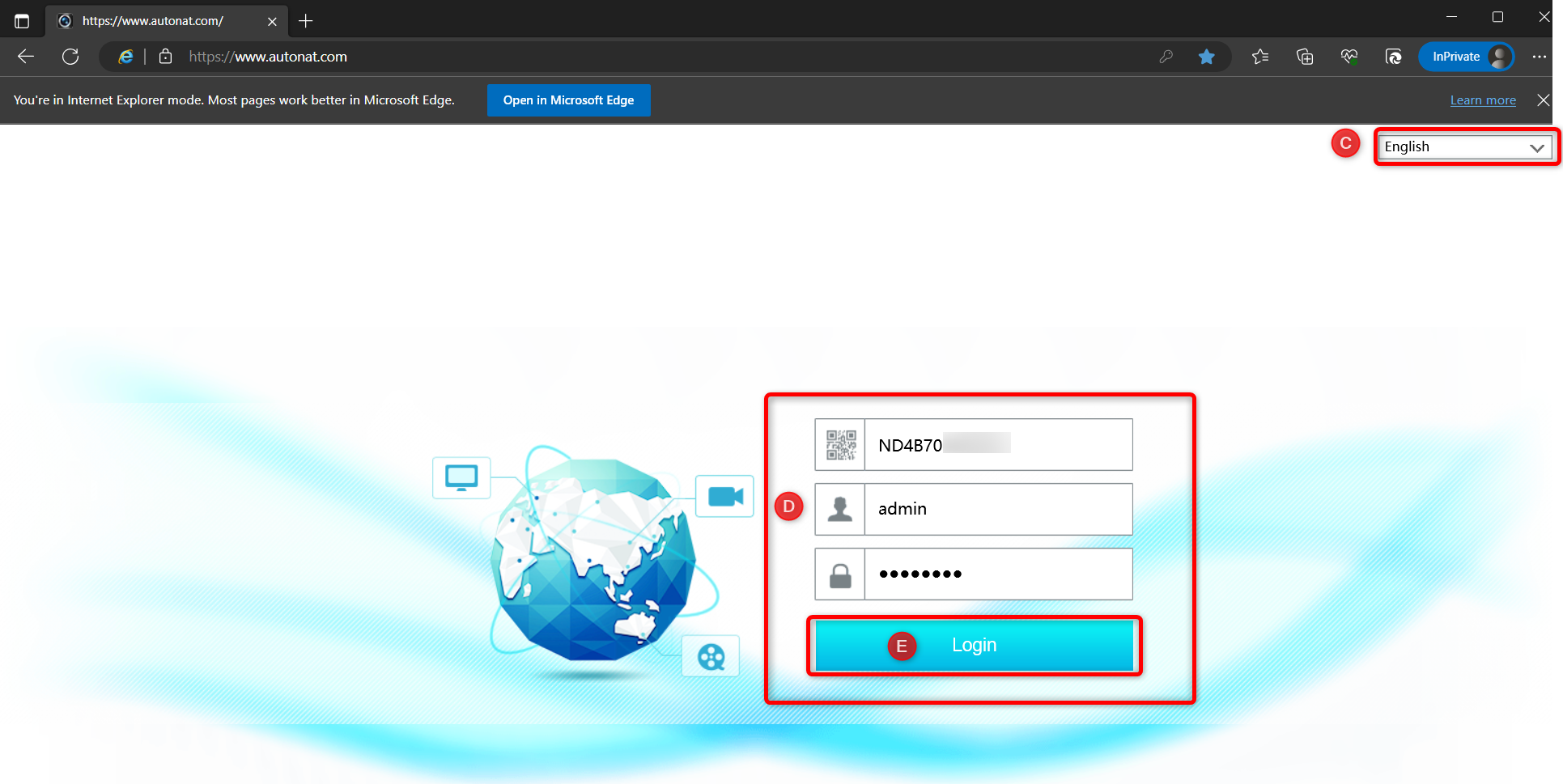

C. Select the language
D. Enter the XVR serial number username and password for that user
E. Click on Login
The rest is the same as the steps via local IP or the UI on the XVR
Via Safire Smart VMS
Download and installation instructions: - Installing Safire Smart VMS
First, the device needs to be added in the VMS this can be done via local IP address or serial number.
Now for remote we need to use the serial number.

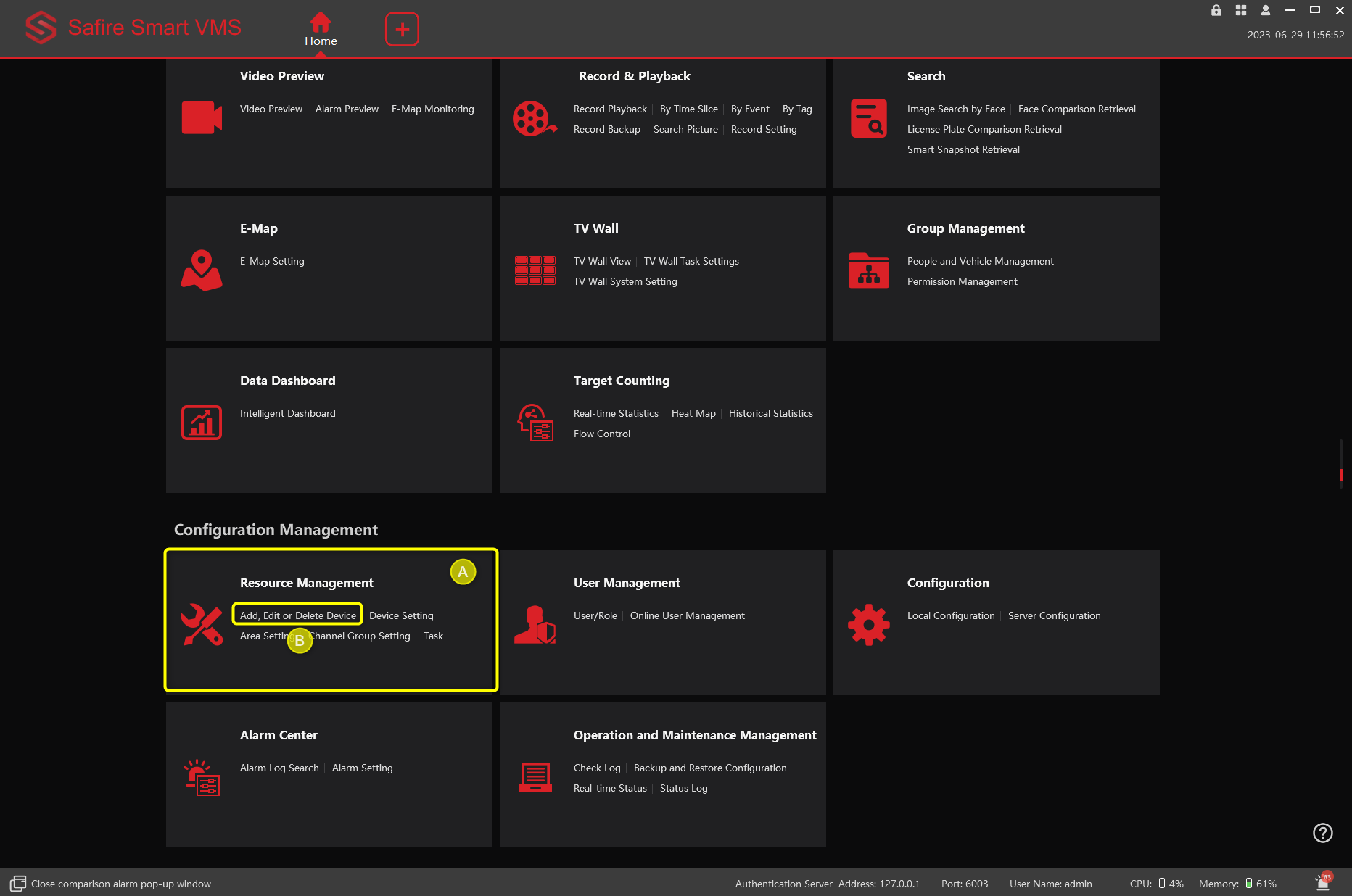

A. In the Remote Management B. Click on Add, Edit or Delete Devices

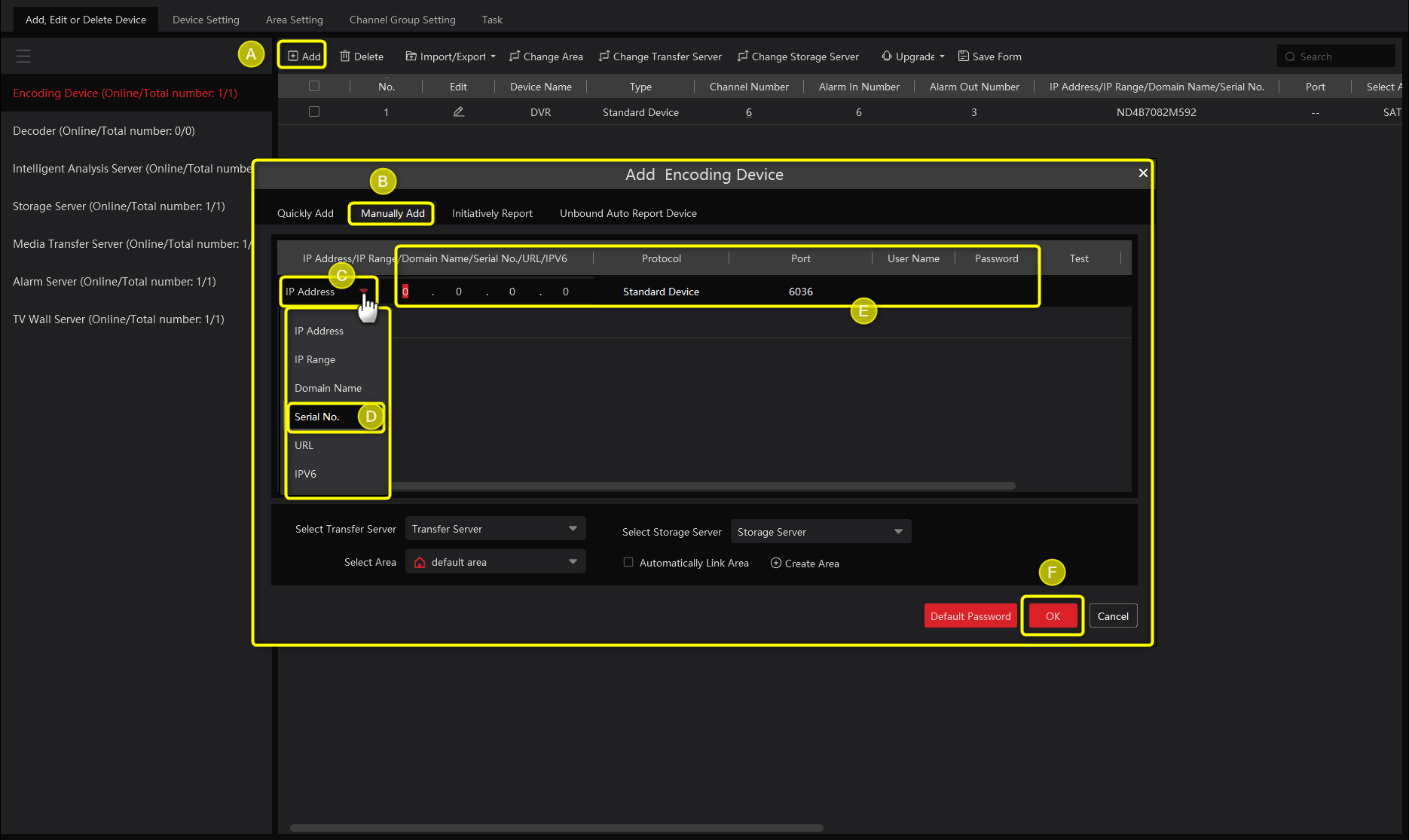

A. Click on Add and this will open the new window
B. Then Manually Add
C. Click on the down arrow next IP Address
D. Select the Serial No, option in the list
E. Add the Serial number Username and Password
F. Click on OK

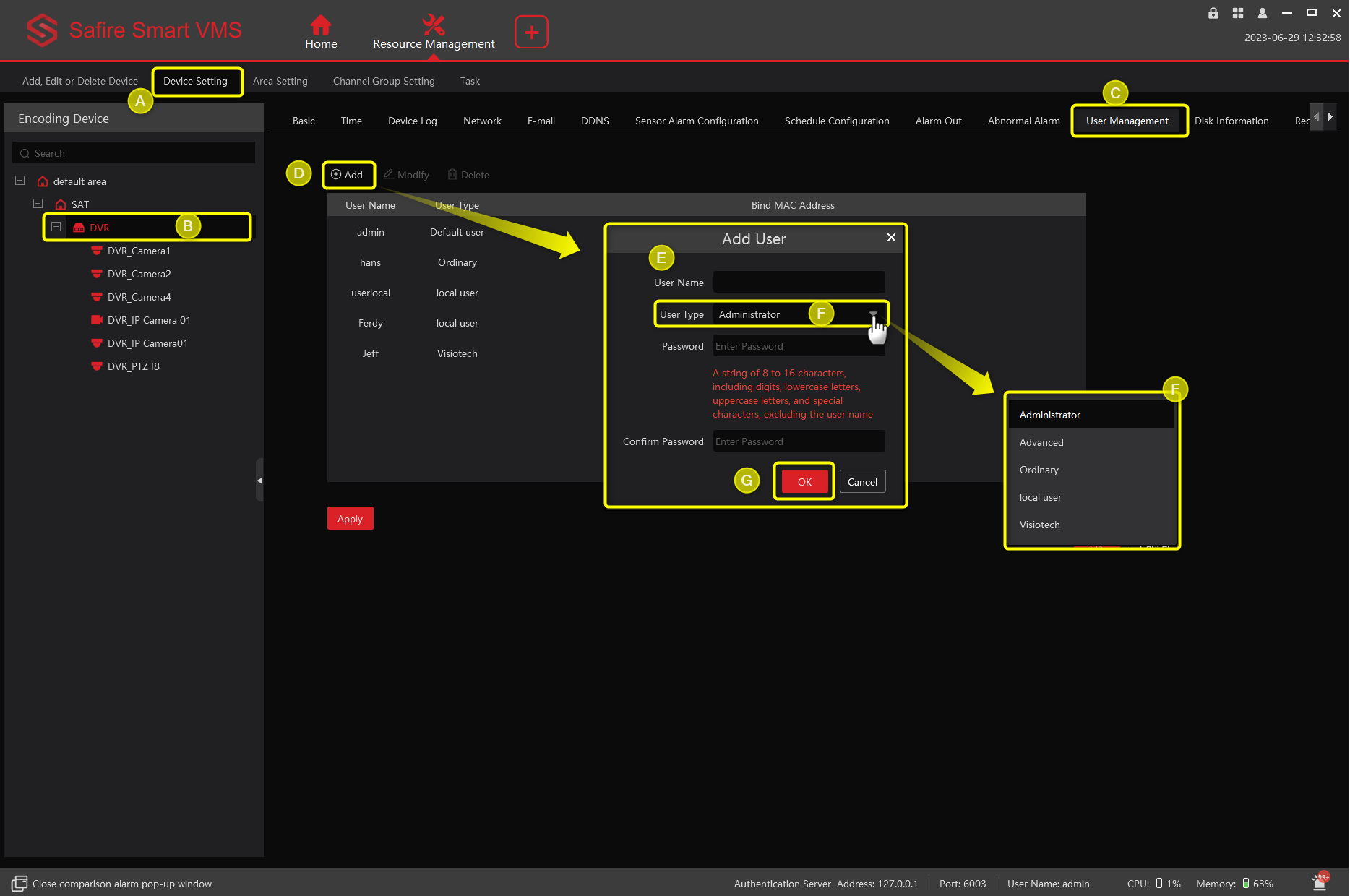

Now adding new users.
A. Go to the TAB Device Settings
B. Select the recorder
C. Go to the tab User Management
D. Click on Add to add the new user
E. Enter a username and password for the new user
F. Select the user type
G. Ok to save and add the user details
Now that we have created a user
We send the following instructions to the new user.
The Serial number or QR code from the XVR and the username and password.
Dear new user, we have created an account so that you have direct access via the Safire Smart app.
Serial Number: ND4B7082AAD
Username: user44
Password: 1234qwerz
- The Safire Smart app. is available in the Google Play Store and the Apple app store.
- Open the Safire Smart app.
- Agree on the Privacy Statement
- Skip adding a device

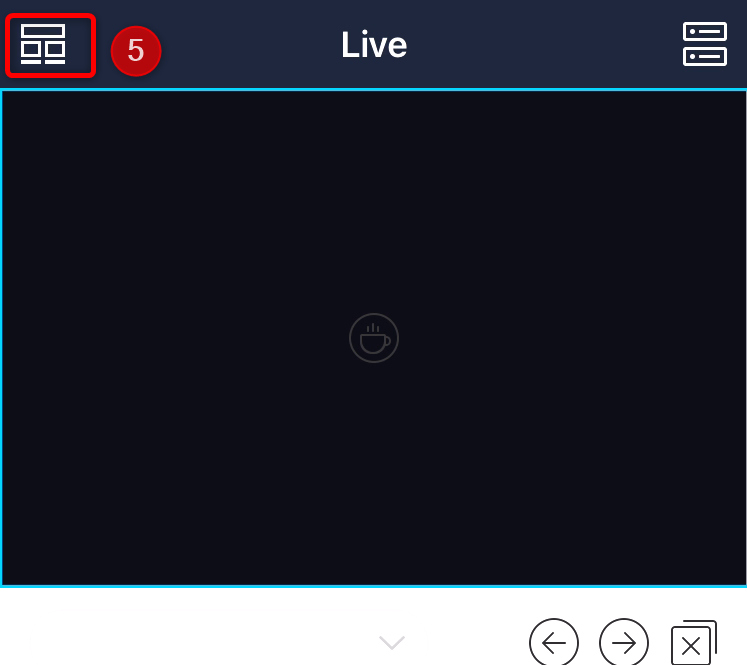

- select the left top menu

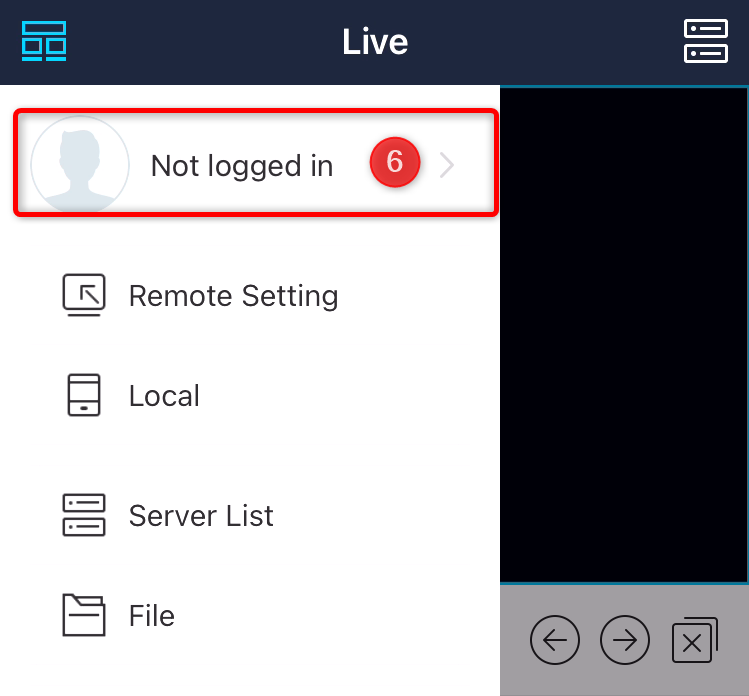

- Click on Not Logged in

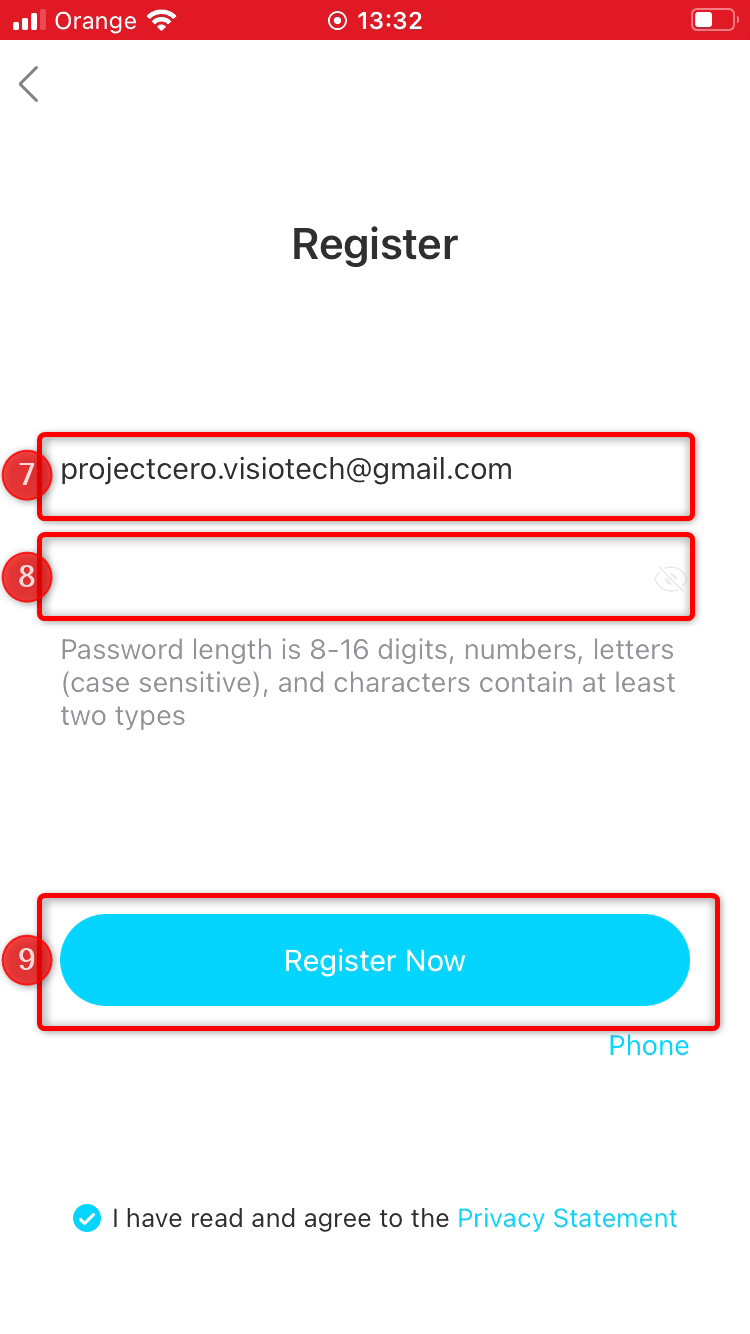

- Enter an email address
- The password (this does not need to match the password from the XVR)
- To confirm and click on Register Now
- Open the email that you have been sent to email address

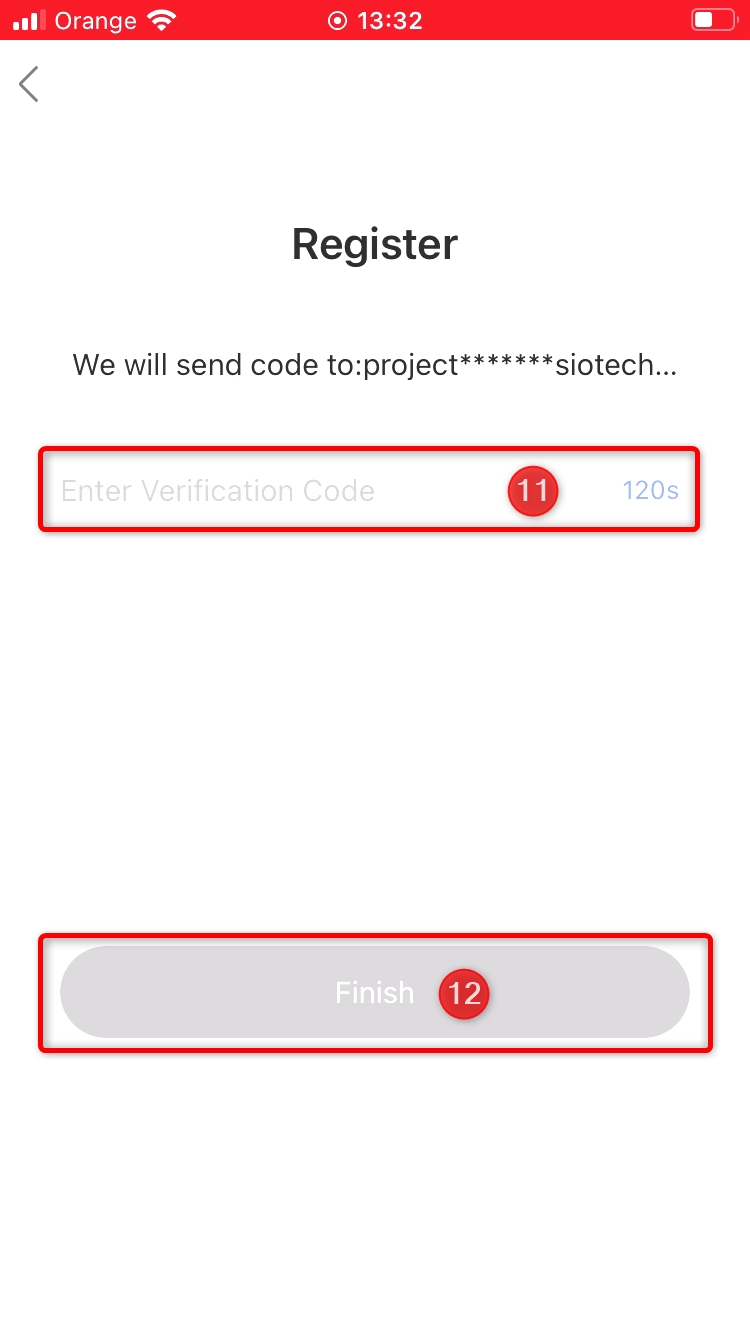

- User the Verification Code from the mail
- Finish to confirm

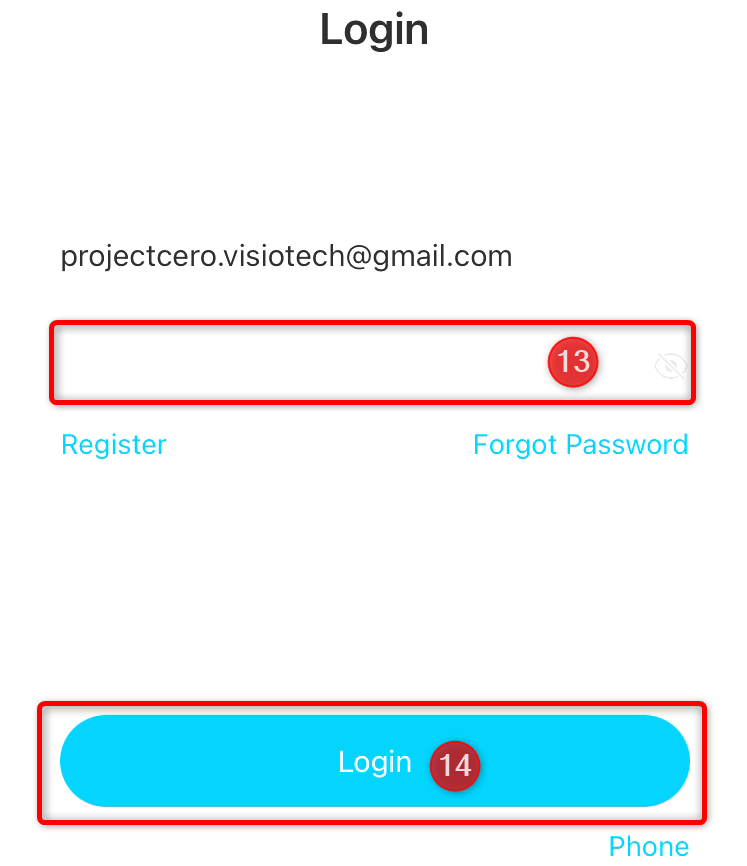

- Then the password that was created in step 8
- Then Login

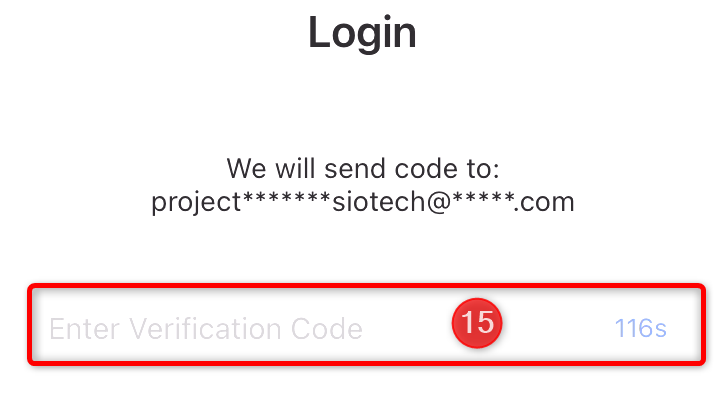

- Again, use that new Verification code that have been sent to the email address
- Then click on Login
Now the app is ready, the XVR can be added to this account.
Note:
Each time you log out or log in on a different device, an email is sent with a verification code.
Adding a XVR in the Safire Smart app.

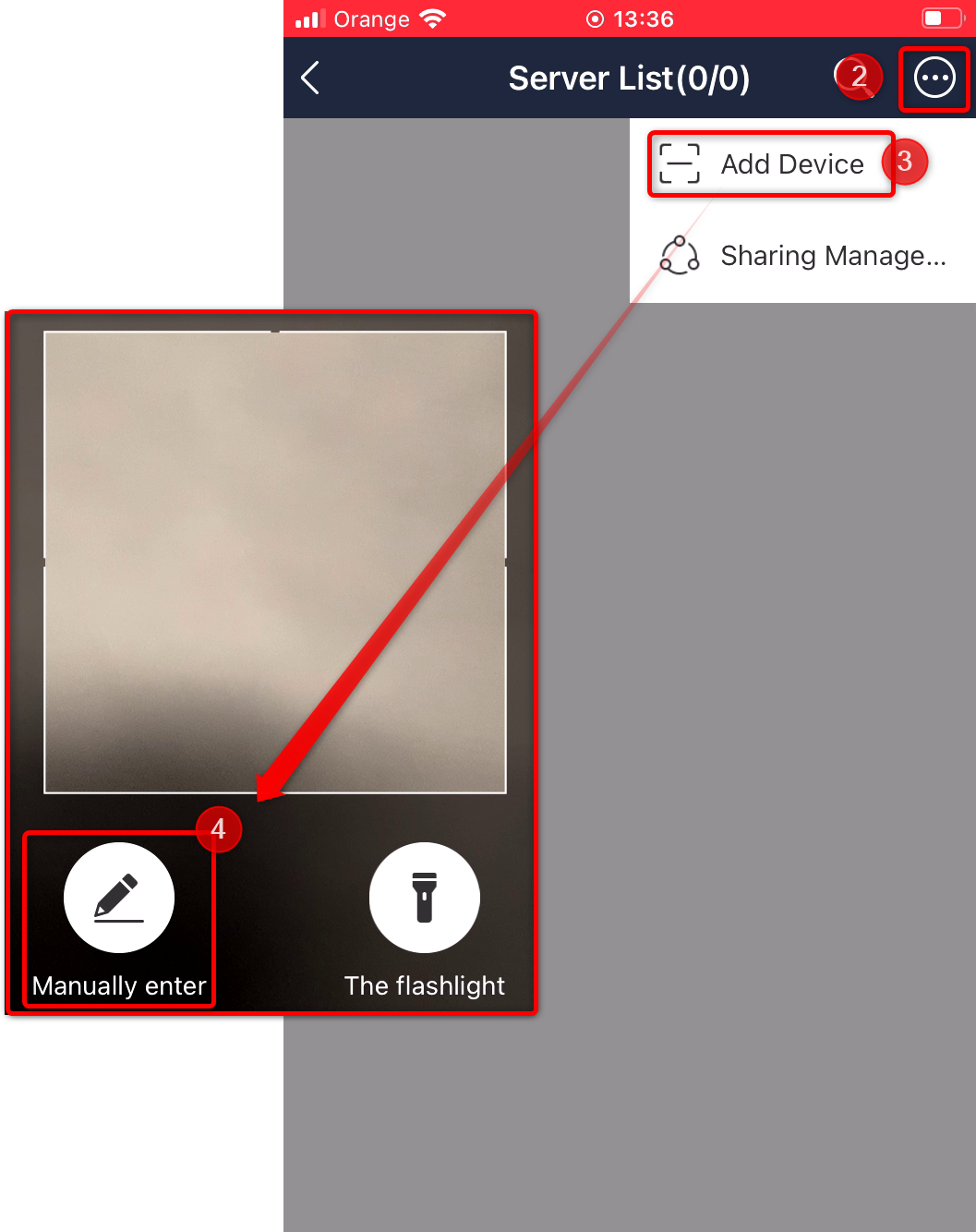

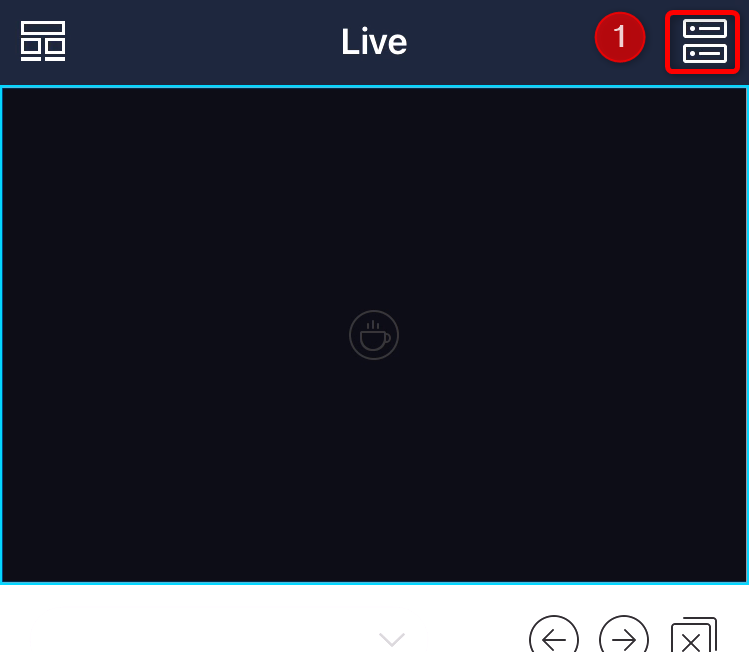

- Select the left top menu
- Select the 3 dots menu
- Select Add Device
- Select Manually enter the serial number
- Select Security Code to change

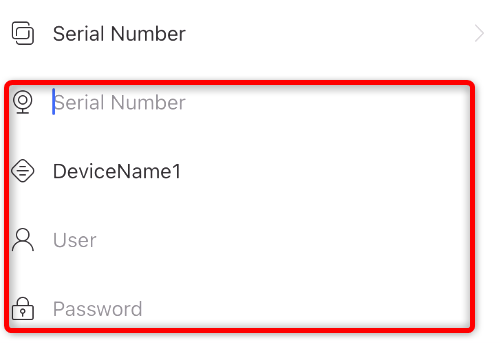

- Then select Serial Number to enter the serial number that you have received in this email
- Enter the serial number, see your user details. There is the option to change the Device name, this will not affect the XVR
Now the XVR has been added in the app.
A. Edit
B. Play (for live images)
C. Delete the device
D. Limited configuration setting in the XVR
E. Display the QR code from the XVR
