To request a snapshot of an IP camera or a channel from a Safire Smart recorder, use the following URL.
The default HTTP port is 80.
Channel ID is the channel of the recorder from which the capture is to be taken. In the case of cameras only 1
Example:
Recorder channel 1- http://admin:password@ipaddress:80/GetSnapshot/1
Recorder channel 2- http://admin:password@ipaddress:80/GetSnapshot/2

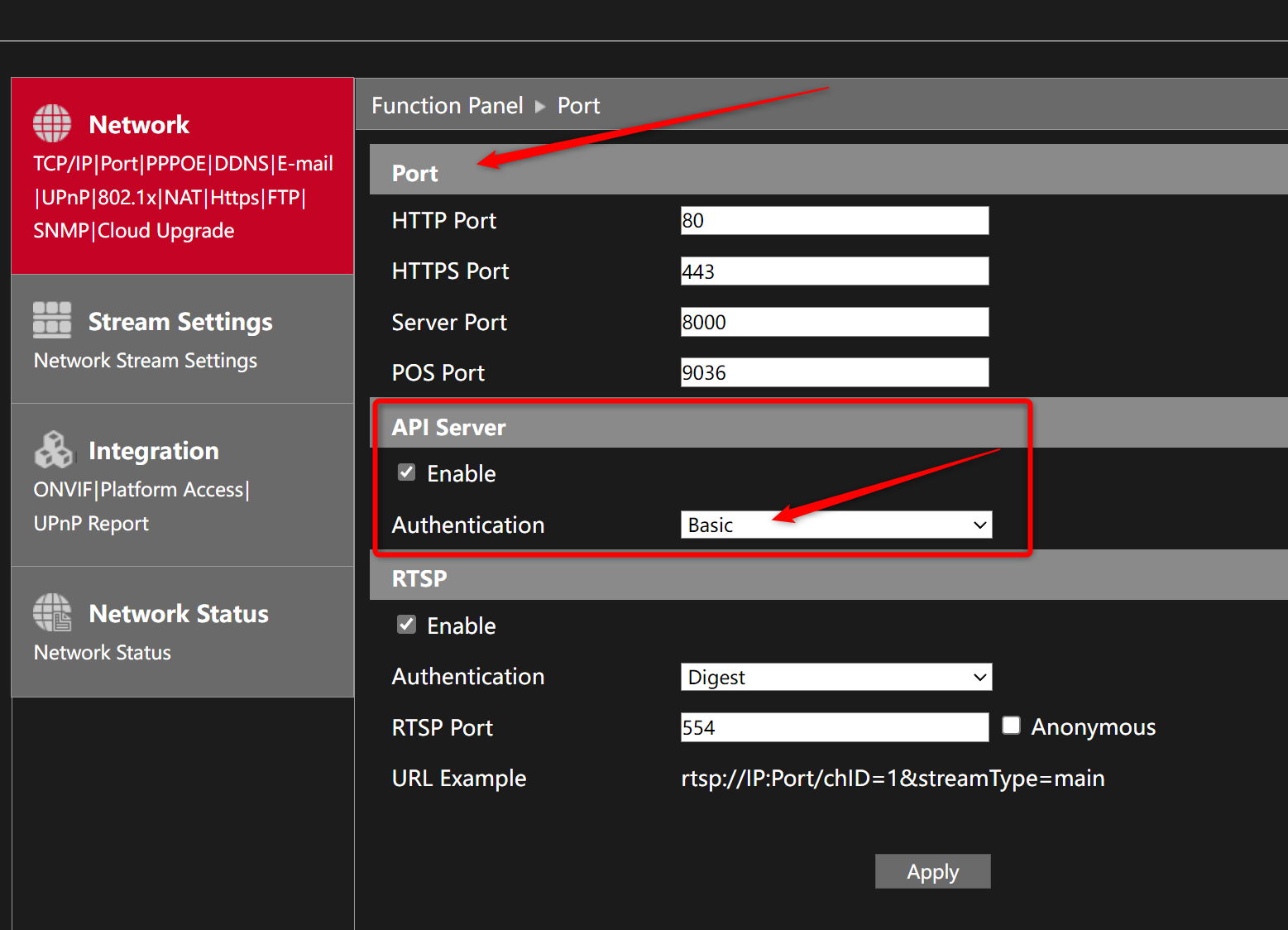

In the recorders, it is important to enable the option of API Server (Basic) in the section of the ports:
In certain camera models, instead of showing a screenshot on the browser page itself, it will download a file:
This file has no extension as such when downloaded, but if it is run and opened with a browser, the capture is displayed. Another option is to manually put an extension. JPEG or similar image, and it could already be opened with any software that reads this format.
For IP cameras are used:
http://User:Password@IP_CAM/GetSnapshot/profile1
