Safire Smart Decoder Configuration

Safire Smart decoders come factory-set with the IP 192.168.0.201, so the first step is to set your PC to the same range to access its web interface and establish the desired password and IP.

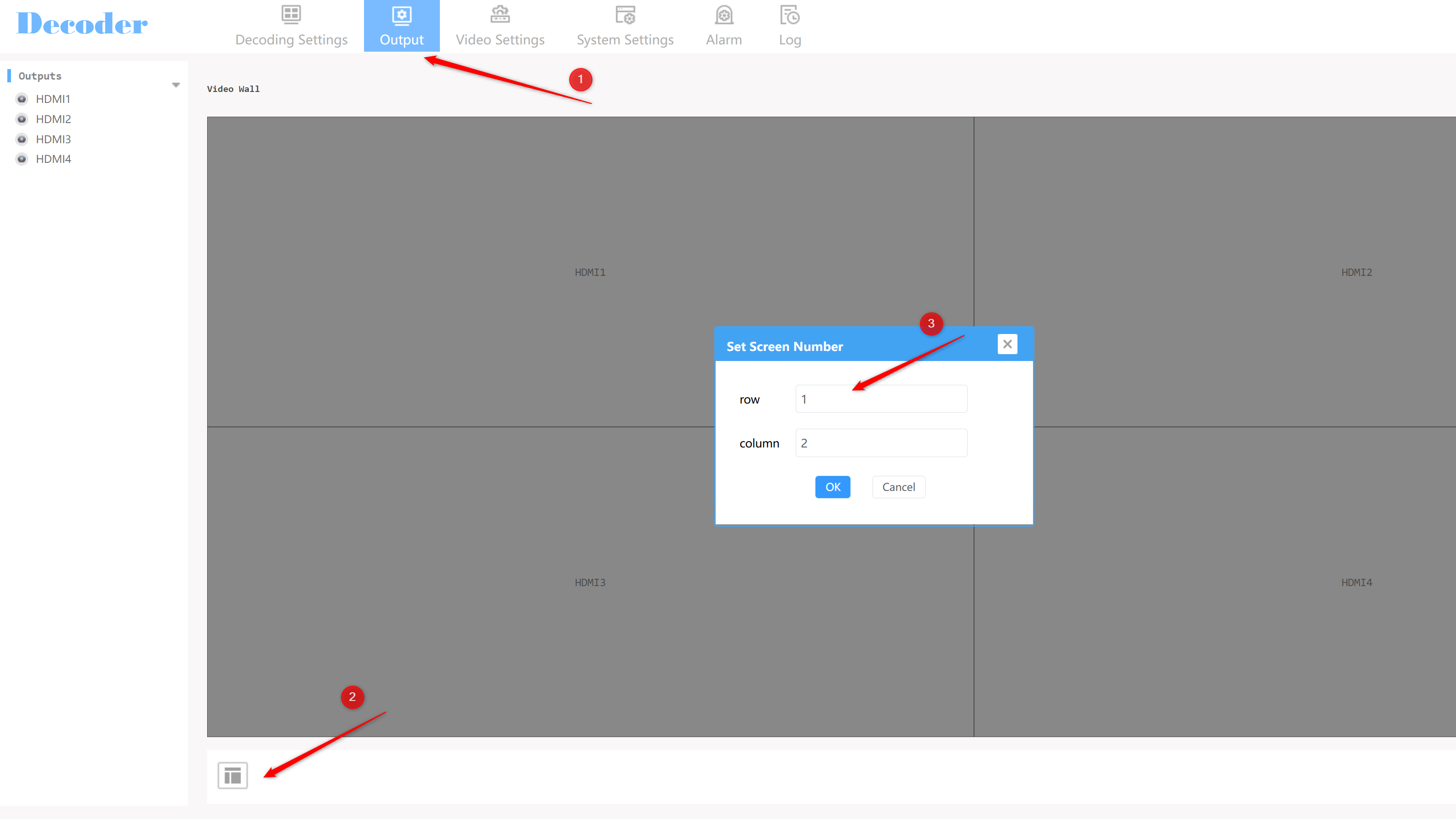

• The first step is to determine how the HDMI outputs will be divided, specifying the columns, rows, and the positions of each output:

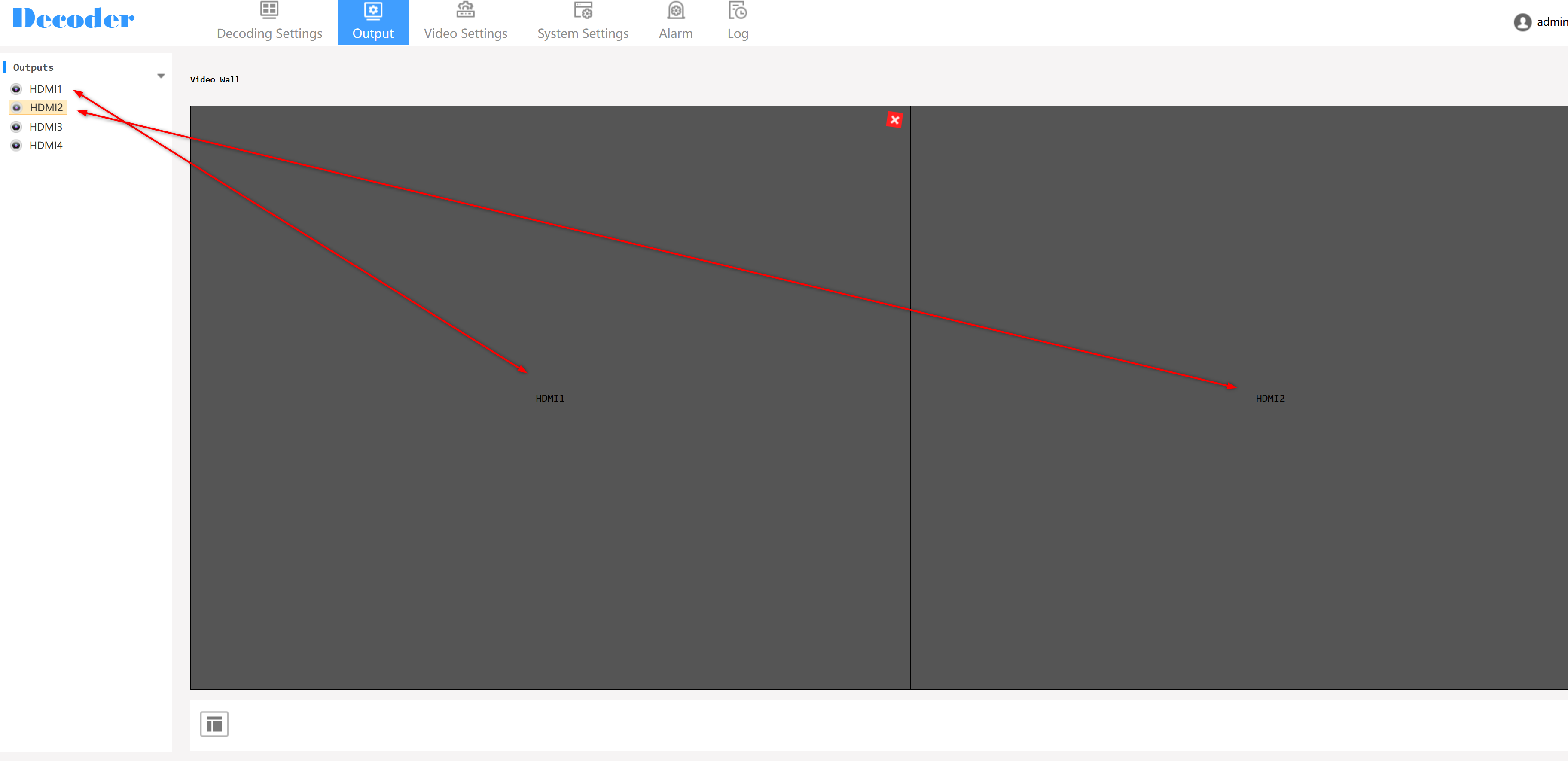

• By dragging the HDMI outputs into each window of the Video Wall, each one will be placed in the appropriate position.

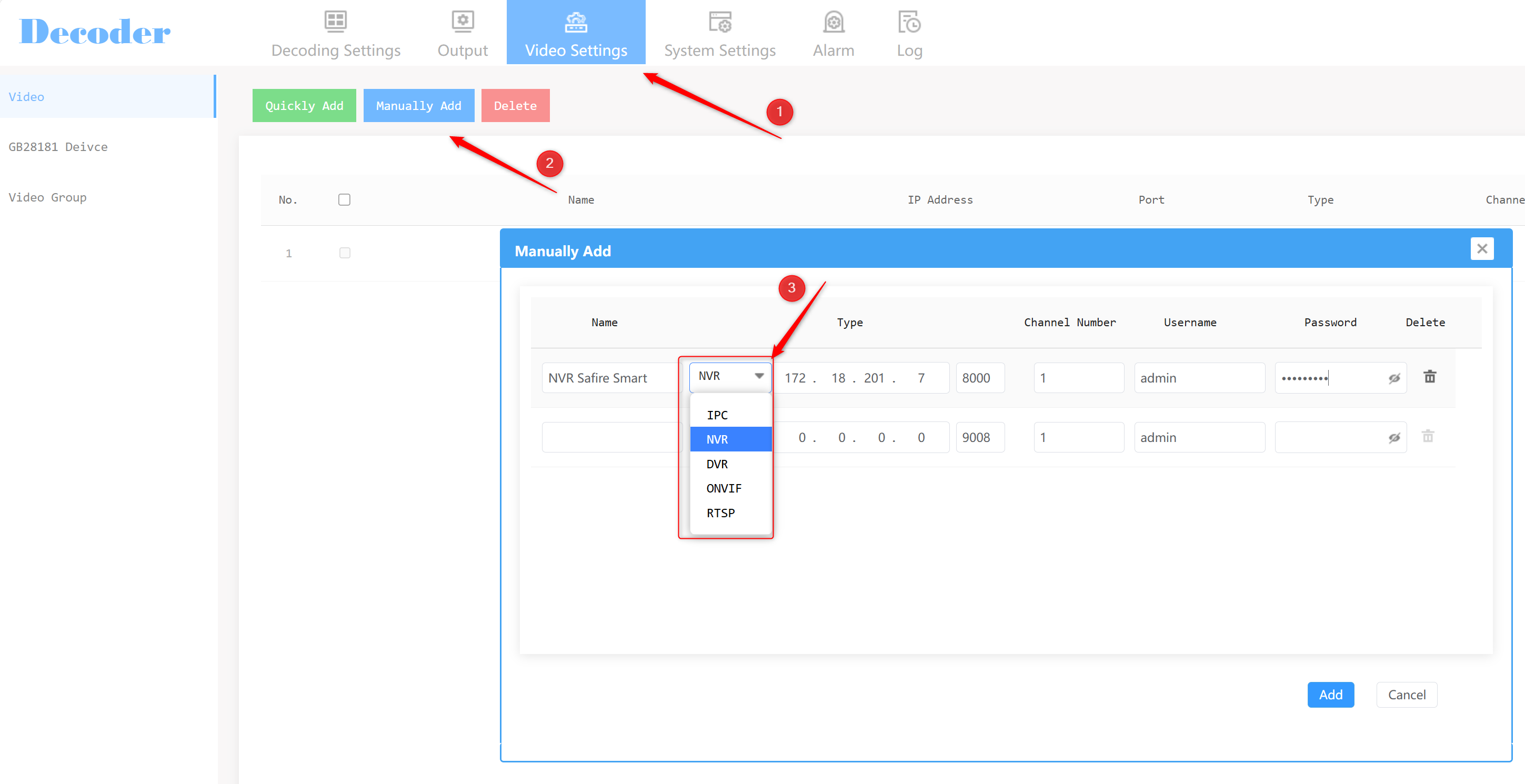

• Add cameras or recorders by indicating what is being added: IPC, NVR, Onvif camera, etc. If adding an NVR, specify the number of channels it has. The communication port for Safire Smart cameras and recorders is the server port, 8000 by default.

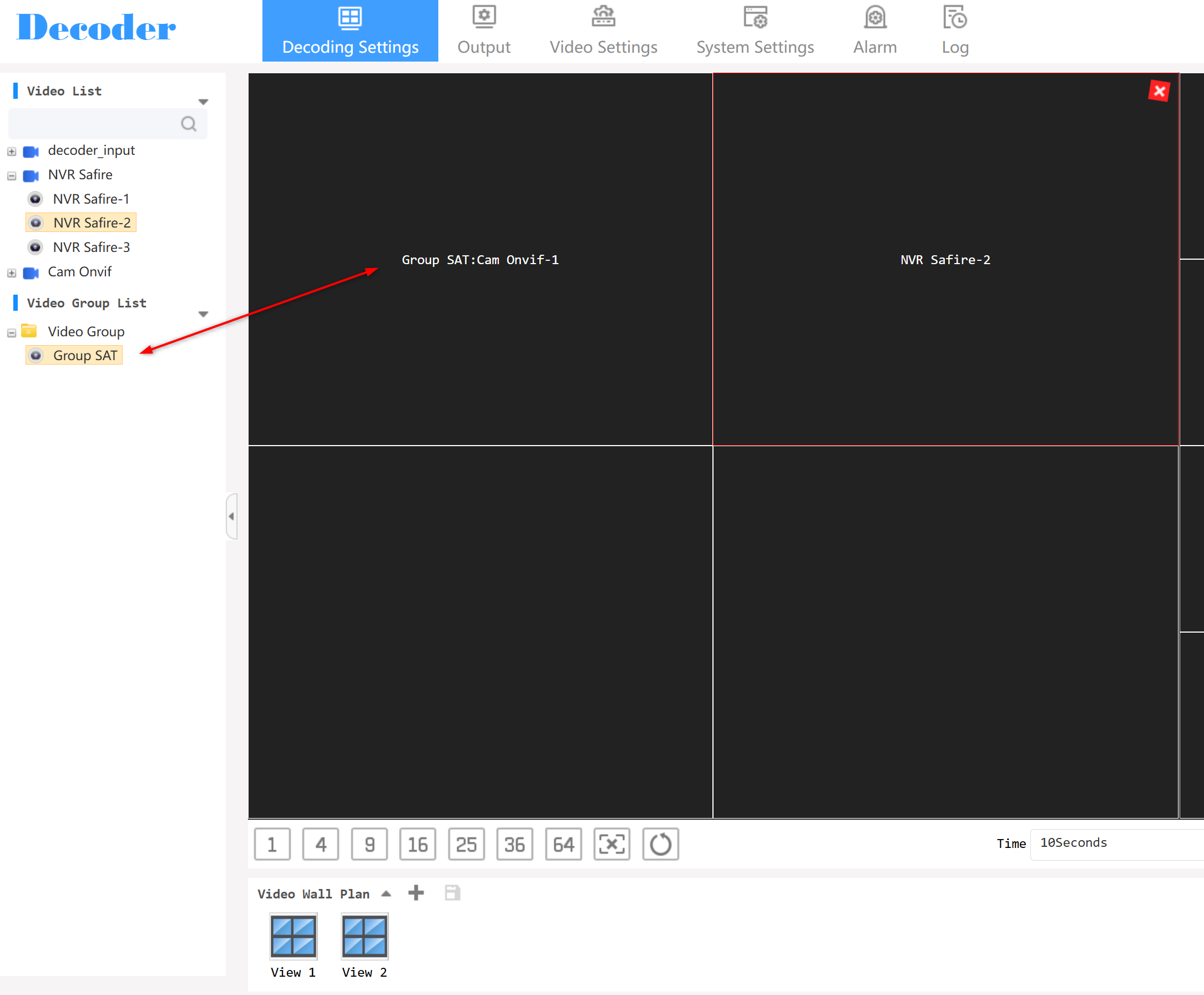

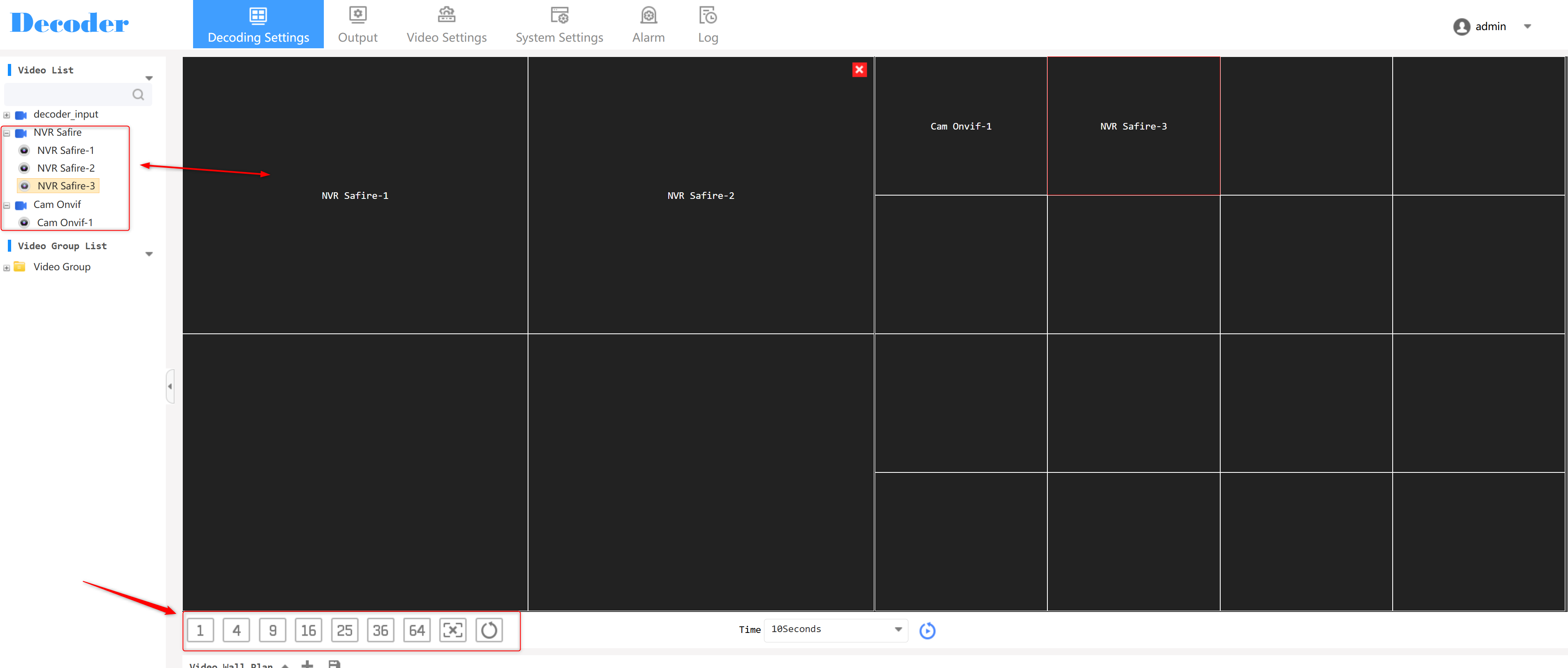

• Once the desired devices are added, in the Decoding Settings section you can set the quadrants for each HDMI configured in the videowall and drag each camera to the desired positions.

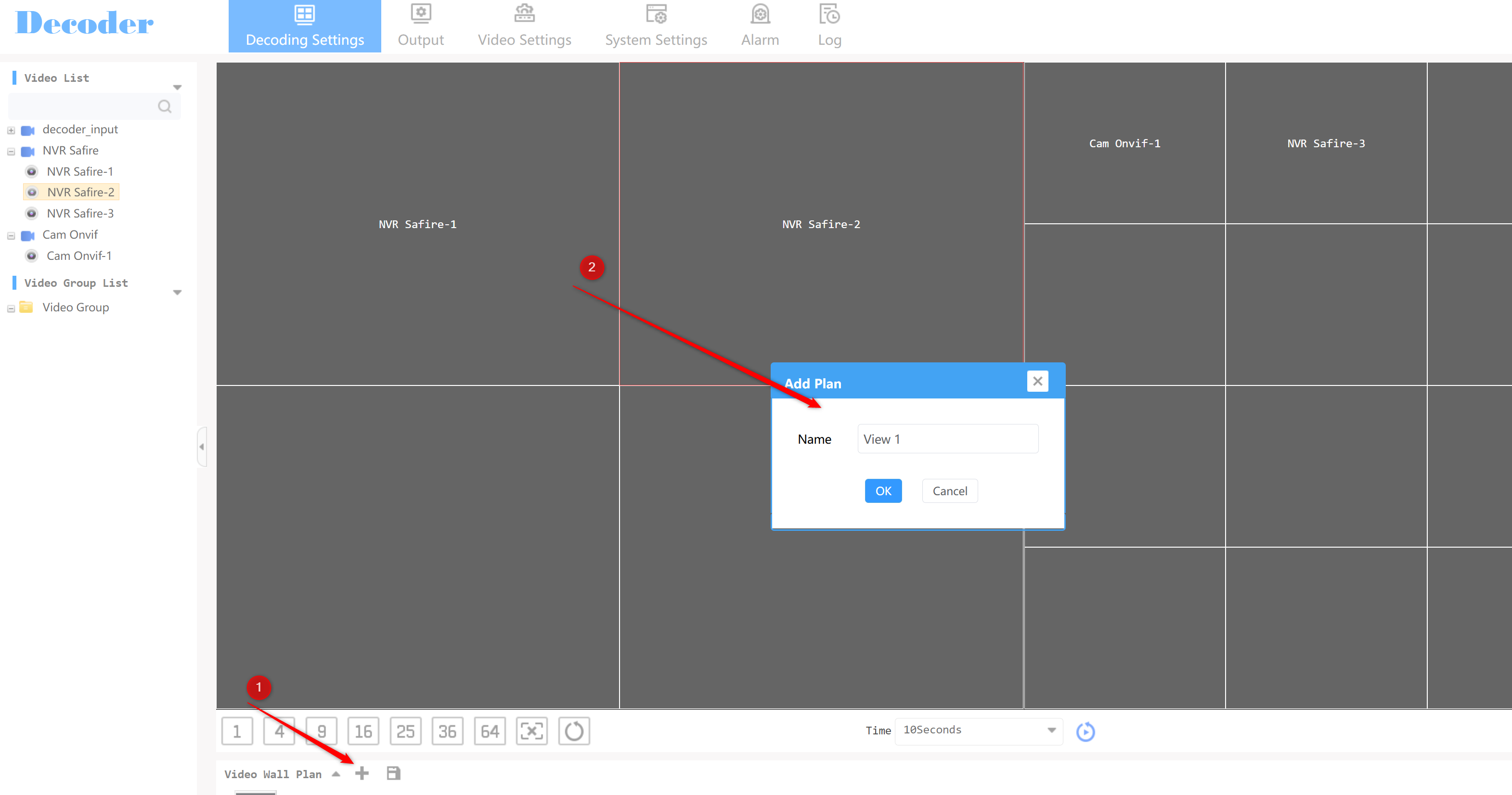

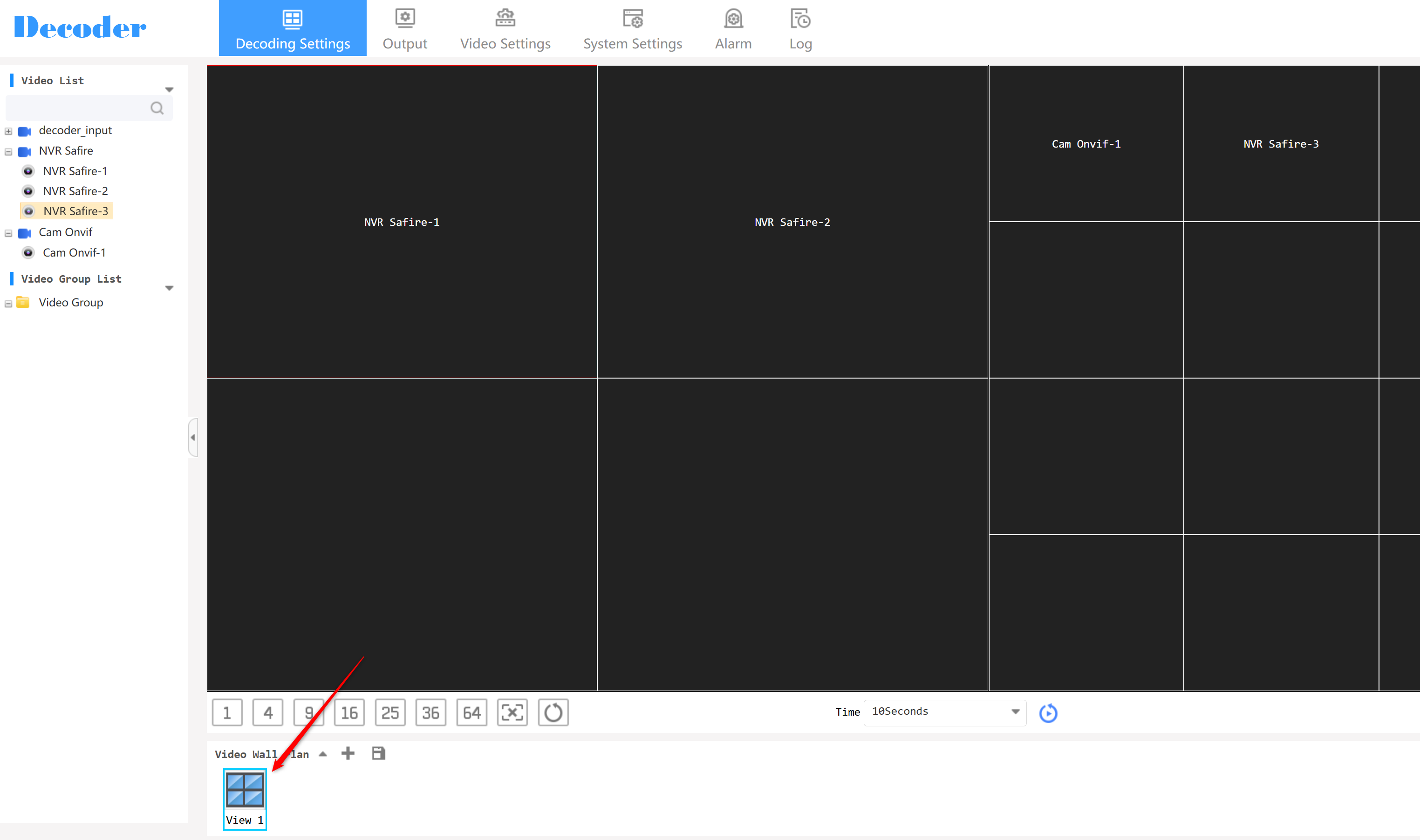

• The views you configure can be saved, making it easy to run them later.

If all windows are closed or cameras are moved from their positions, when you execute this view, the cameras will display in the positions set in the View.

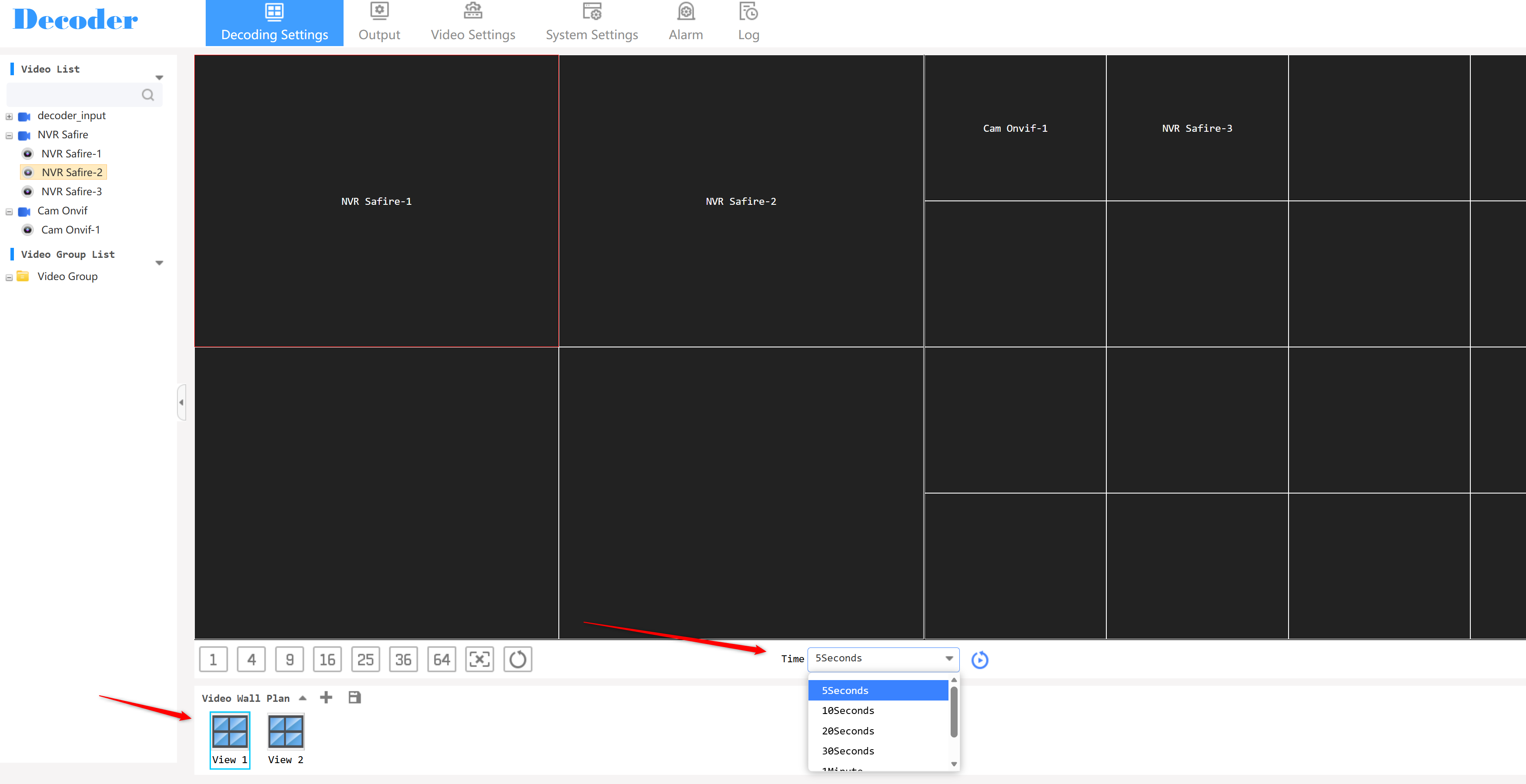

• If multiple views are saved, you can have the display switch between them every X seconds by selecting the time and pressing Play.

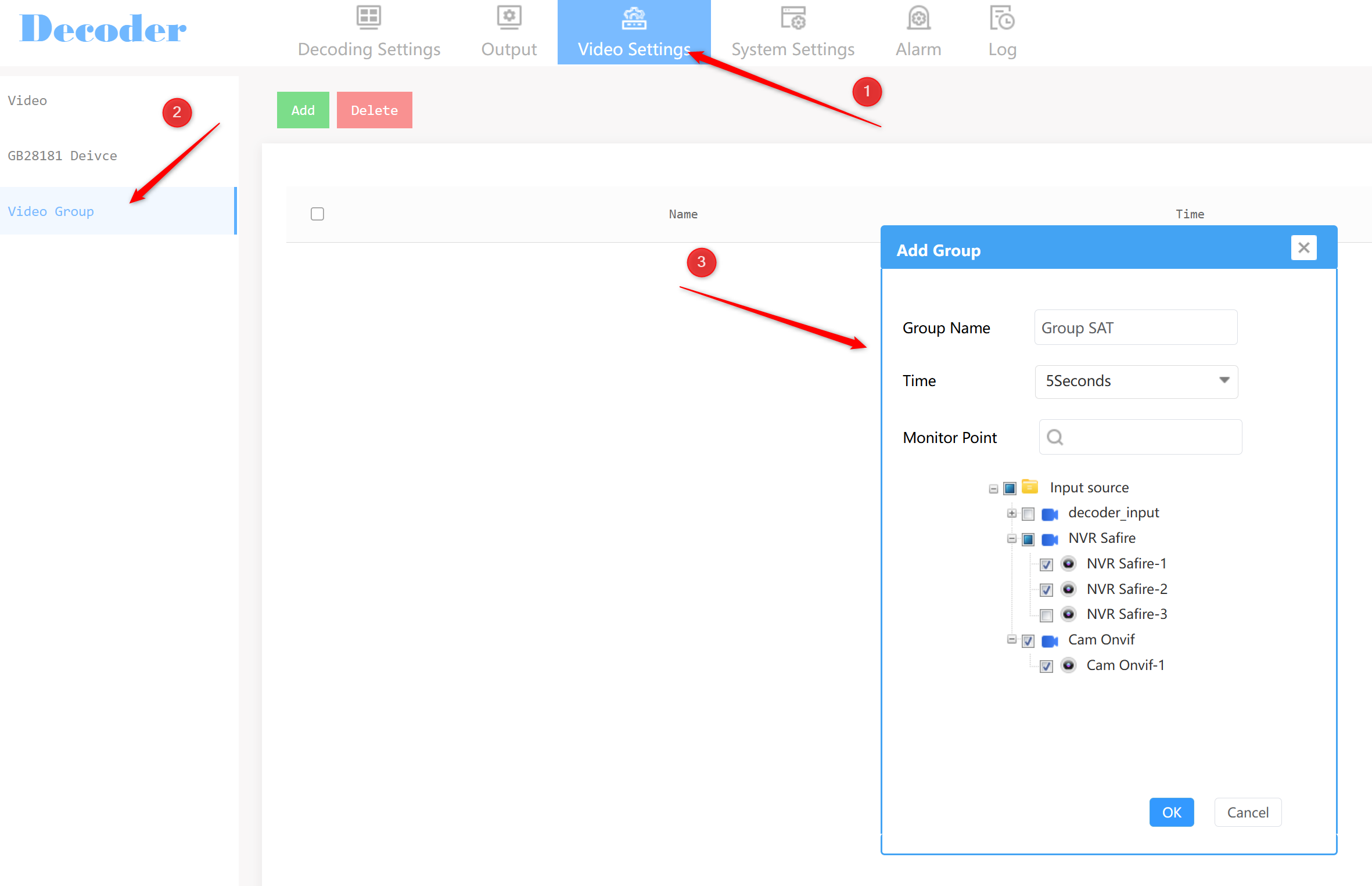

• You can also create camera groups to cycle through each camera every X seconds when running on one of the VideoWall quadrants. For example, if you select 3 cameras in this group and run the group on a quadrant of the videowall, these 3 cameras will be displayed consecutively in that quadrant.

Integration with Safire Smart VMS Platform

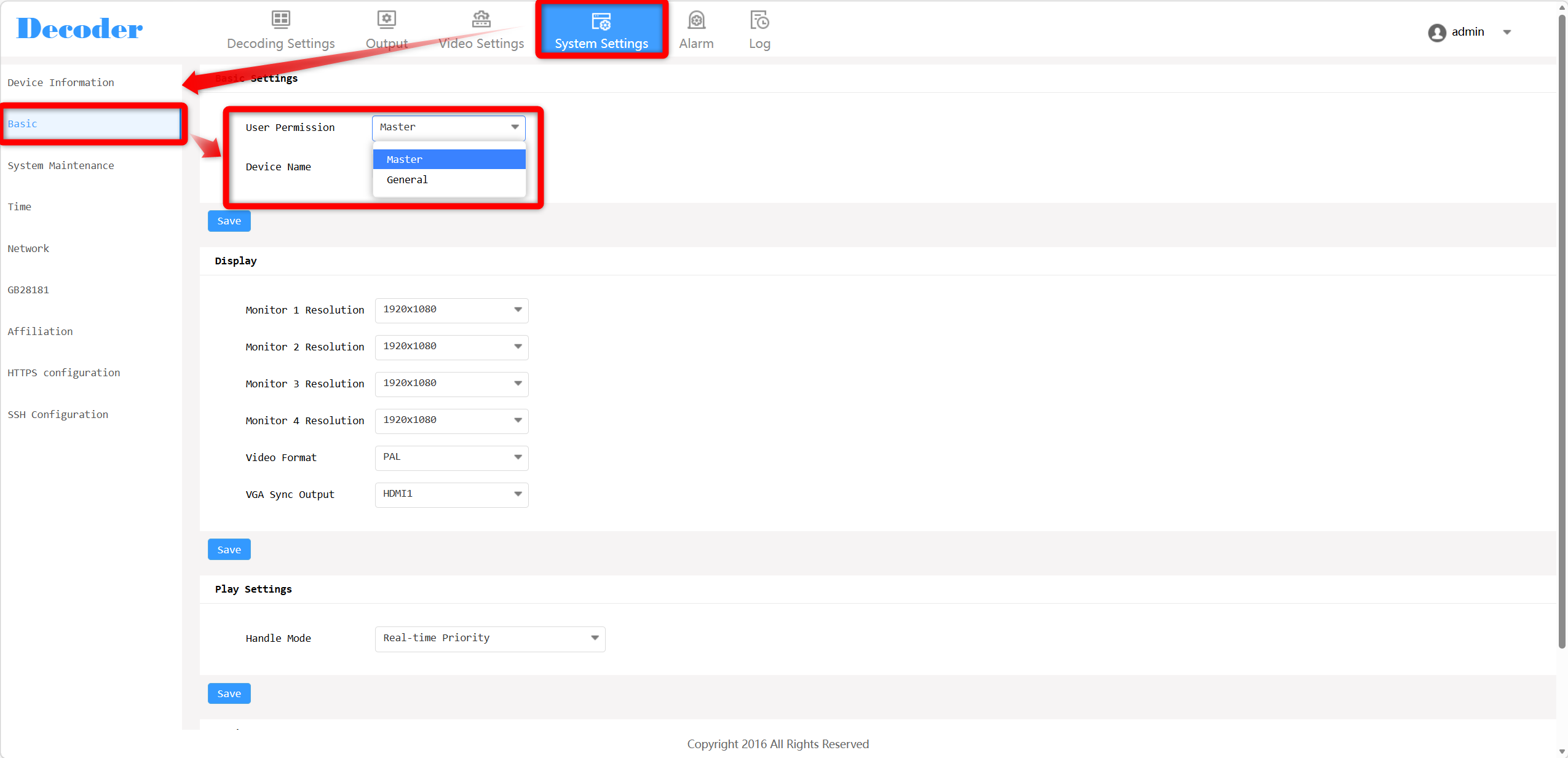

1. Set the decoder to Master mode.

2. Configure the network (IP must be on the same subnet as the VMS server; default Data Port: 8888).

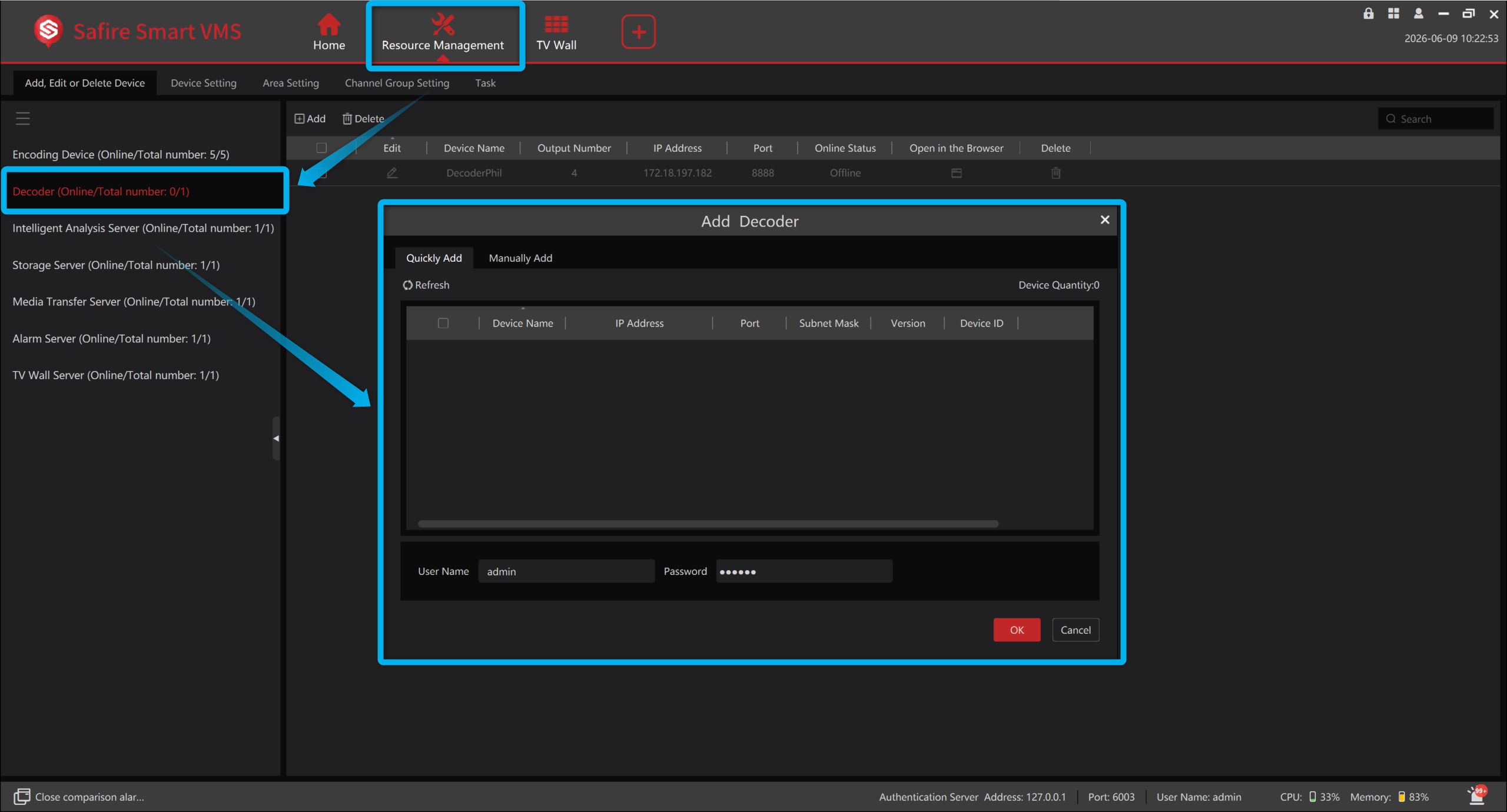

3. In VMS: Add Device > select Decoder > Quick Add or Manual Add > enter IP and port.
4. TV Wall Management > Add TV Wall > link decoder > verify online status.

Note: Until the decoder is linked to a TV Wall, it will appear as disconnected.

Create TV Wall

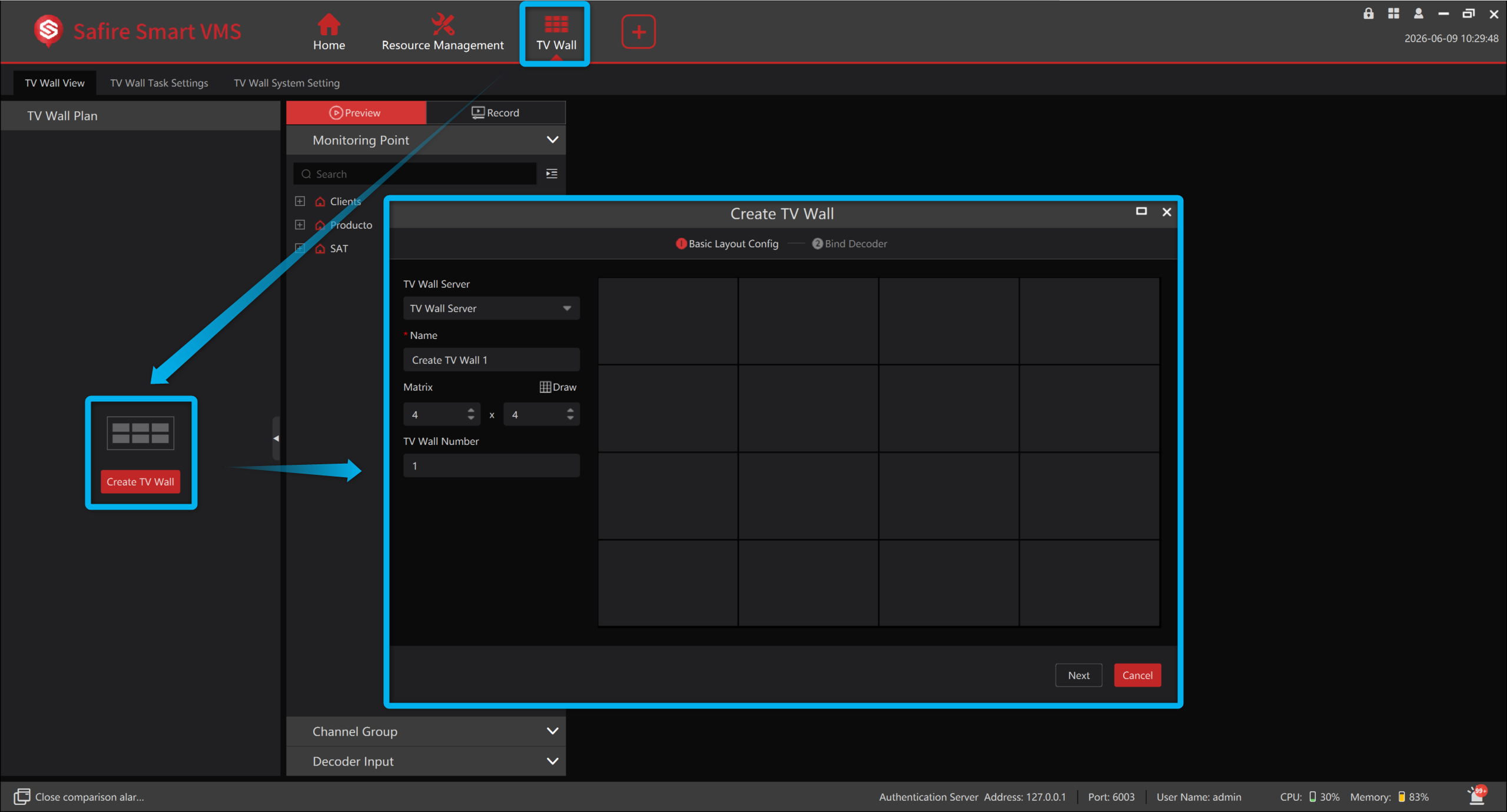

1. Go to Home > TV Wall Management > Edit TV Wall.
2. Select a TV wall server and click the create button.
3. Set the TV wall name, display matrix, and TV wall number.
4. Click [Draw] to manually draw the layout.

Link Decoders and Outputs to a TV Wall

1. Click [Next] to open the decoder linking interface.
2. Click + next to a decoder in the left list to link it.
3. If no decoders appear, click the direct link to go to the add decoder interface and add one first.
4. Wait a few seconds for the connection — outputs will appear under the decoder name once connected.

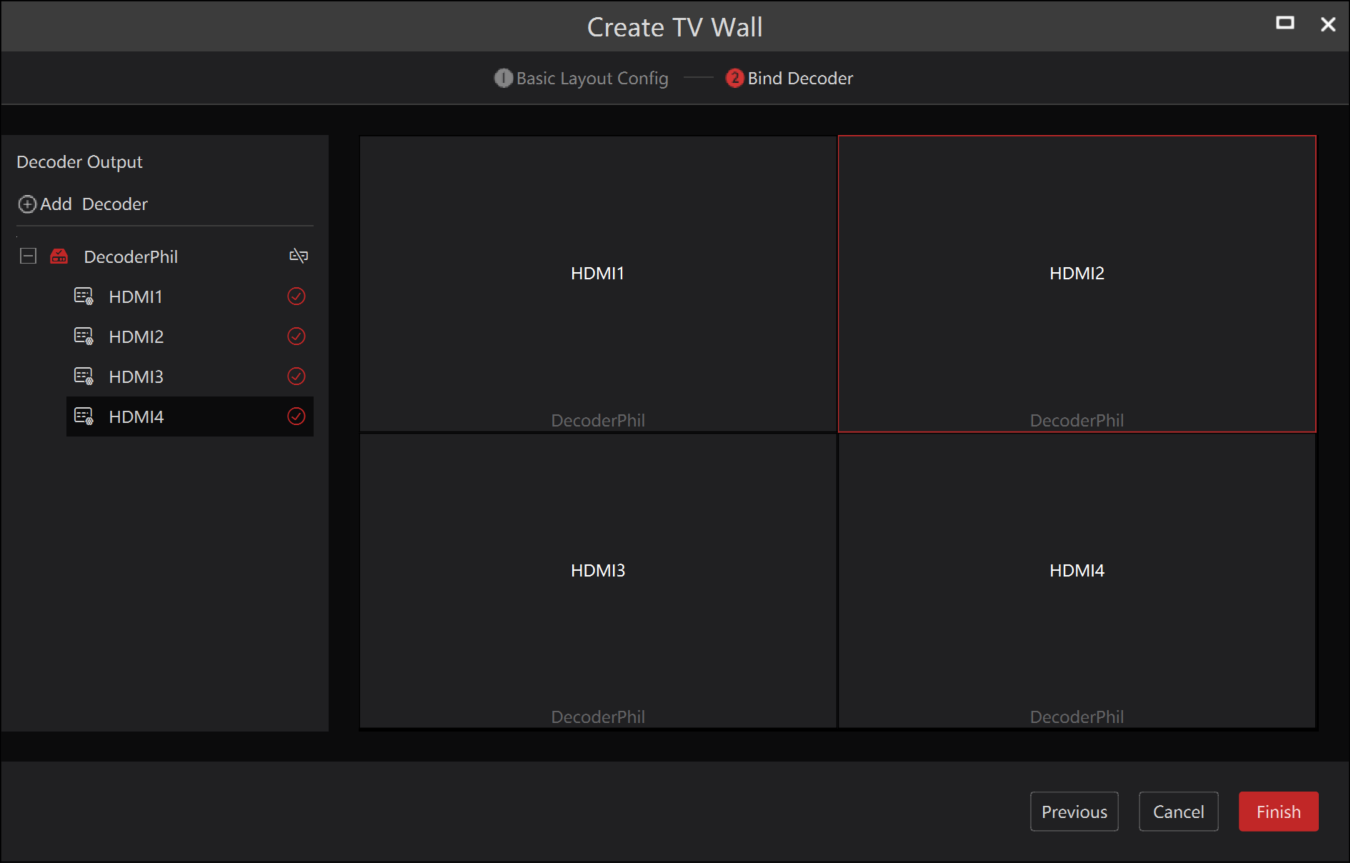

5. Drag an output to a window slot to link it.
6. Click [Finish] to save.

Create TV Wall Plan

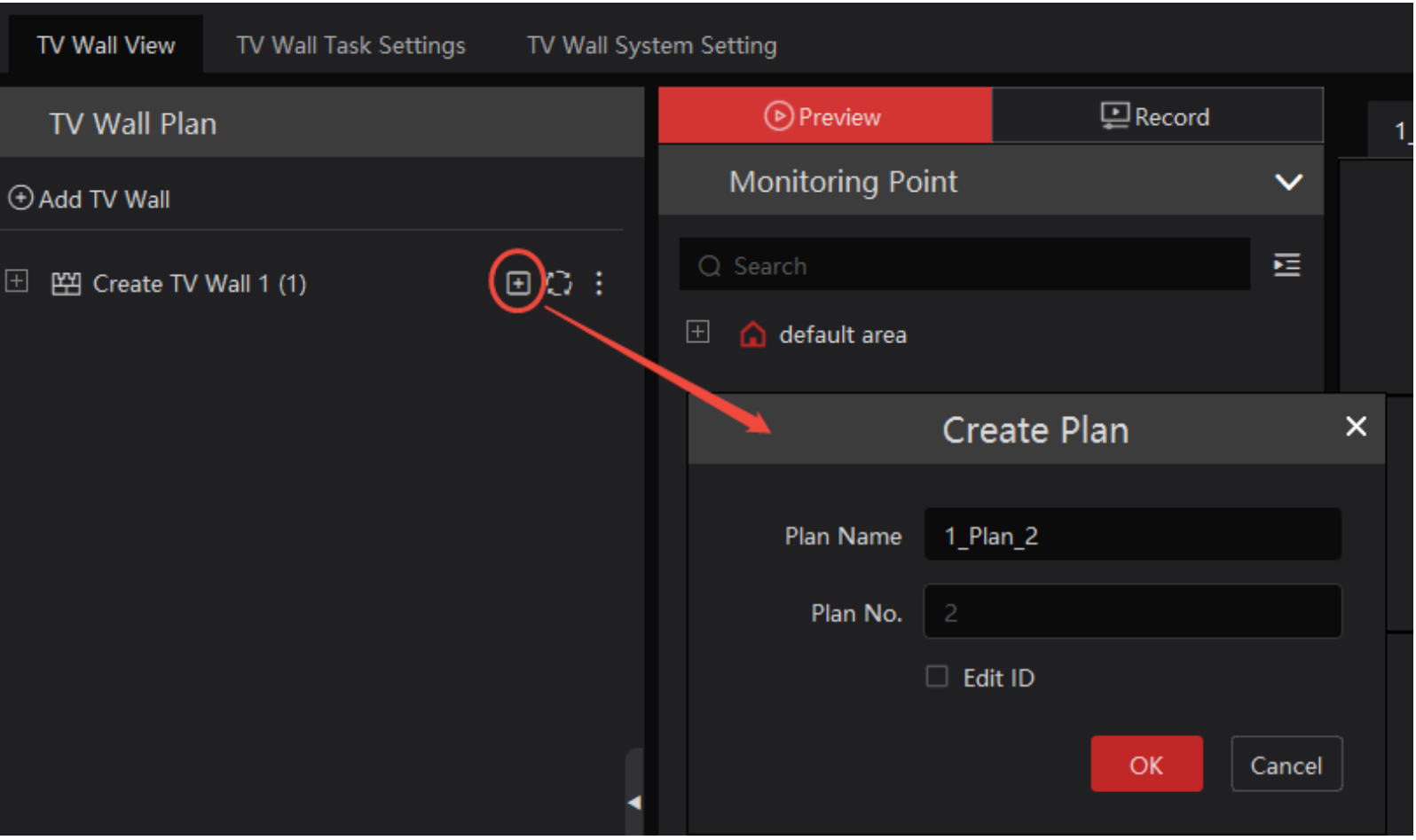

Click next to the TV wall name or on [Create Plan] to create a new plan for the created TV wall.

Configure and Display a Decoding Plan on the TV Wall

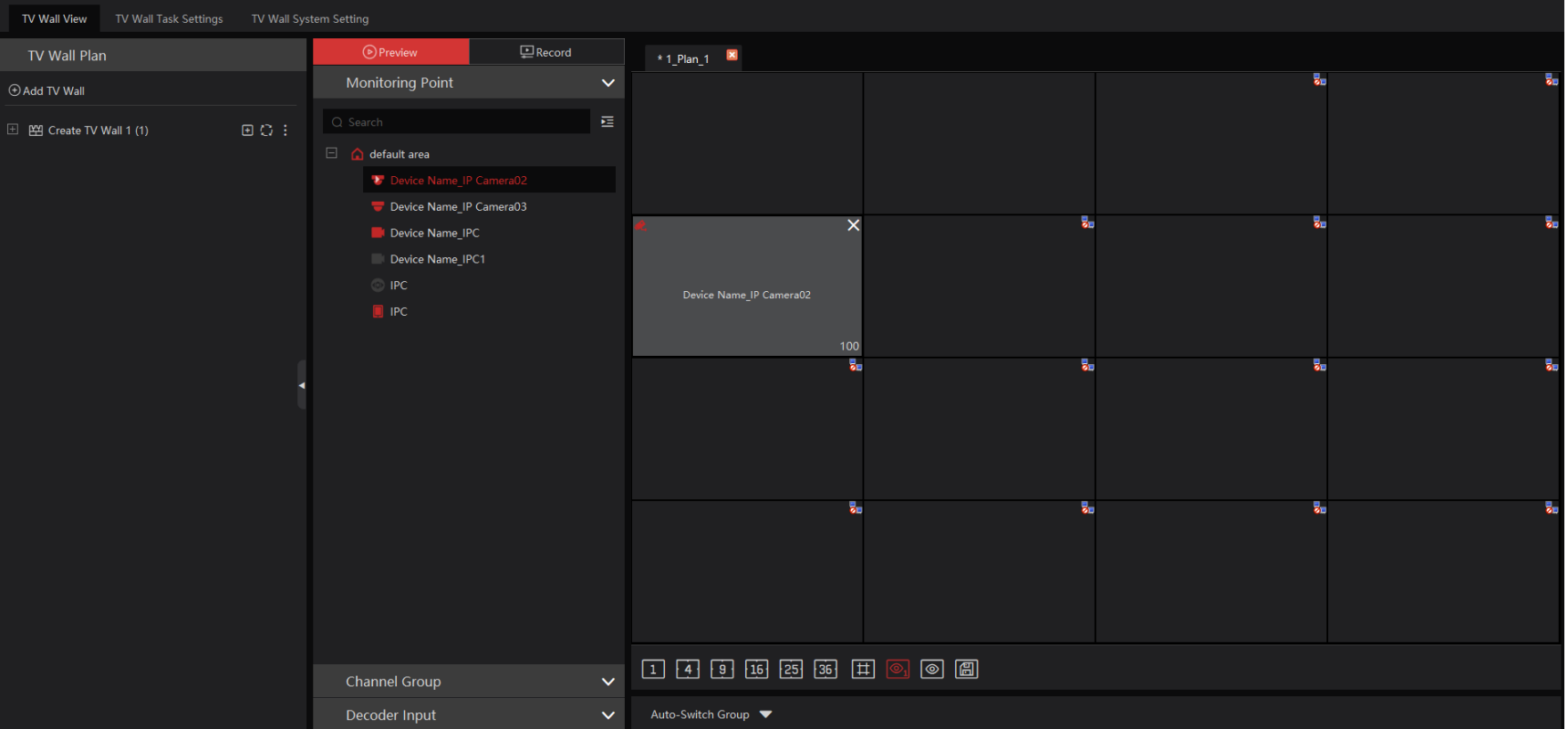

1. Double-click a plan name to load it in the left window.
2. Drag monitoring points to the corresponding windows to start decoding.
3. Click Save to store the plan.

Automatic Switching Group

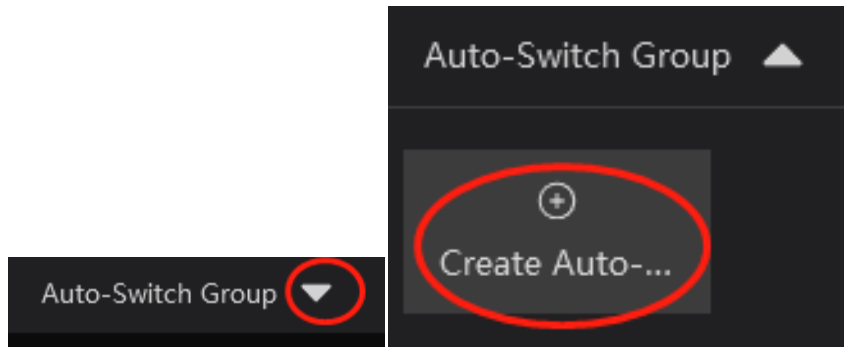

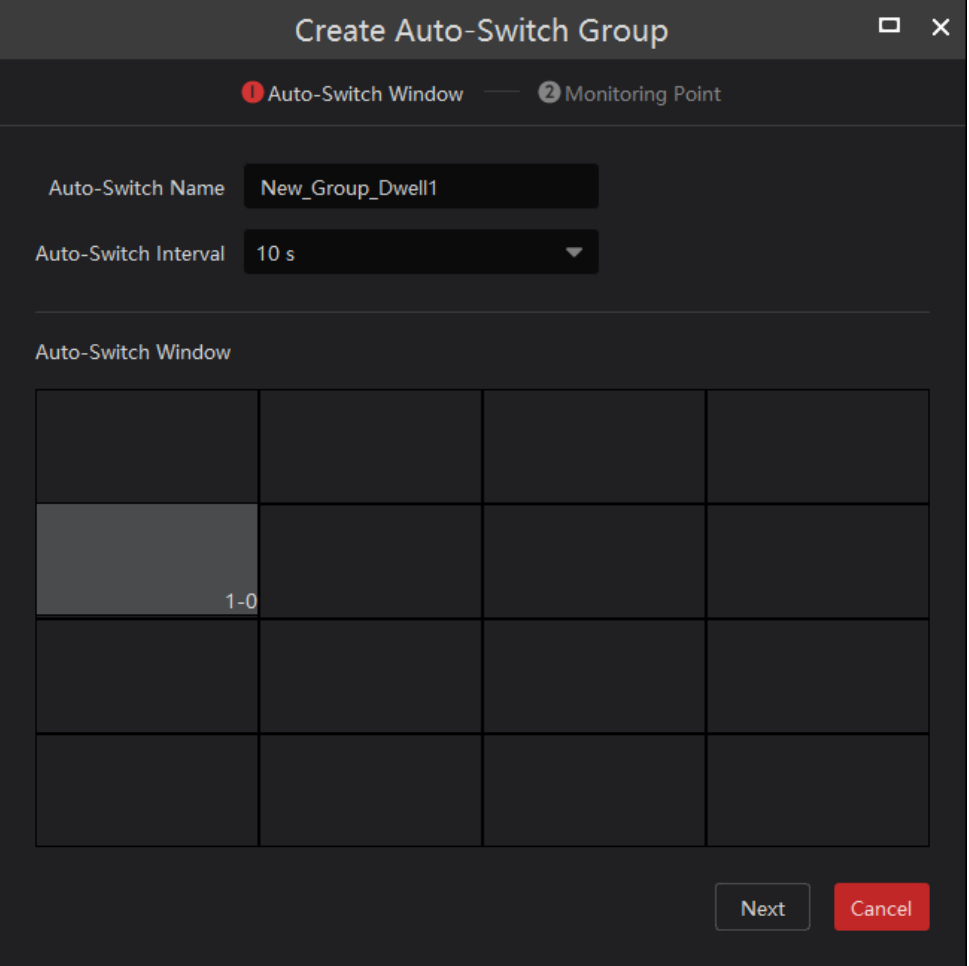

Click on Automatic Switching Group below the screen, then click to create an automatic switching group.

Select “Automatic Switching Window” to set the window group.

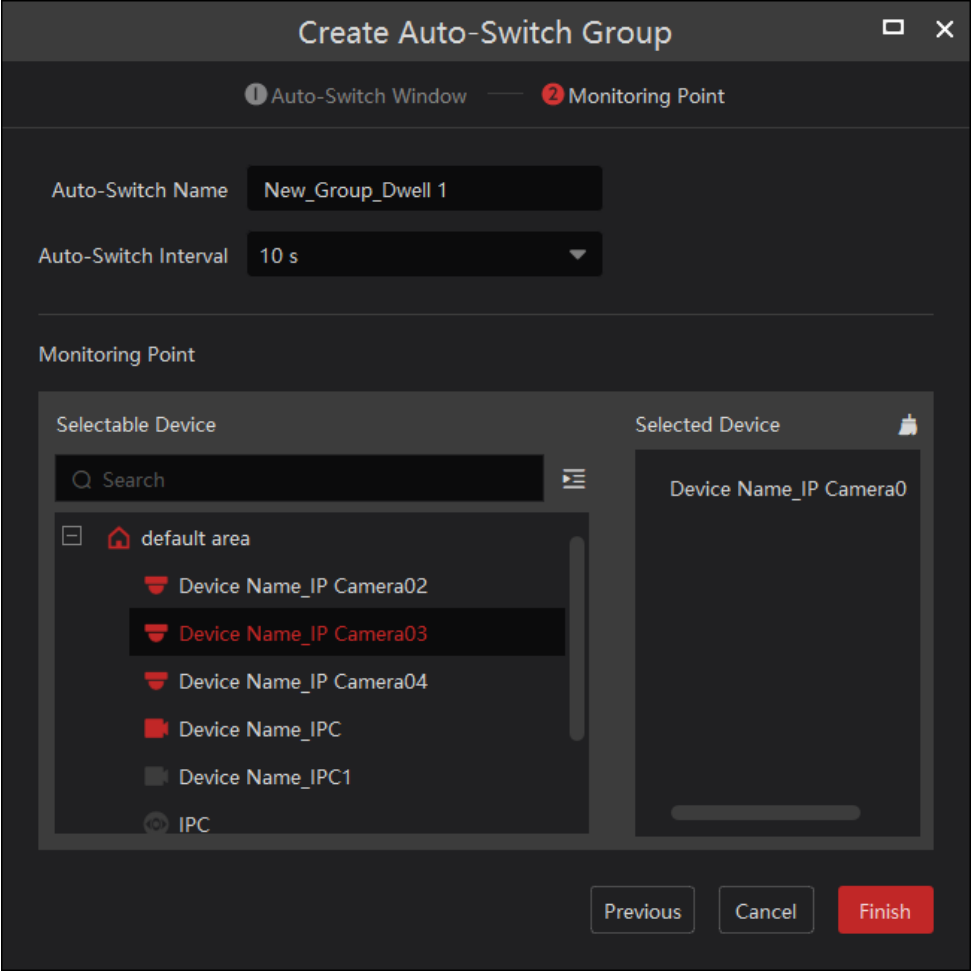

Click [Next] to select the automatic switching channel group.

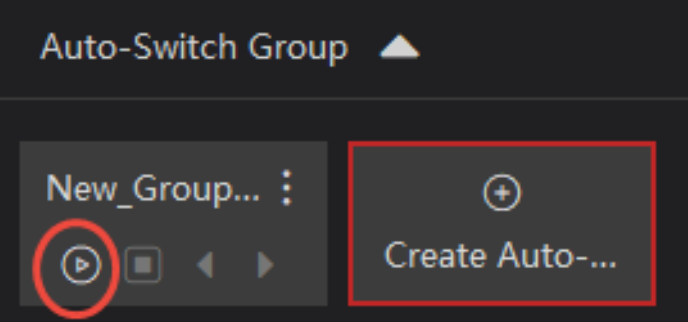

Enter the automatic switching name, dwell time, and execute the automatic switching.
