Uniview devices allow uploading image captures to an FTP server, for this purpose:

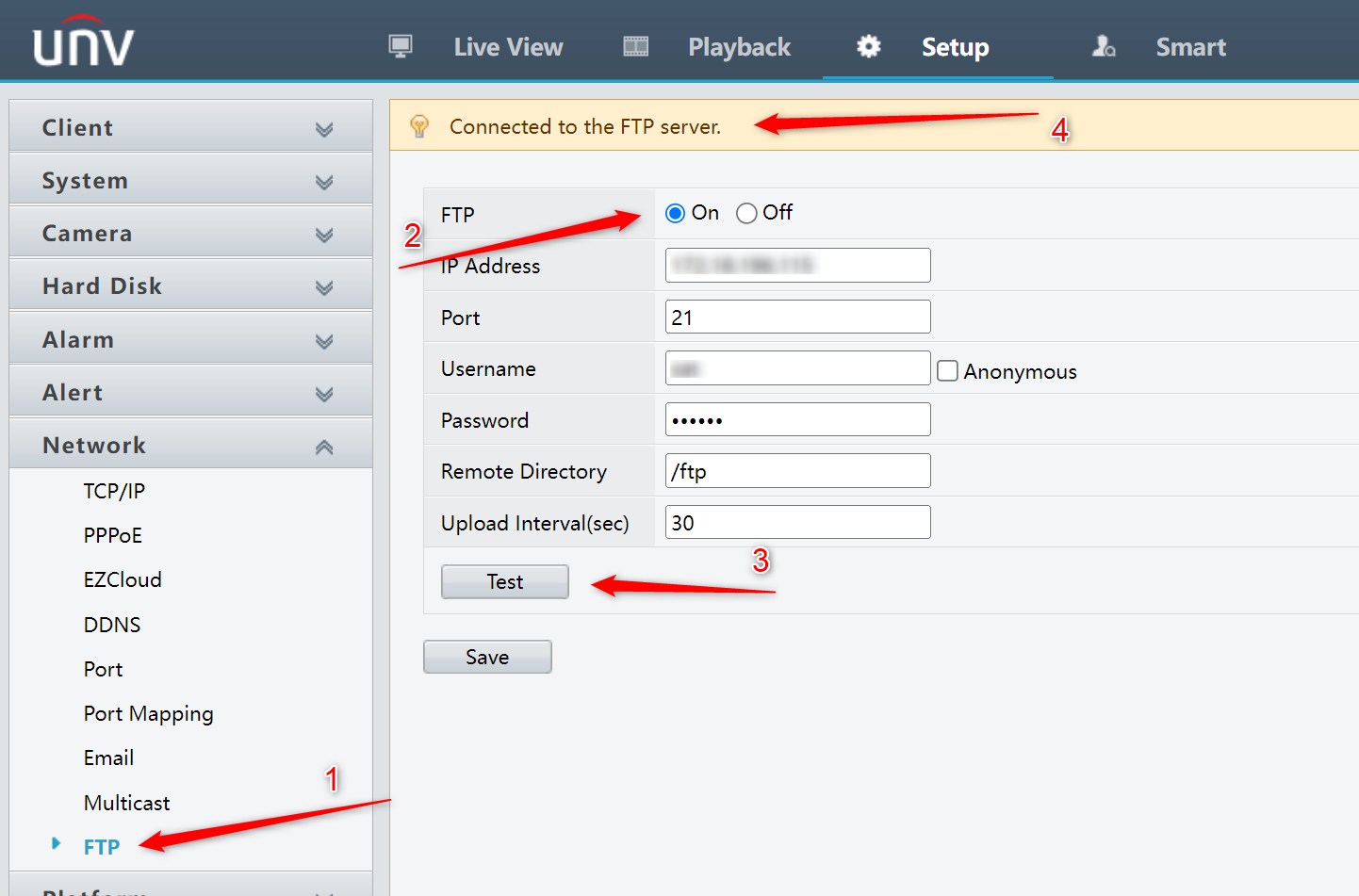

- The FTP server data will be configured and, when selecting Test, the communication must be correct:

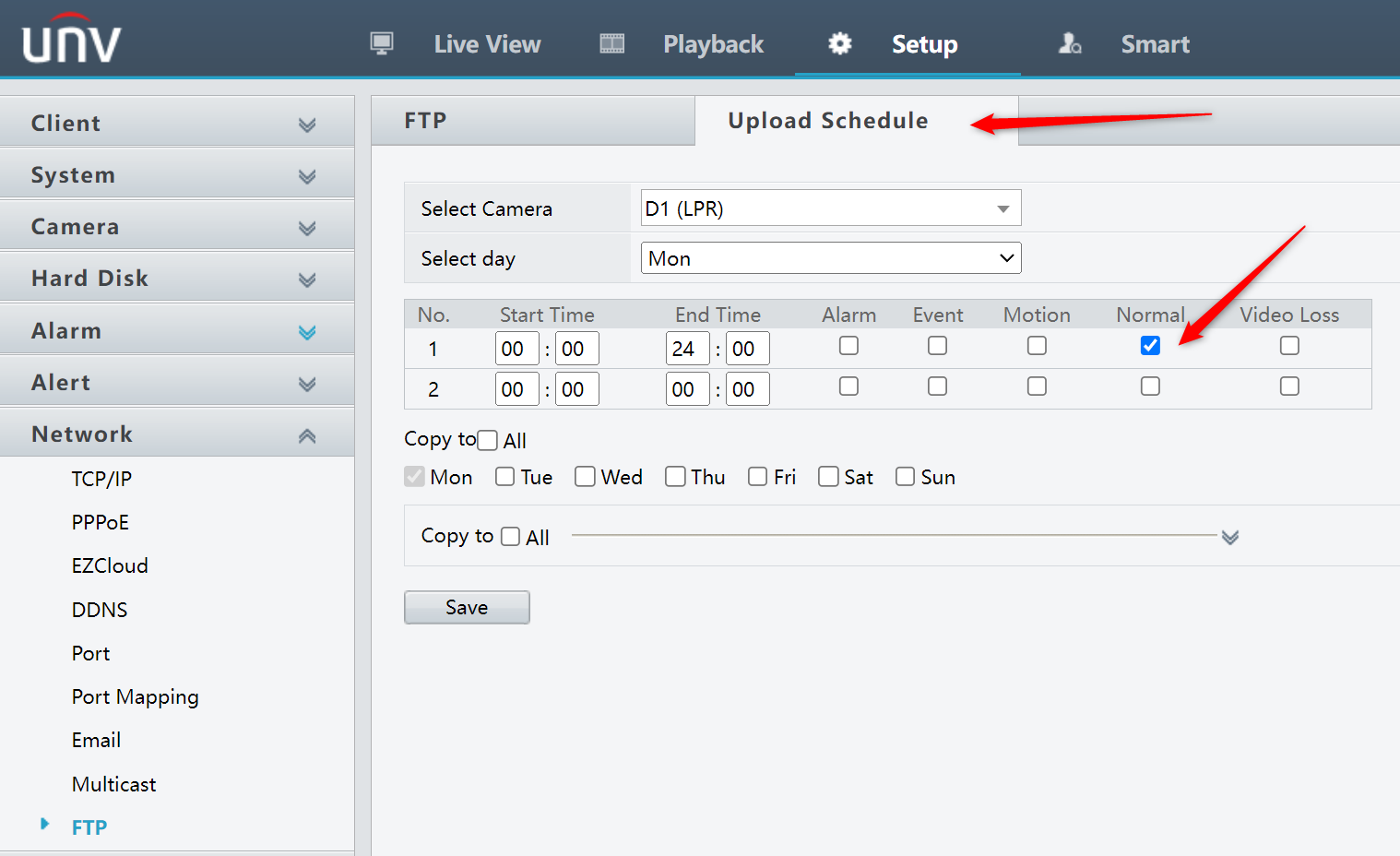

- You also establish what type of image upload you want to have, either "normal" continuous upload of captures, by "movement", "event", etc:

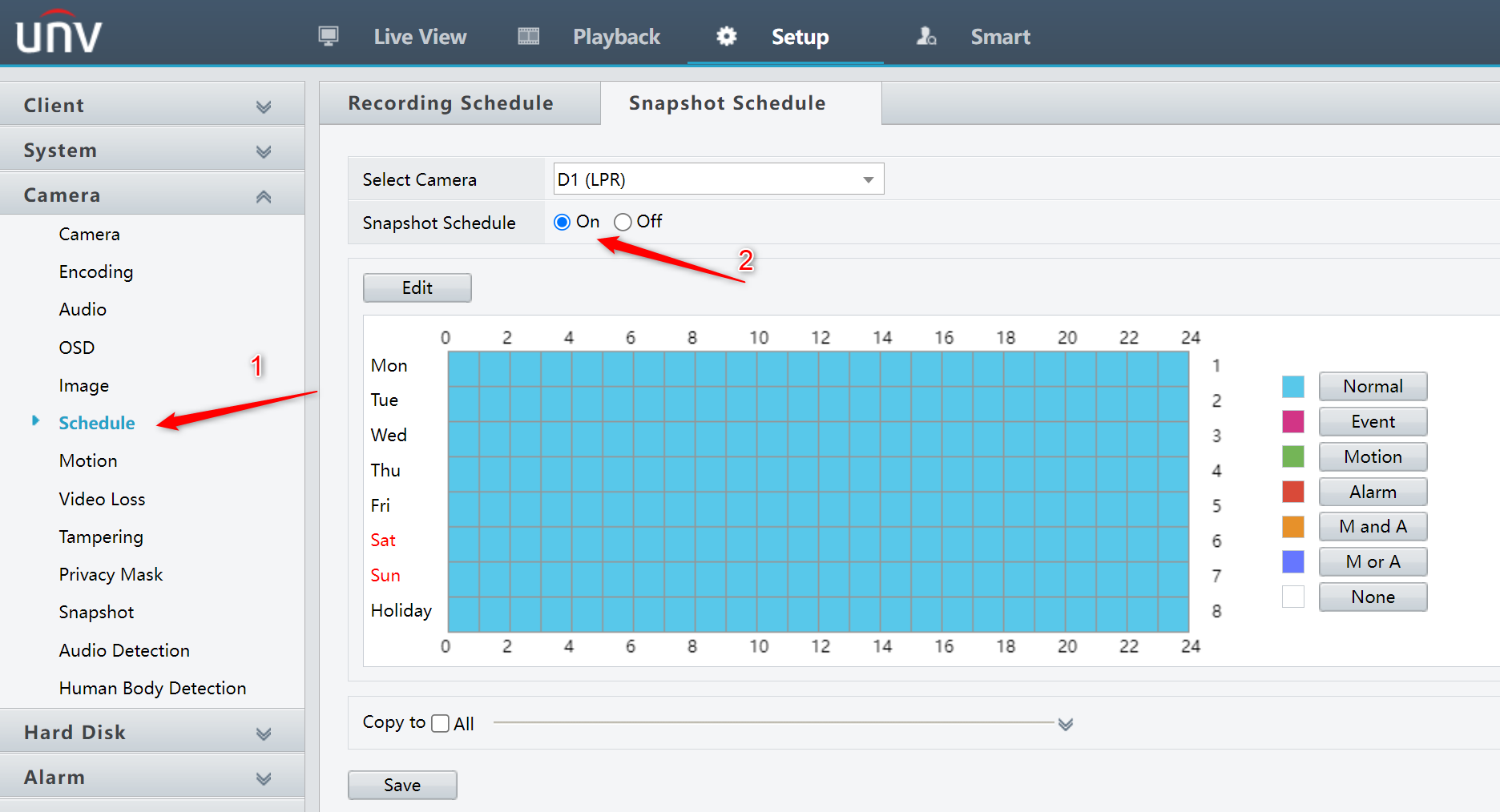

- In addition, you must enable the schedule of the captures so that they are saved correctly:

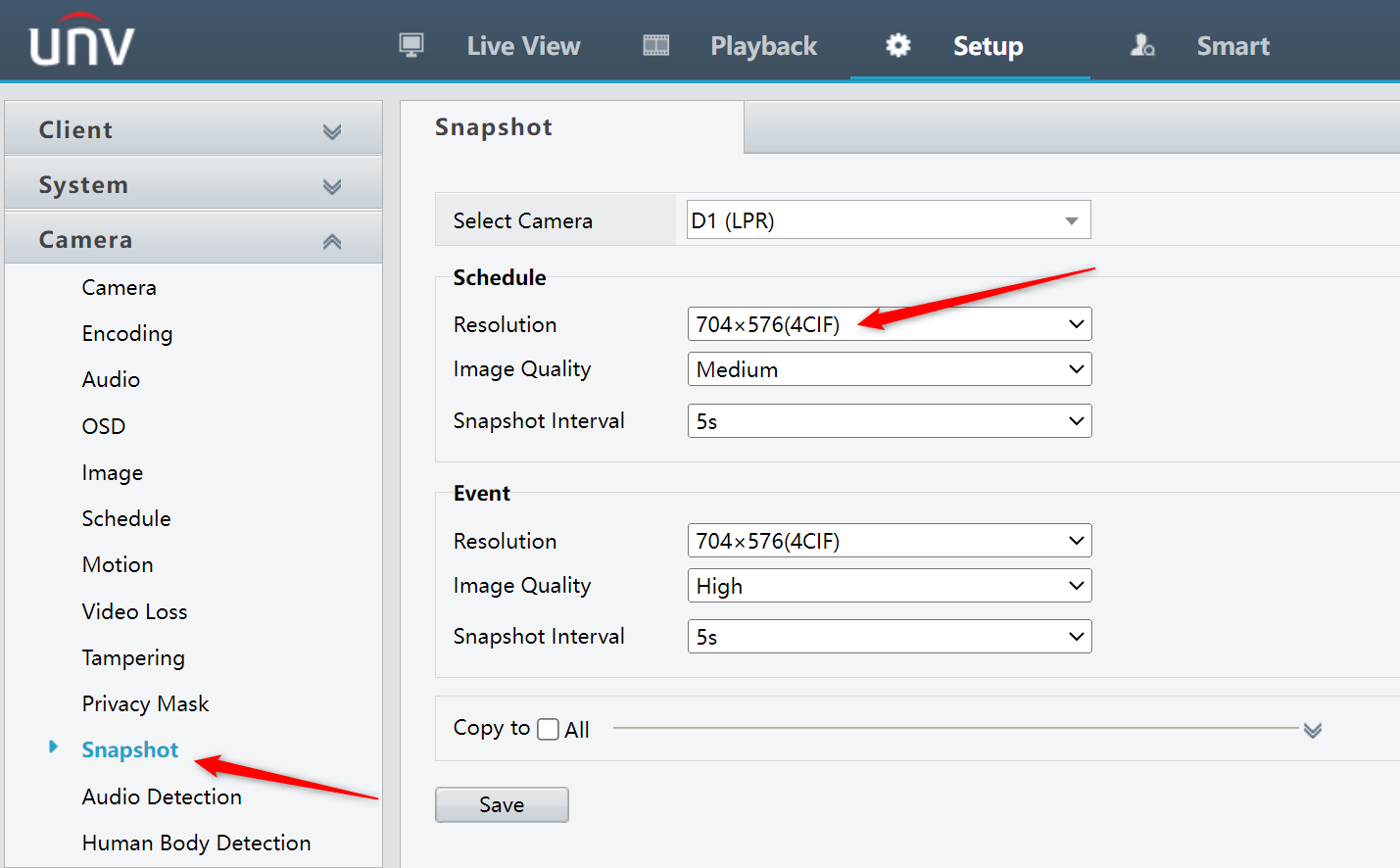

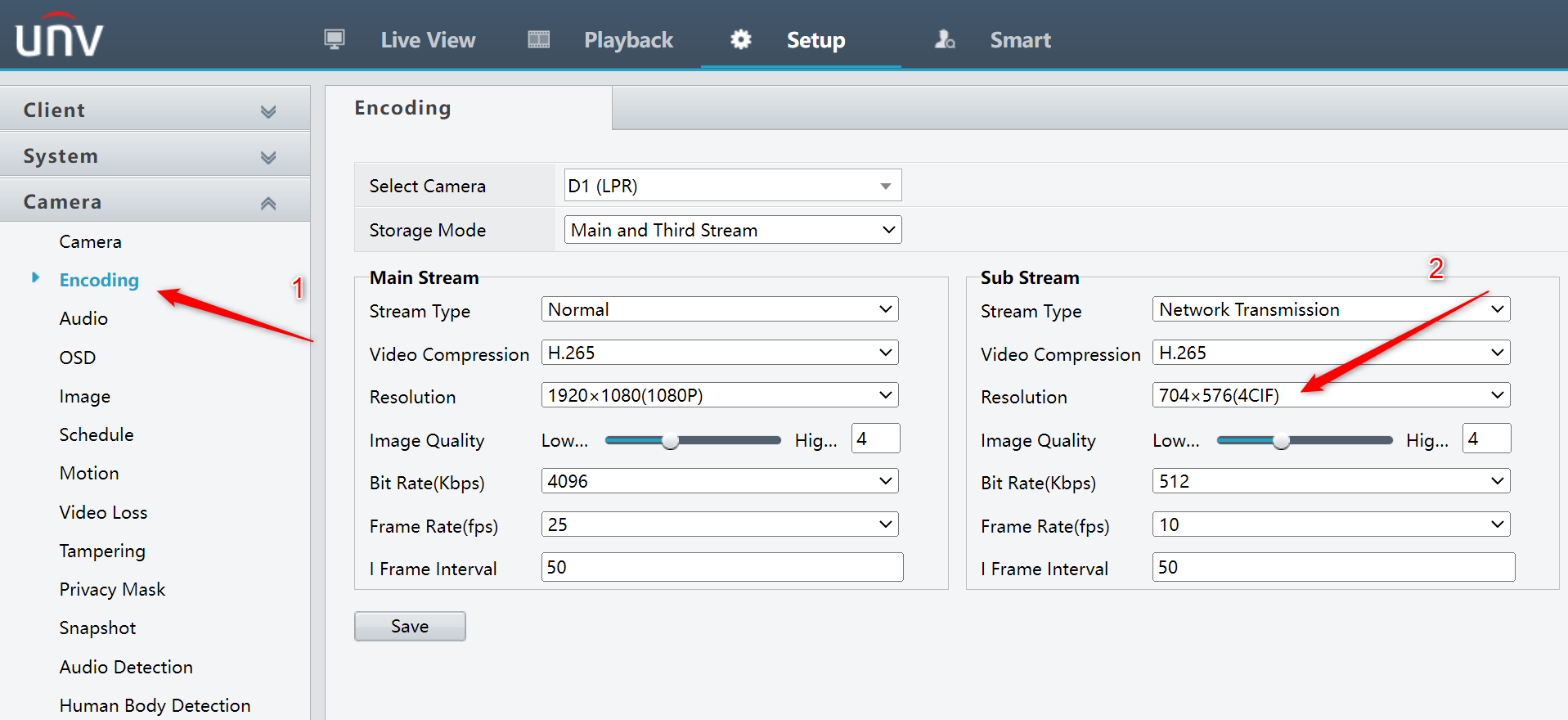

- IMPORTANT: The resolution of the secondary stream with which the captures are made must not exceed the resolution of D1 (704*576)

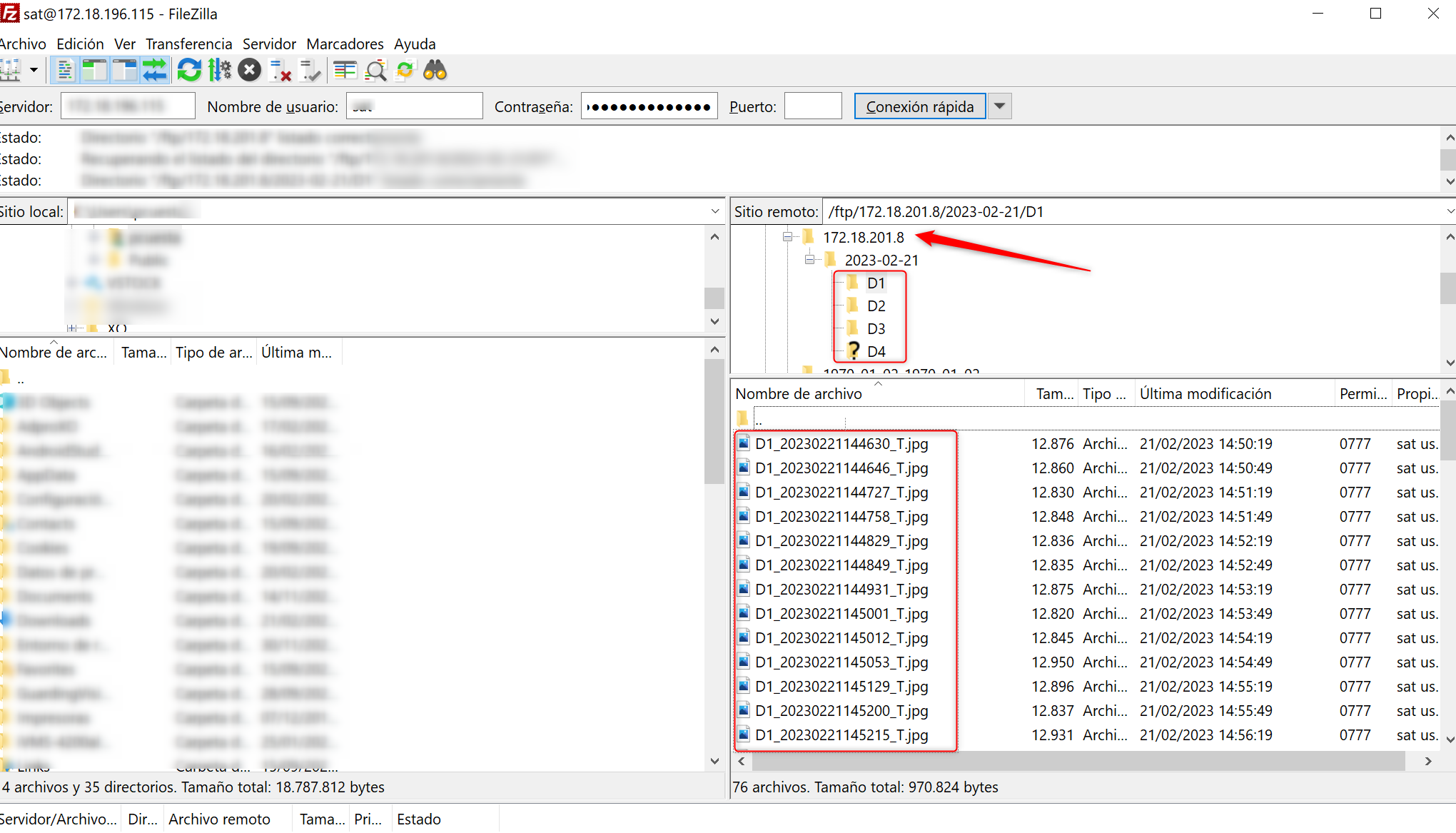

- Once configured in this way, in the FTP server will be created the folder with the name of the IP of the equipment, inside it will be saved by date and, finally for each camera that has been configured:
