Uniview decoders come with the factory IP 192.168.1.14 and password 123456.

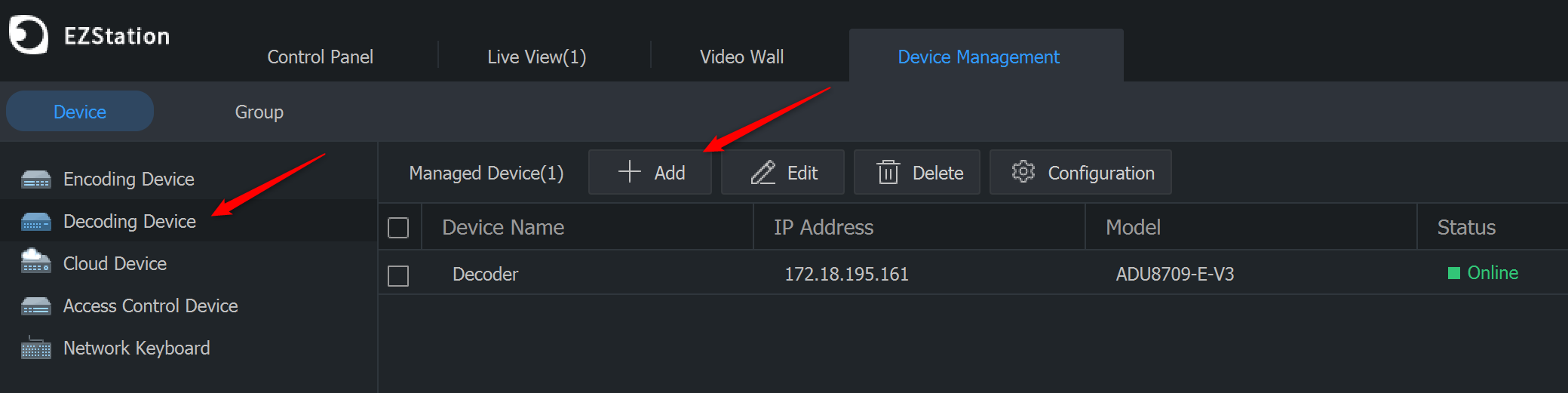

The configuration of the decoder in Uniview can be managed from the PC software EzStation3.0, therefore, once the appropriate IP is set on the computer and password, you have to add the decoder in the software.
Important information: When doing this with the EzStation, the equipment that can be added to the decoder is from Uniview. If you want to add cameras by Onvif or RTSP it is necessary to do so with the EZWall
• Setup of Uniview decoder via EzWall

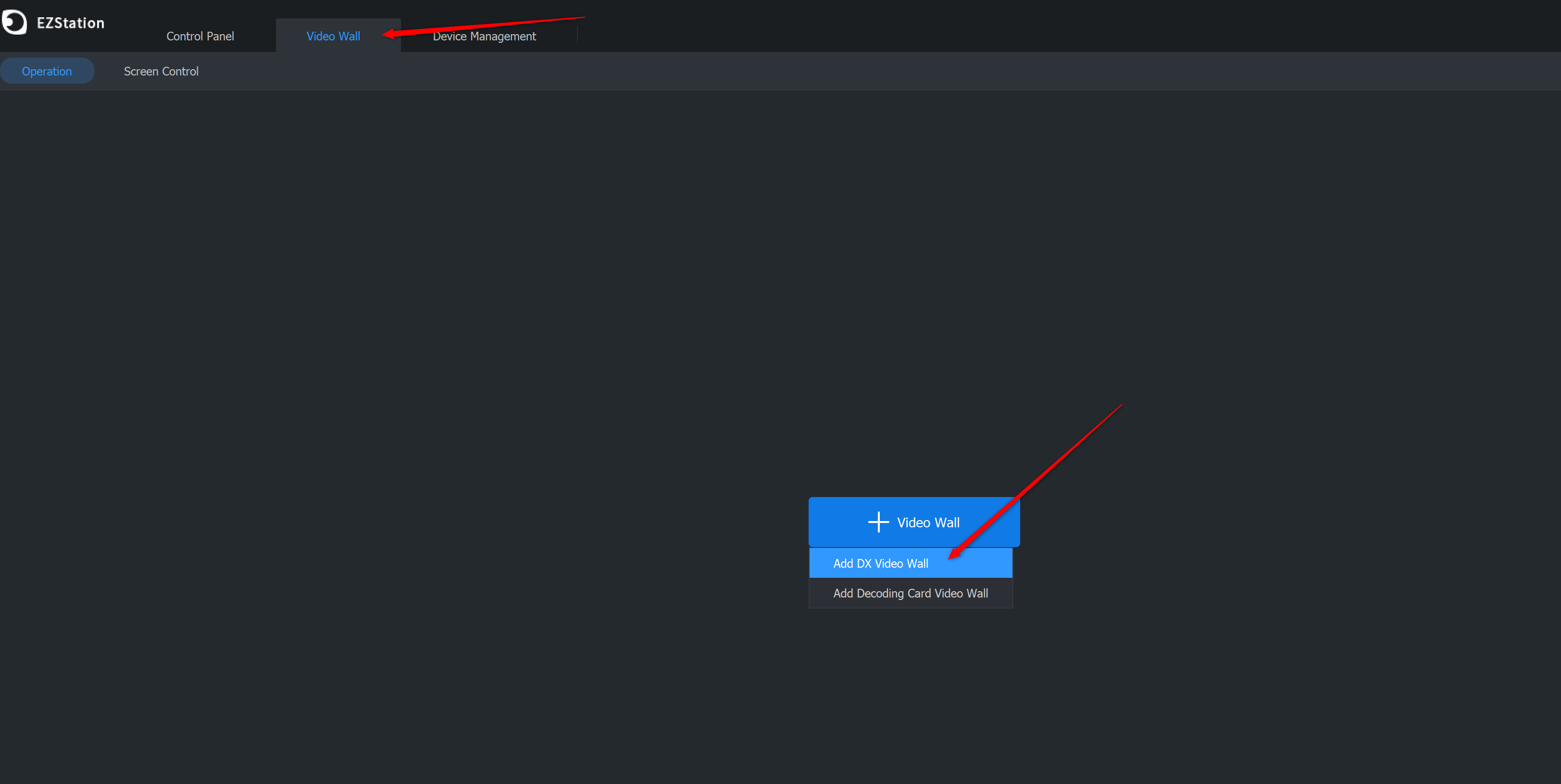

Then, you have to create the VideoWall with the HDMI outputs of the decoder:

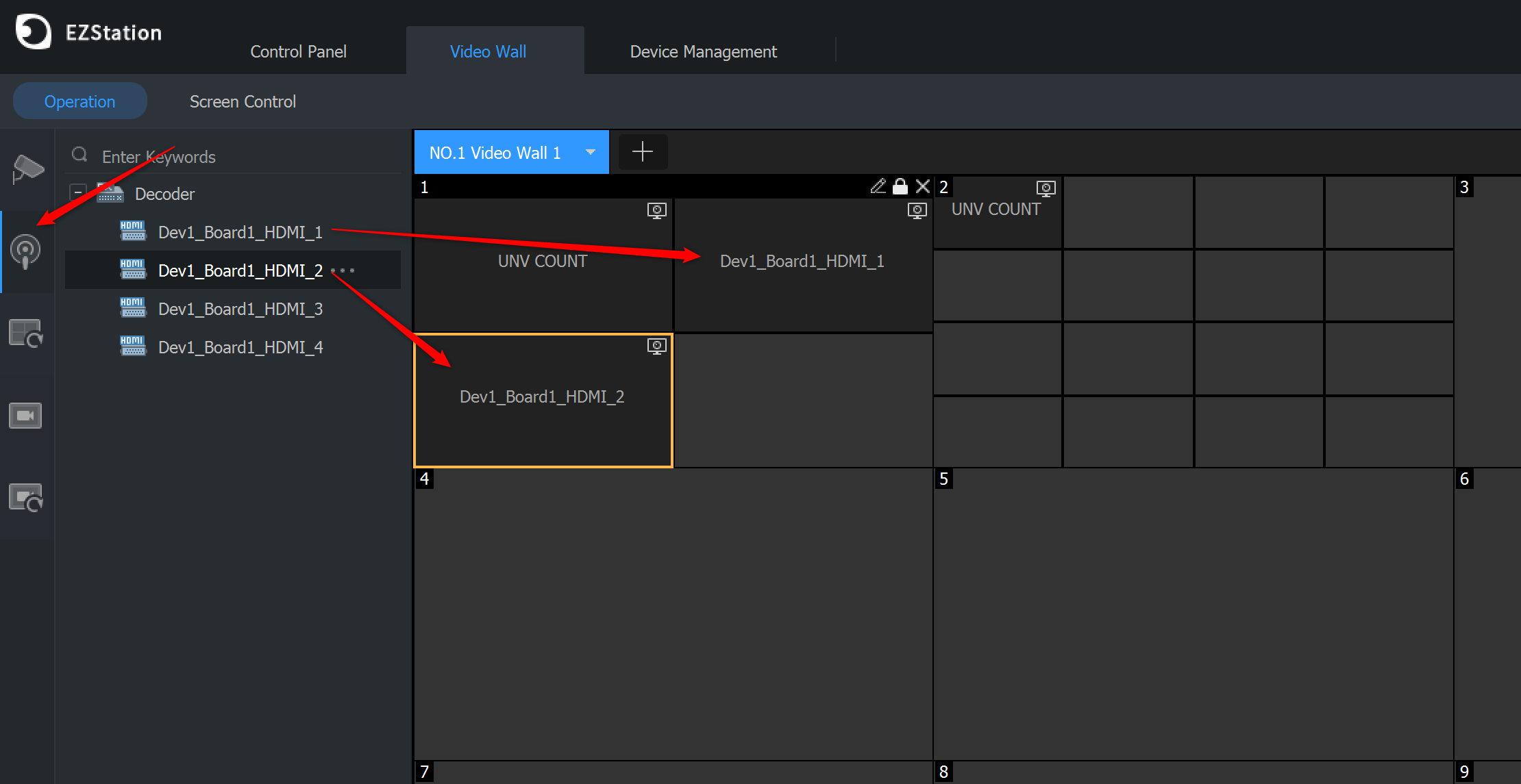

The rows and columns that will have the Video Wall are selected and the position of each HDMI is set:

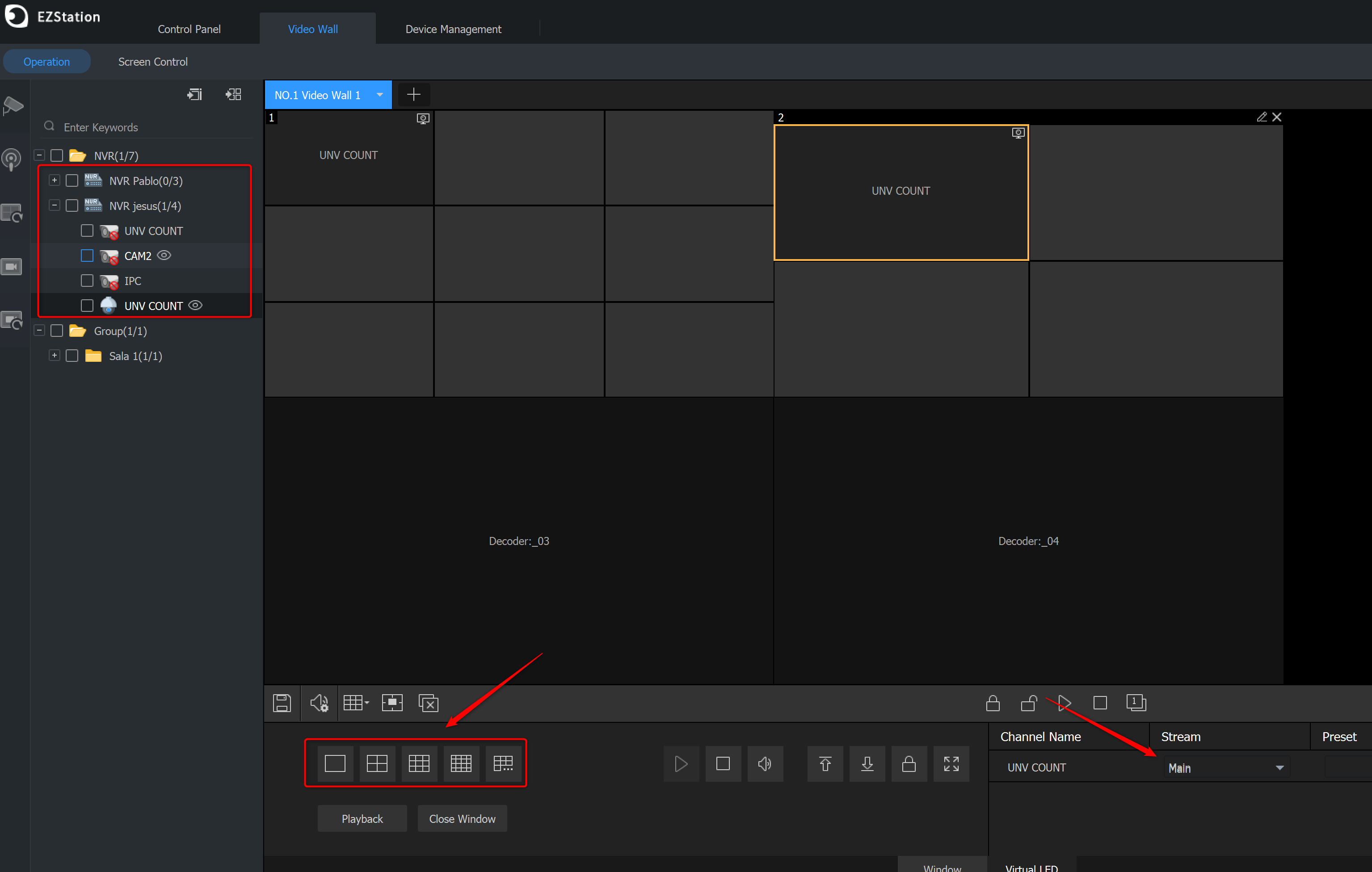

You can then start dragging cameras or channels from recorders added to EzStation to each of the windows and set dials inside each HDMI. You can also specify the stream, main or secondary for each channel:

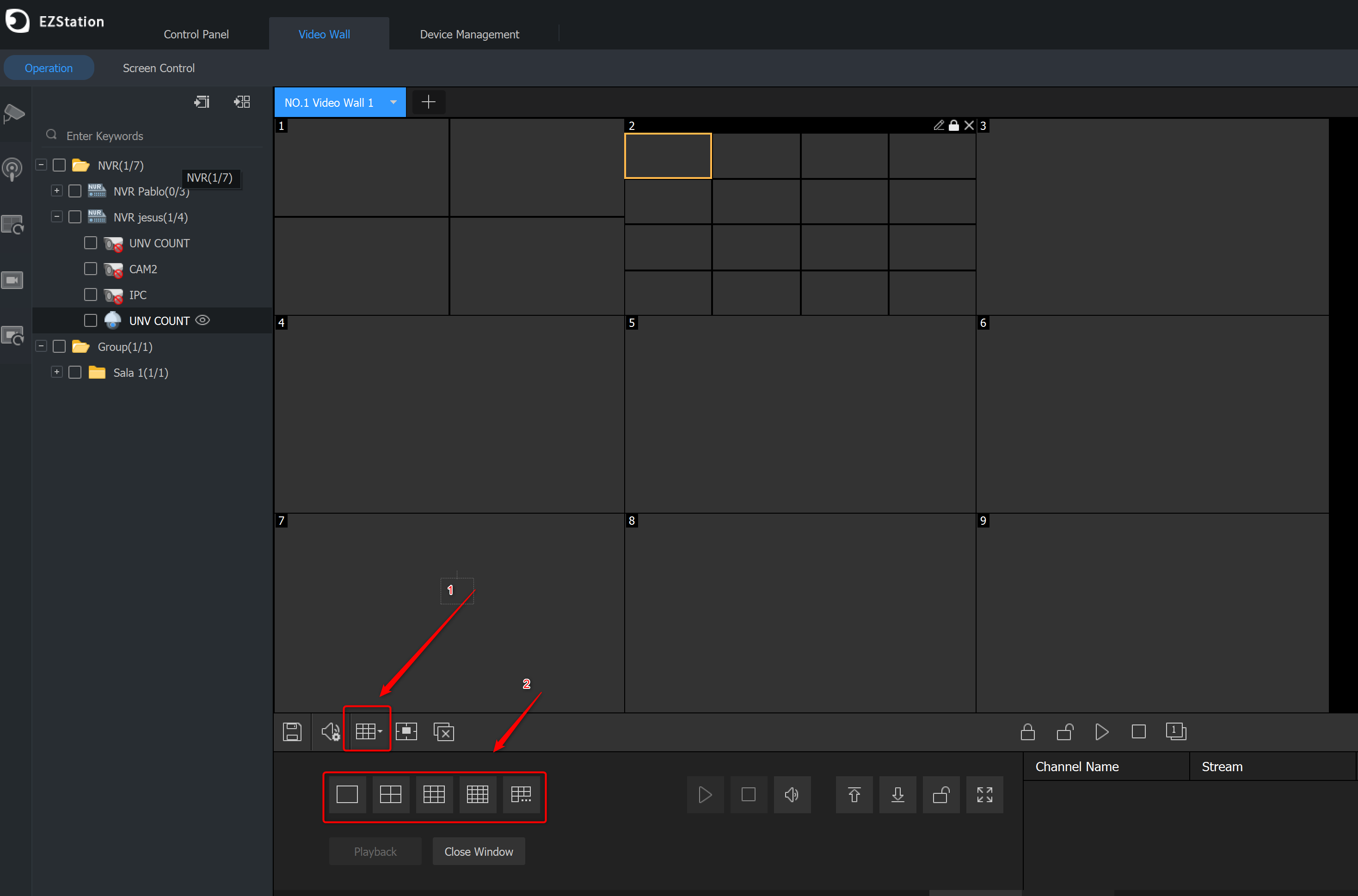

Additionally, it can be set so that each HDMI does not go independently of each other, but all are treated as a single image, for this the window management will be used (point 1).
And within each of these windows, a different quadrant can be set (point 2):
Then you just need to place the cameras in the desired position.

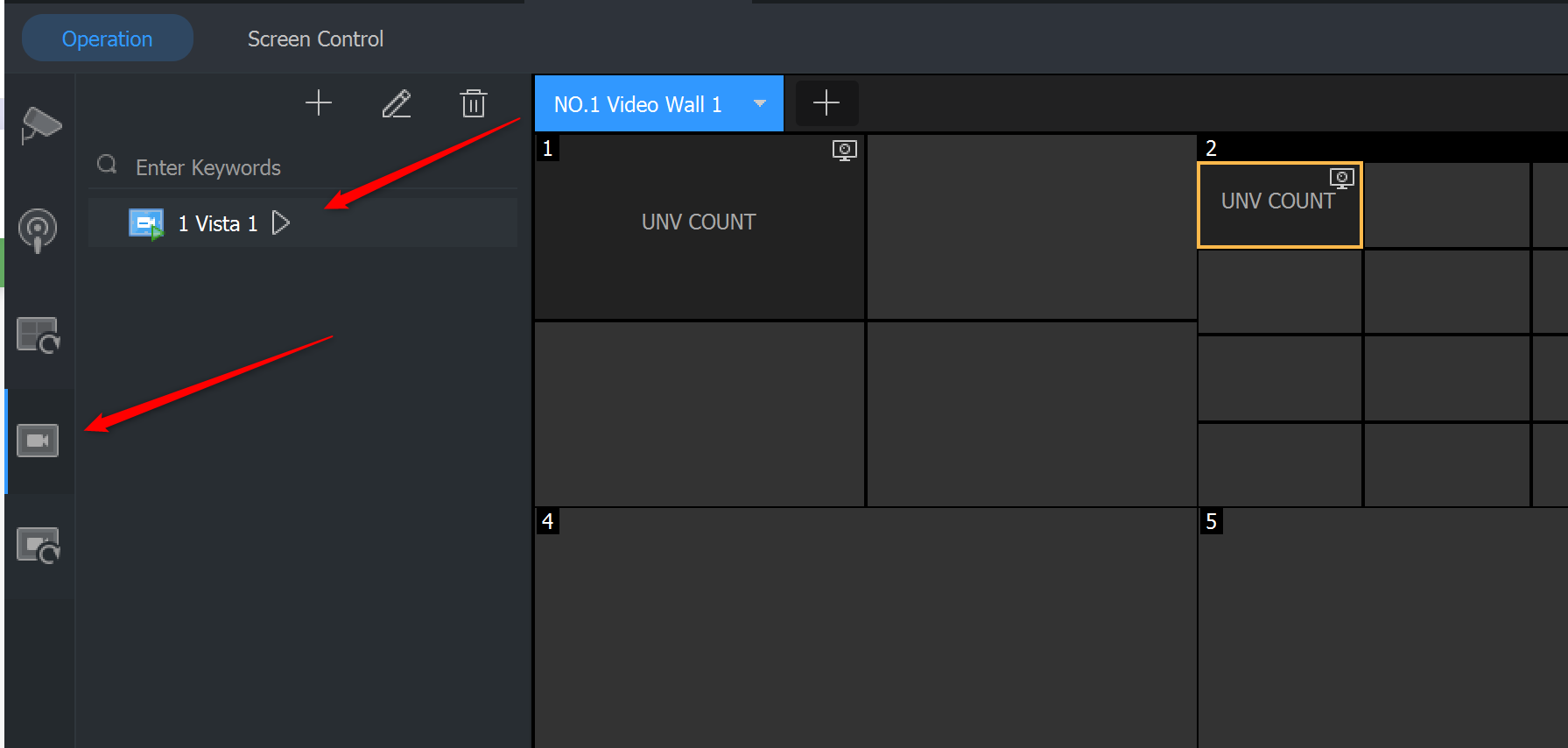

The configured views can be saved, so that they can be run quickly at any time by positioning the cameras as they have been saved in that view:
Decoders usually have HDMI inputs, in which you can connect PCs or any computer and take out in one of the views the image of this input. The HDMI inputs are in the following section and you just have to drag the desired one to the appropriate quadrant:
