Note:
This tutorial is made with SF-VIDISP05-10WIP-A
make sure the main monitor of the indoor station is online and working!
- Connect the PoE Ethernet cable (Power over Ethernet) on the monitor

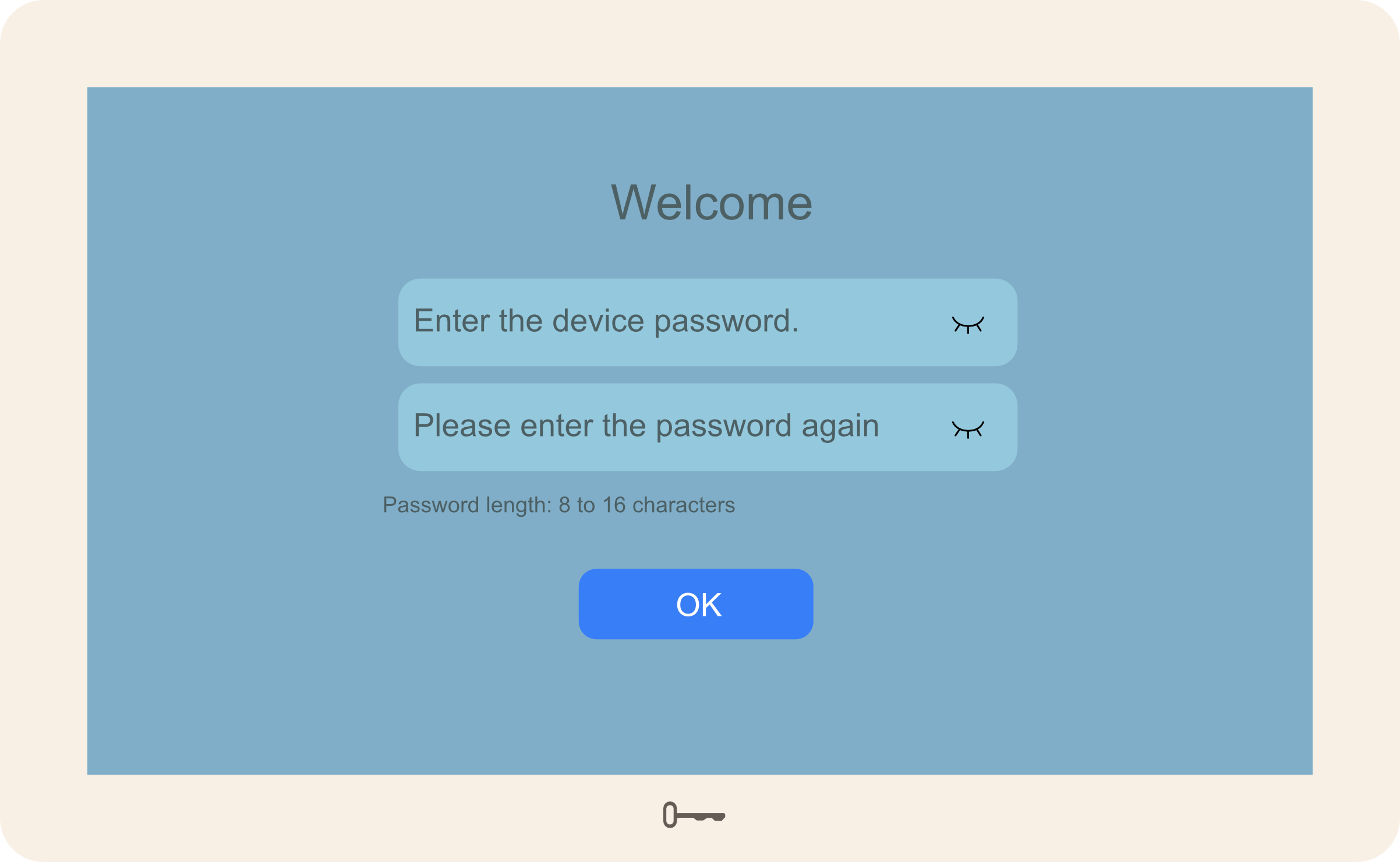

- On the welcome screen, the monitor will prompt you to create a password
- Enter the password and confirm the password in the second field

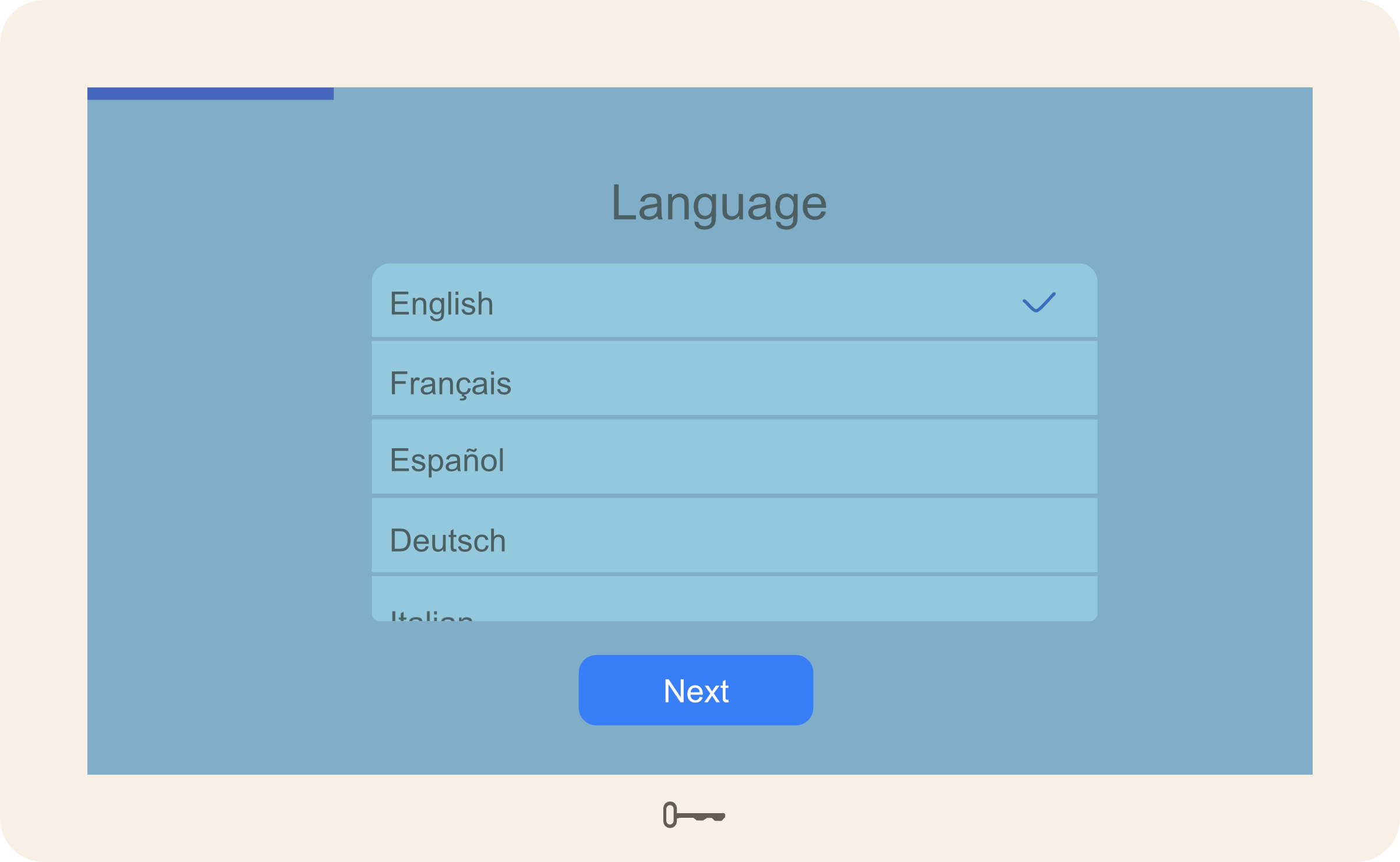

- Select the language

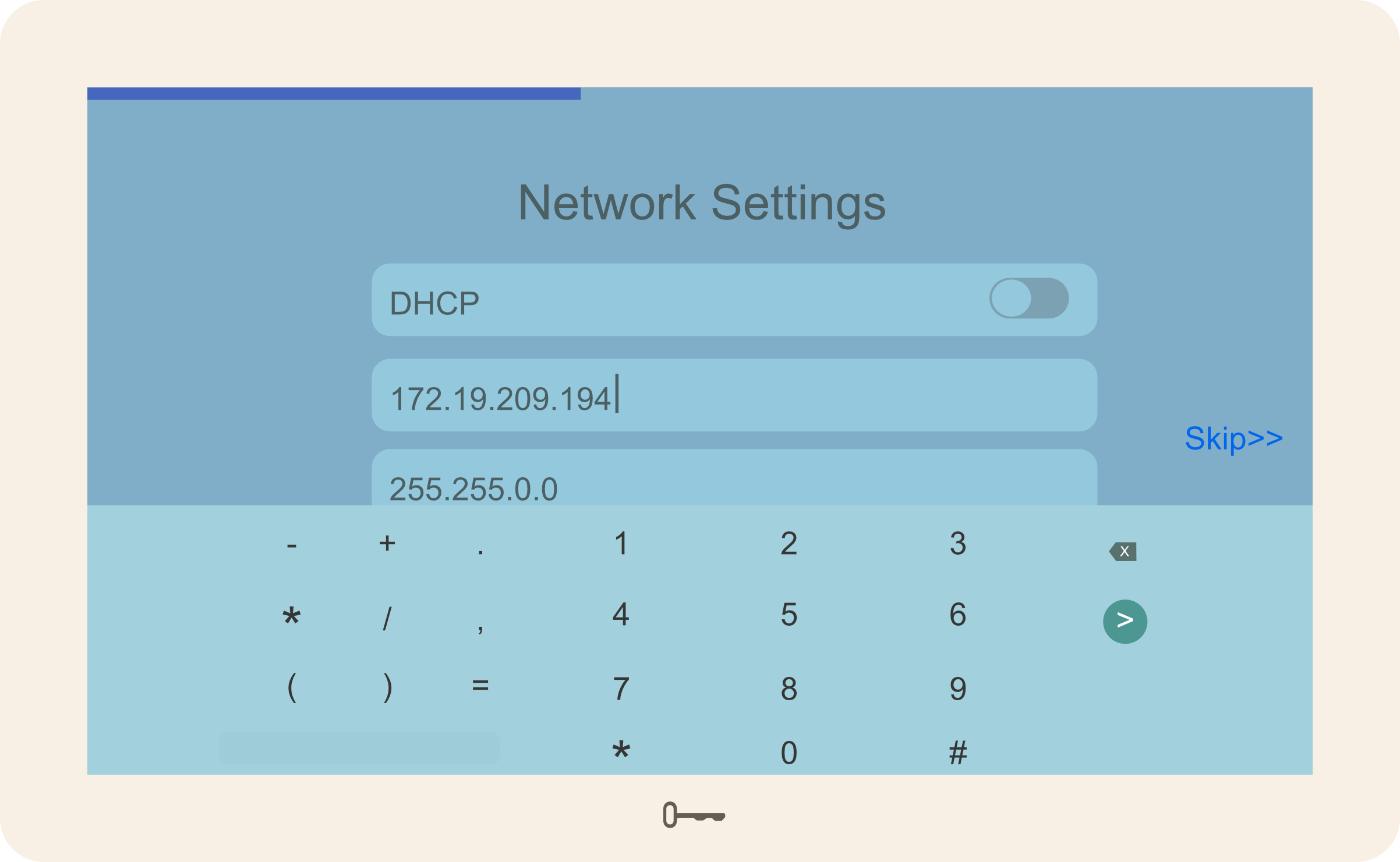

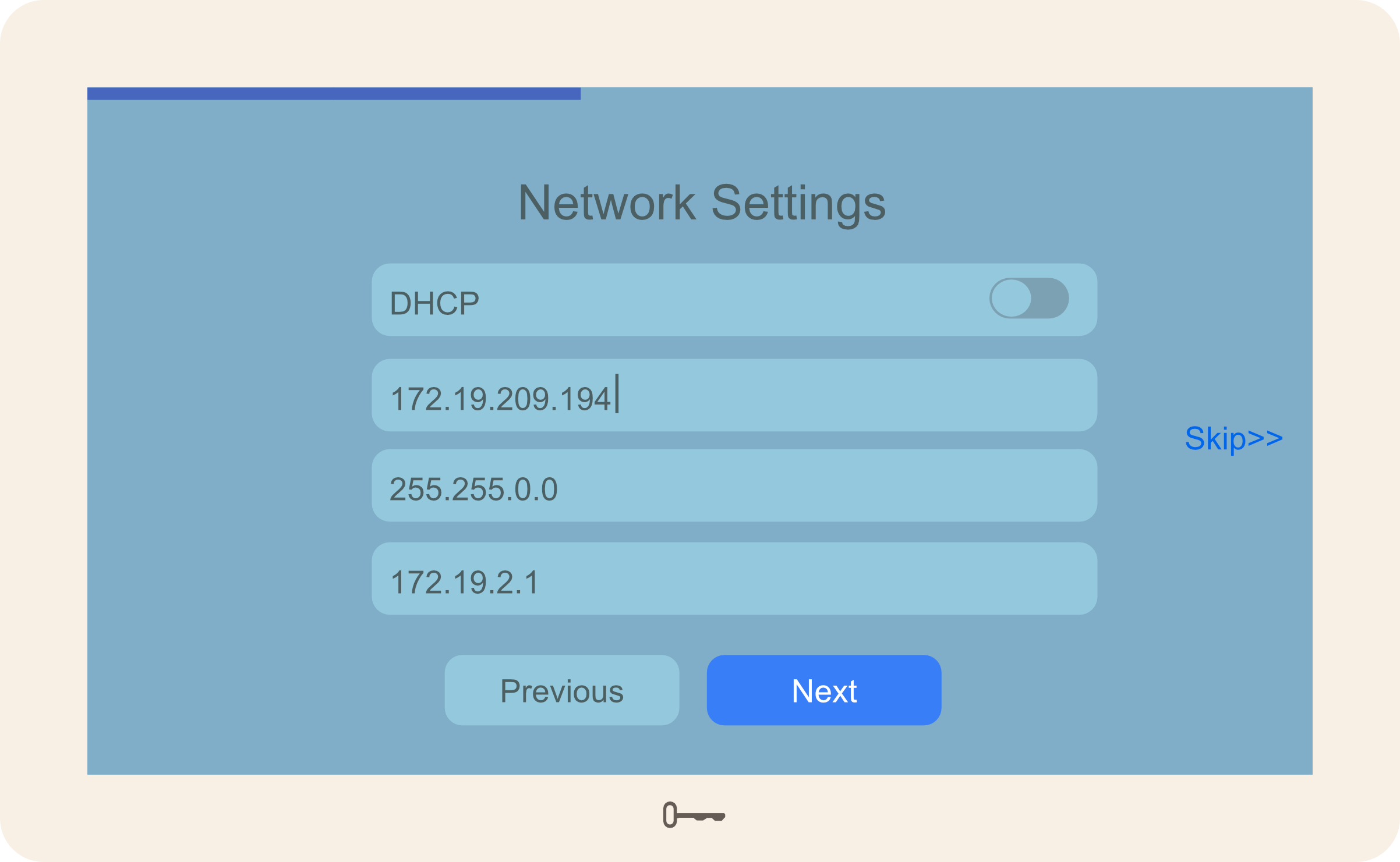

- Then, next to Network Settings
- Select DHCP or Edit network address (or Skip when the IP address is already correct)
- Click on > to go to the next field
- When finished, click Next

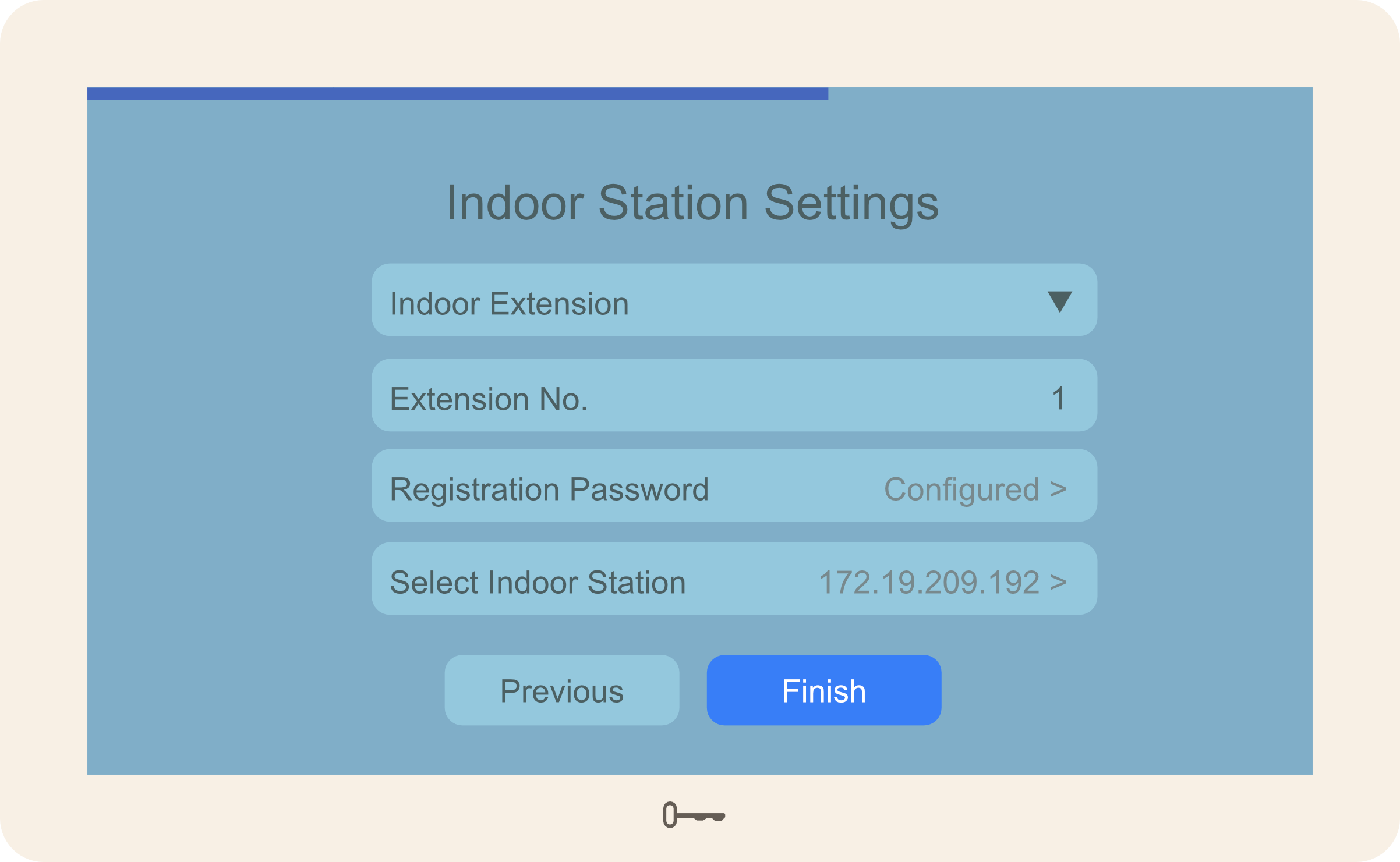

- In the first field, select Inside Extension
- The second field, the extension number. When it is the first extension, it should be 1
- Enter the registration password(this is not step 3 of the password form), it must be the same as the one for the master monitor
- Select the indoor station(master monitor) verify the master serial number
- Then click Finish
