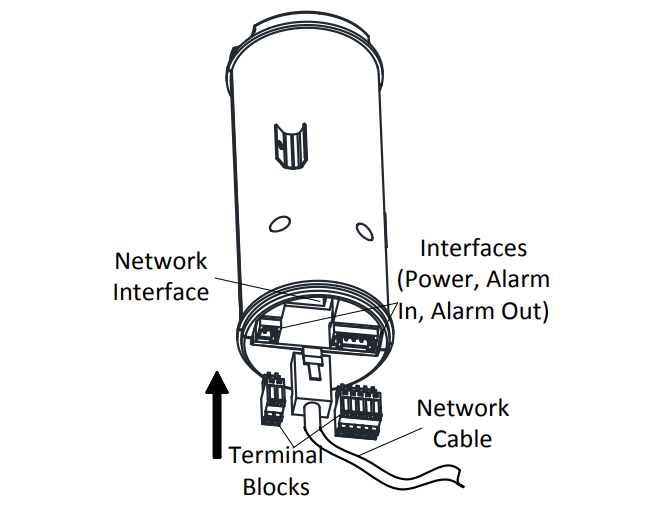

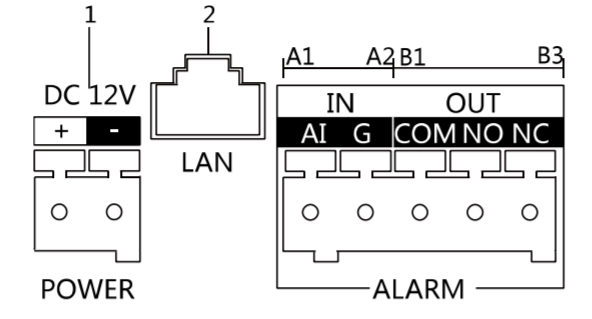

1. TERMINALS AND INTERFACES
1 - 12 VDC Power input.
2 - Network interface (PoE IEEE802.3af)
A1 - Alarm input
A2 - GND
B1 - Comun
B2 - NO (Strike lock connection)
B3 - NC (Electromagnetic suction cup connection)

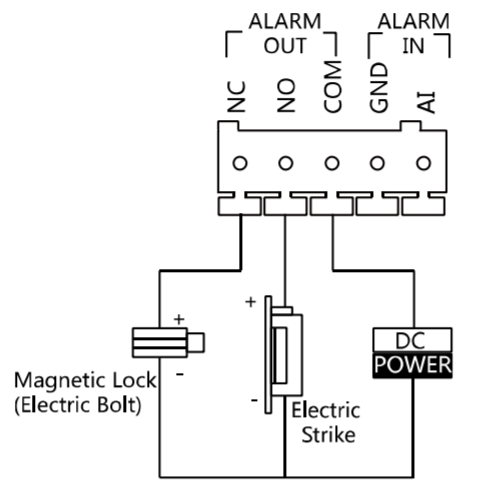

2. WIRING HARNESSES
The NC/COM alarm output is configured by default to connect electromagnetic suction cups.
The NO/COM alarm output is configured by default to connect electric locks / electric strikes.

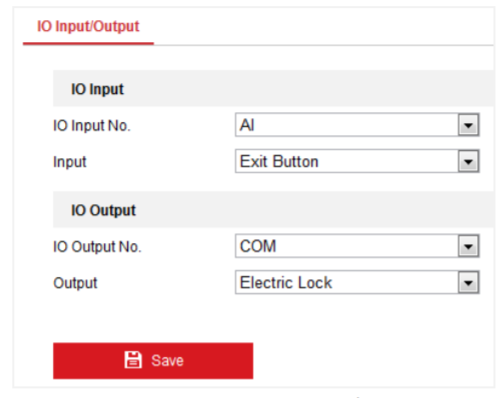

To connect the electric lock, it is necessary to configure the output of the NC / COM / NO terminal for the desired mode, open or closed, through the Safire Control Center or from Web Browser.

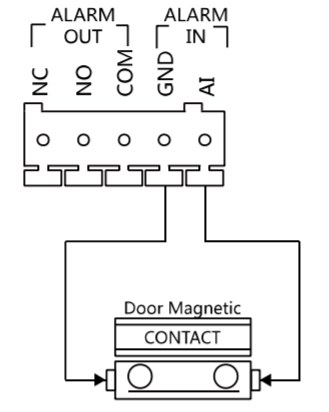

3. MAGNETIC CONTACT
To connect a magnetic contact, you need to configure the input of the AI terminal to be "Door Status" via Safire Control Center or from Web Browser.
In the Alarm Input option, you can configure the Input mode as: Disabled, Exit Button, Door Status and Custom.

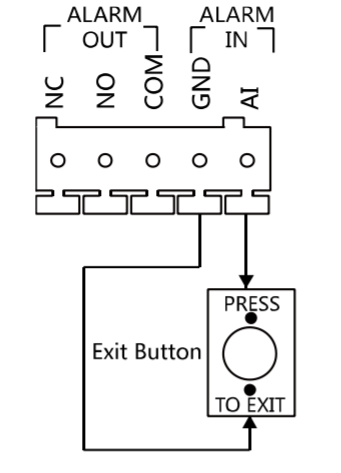

4. EXIT BUTTON
To connect the output button, you need to set the input of the AI terminal as Exit Button, via the Safire Control Center or from Web Browser.

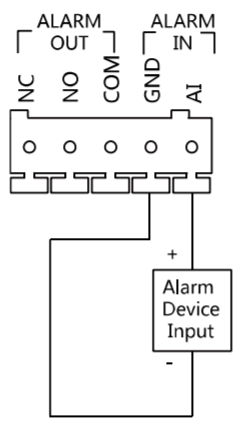

5. WIRED ALARM DEVICE
To connect a wired alarm device, the input of the AI terminal must be configured as CUSTOM, via the Safire Control Center or from a Web browser.
