05 - Safire Smart downloading a video clip

Avatar
SAT Norte Europa
  • Updated
Follow

For this procedure, it is recommended to use the Microsoft Edge web browser.

What do you need?

  • A Windows PC or laptop
  • Microsoft Edge web browser
  • Access to the NVR web interface
  • The NVR username and password

Step 1: Access the NVR Web Interface

Open the NVR web interface using either:

  • The NVR IP address, or
  • The AutoNAT (P2P) connection

Log in with the NVR Username and Password.

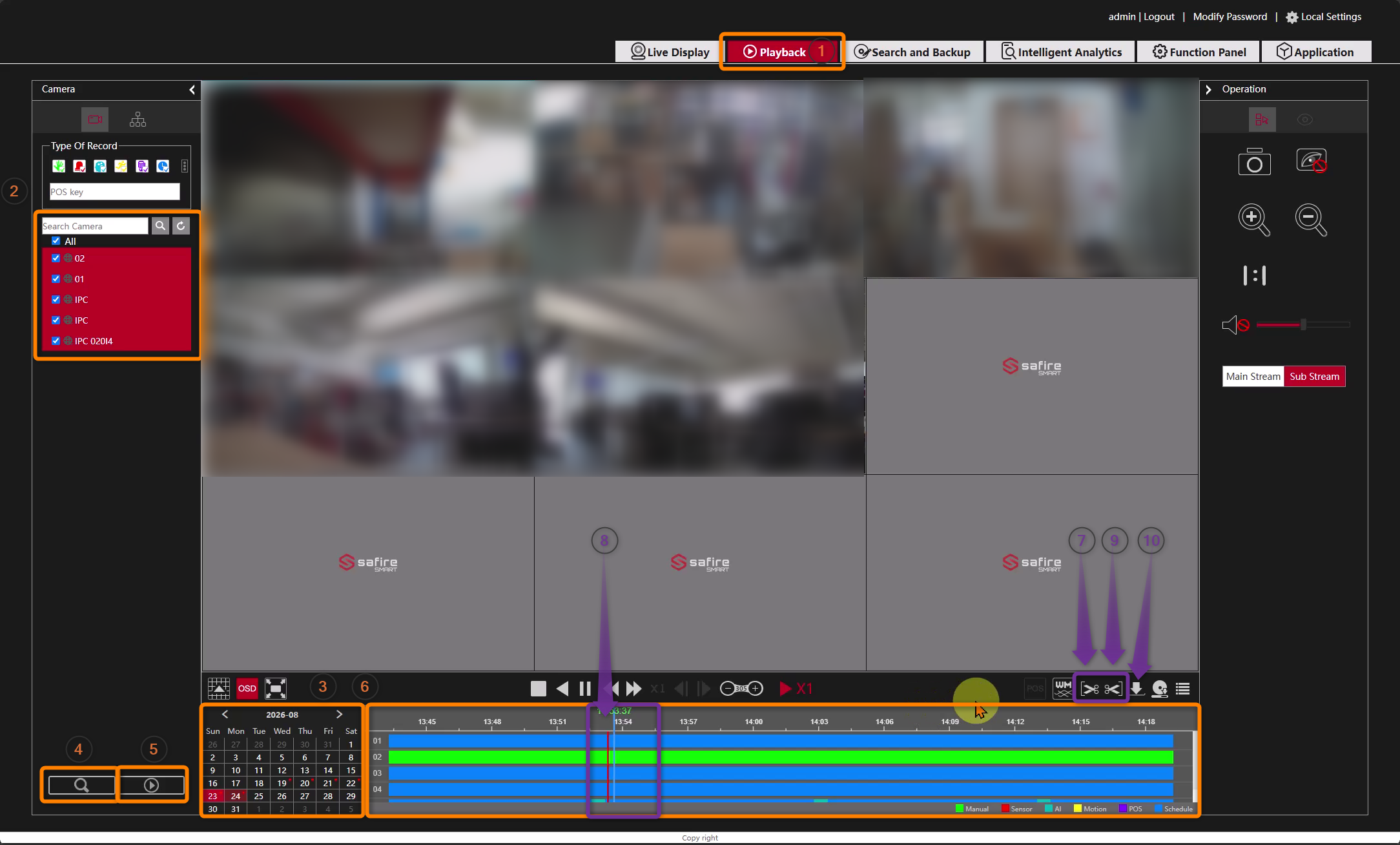

Step 2: Open Playback

  1. Click Playback.
  2. Select the camera or cameras you want to review.
  3. Select the desired date.
  4. Click Search.
  5. Click Play to start playback.

Step 3: Select the Video Clip

The timeline can be zoomed in for a more accurate time selection.

  1. Navigate to the start time of the event.
  2. Click Pause. Click the left scissors icon to mark the beginning of the clip.
  3. Select the desired start point on the timeline.
  4. Navigate to the end time of the event.
  5. Click the right scissors icon to mark the end of the clip.

Once both points have been selected, click Download.

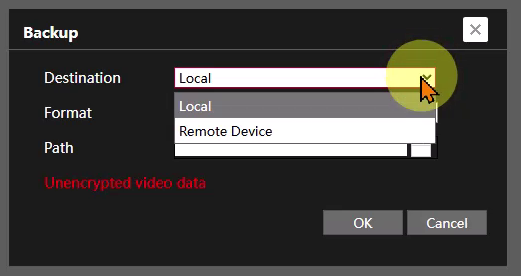

Step 4: Configure the Download

A new download window will appear.

Destination Options

  • Local: Saves the video clip to the computer currently being used.
  • Remote Device: Saves the video clip to a storage device connected to the NVR.

Note: To save a video clip on the NVR, a USB storage device must be connected to the NVR.

  • Select Local as the destination.
  • For local downloads, only the AVI format is available.
  • Choose the folder where the video clip should be saved on the PC.
  • Click OK to start the download.

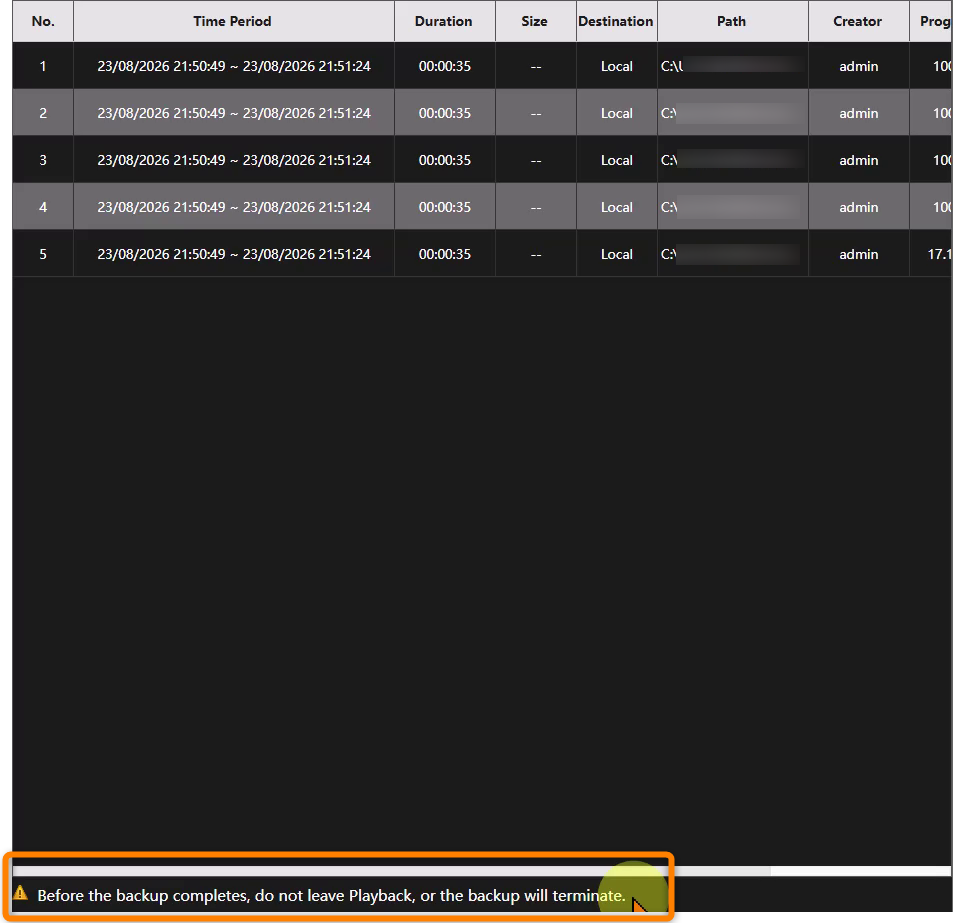

Step 5: Complete the Download

Wait for the download to finish.

Important: Do not close the download window or browser tab immediately after the download reaches 100%. Closing it too soon may interrupt the export process.

Once completed, the video clip will be available in the selected folder on your PC.
