The one click disarm allows you to arm or disarm the system of Safire Smart units, so that the recorder performs, or not, certain functions when the unit is armed or disarmed.

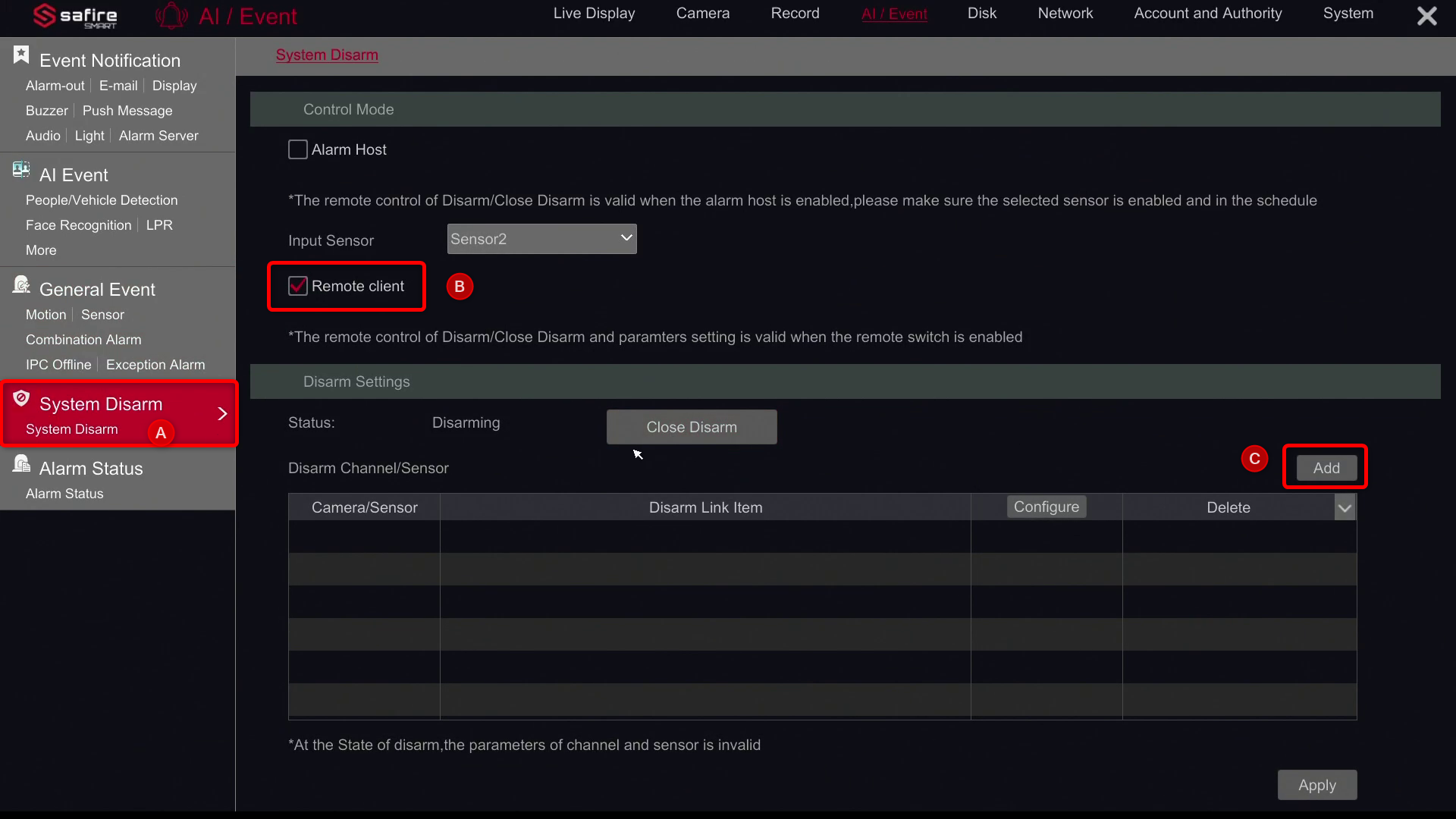

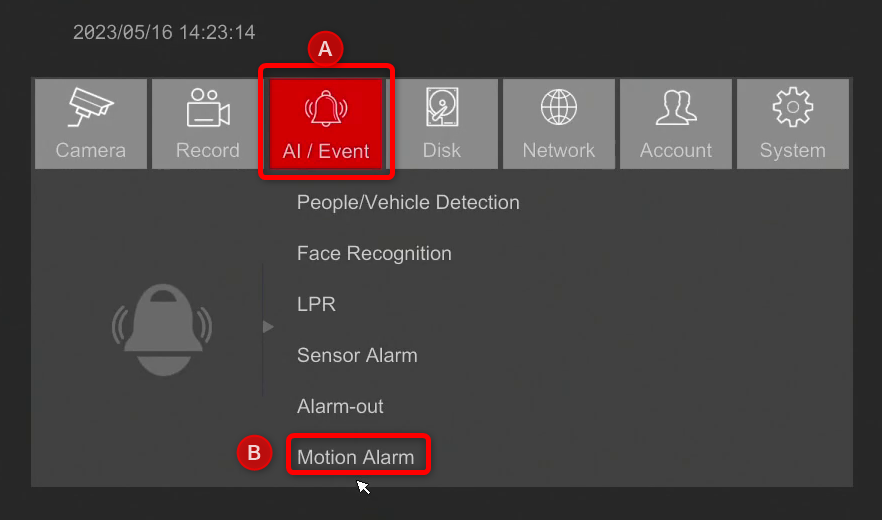

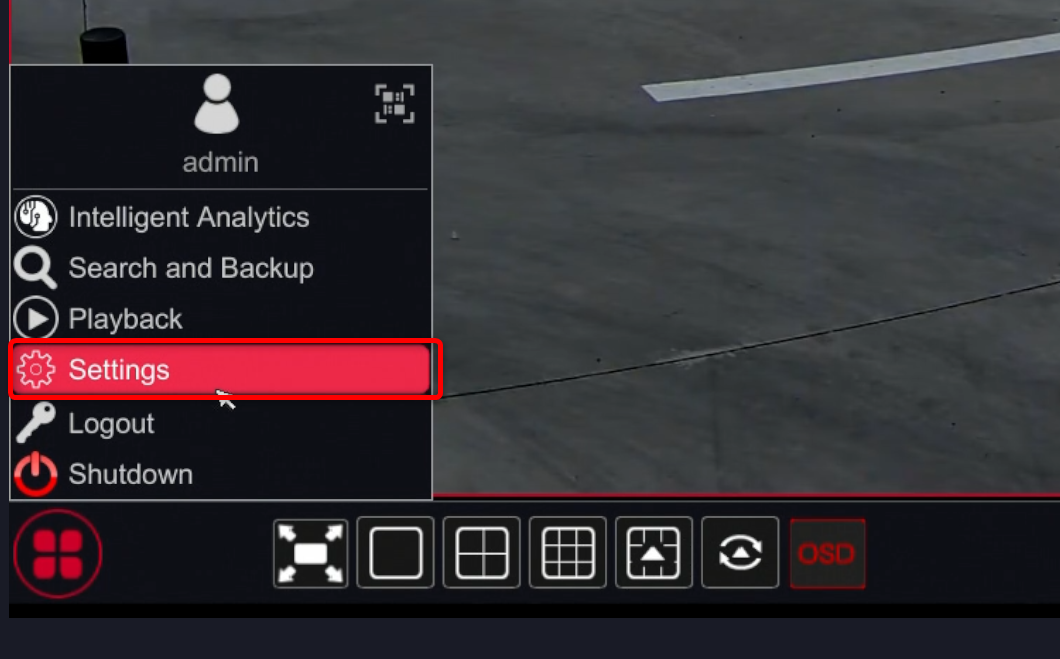

The first step to be able to manage this function is to activate the following option via monitor and mouse, since it is the activation of the remote configuration and not only with the monitor itself:
Once the "Remote Client" has been activated, all One Click Disarm configurations can be made both from the APP and from the browser.
FROM THE SAFIRE SMART APP

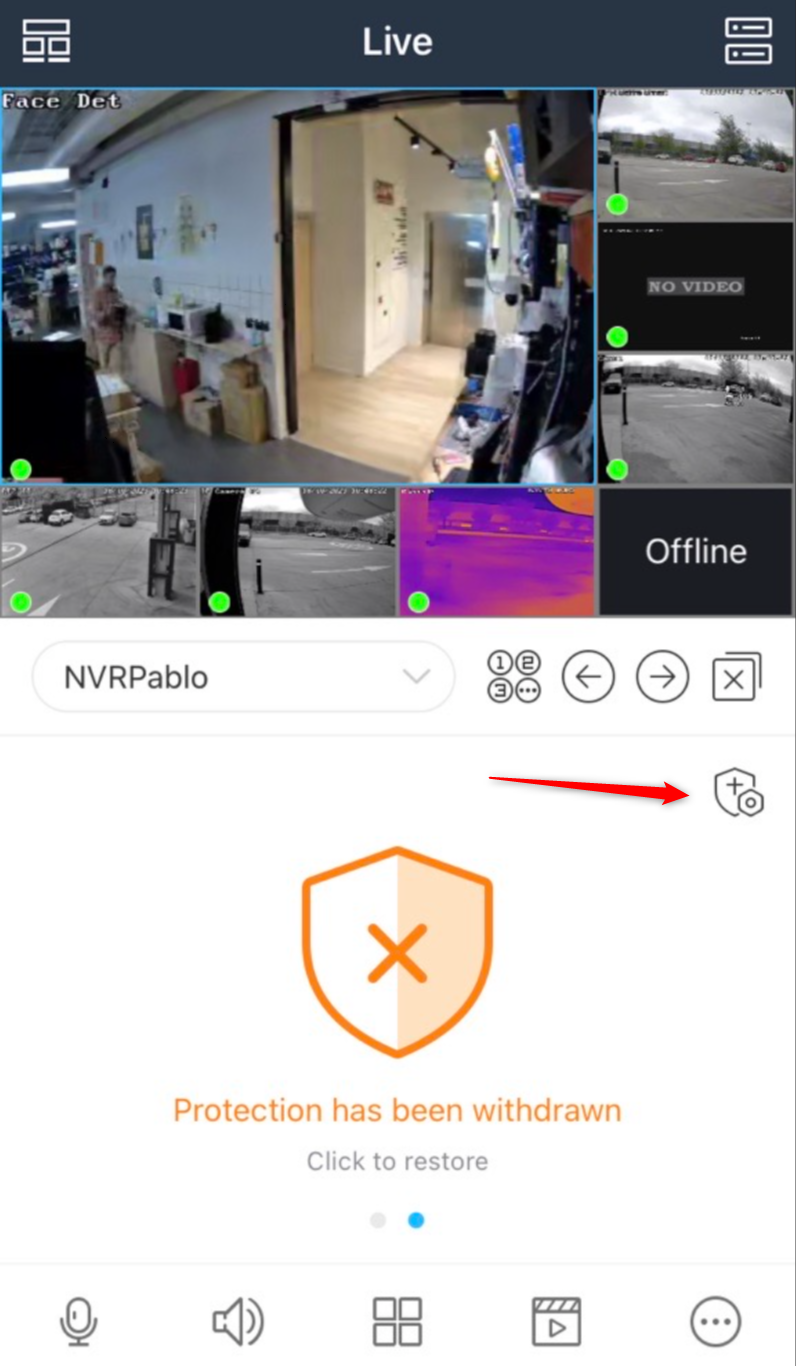

Any recorder can perform this function through the APP, i.e., the recorder can be armed and disarmed only with the APP and prevent the equipment from performing certain functions:
The configuration to determine which channels and which functions are stopped from running when the equipment is disarmed can be configured both from the APP and from the recorder:

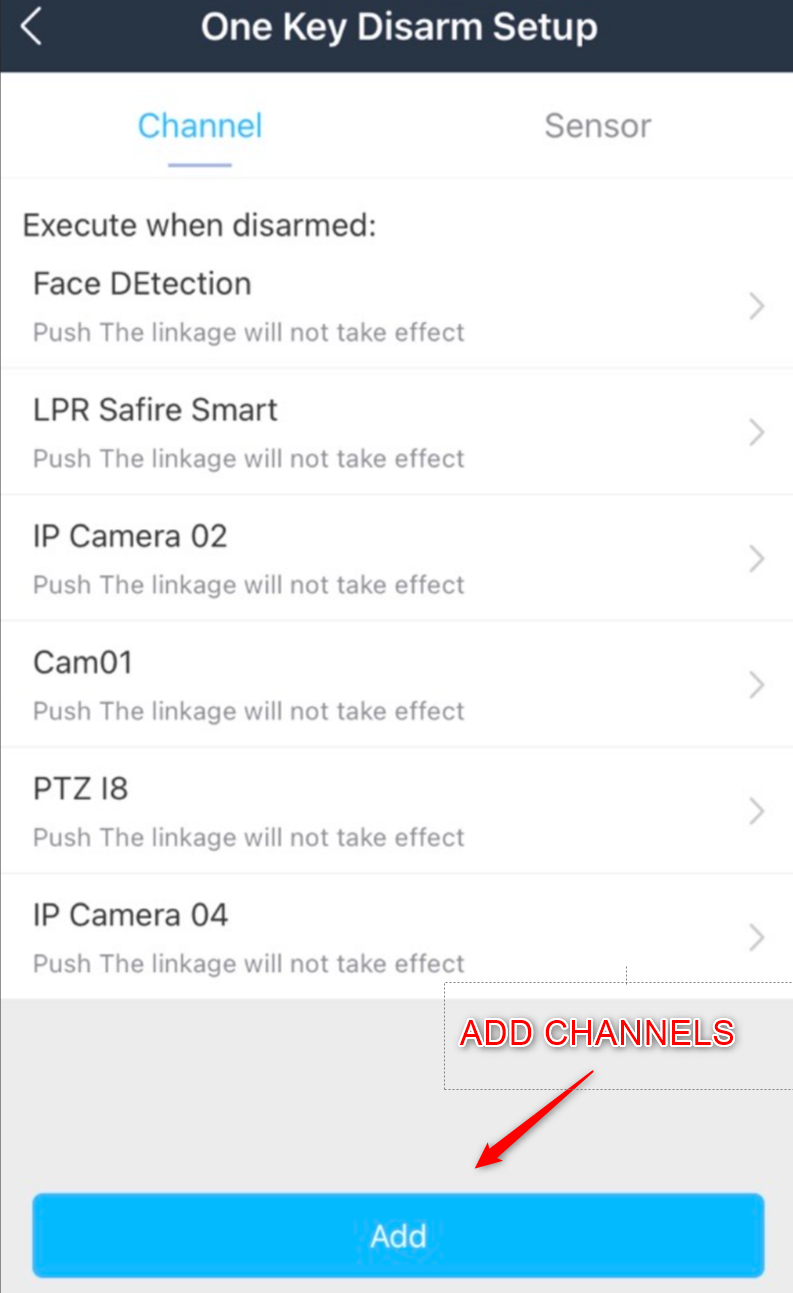

- From the APP, the channels are added and then the events that will be activated, or not, depending on the arming and disarming, are established.

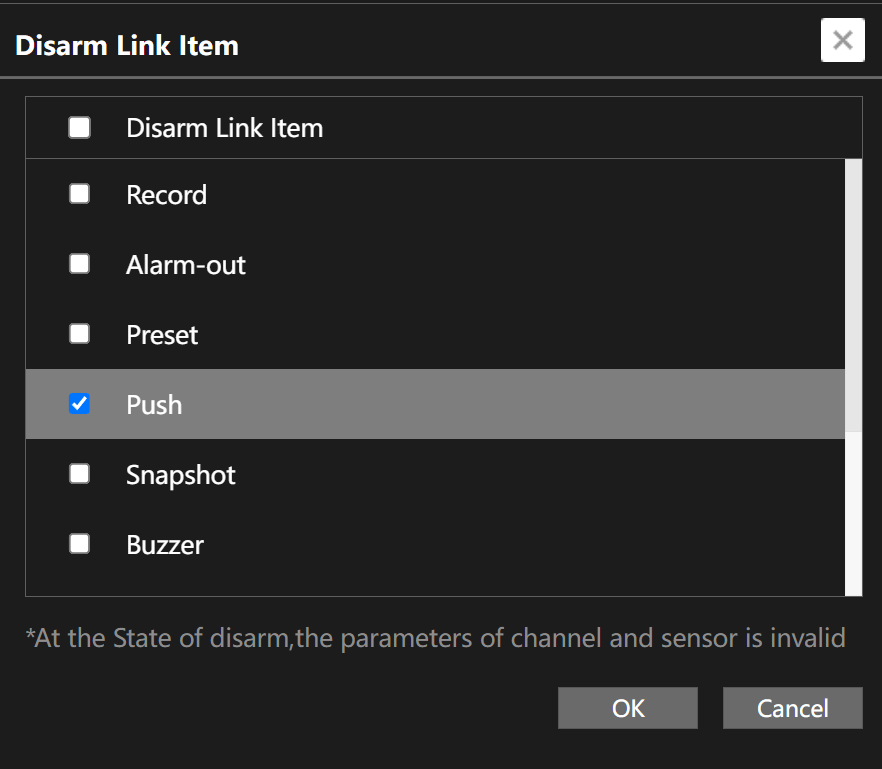

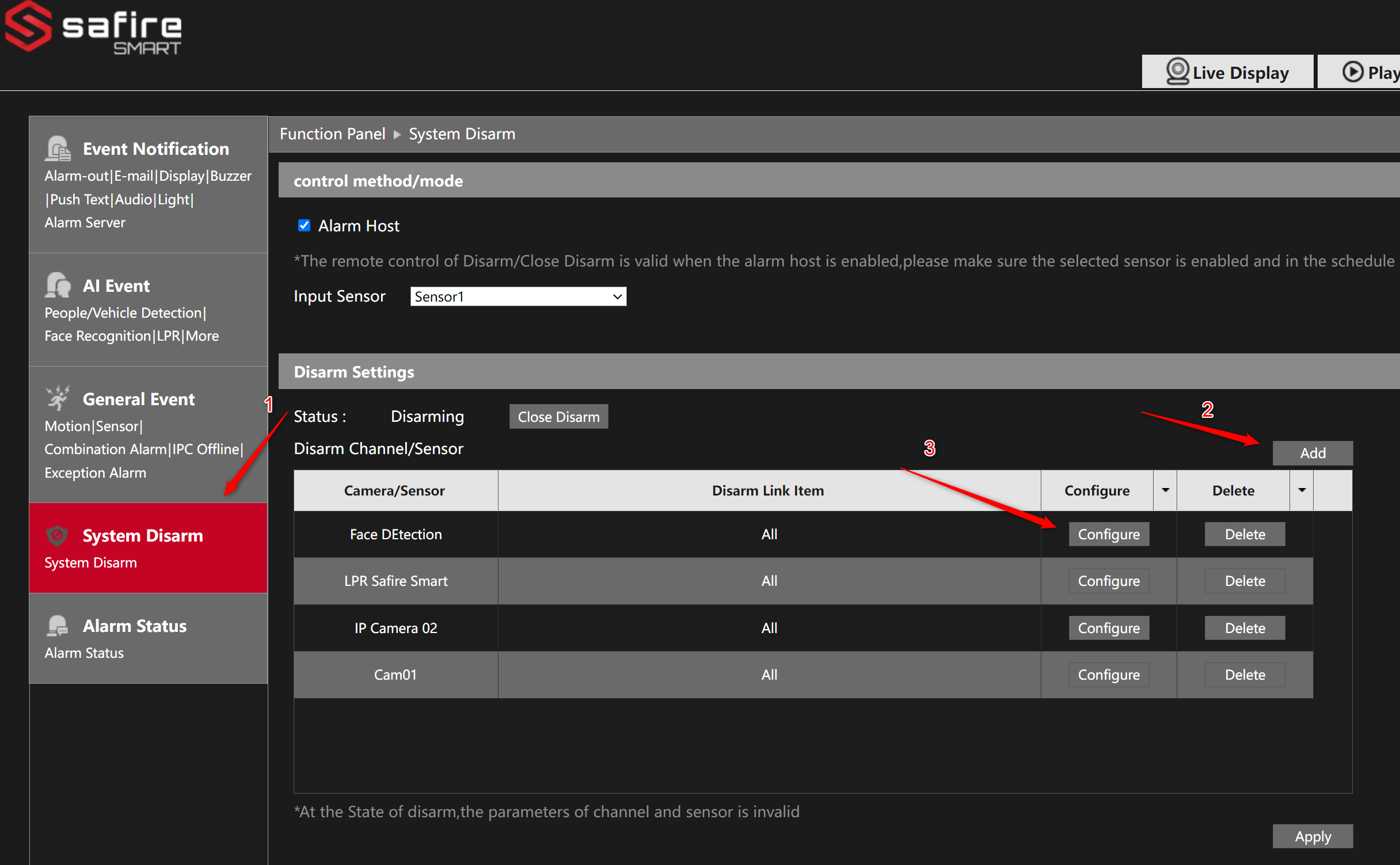

- From the recorder, as well as from the APP, you must add the desired channels (Point 2) and, from the Configure tab (Point 3), set the events that will stop running when the system is disarmed.

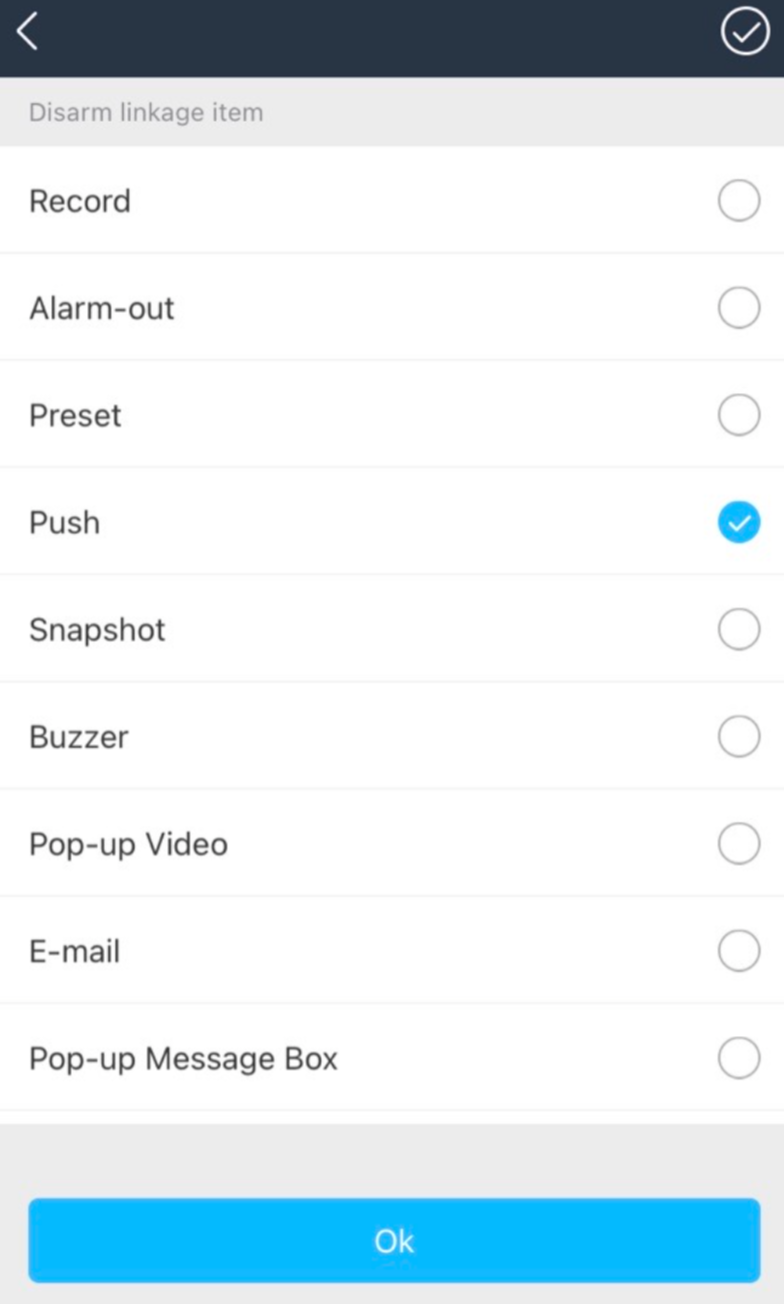

These options that can be checked, it is important to know that they are options that, when the equipment is disarmed, will not be executed, so if the Record box is checked, that event will not be recorded when it is disarmed.
Whether the configuration is made from the APP or from the browser, the configuration will be saved in both places, and if a modification is made from the APP it can also be checked from the webserver.

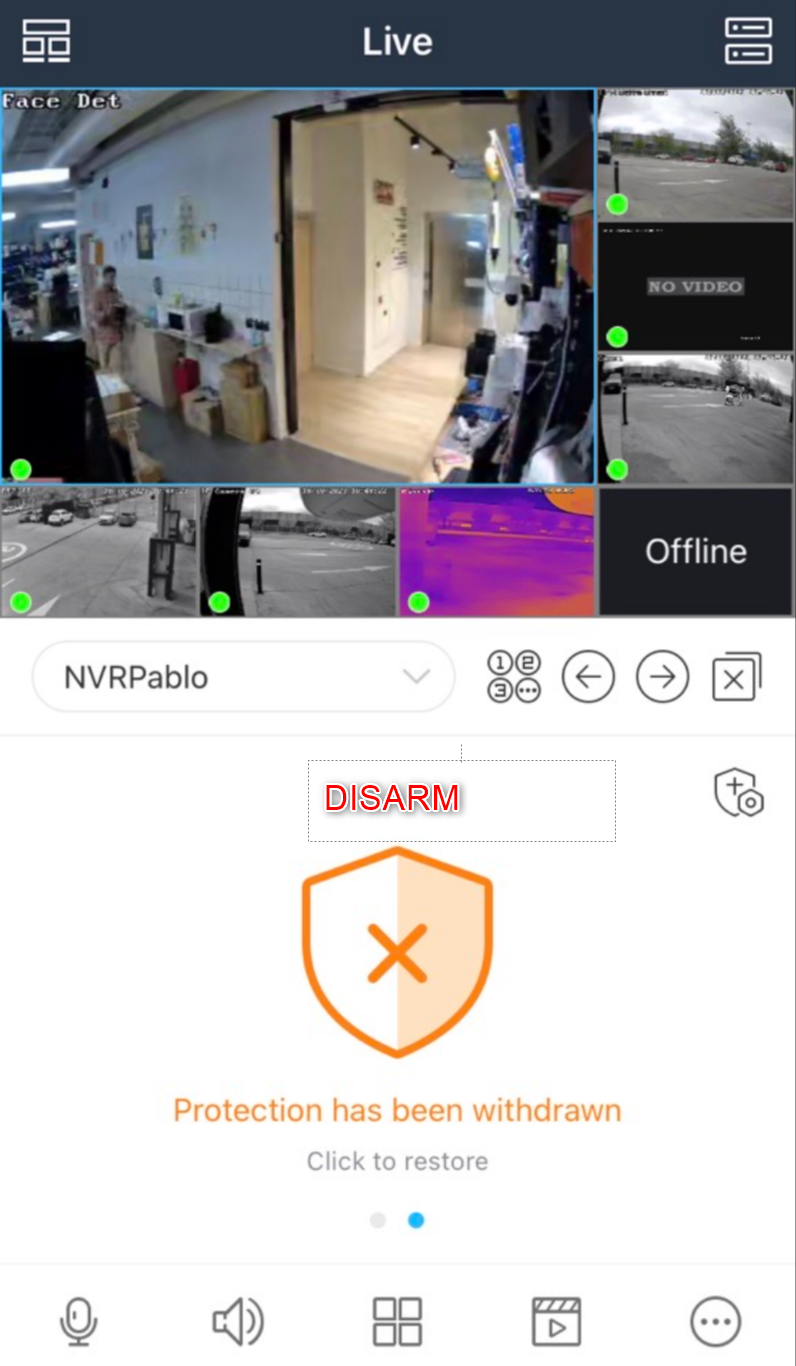

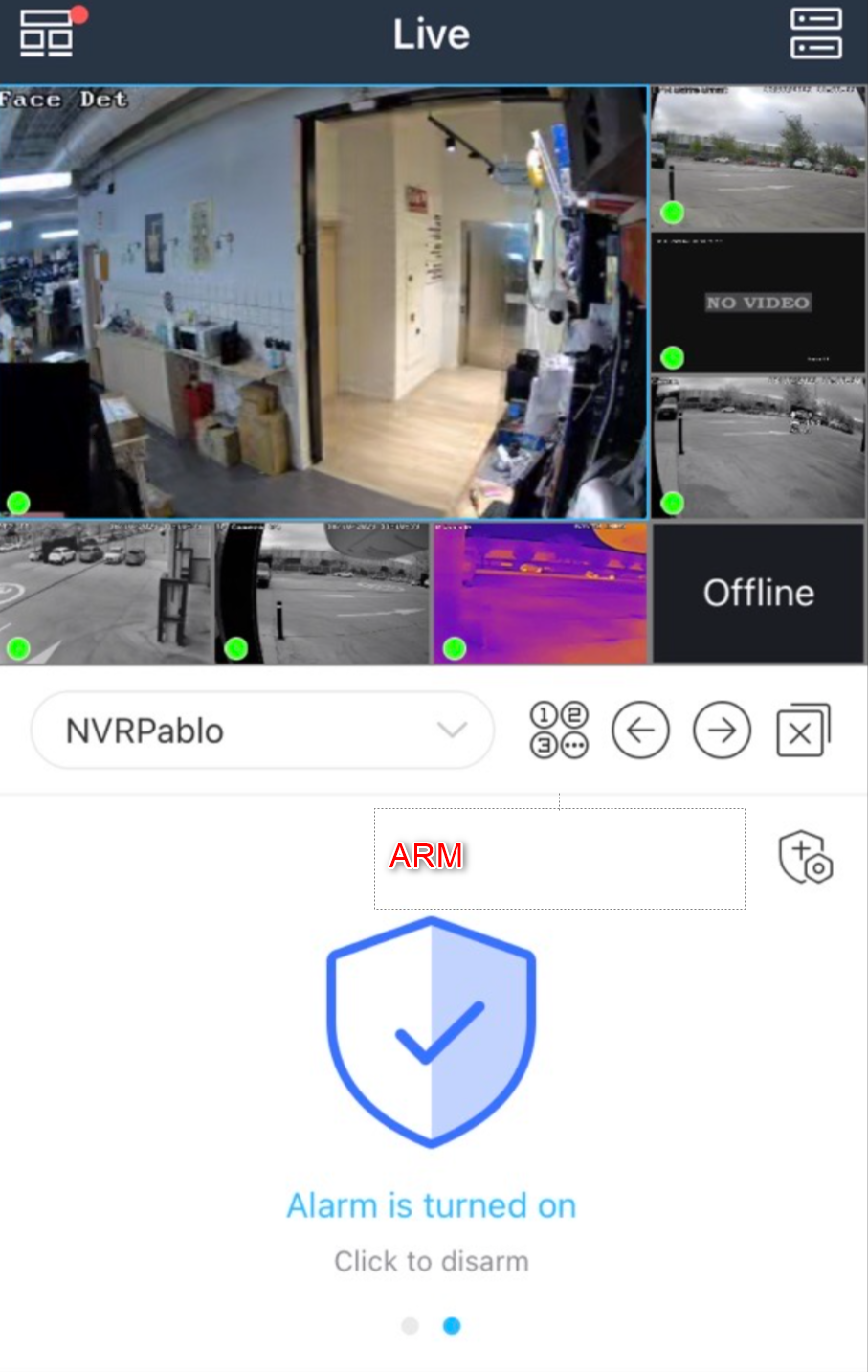

Finally, to arm and disarm from the APP just switch between these two options by clicking on the shield icon:
THROUGH AN ALARM INPUT
The only difference between doing it by APP or by alarm input is when configuring the recorder, where the alarm input to be used for this function must be specified:
Once the alarm input is set, the process is the same as before, you have to select the channels and events you want to block when disarming the system.
When activating the alarm input the icon in the Arming/Disarming APP will switch between the two modes automatically and not manually as before:
