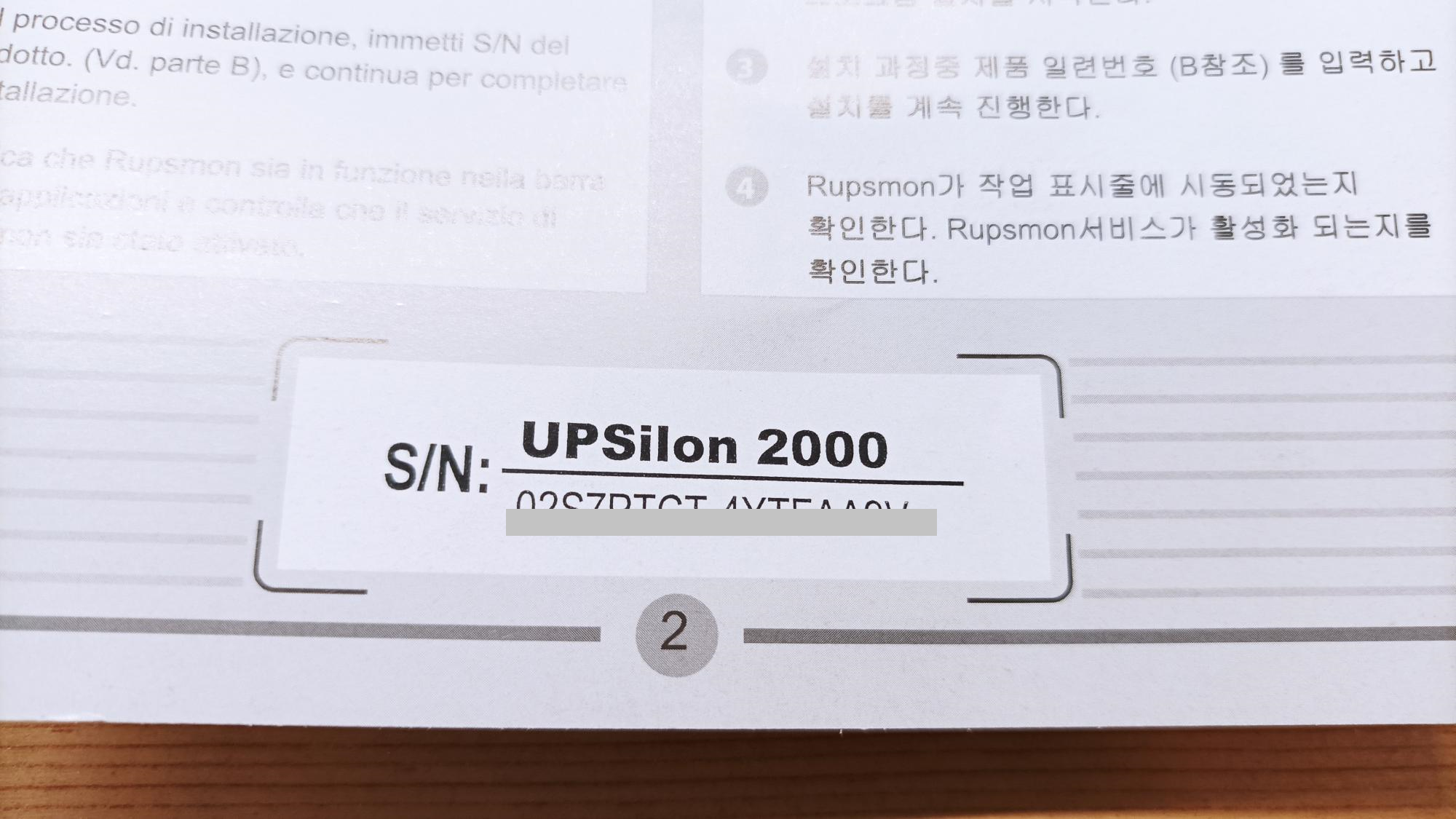

For the installation of the Upsilon application, you will need the serial number that is included in the user manual documentation.
In case you have lost this sheet, enter this code 02S7PTCT-4YTFAA9V

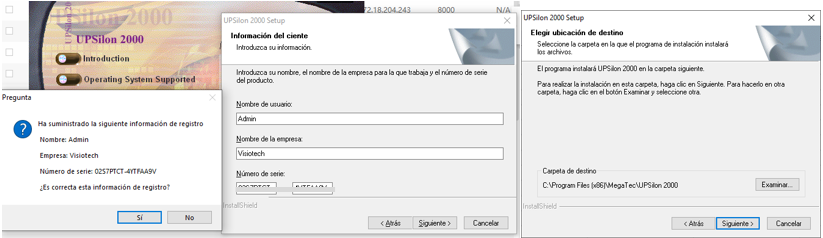

Download and Install the UPSILON 2000 software application can be downloaded automatically from this link
With the Upsilon 2000 software, the UPS status can be monitored in real time. In the case of having configured an e-mail, it will send to this one any incident of the equipment. If indicated, it will close the PC where the software is loaded in case of absence of network, and it reaches the minimum battery charge level.
Once installed, the software will run in the background, in case you need to open or close it, go to the hidden icons menu next to the windows clock. Select its icon and choose the option that interests us.

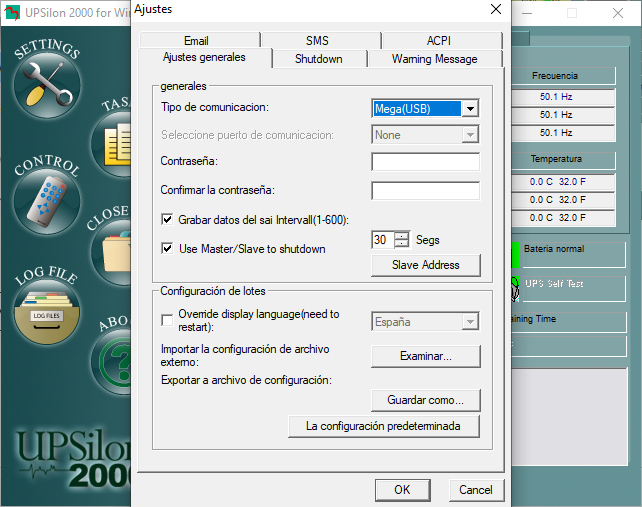

Communication with the UPS. This will be done by accessing the SETTINGS menu on the home screen, in the General Settings tab, choose Mega (USB) in communication type.

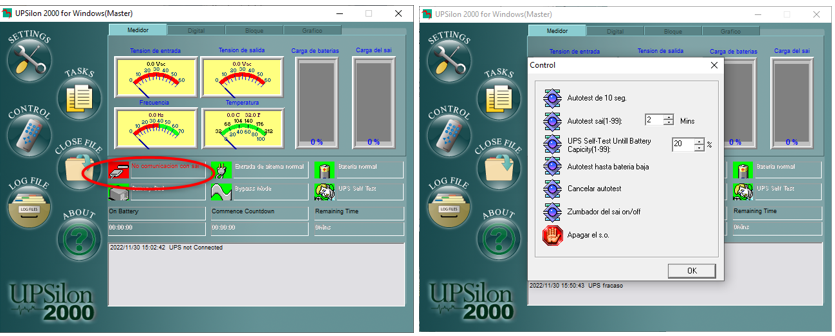

Monitoring. Here you will see the UPS status in real time. Some tests can also be performed by accessing CONTROL from the startup window; Self-test, Mute beeps, check if the PC is shut down, among others.
