To connect the equipment to any SAFIRE compatible device, the following operation must be performed.

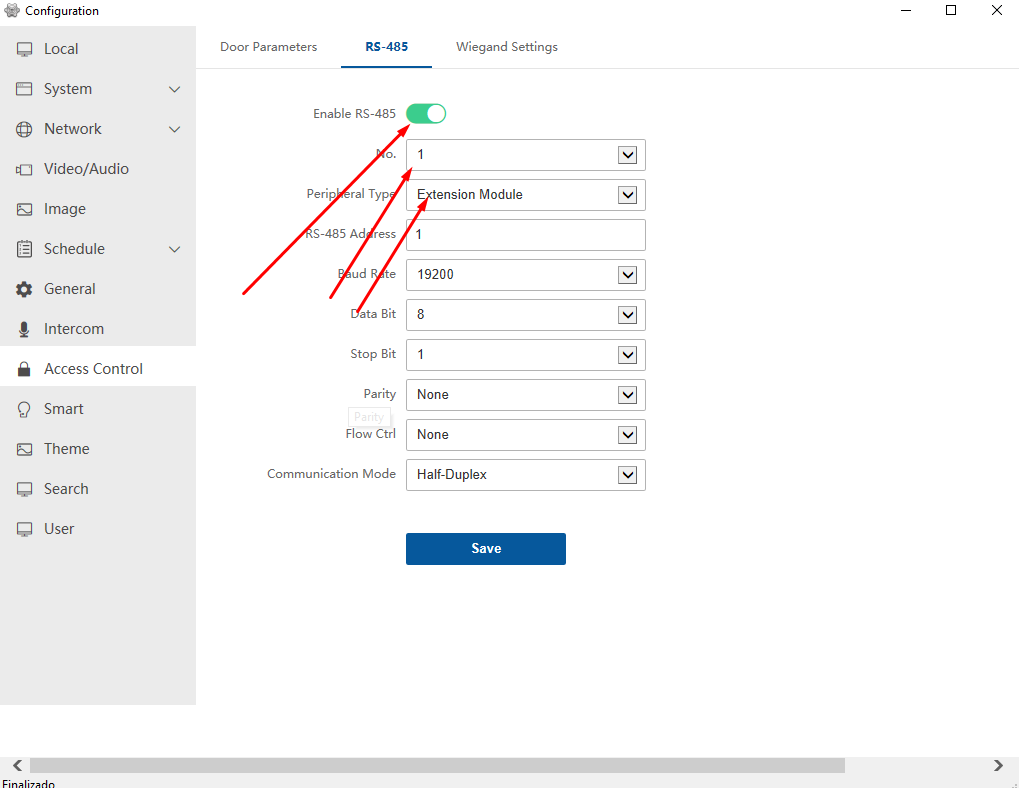

First, the equipment is connected to the controller via RS485. Once this is done, the output of the device must be set in the setup part of the device. The output must be programmed as an extension module and the address must be set.

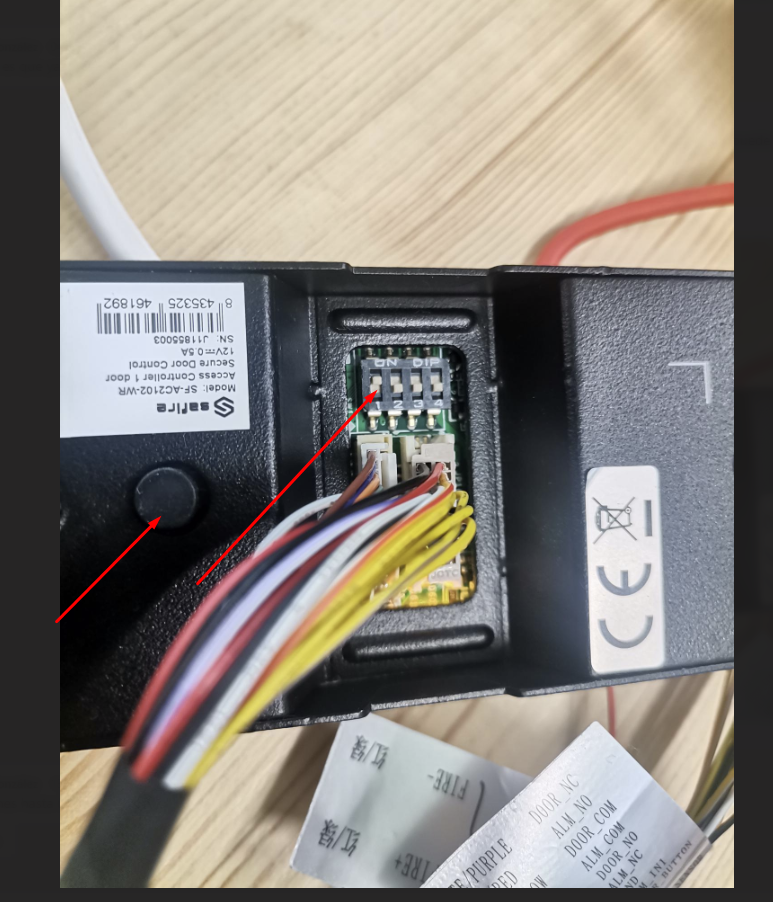

After this, the address of the dip switch must be set in the controller by simultaneously holding down the tamper and energizing it
