The monitors of the KIT-VIDEOWALL55-2X2-FLOOR and KIT-VIDEOWALL55-2X2-WALL video wall kits allow you to specify the position of each of them
- V Addr - H Addr
- 1 - 1 - Top left
- 1 - 2 - Top right
- 2 - 1 - Bottom left
- 2 - 2 - Bottom right
To do this you have to connect the IR receiver to each of the screens and perform the configuration one at a time. This receiver has a RJ-45 type connector
1- The menu is accessed using the 0 button. In this section, the position of the screen will be established as mentioned before (V Addr and H Addr) and in the sections of ID ONE and ID TWO, the same numbers that are indicated at the bottom of the menu will be set (if this is not done the configuration would not be saved, besides they are random numbers that change each time the menu is entered). To save these changes press APP:
IMPORTANT: every time this menu is accessed the VAddr and HAddr sections will be shown with 1-1 even if they have been modified

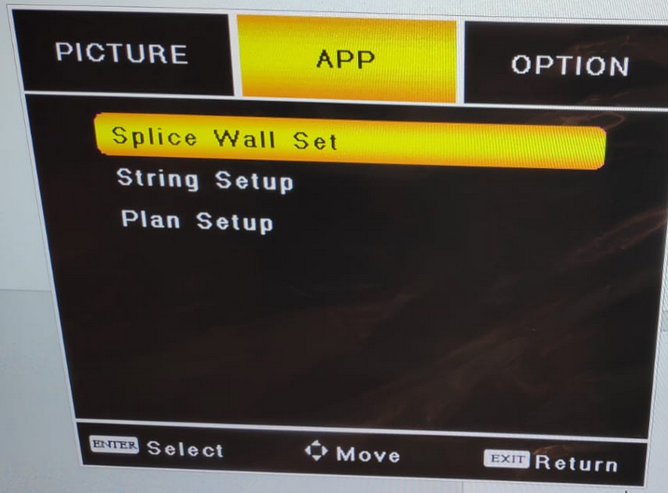

2- Press the MENU button on the remote control and go to the APP section and select Splice Wall Set

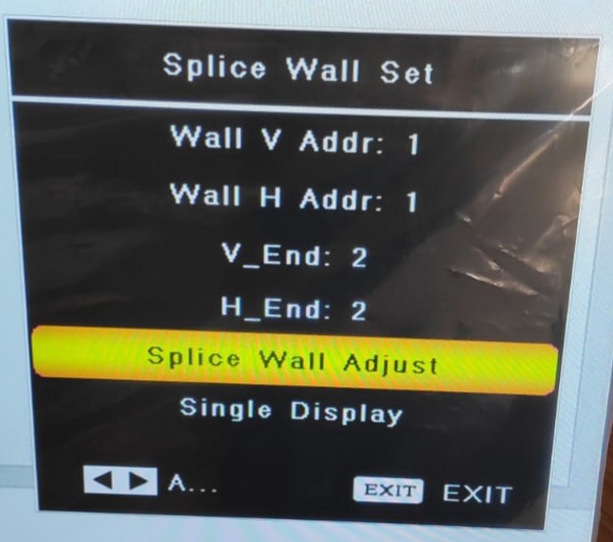

3- Finally, select if you want a split-screen (to update to the previously set position) by clicking on "Splice Wall Adjust" or on "Single Display" if you want it to behave as a normal monitor. The options Wall V/H Addr and V/H_End are to indicate from and to which monitor is going to be set, in this case, to be 4 it will be indicated that goes from 1-1 to 2-2; if only 1 is going to be set it would be set 1-1 to 1-1:
