The HD-SDI camera model SD703-FSDI has advanced functions.
Tour

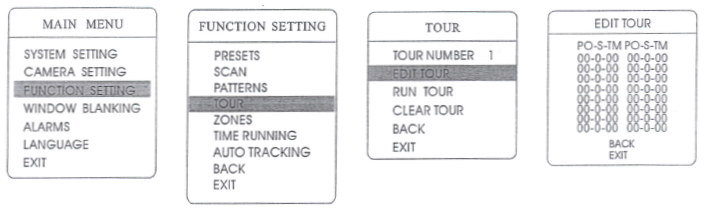

1. Access the camera's Main Menu by calling preset 95 or by calling preset 9 twice in a row in less than 3 seconds. Select Function Setting and choose Tour by pressing IRIS+.
2. To set the time for each preset: select Tour Dwell by pressing IRIS+, the R symbol will be displayed at the beginning of Tour Dwell, the cursor will move to the right and using the up and down arrows we can set the time, in a range from 0 to 255 seconds.
3. To set a Tour: select Edit Tour, pressing IRIS+, in PO-S-TM we set the preset, speed and time, pressing IRIS+ again we access the first field, in which moving the cursor up/down we select the preset we want from 1 to 80. A Tour supports a sequence of up to 24 presets. Press IRIS+ to move to the next field, where you can choose, by moving the cursor up/down, the speed of arrival at the next tour at a level of 1 to 8. Press IRIS+ to move to the next field, where you can choose, by moving the cursor up/down, the time to stay in the chosen preset, with a maximum of 60 seconds. Press IRIS+ to save the values. If we want to go to the next line we will access it with the cursor, selecting with IRIS+. To exit, press IRIS-.
4. To start a tour: select Run Tour, pressing IRIS+, which will start the selected tour.
Note: The system will automatically jump without going through a preset if the value is left at 0. It will also not continue to subsequent presets if the preset or motion is at 0.
