The following pictures show the connection of the different Ajax LightSwitches.
Important: If the energy-saving lamp flickers or does not work, a capacitor is added in parallel to it.

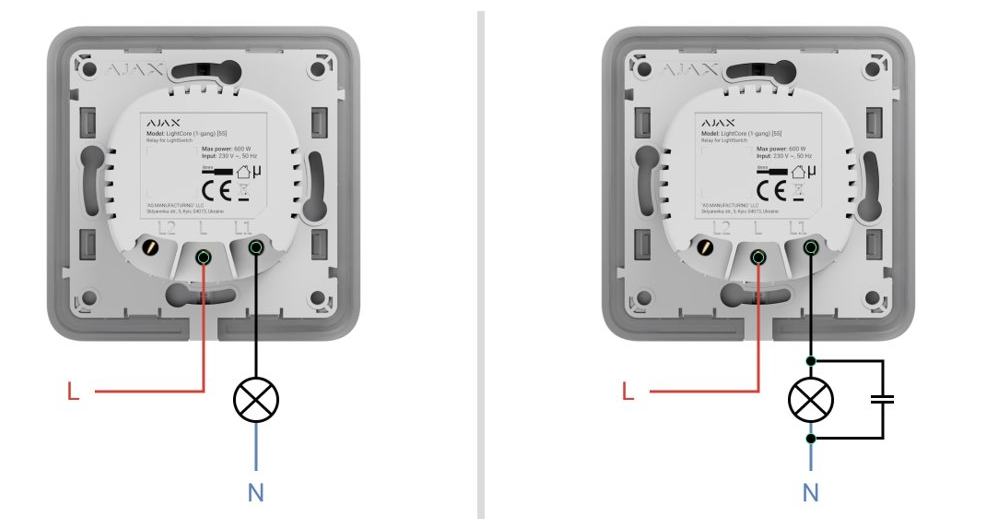

- Connection of the single switch

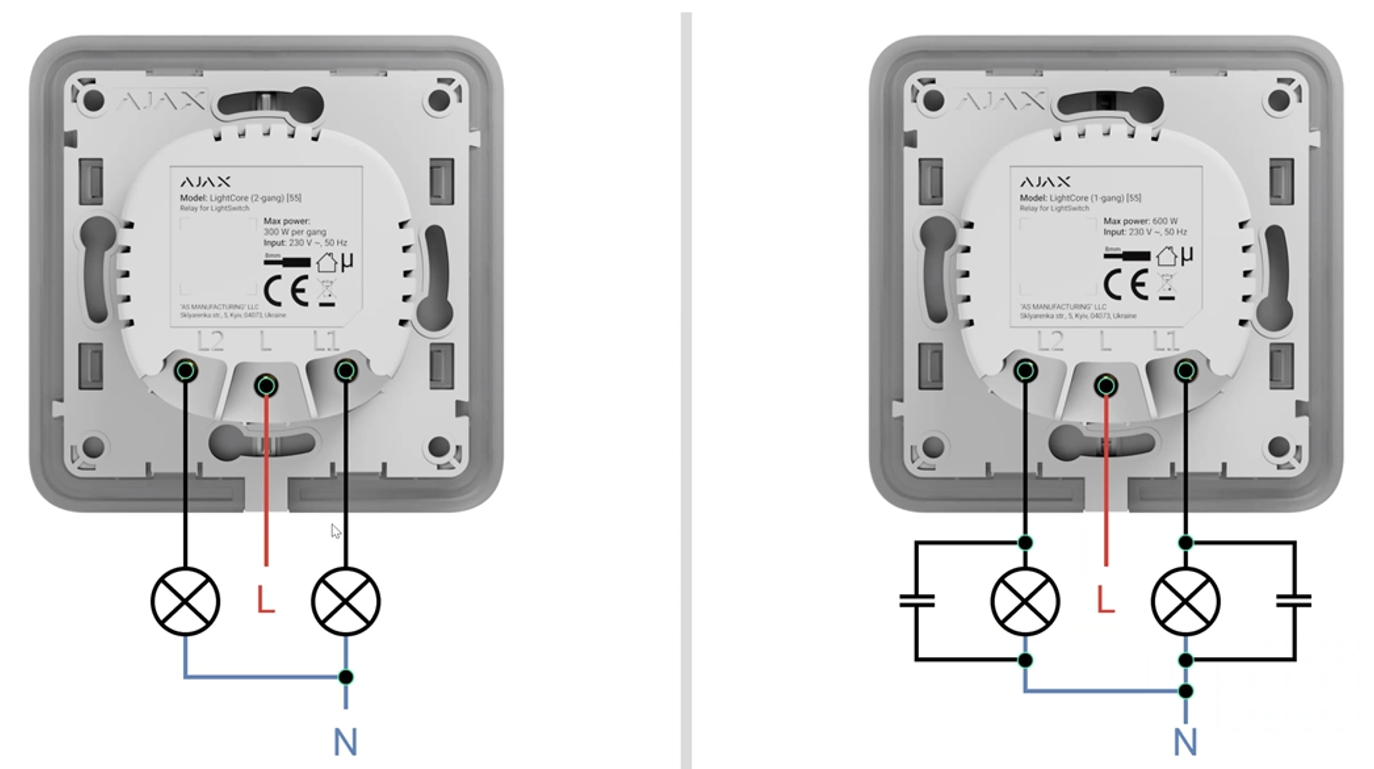

- Connection of the double switch

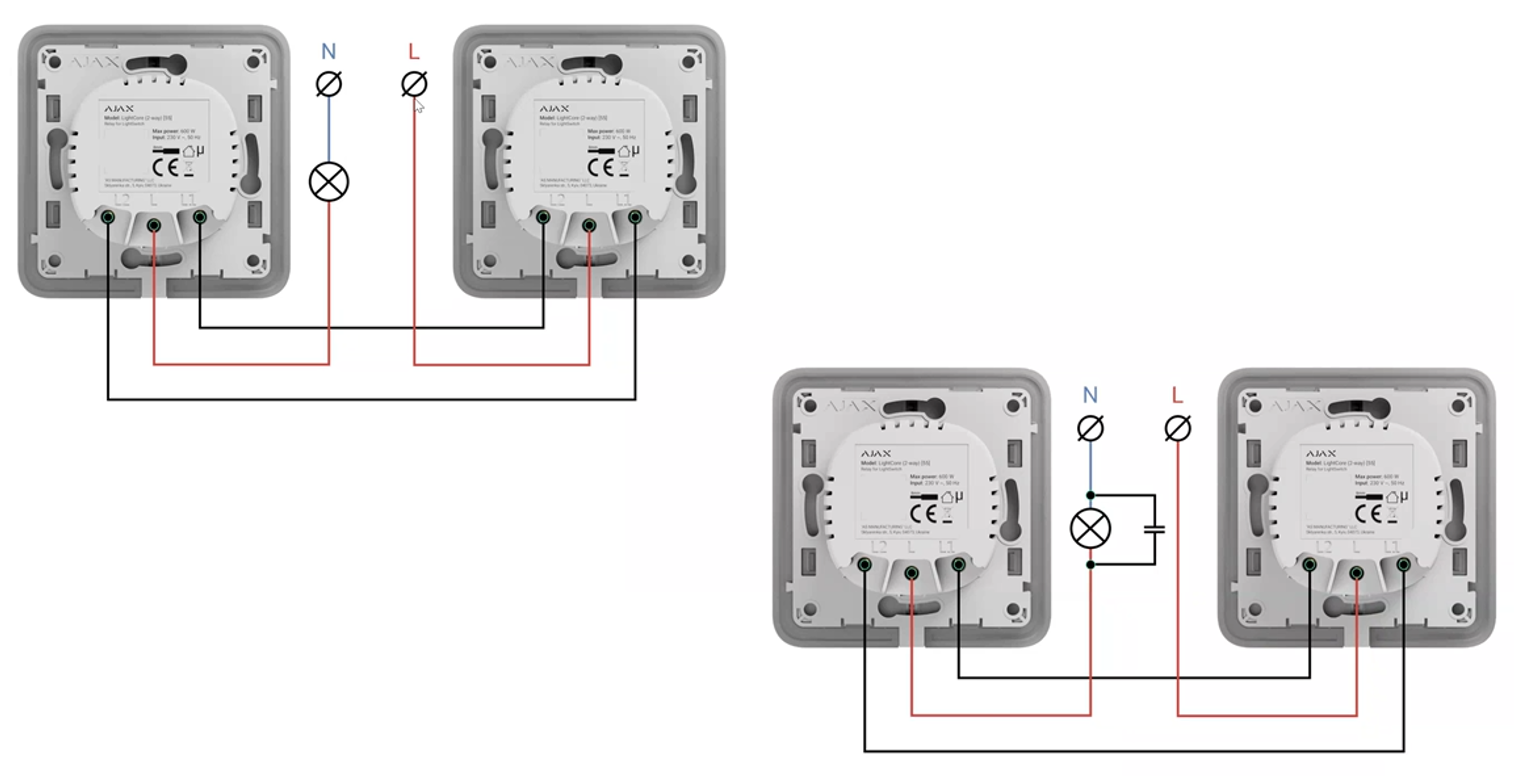

- Switching switch connection

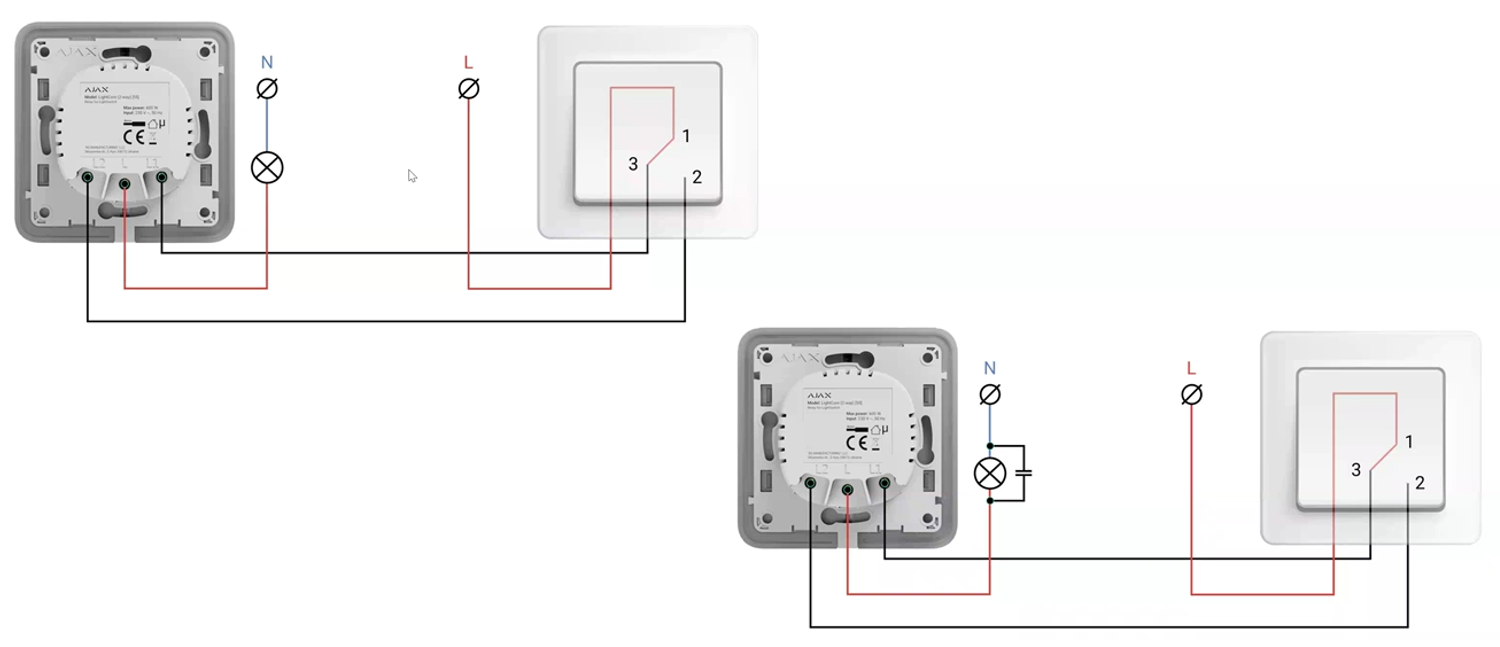

- Connection of the changeover switch connected to a third-party mechanical switch

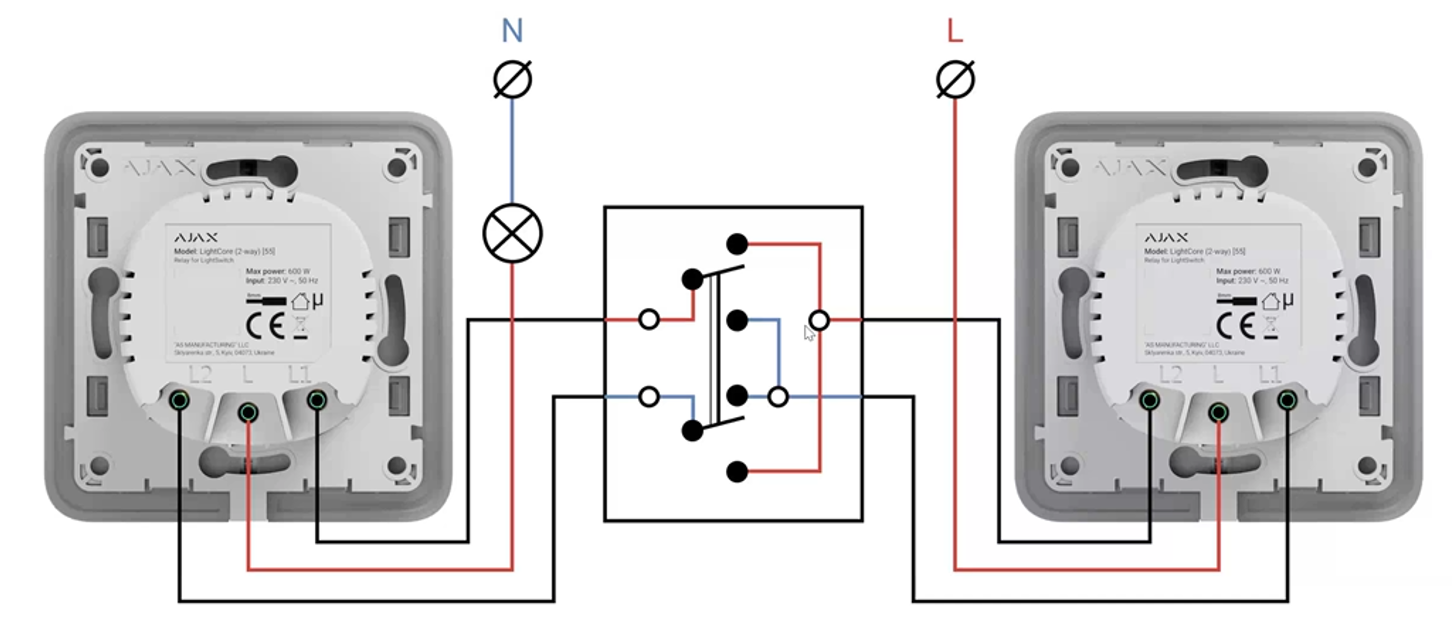

- Connection of two switching switches and a third-party crossover switch
