Note:
This sample is made with camera model XS-IPTD989A-2D4-AI and Firmware version: V2.631.0000000.0.R, Build date: 2021-09-15

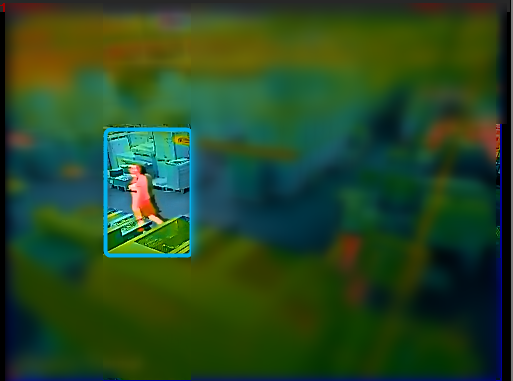

If the thermal and normal images do not overlap correctly or create a ghosting effect, follow the instructions below.
Tip:
"Right click and open the image or gif in a new tab if it is a large image or gif".
Change the camera conditions

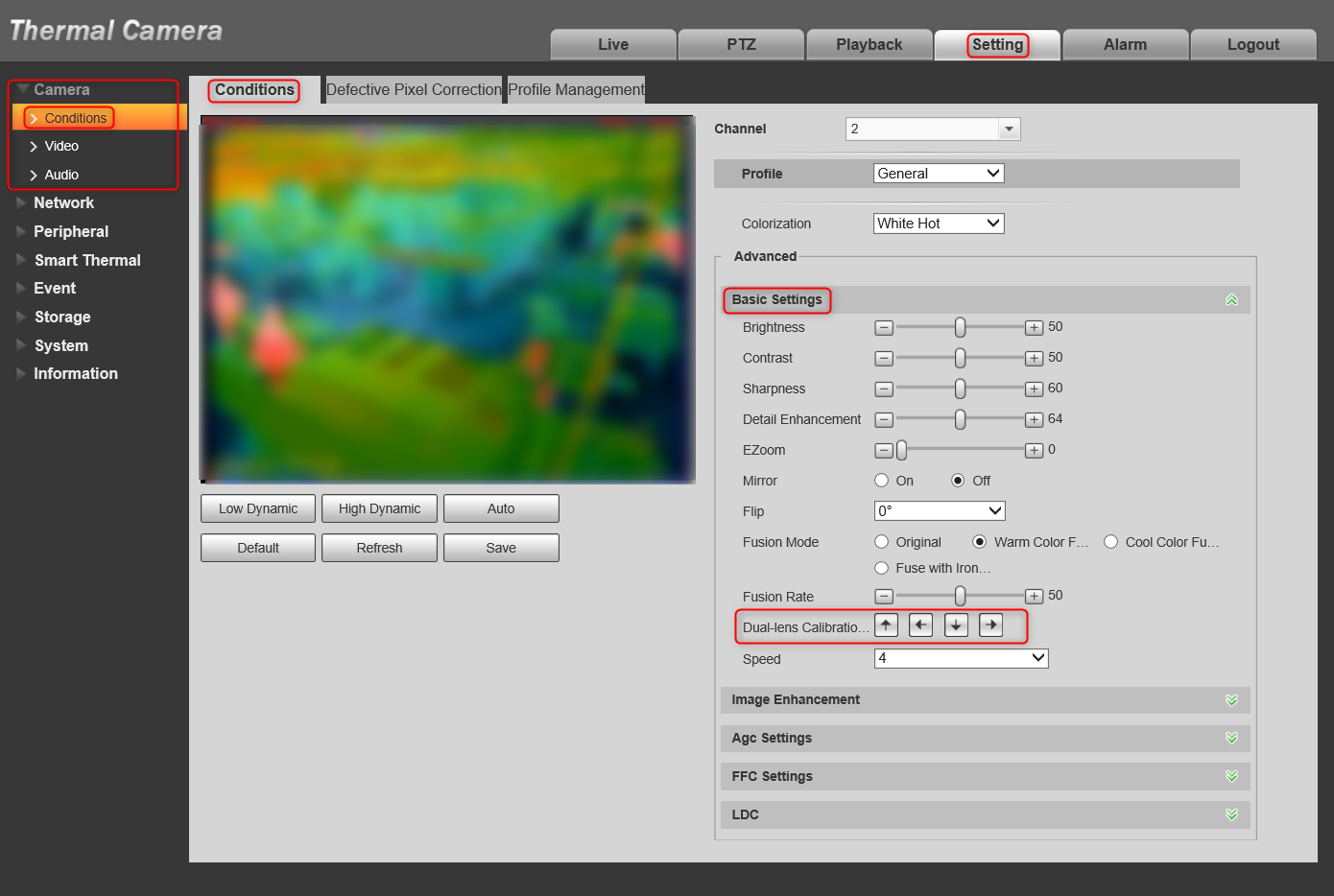

1. Open Internet Explorer and go to the Settings tab
2. Select Camera "Camera" and click on Conditions "Conditions" and you will be on the Conditions tab.
3. Open the Basic Settings and at the bottom you will see arrows to adjust the overlay image.

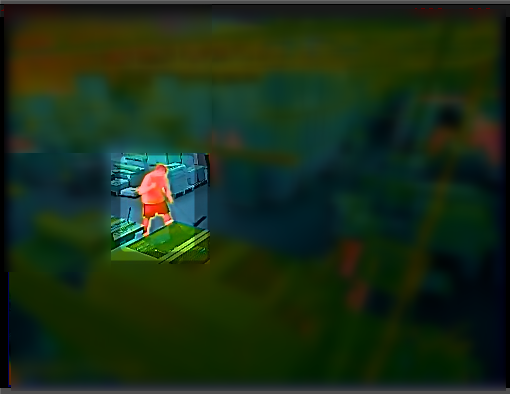

Focus on the center of the camera, depending on the resolution of the camera you may see some ghost images in the camera coners
