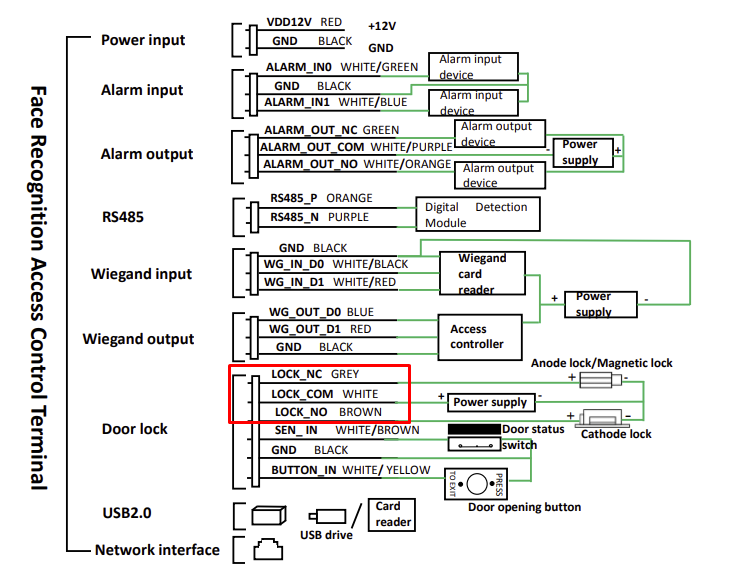

The relay output of the UV-OET-213H-BTS1 terminal acts when detection is correct, either due to face recognition or due to excess body temperature:
To get the relay to act when the detection is "wrong" we can configure the equipment in 2 ways:

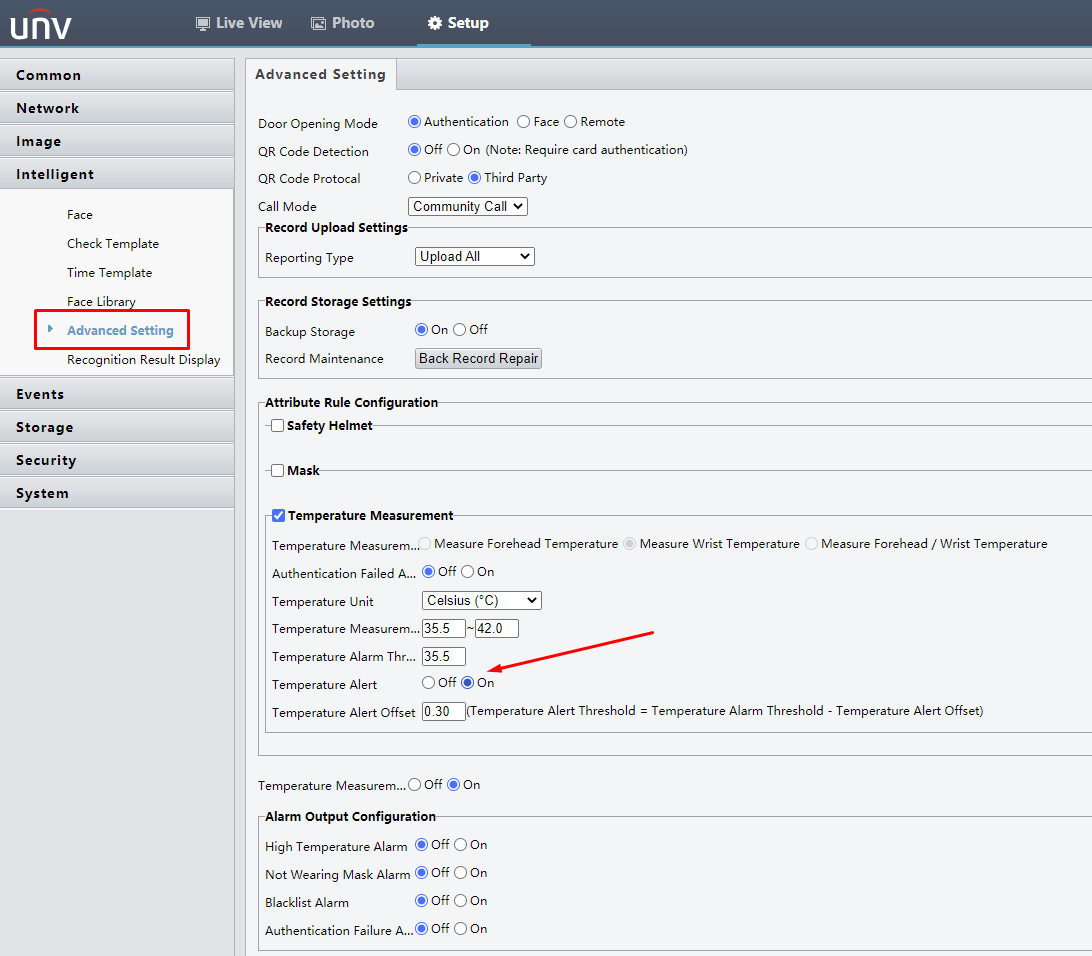

- The relay that acts is the doorlock relay, whether the detection is correct or incorrect. To do this, activate the following option:

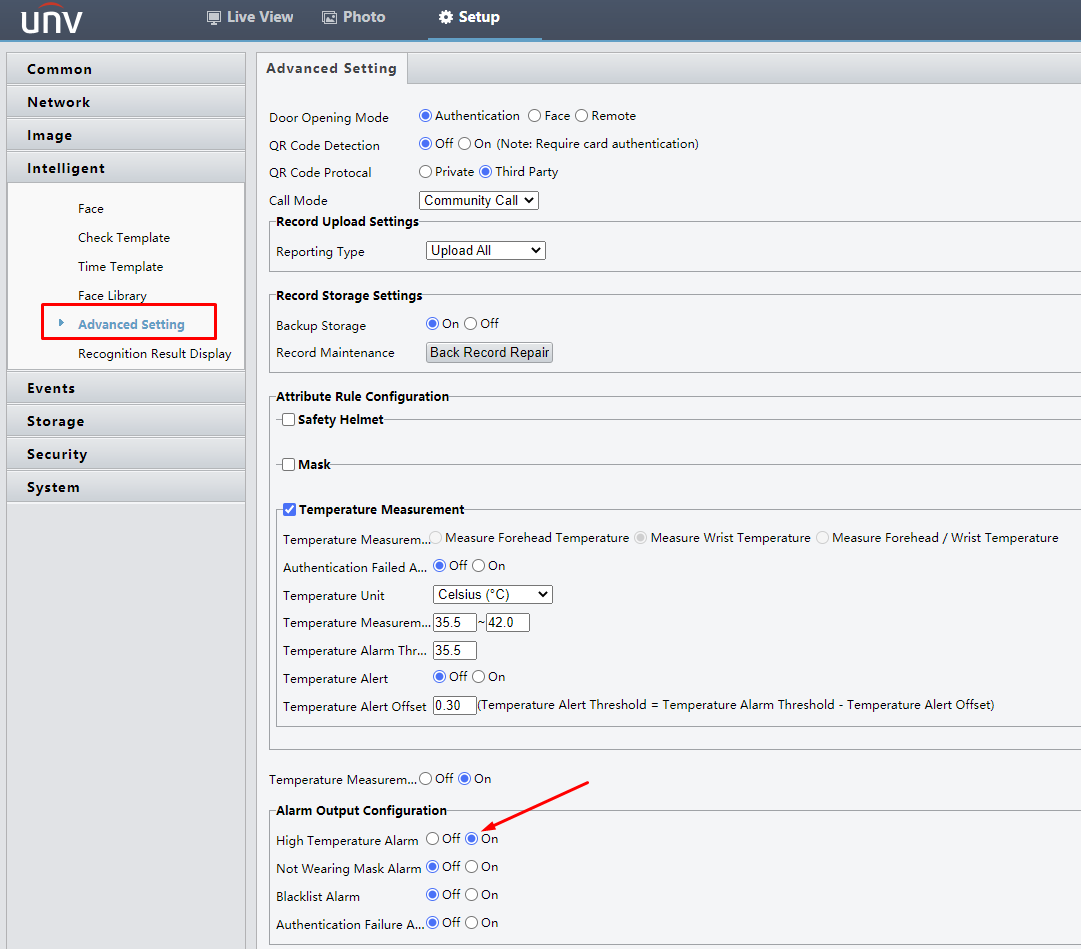

- On the other hand, we can use the terminal's own alarmoutput to act by incorrect recognition while the doorlock acts by correct recognition. The configuration would be as follows:
