Optex cable connection diagram
The Optex devices are equipped with a legend for the color of the cables so that each cable can be differentiated and you know how to connect it to the transmitter used (Ajax Transmitter or any other radio transmitter).
CONNECTION DIAGRAM FOR
VXI-R / VXI-RAM / VXI-RDAM / VXS-RAM / VXS-RDAM-X5
Red - Power input (+)
Black - Power input (-)
White and yellow - Alarm (zone)
Green and blue - Trouble (Tamper and anti-masking if available)
Brown, Orange, and Gray - Wall Tamper (Optional)

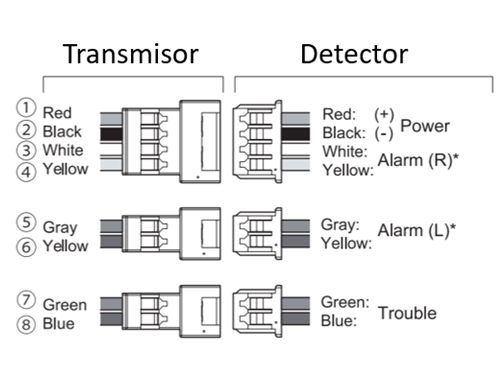

WIRING DIAGRAM FOR
WXI-R / WXI-RAM / BXS-R / BXS-RW / BXS-RAM
Red - Power input (+)
Black - Power input (-)
White and yellow - Alarm (right side), (zone)
Gray and yellow - Alarm (left side), (zone)
Green and blue - Trouble (tamper and anti-masking if available)
