Configuration guide:
To configure the antennas it is necessary that both antennas are configured one as Host (factory state, master antenna) and one as Client (slave antenna). This configuration can be set up in two ways depending on the antenna format
OPTION 1
Use the F (fn) button to choose the desired mode and the S (setting) button to select and save that mode.

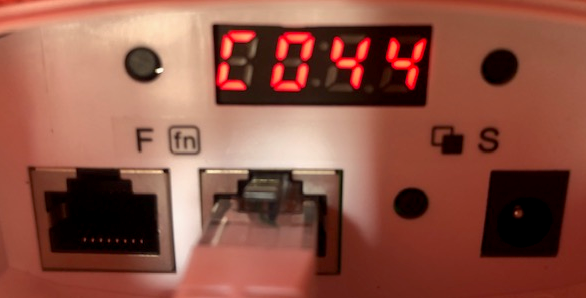

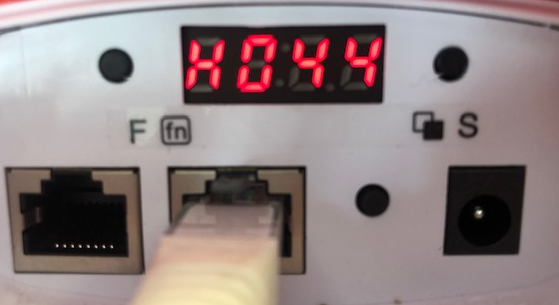

When pressing F first the option to choose H or C will blink and with S we will choose the operating mode (as the default mode is H, we will only have to change the mode to S of one of them); then the number will blink, which refers to the channel, this can only be modified in the H (Master) antenna, as the C (Slave) will be configured automatically when connected to the Master
OPTION 2

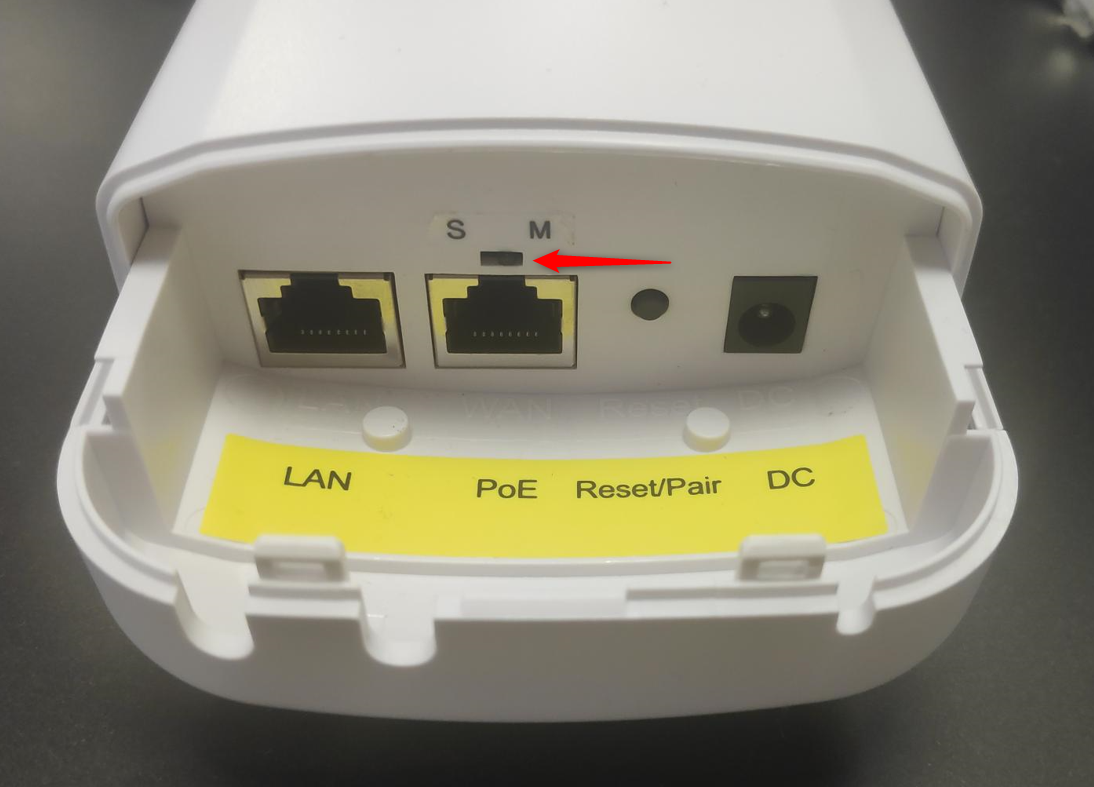

The devices have a switch with two positions M (Master) and S (Slave), as before each one is set in one mode

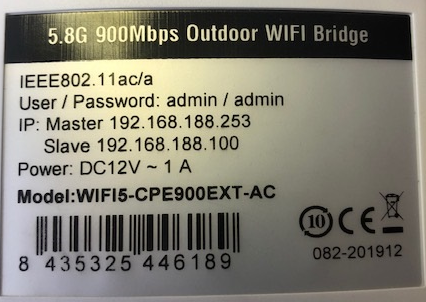

Configured as H and C they will be accessible from the following IP:
Master: 192.168.188.253
Slave: 192.168.188.100

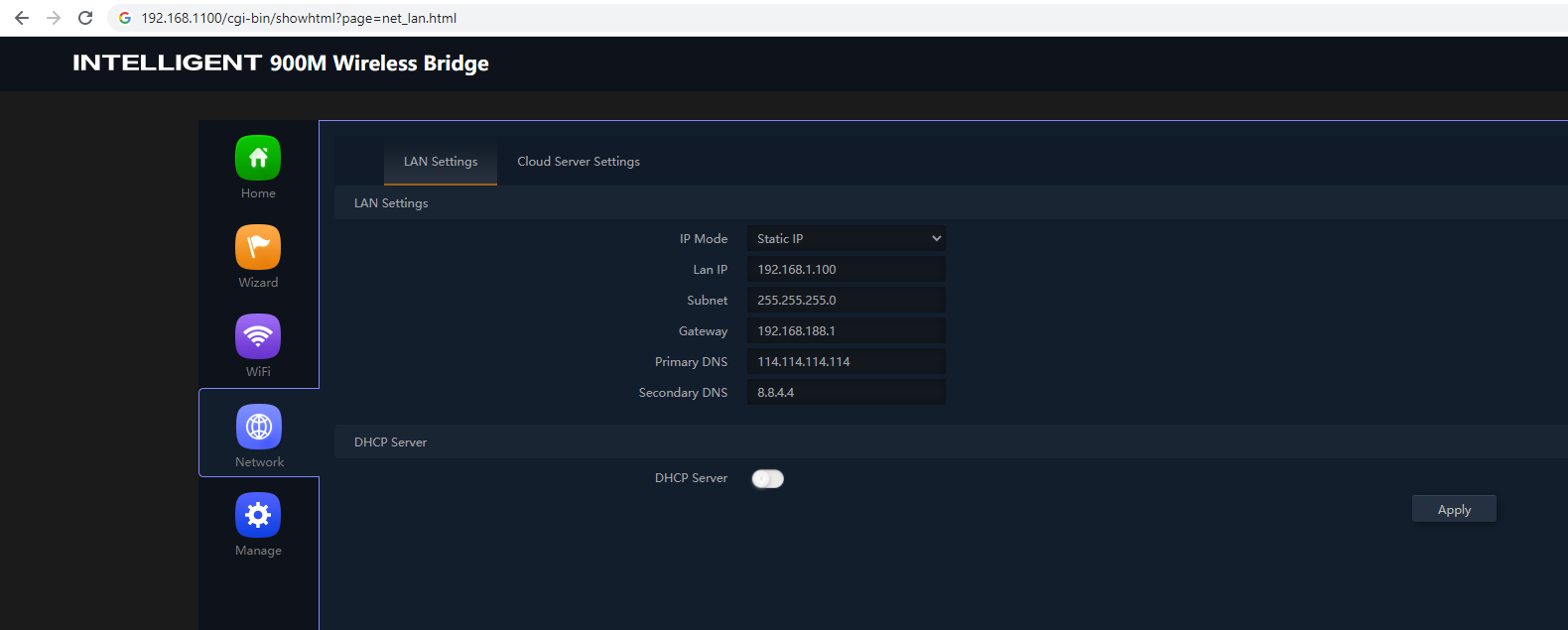

It is advisable to configure an IP in range with our network to have full connectivity:
Master:
Slave:
Once you access it under the IP 192.168.188.100 (or the one configured in range) in the case of the Slave, in the wizard select "Repeater Mode", when you click on next scan and the SSID of the master antenna will appear, the default password is "66666666" once connected the antenna takes a few minutes to lift the link and communicate with the channel that has been configured in the Master antenna (Host)

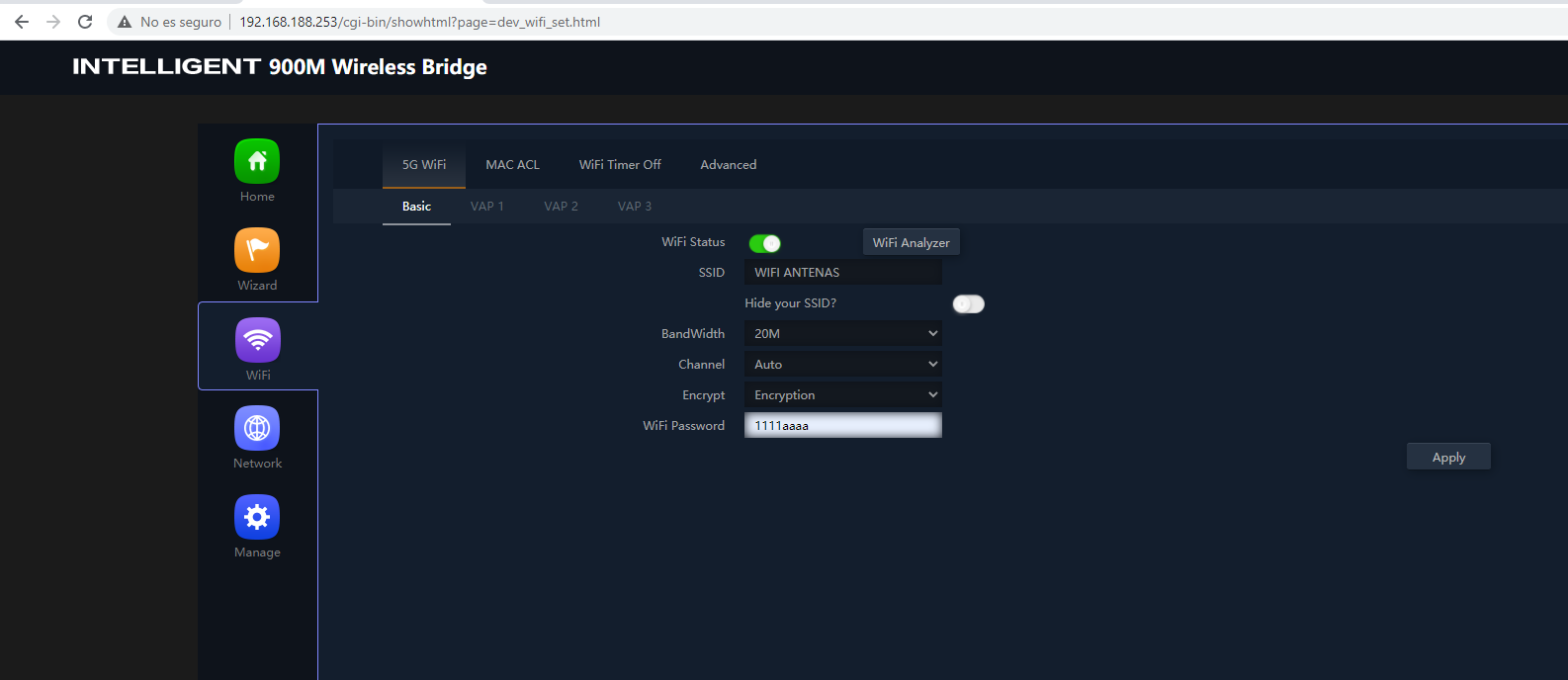

If necessary you could modify the data of the Master as the SSID, the password and the bandwidth, to change the channel it is necessary to do it with the buttons F and S in the Master antenna as we have seen at the beginning:
