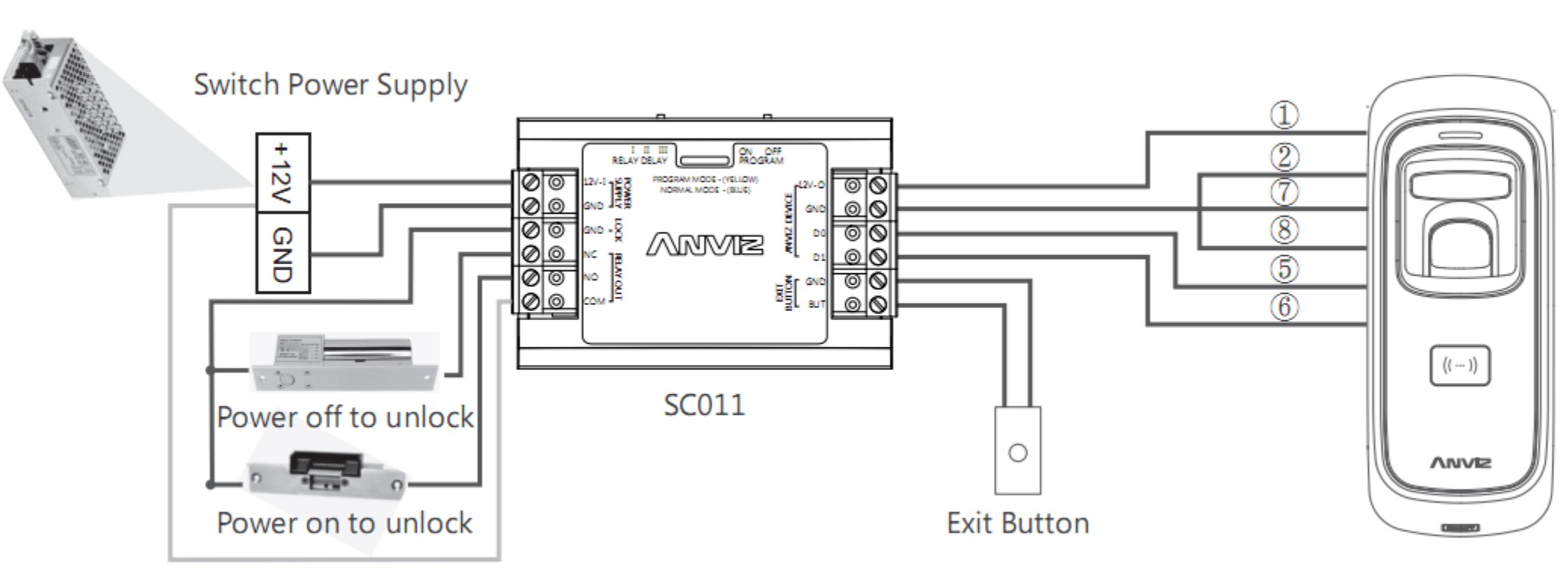

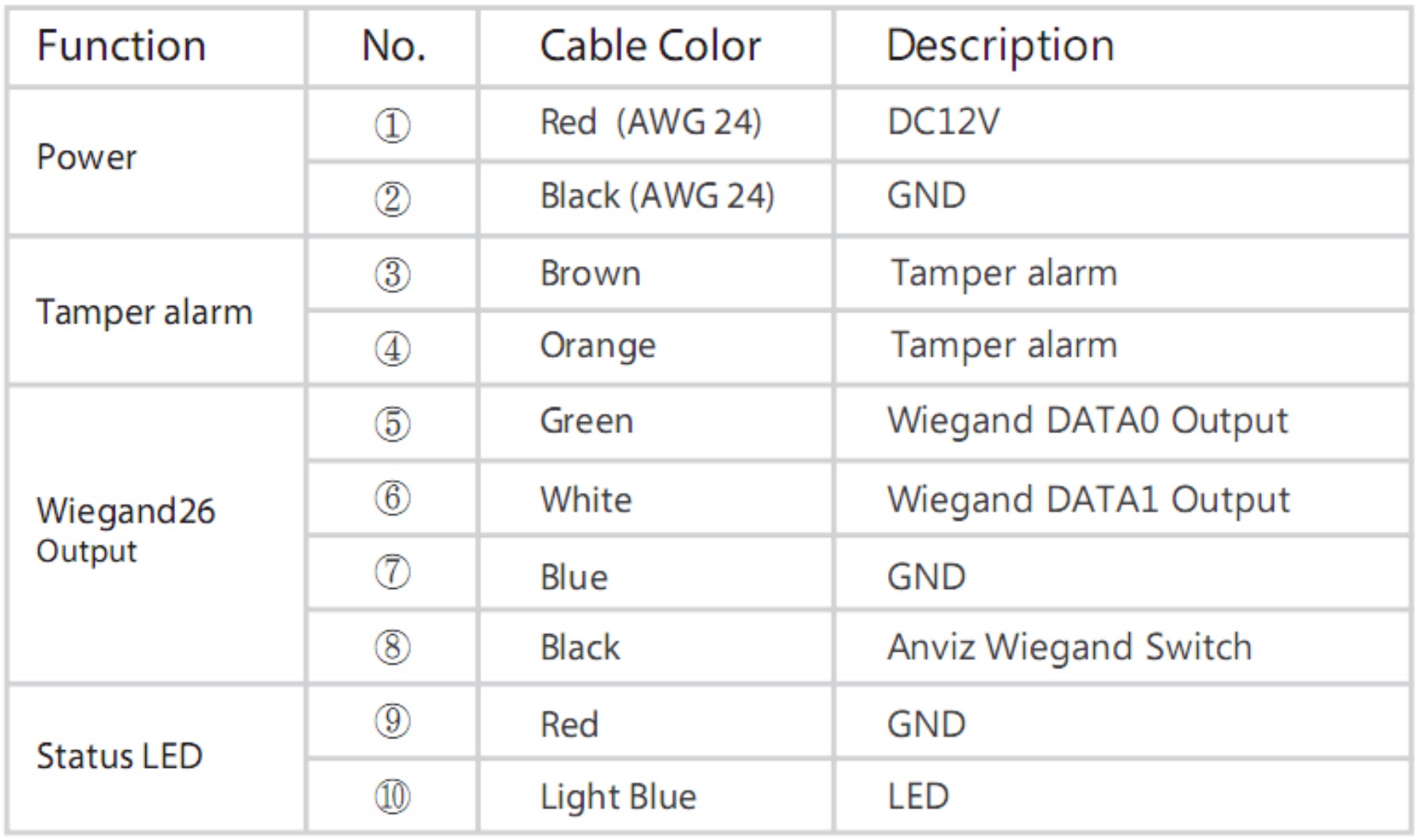

This tutorial explains the connection between the Anviz T5 / M5 devices with the Anviz SC011 controller. Firstly, a diagram of the connection is shown, then the description, function and colour of each terminal cable is explained and finally a real photograph of the connection is published.

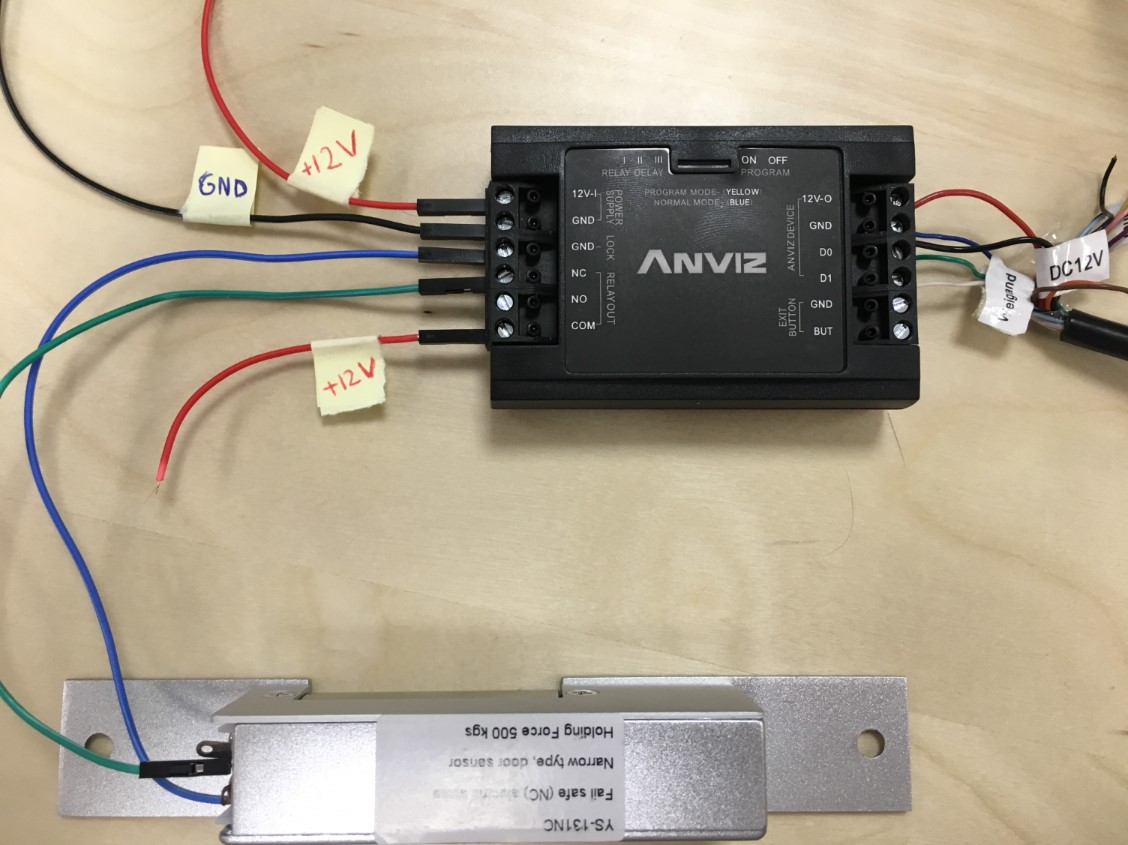

To make it easier, the following real photo is shown, which must be taken into account:
- COM and 12V-I must be short-circuited, both inputs of the SC011 are connected to +12V.
- In the Wiegand connection, dark blue wire to GND, green wire to D0 and white wire to D1.
