To link SOPRAS devices with AJAX devices with the AJAXhubs, we will follow this procedure. Inside the Hub Configuration menu;

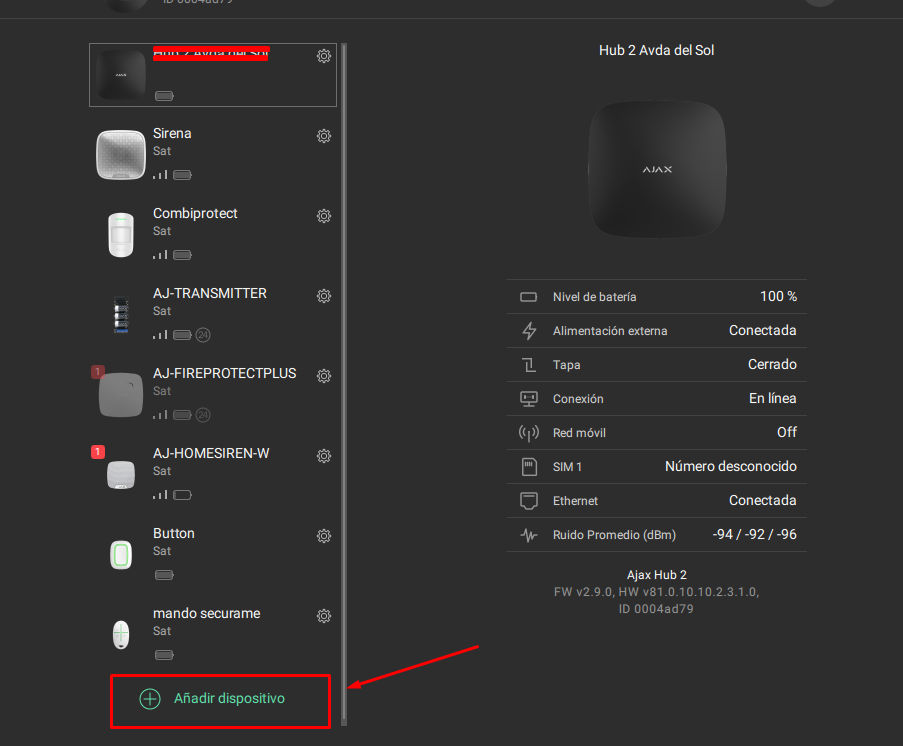

Access the HUB and select add device.

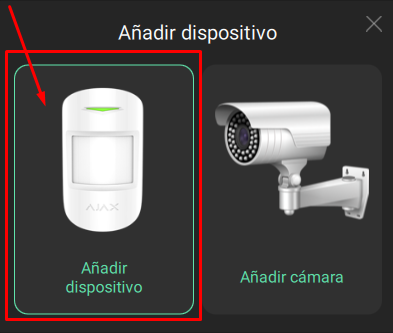

Select add device again.

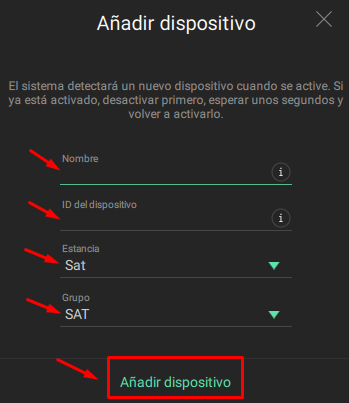

Now we introduce:

- The name we want to give to the device;

- The ID number of the device (or the QR code, scanning it);

- The stay (which has to exist before);

- The group to which the device will belong;

- We finish by clicking on add device.

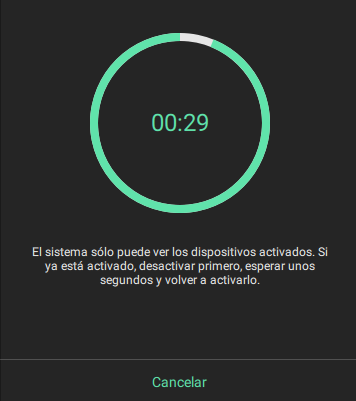

Then, this image will appear. It will be then the moment to link the device.

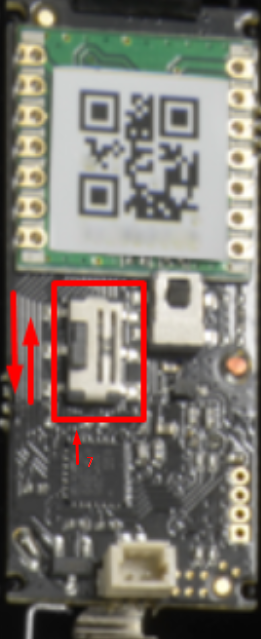

When the pairing time starts to count down, move the mini-switch on the device to turn it on or, if the device is already on, turn it off for 2 seconds and turn it on again.

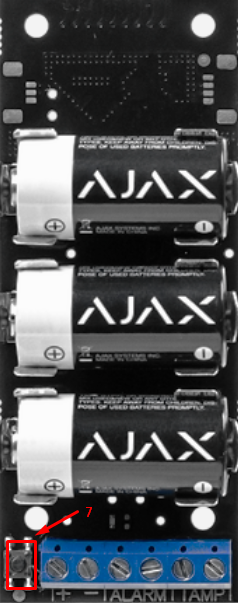

We will only press the button to link the device (already turned on).

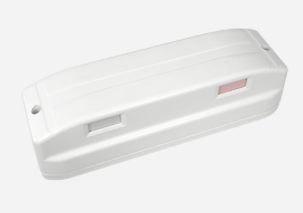

We remind you that this procedure is valid for the following devices of the integrated SOPRAS brand:

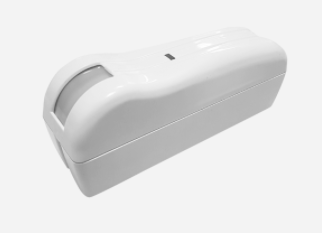

SOP-WA9-DT

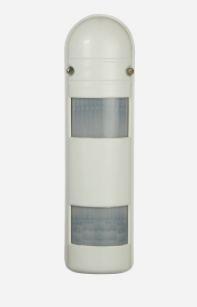

SOP-2IR-BR / SOP-2IR-W

SOP-2IRDT-BR / SOP-2IRDT-W

SOP-9DT-PRO

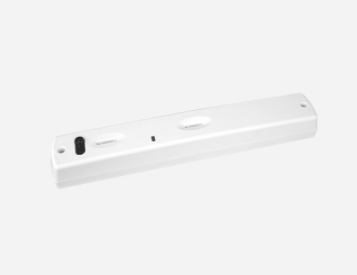

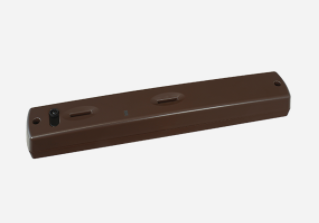

For device SOP-BR / SOP-BR-S
