The connection between the thermographic camera and the metal detector goes through RS-485 connection.

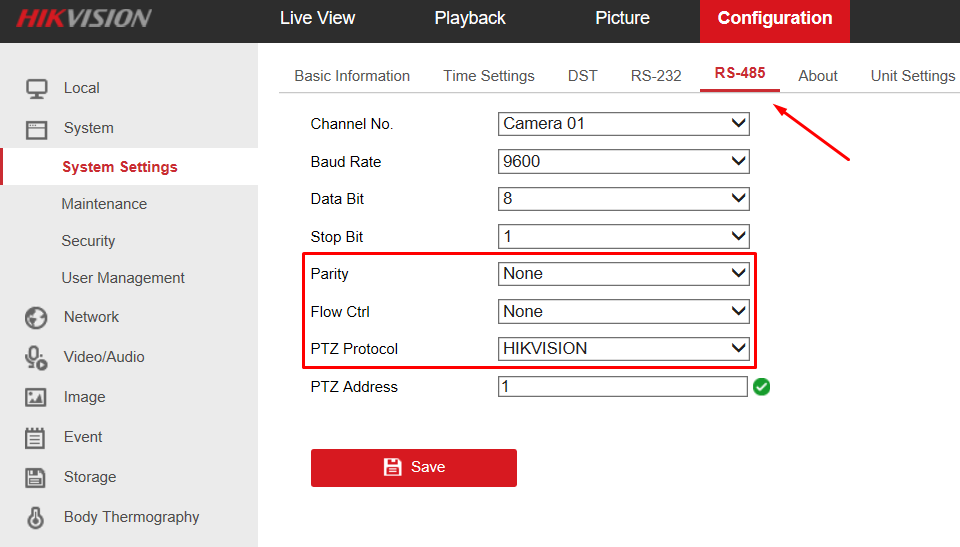

Then, on the camera we will only have to configure that the PTZ communication protocol by RS-485 is that of Hikvision:
Once configured in this way, the temperature read by the camera will appear on the screen of the arc.

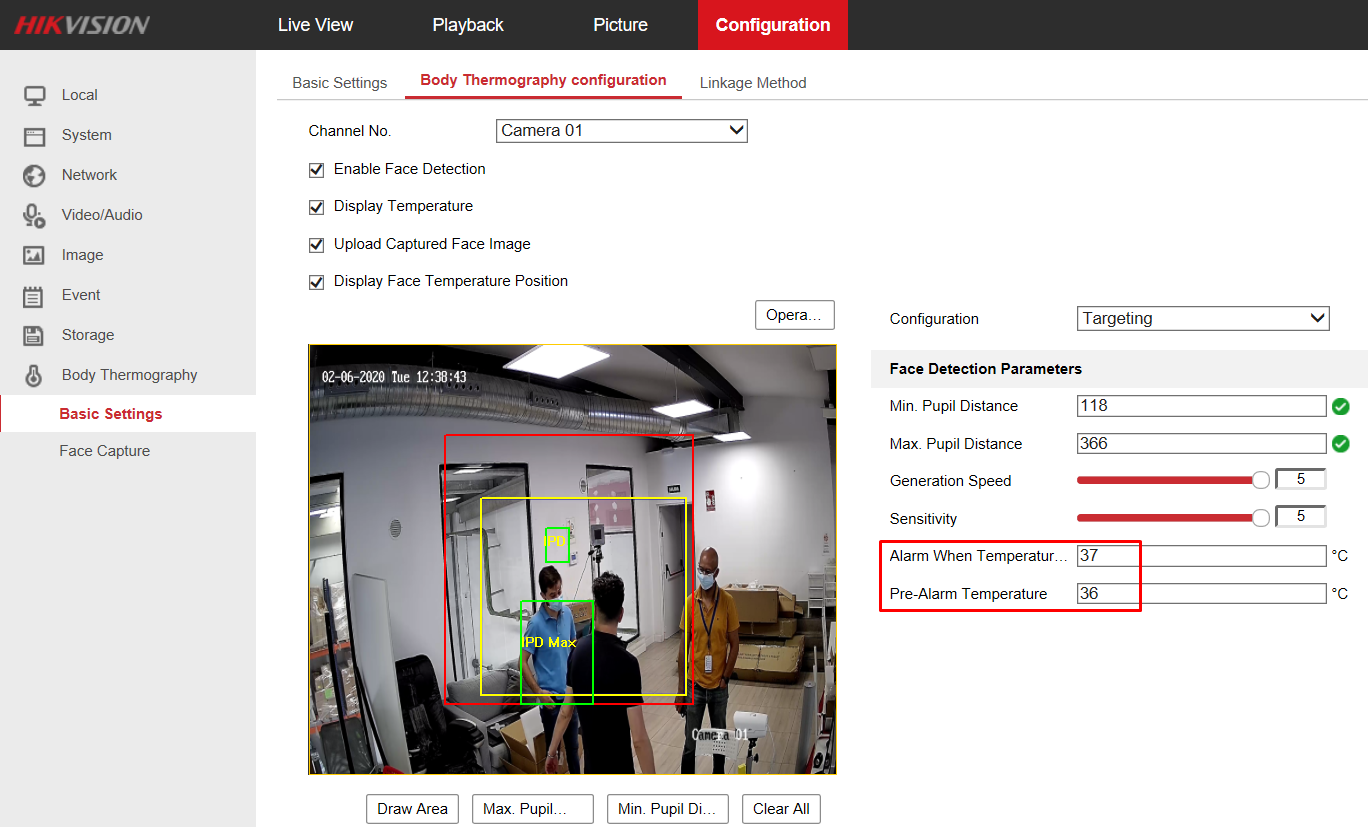

Important to note that the arc will indicate a temperature alarm only if a pre-alarm detection has been made first:
