By connecting the DEE1010A controller with 2 wires, using the RS485 port, we can independently open a second door or we can activate any device through a relay.

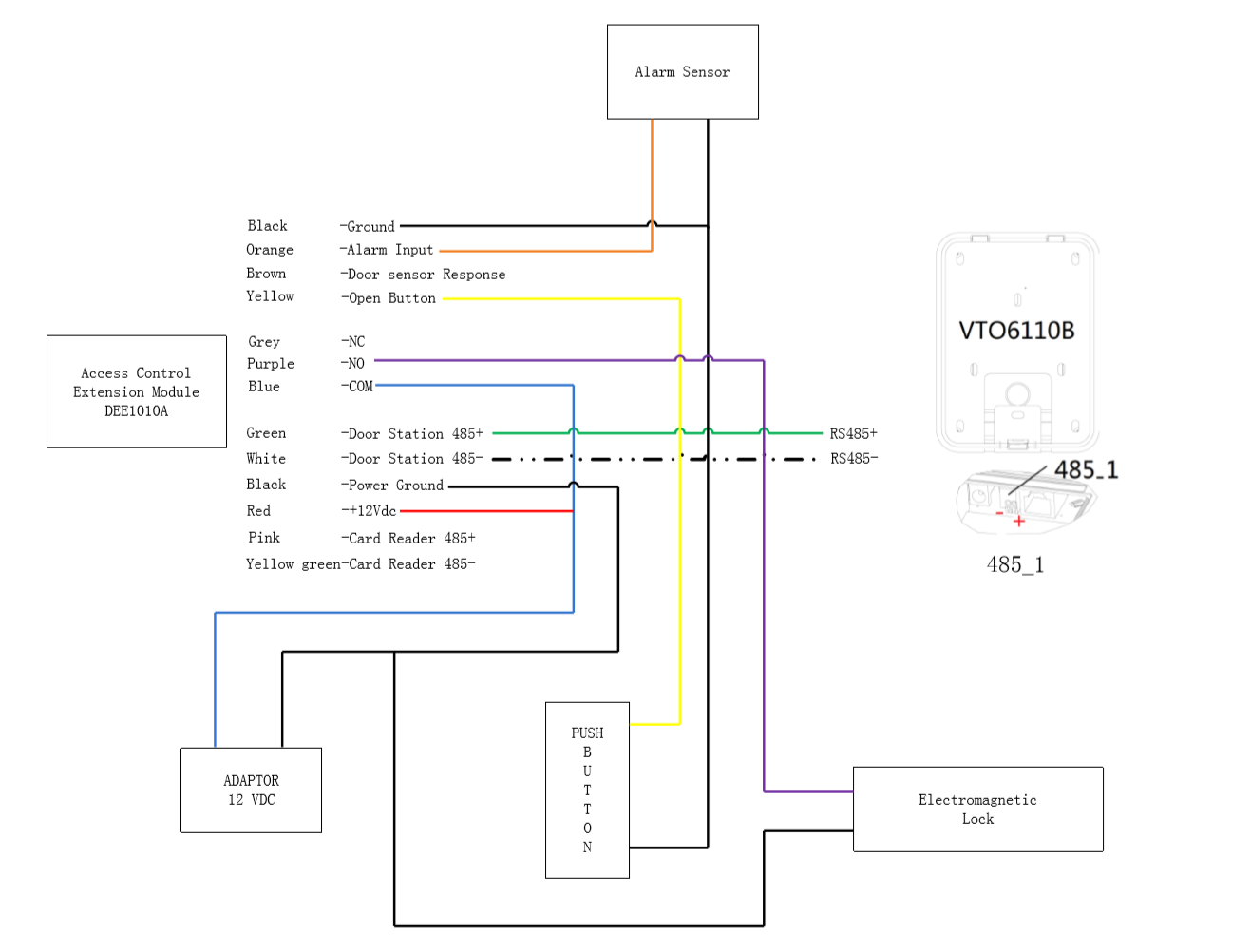

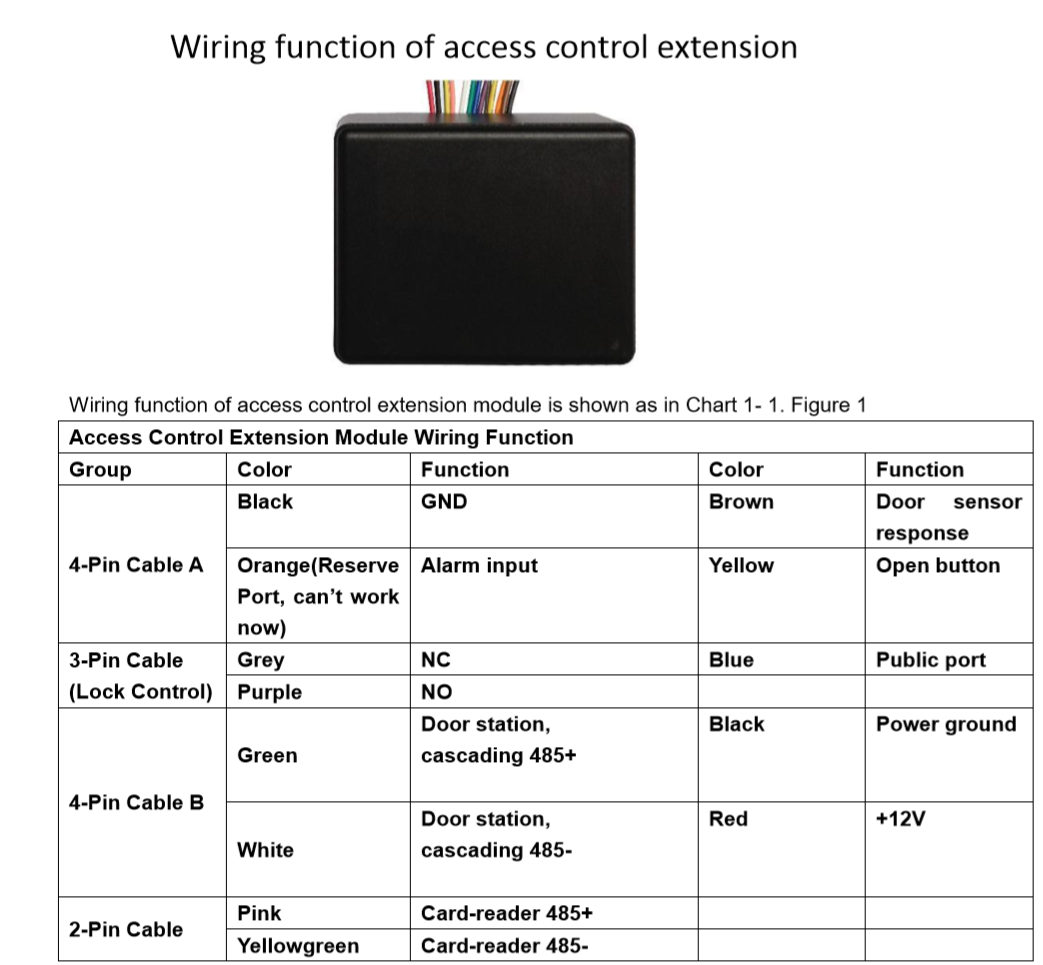

Diagram of the DEE1010A connections:
By connecting the DEE1010A controller with 2 wires, using the RS485 port, we can independently open a second door or we can activate any device through a relay.
Diagram of the DEE1010A connections:
