The ZKTeco LPR camera can be added directly to the ZKBio CVSecurity software to manage the capacity control of a parking lot. To do this, it will be necessary to purchase the Parking Module licence and configure the camera with the following steps:
CONFIGURATION OF LPR PARAMETERS

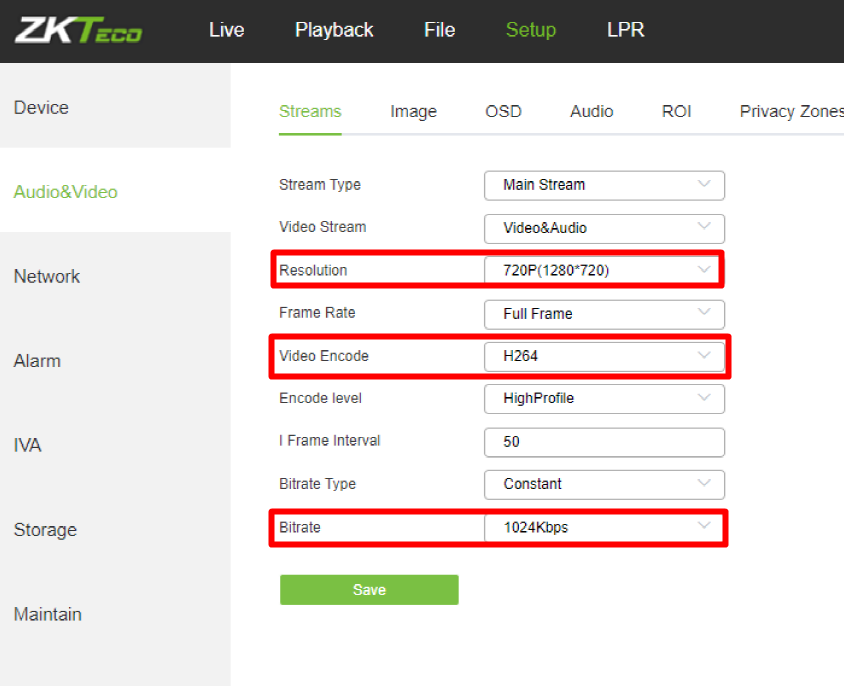

1) After accessing the camera's web component through the camera's IP, in the Setup --> Audio & Video --> Streams tab, the video parameters highlighted in red must be configured as shown in the following screenshot:

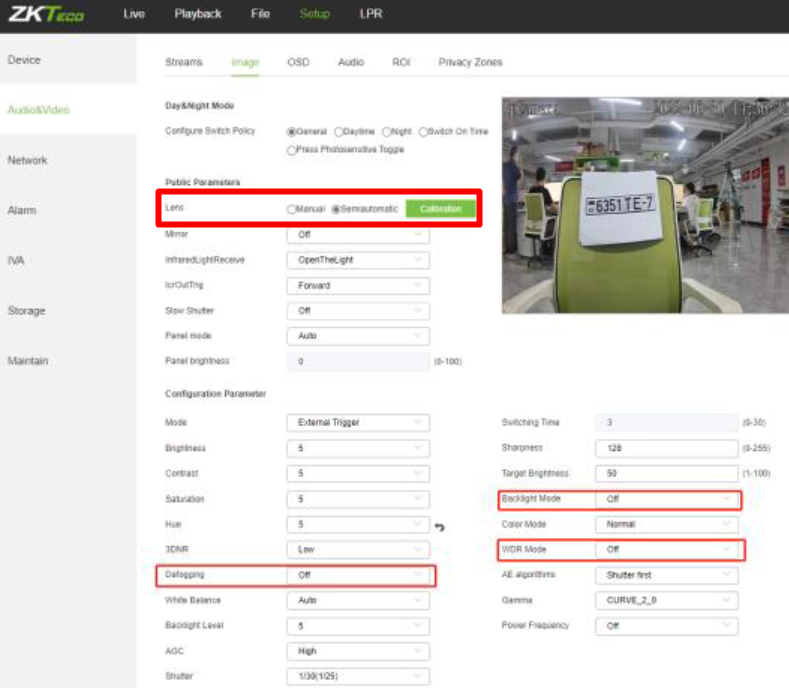

In the Setup --> Audio & Video --> Image tab you must configure the image parameters highlighted in red as shown in the following screenshot:
2) In the Setup --> Alarm tab, the Motion Detection and Video Tampering fields must be deactivated.
3) In the Setup --> IVA tab, the Target Count, Object Left/Lost, Area Detection, Line Crossing, VQD and Fire Detection fields must be deactivated.

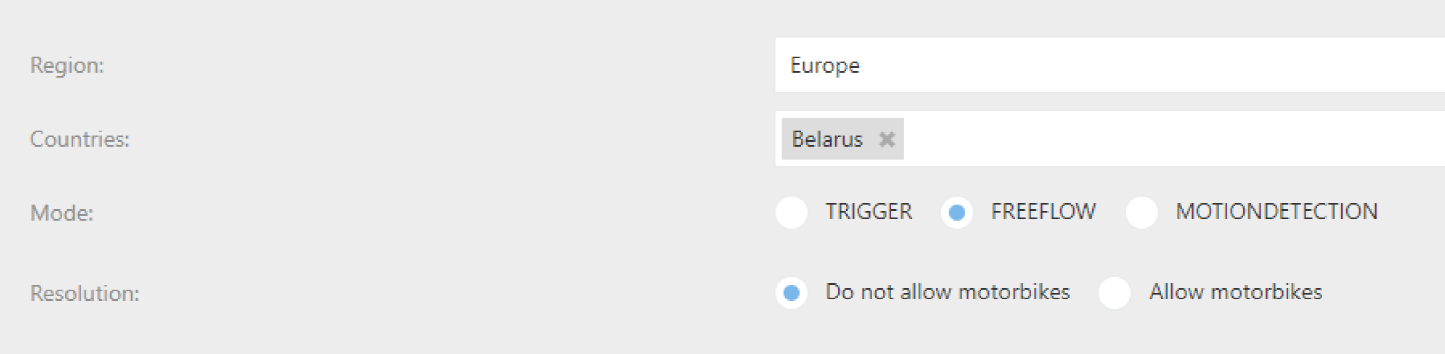

4) In the LPR --> Setup tab, select the Region and Countries from which the license plates will be recognized.
It is recommended to select in the field Mode --> Freeflow
It is also possible to select whether or not to recognize motorcycle licence plates.
5) After that, click on the Restart Service button, located in the upper right corner, to force the restart and synchronization of the LPR parameters.
ADD LPR TO ZKBIO CVSECURITY

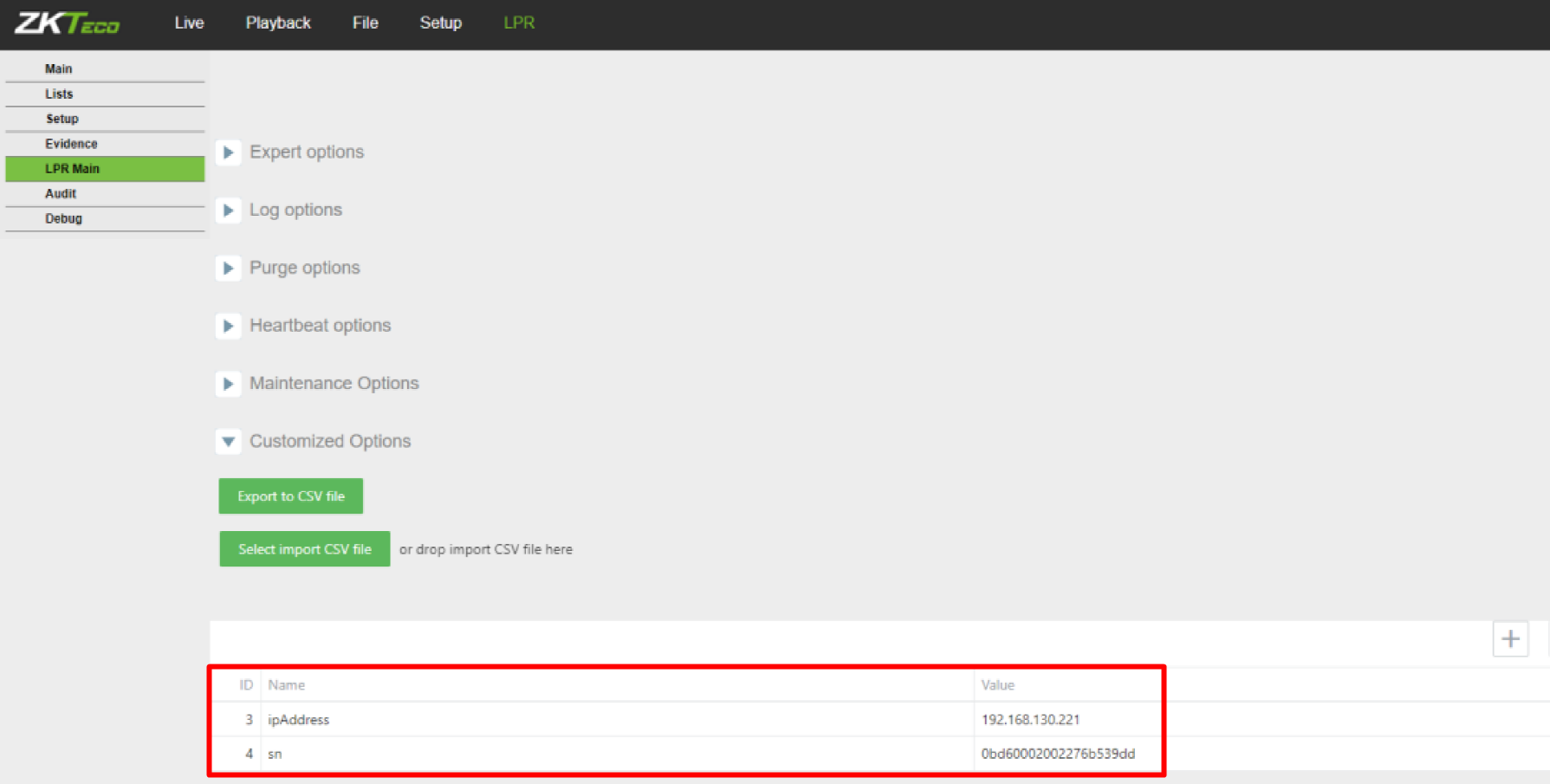

1) The IP address of the LPR (with the name ipAddress) and its serial number (with the name sn) must be added in the LPR --> LPR Main --> Customized Options tab.

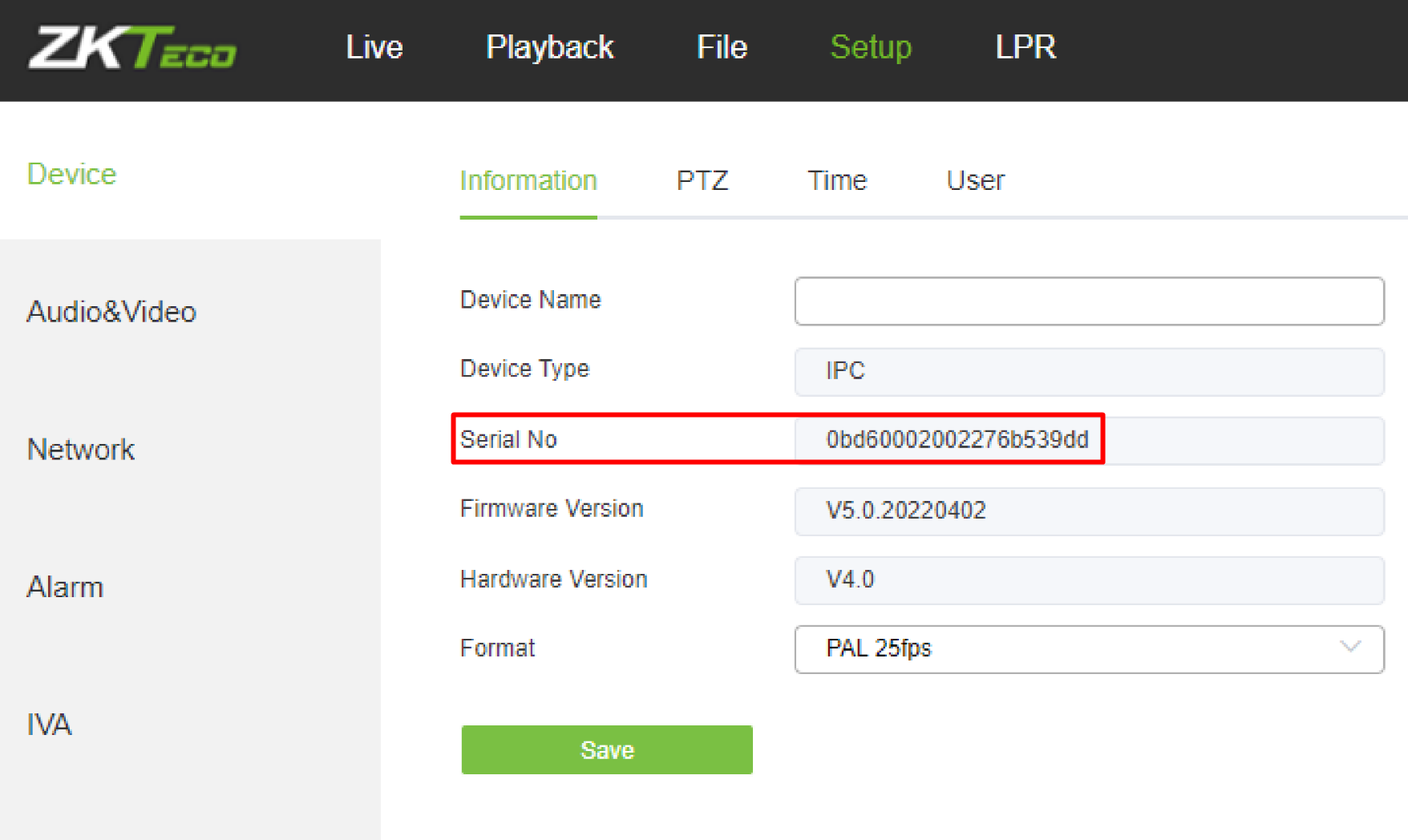

The SN can be found in the Setup --> Device --> Information tab

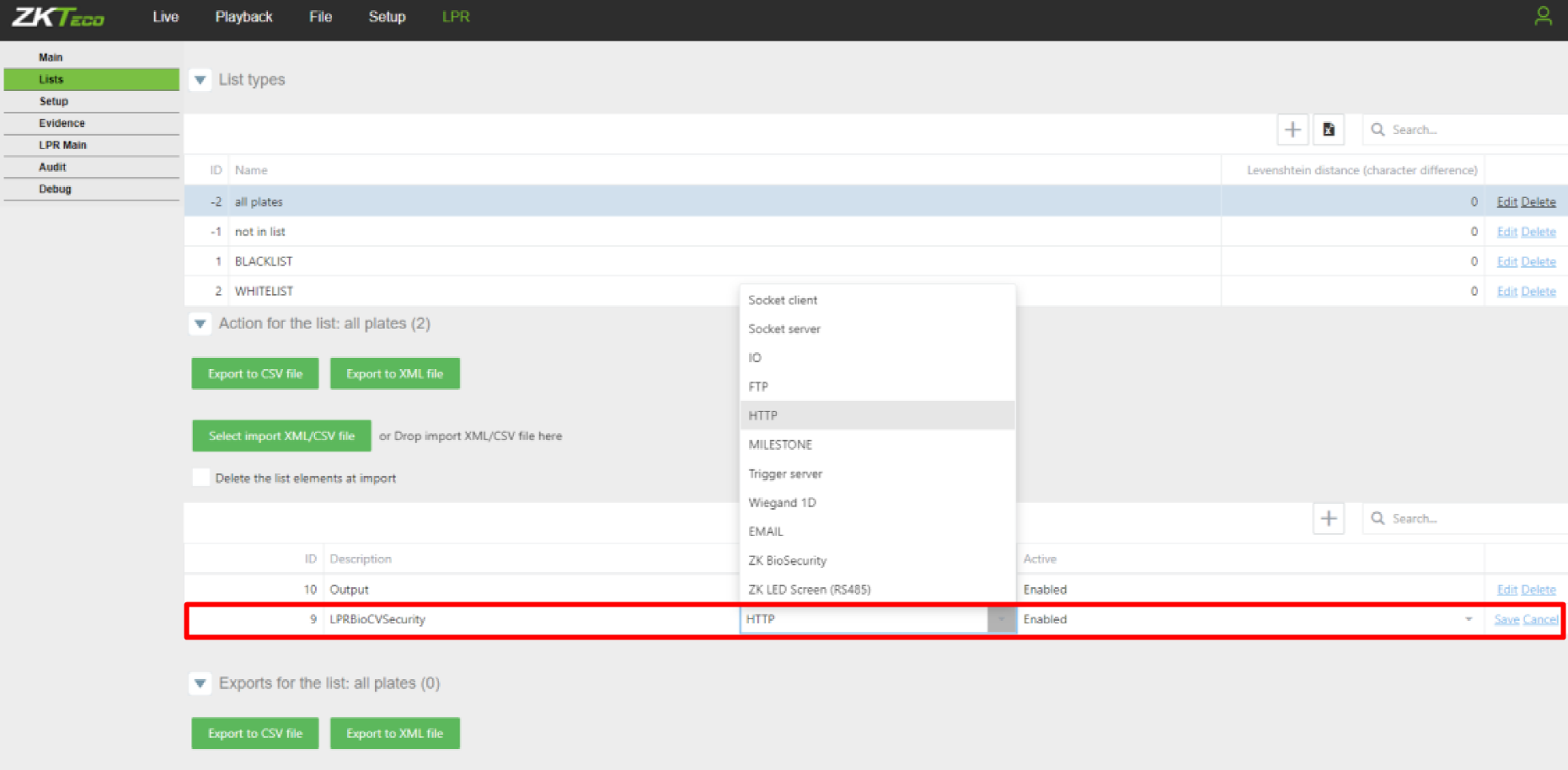

2) In the LPR --> Lists --> Action for the list tab, the HTTP port must be added:

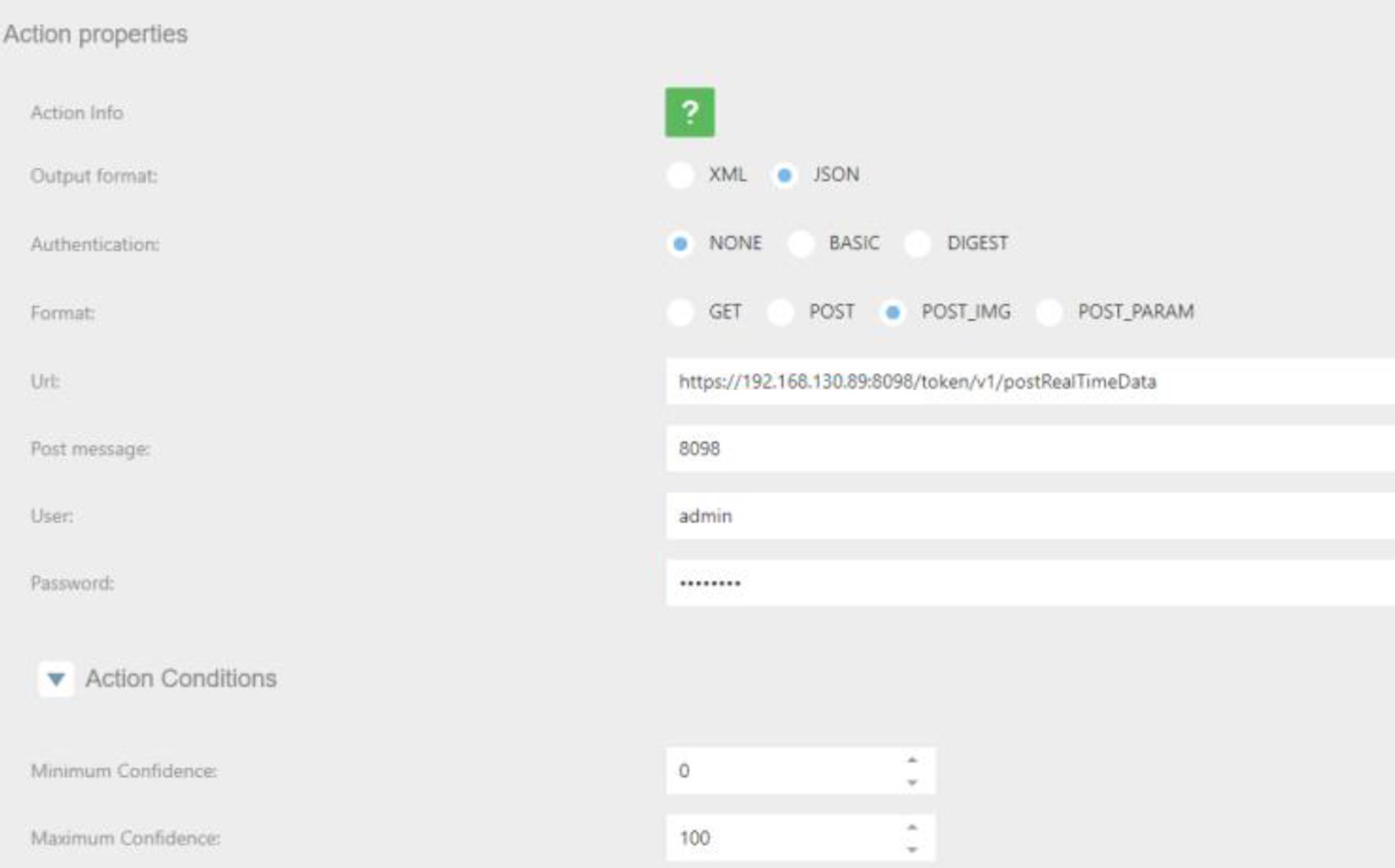

After that, the following will be indicated:
URL: https://IP_PC_SERVIDOR:8089/token/v1/postRealTimeData
Post mesage: 8098
User: ZKBio CVSecurity administrator user
Password: ZKBio CVSecurity administrator password

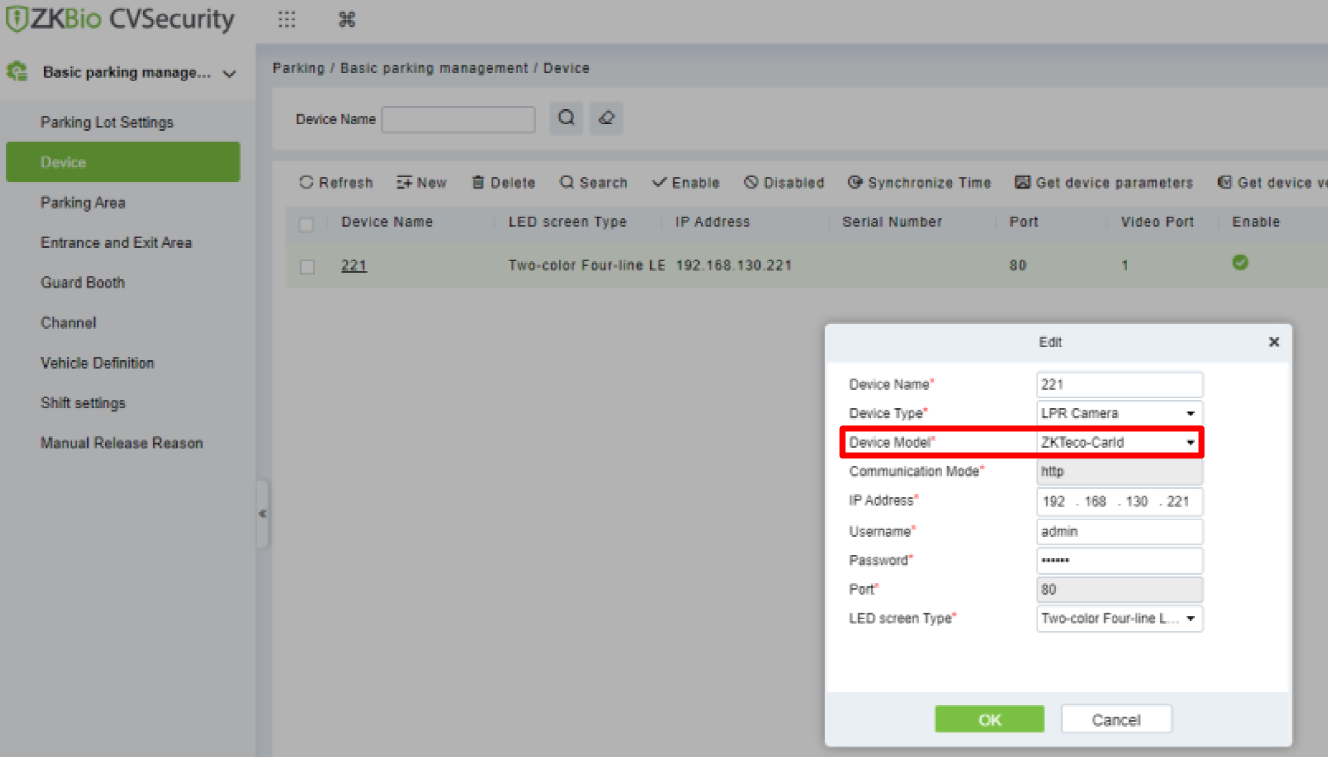

3) In the ZKBio CVSecurity software, go to the Parking --> Basic Parking Management --> Device tab and click on New. The camera parameters must be indicated, marking the Device Mode box as ZKTeco-CardId.
4) In the Basic Parking Management --> Parking Area tab a new area will be added, of type Large Car Area.
5) In the Basic Parking Management --> Entrance and Exit Area tab, a new entrance and exit area will be added.

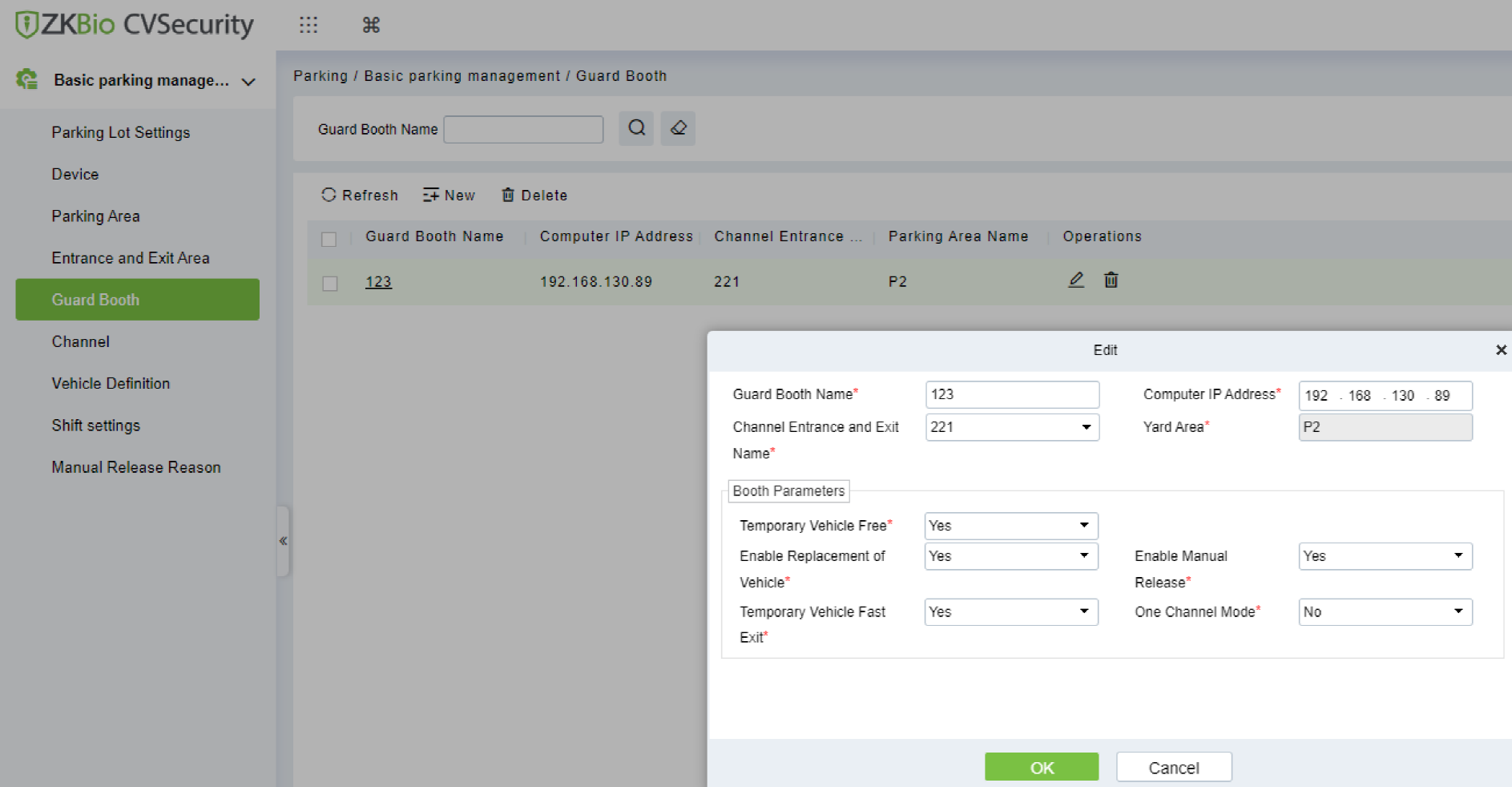

6) In the Basic Parking Management --> Guard Booth tab a new Guard Booth will be added.

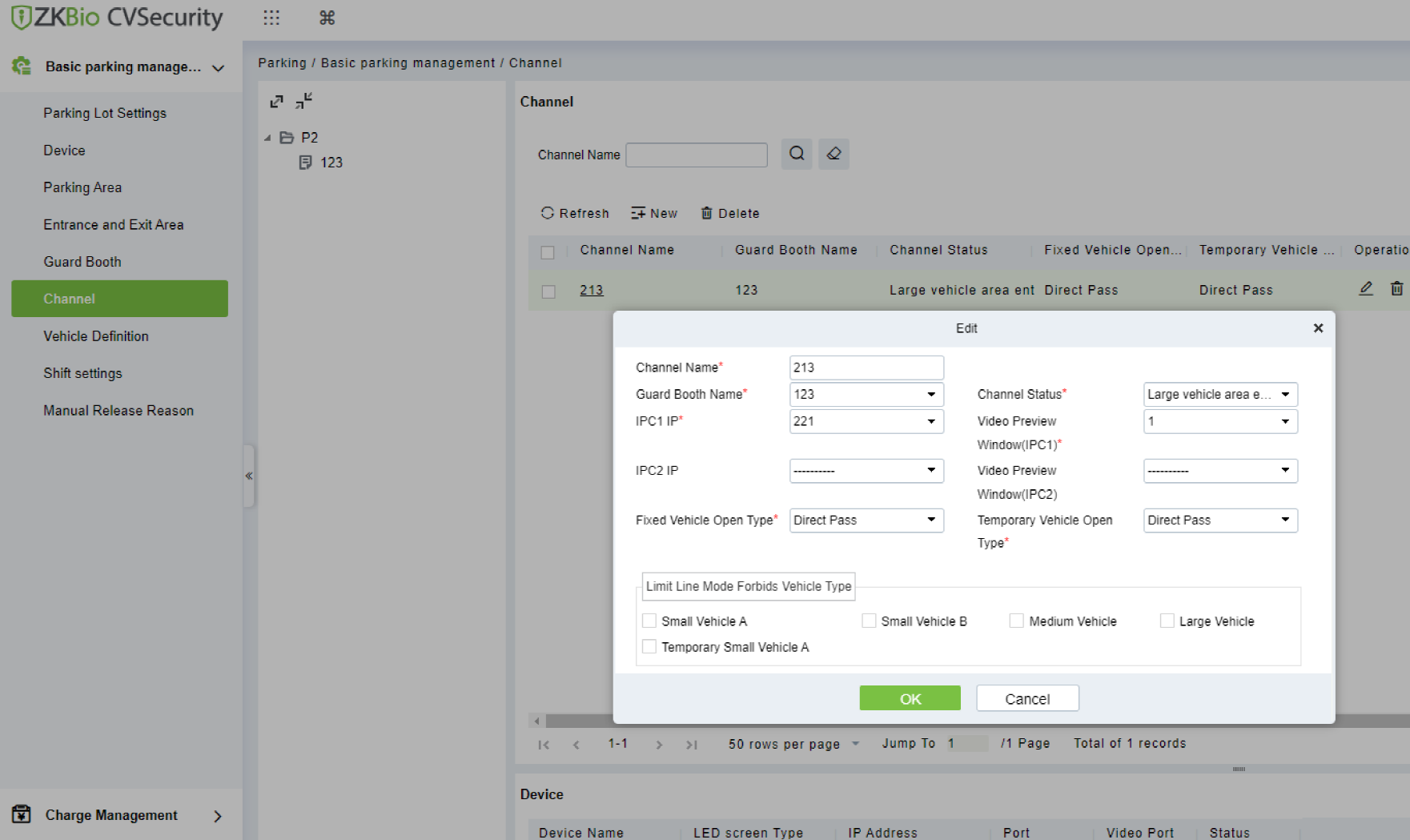

7) In the Basic Parking Management --> Channel tab, a new camera video channel will be added.
8) In the Vehicle Management tab, the license plates of the different vehicles will be added, as well as the groups to which they will belong (white list, black list or temporary).
