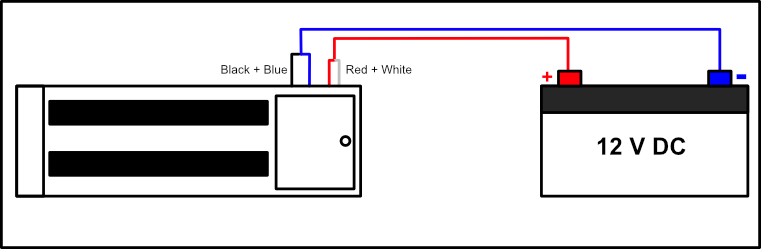

For 12 volt installation:
- Connect the Red and White wires together, this should be used for the positive wire.
- Connect the Black and Blue wires together for the negative wire.

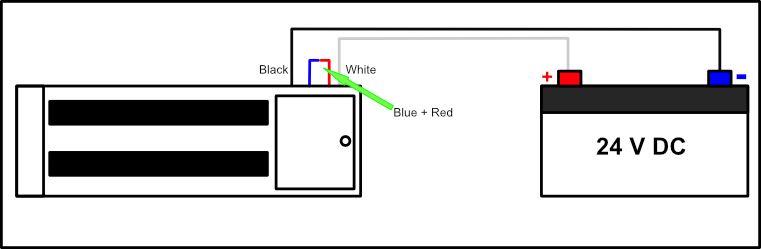

For 24 volt installation:
- Connect the Red and Blue wires together-
The black wire should be used for the negative
- The white wire should be used for the positive
