For testing, we used the Safire Smart XVR.
The B621VSW-5U4N1 camera can be used in the following modes.
- HDTVI
- 1080P 25fps
- 1080P 30fps
- 4 MP 25fps
- 4 MP 30fps
- 5 MP 12.5fps
- 5 MP 20fps
- HDCVI
- 1080P 25fps
- 1080P 30fps
- 4 MP 25fps
- 4 MP 30fps
- AHD
- 1080P 25fps
- 1080P 30fps
- 4 MP 25fps
- 4 MP 30fps
- 5 MP 12.5fps
- 5 MP 20fps
- CVBS
- No options, no OSD-menu
How to enter the OSD-Menu?

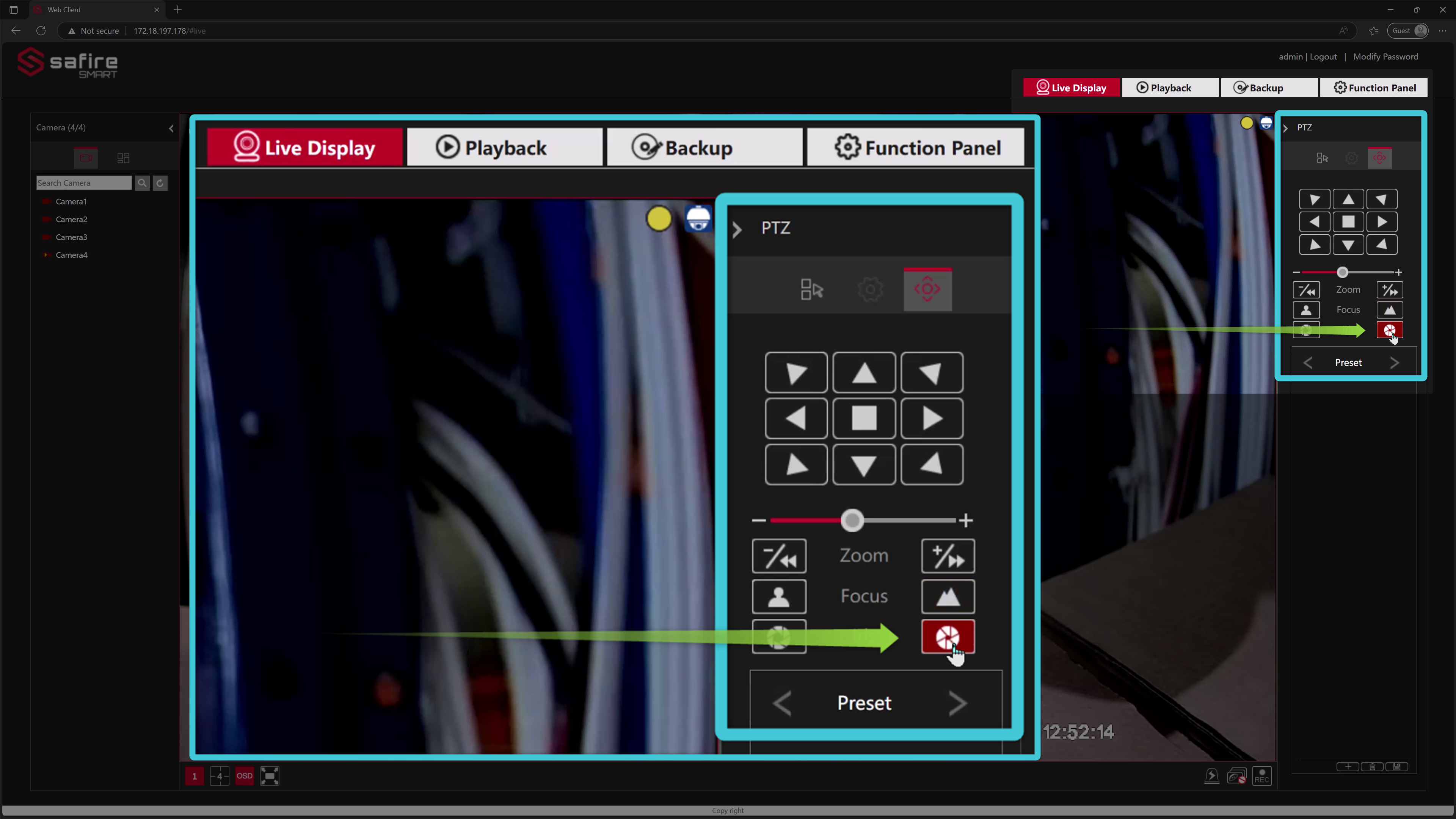

Connect the camera to any XVR that supports the protocols, HDTVI, HDCVI, AHD, or CVBS, and select the PTZ option.
Select the camera, and click on plus Iris to enter the menu, for the rest it is possible to use the arrows up, and down.
