Description: Power configuration protocol for electric vehicle chargers using the RAEDIAN end-user App.
INTRODUCTION
The Smartphone App RAEDIAN is the recommended App for end-user interaction with the electric vehicle charger. With this App it is possible to perform the locking and unlocking of the electric vehicle charging cable.
The way to interact with the App can be:
- Local, via Bluetooth (NORA, NEO, NEX, GEMINI).
- Remote, via WLAN (NORA, NEO, NEX, GEMINI).
- Remote, via 4G (NEO with built-in eSIM, NEX, GEMINI).
POWER / CHARGING CURRENT CONFIGURATION
This function is related to the maximum power (charging current) the electric vehicle is going to be charged. It is a delicate step since it is necessary to have the current available in the network since in case of mistake the electrical protections of the installation can be triggered. It is possible to change both the mains capacity (the maximum current with which the charger can be supplied, taking into account the electrical protections of the electrical panel) and the charging current itself (it will always be lower).
There are several ways to change the charging current of the charger.

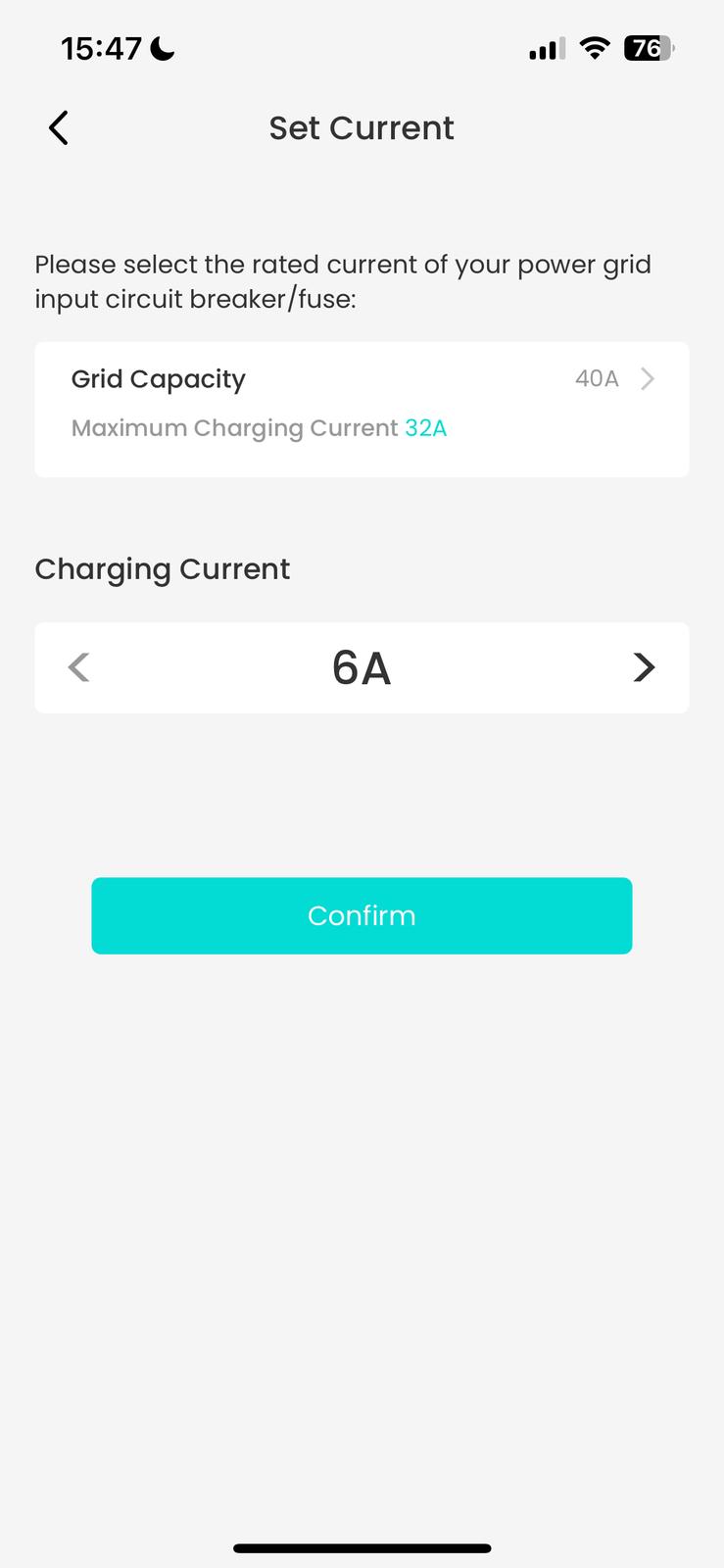

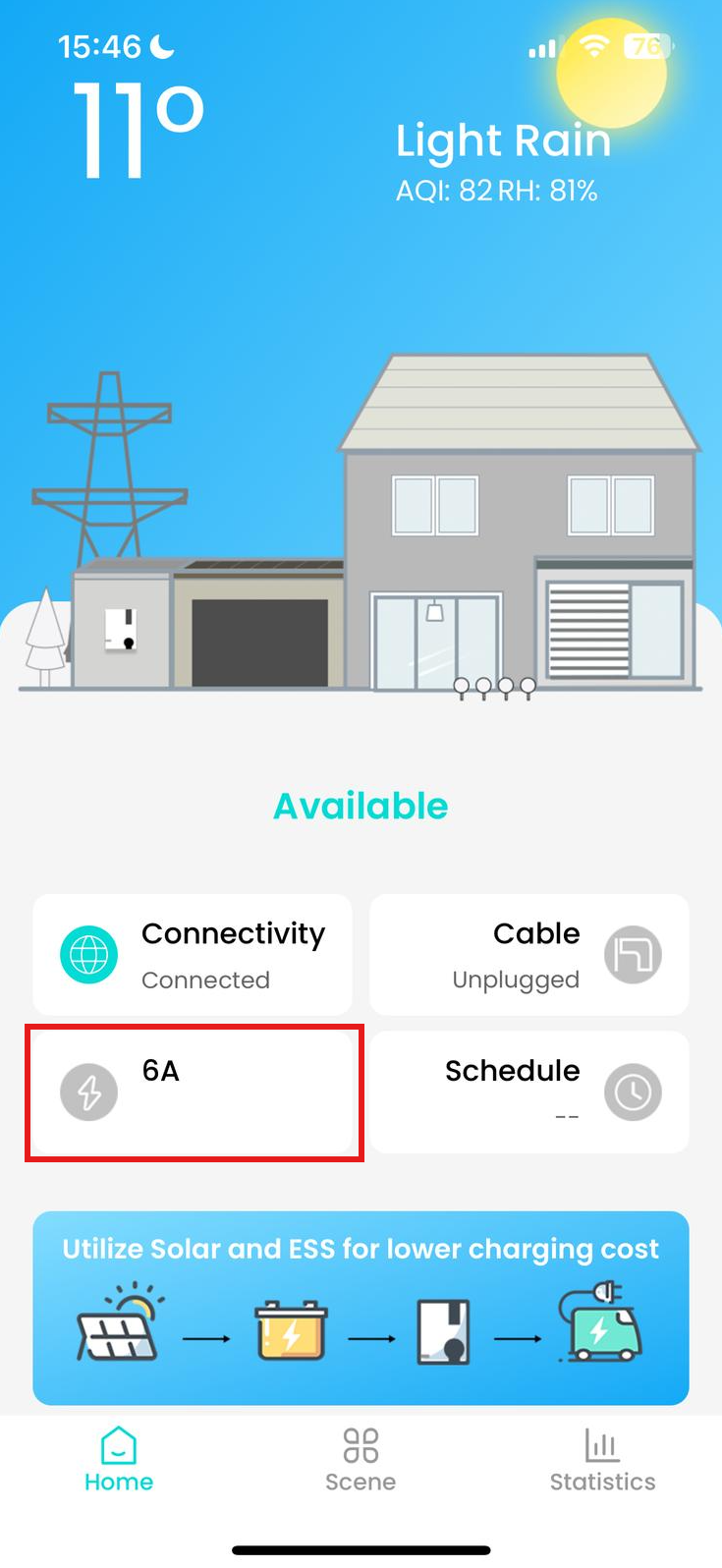

- From the Start menu, click on the current current (see image). Inside, you can change both the mains capacity (the maximum current with which the charger can be supplied, taking into account the electrical protections of the electrical panel) and the charging current itself (it will always be lower).

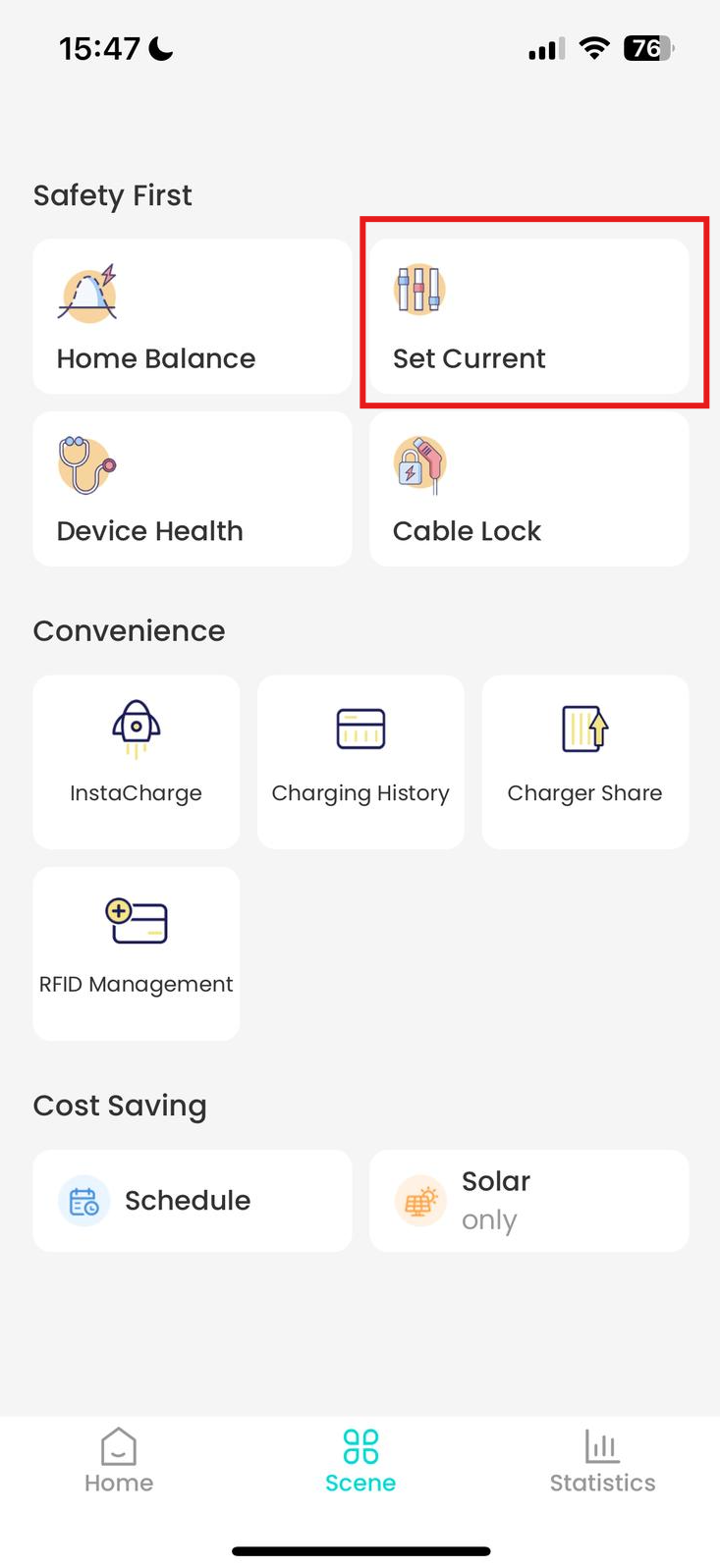

- From the Scene menu, under Set Current. Here you can also change the network capacity and the charging current.

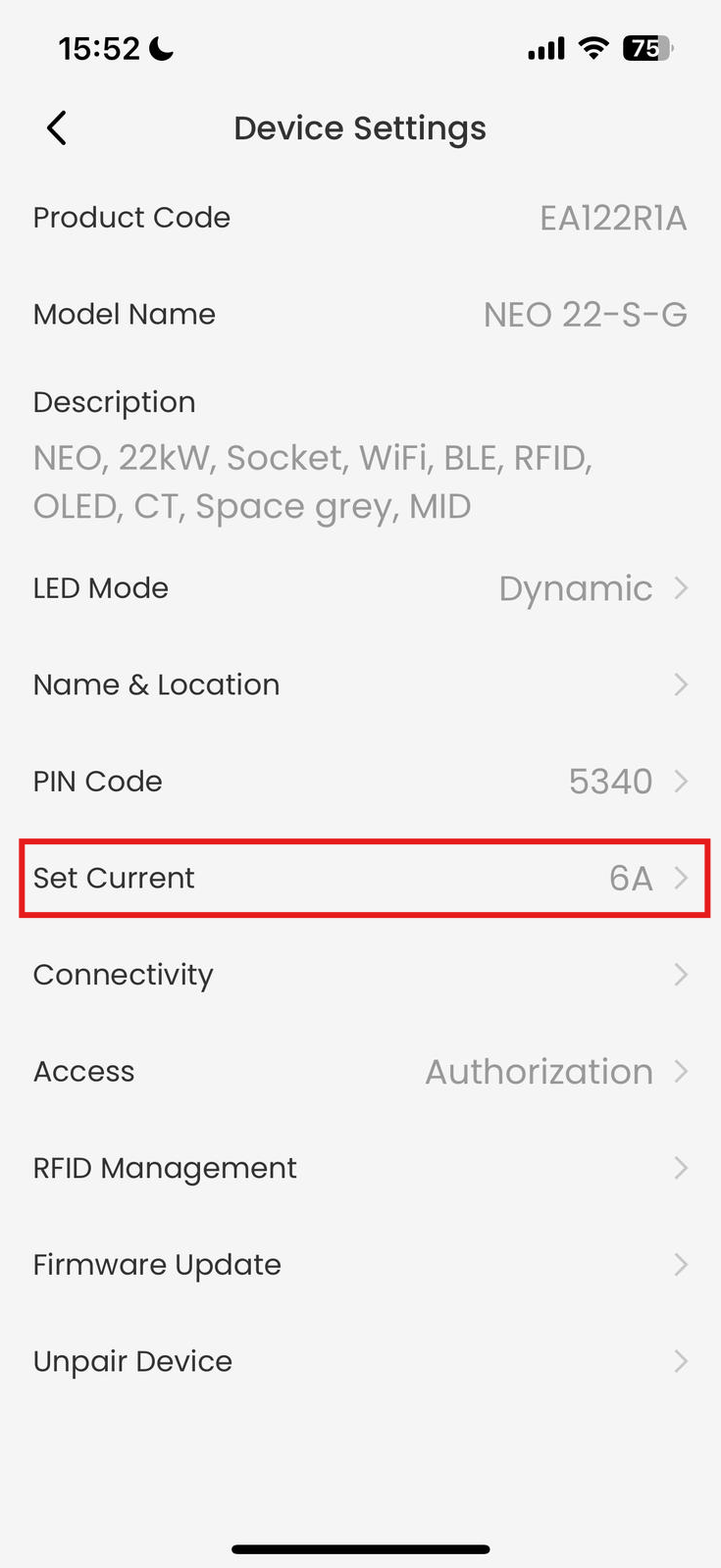

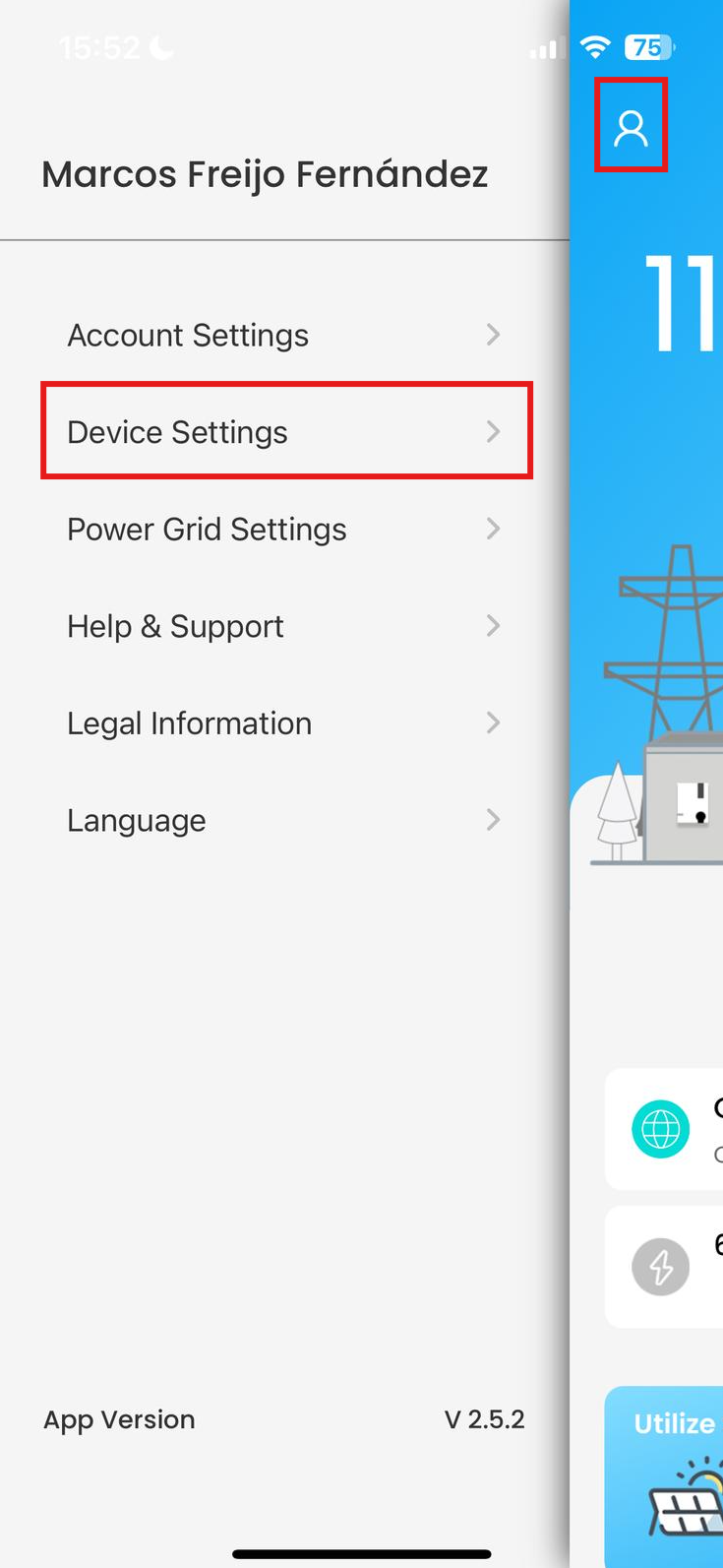

- From the Home menu, in the drop-down menu in the upper left corner (see image), under Device Configuration, click on Set Current.
