DT-R00X devices can be configured to send an HTTP command when one of their alarm inputs is activated. This allows, for example, to send HTTP commands to other DT-R00X relay modules to activate one of their outputs.
The HTTP commands of these modules can be checked in the following manual:

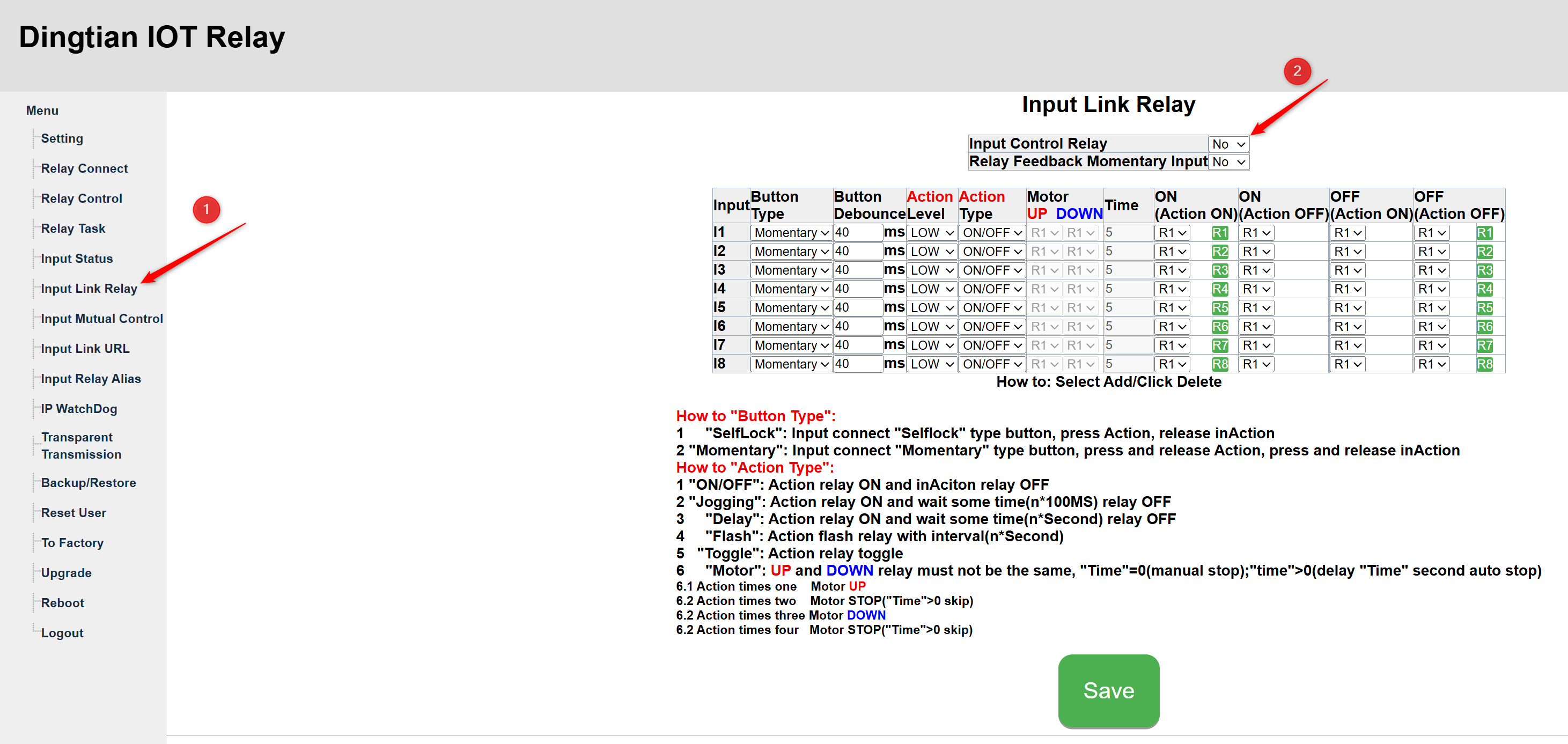

1. The first step will be to deactivate the Input Control Relay option, since this option is for each input of the module to activate its output, input 1 activates output 1, input 2 activates output 2,...

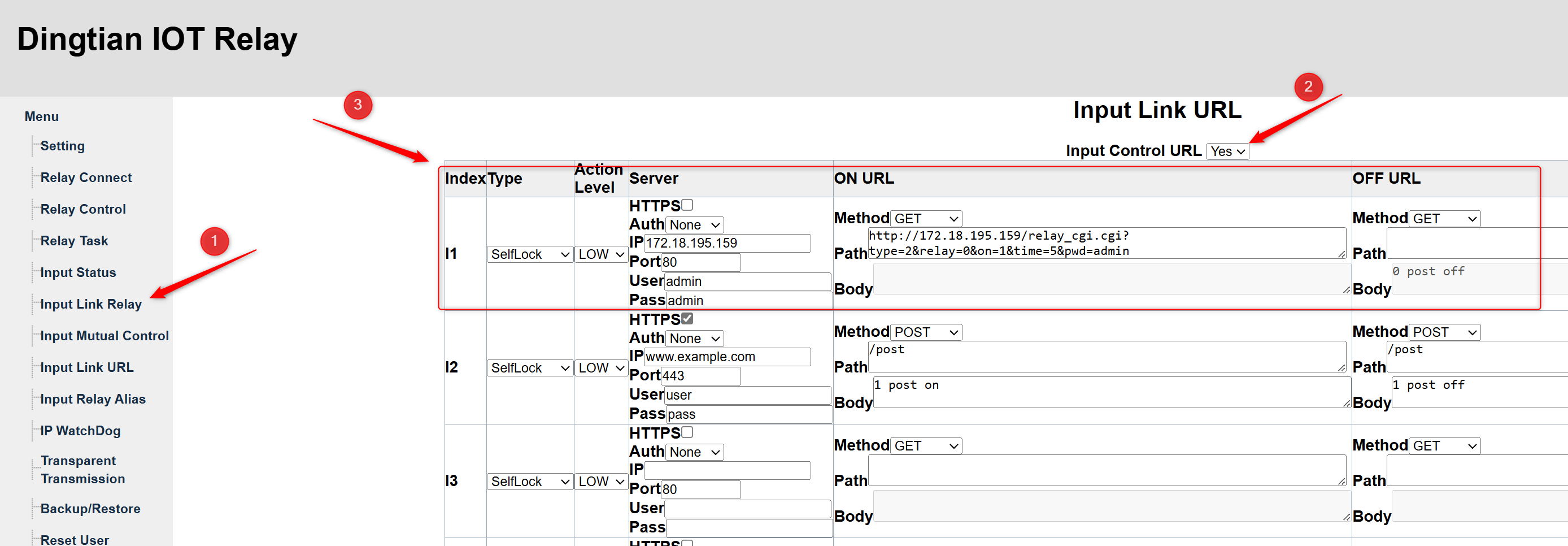

2. Next, in the Input Link URL section, set the control to Yes (point 2), and set the parameters of the device to which you want to send the command, and the command itself (point 3).
In this example it has been established that the command to be sent is to another DT-R00X, so HTTPS is deactivated, and the equipment data (IP, user and password) and the HTTP command are established in the PATH. For this example, relay 1 of the module is activated for 5 seconds.

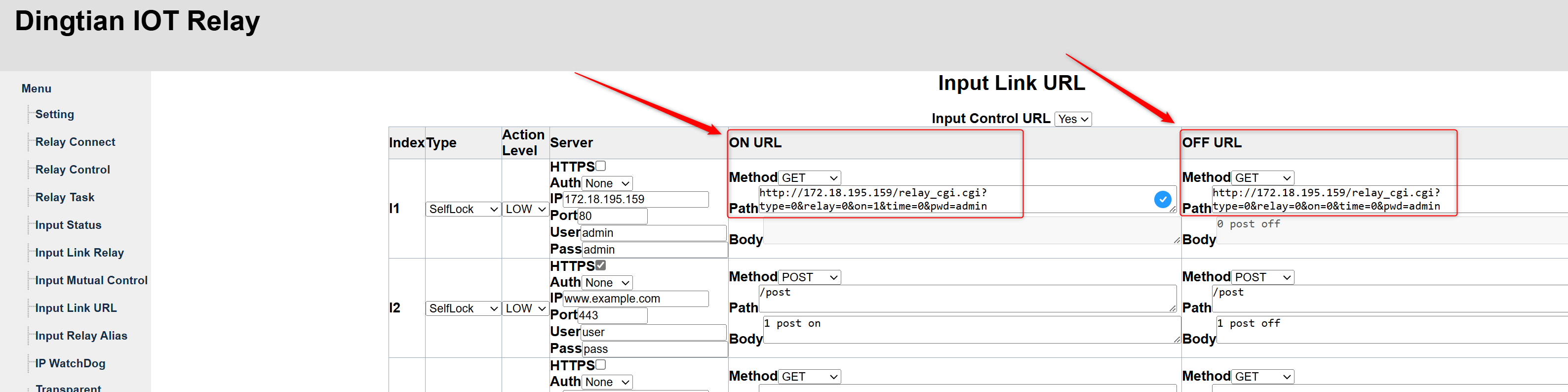

If you want to keep the output active for the duration of the input activation and then return to its idle state, then you will have to use the Relay ON/OFF command in the manual and you can use the commands to activate and deactivate the relay in the two PATHs of the ON URL and OFF URL line.
