In this example, we add a ZK-C3-200PRO to the software.
First, download the Software (Communication Setting Tool V3.0) to search for ZKTeco devices in a network. It allows you to configure the IP address of the devices.

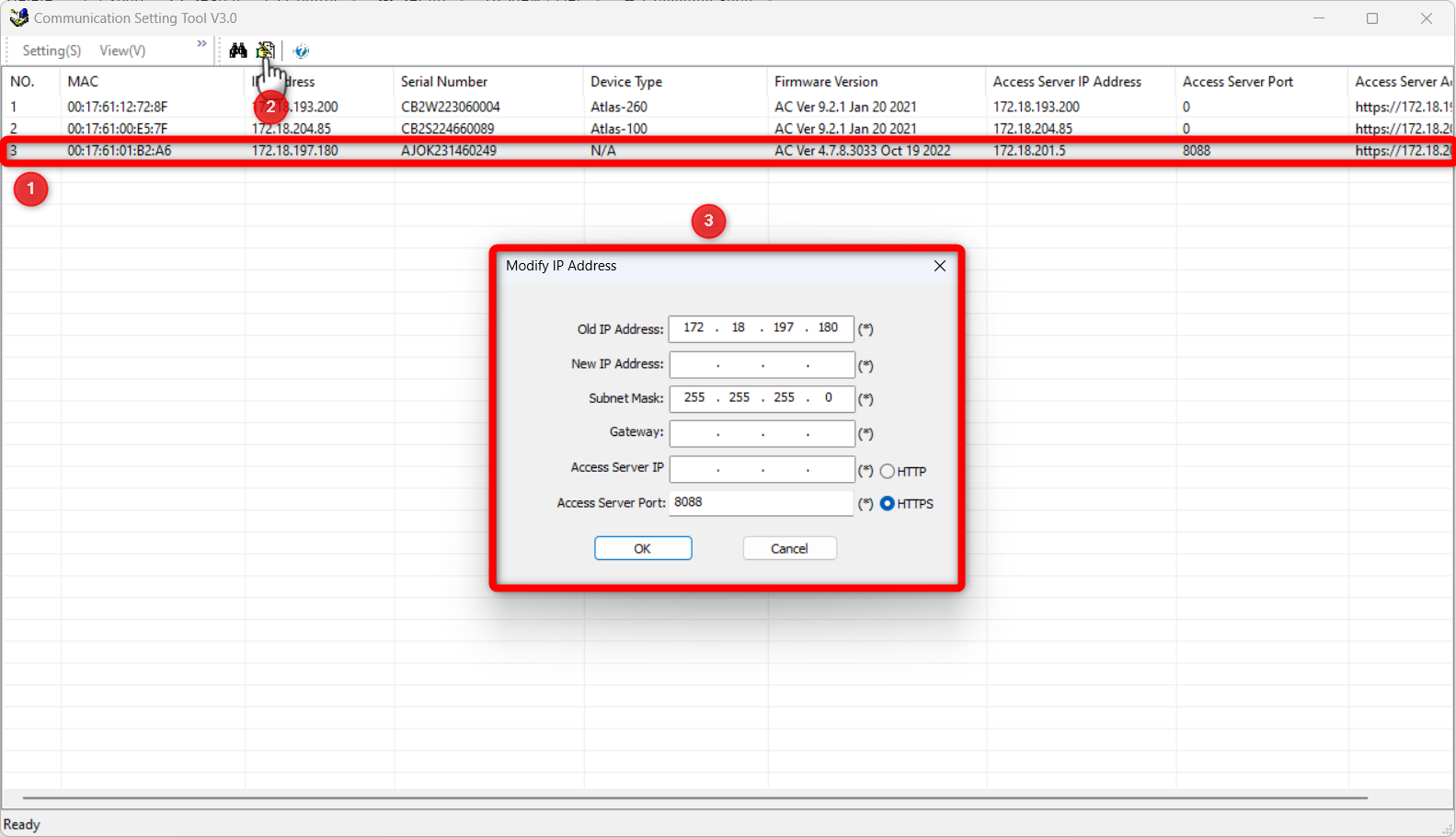

Open the tool, and it will search the network for devices.
1. Select the devices you want to add.
2. Click on the icon on the top bar
3. Set the new IP Address, Subnet Mask and Gateway.
In addition, the Access Server IP and the Access Server Port must be filled in.

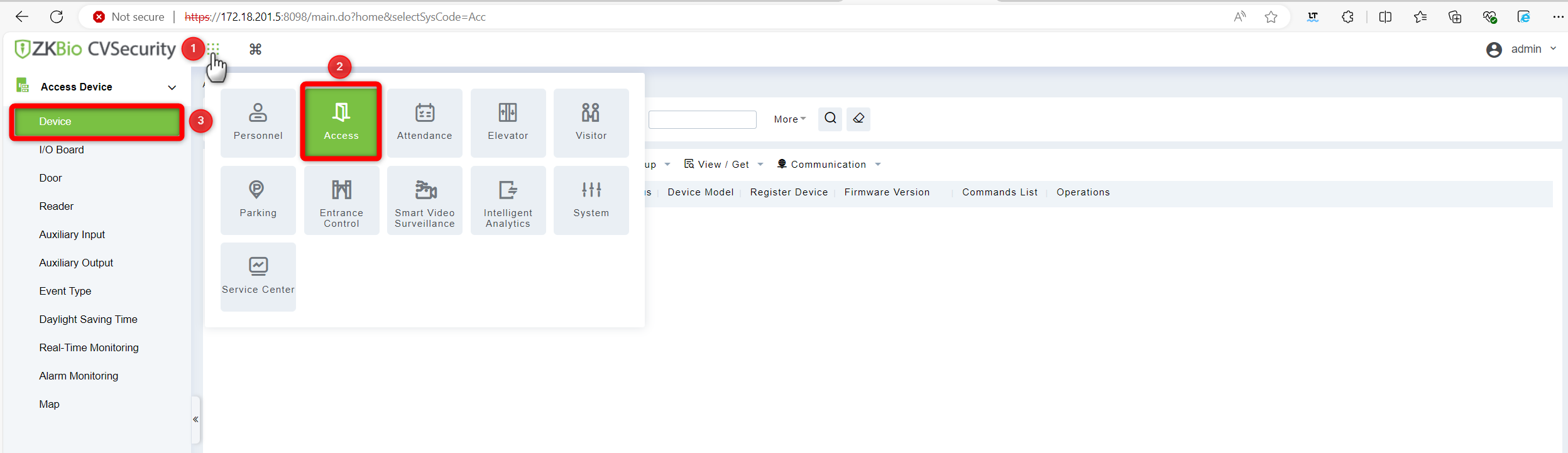

Open the Software
1. Click on the icon at top
2. Access
3. Device

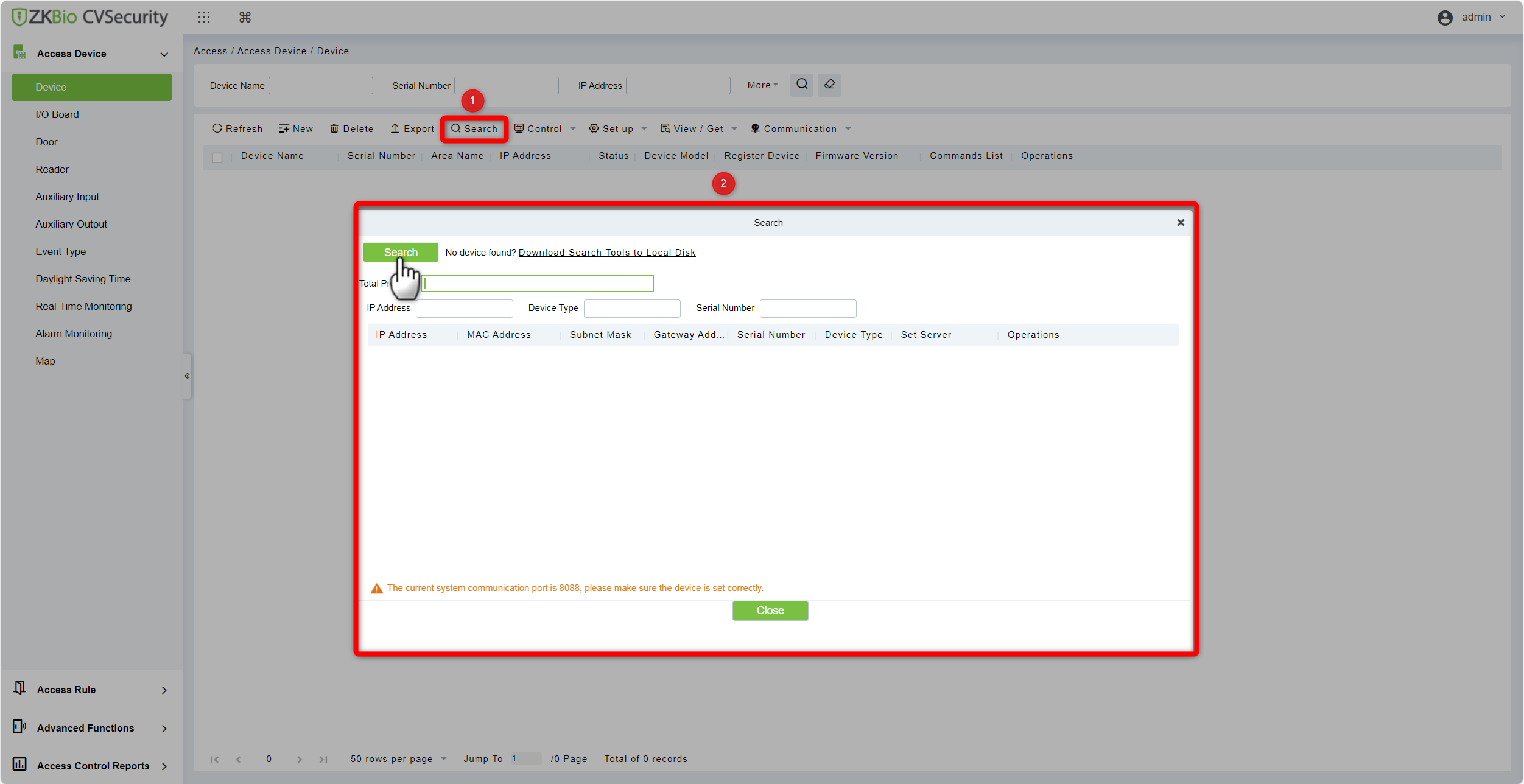

1. Click on search
2. A window will pop up, click on search again to scan for devices

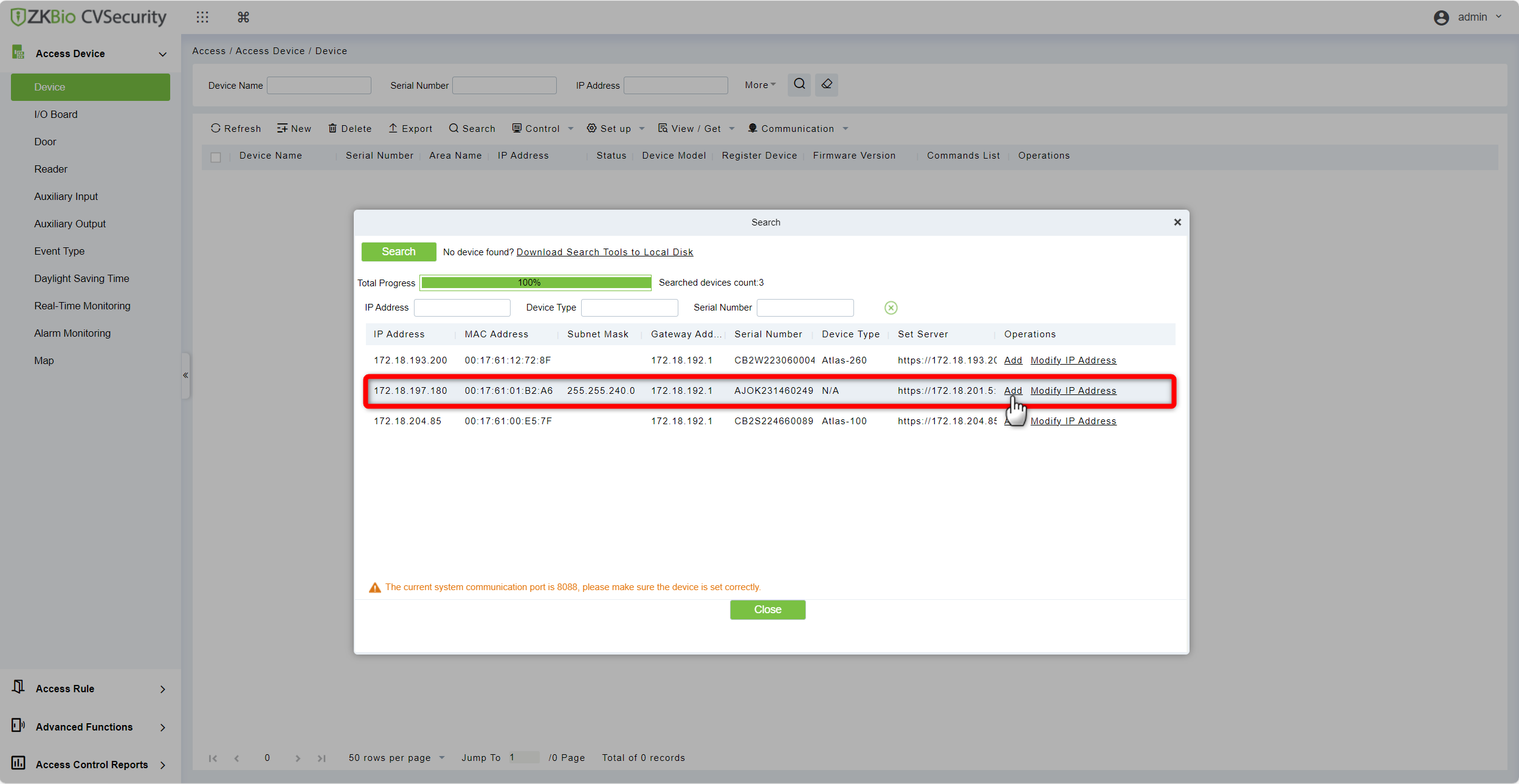

The device will show up and can be added.

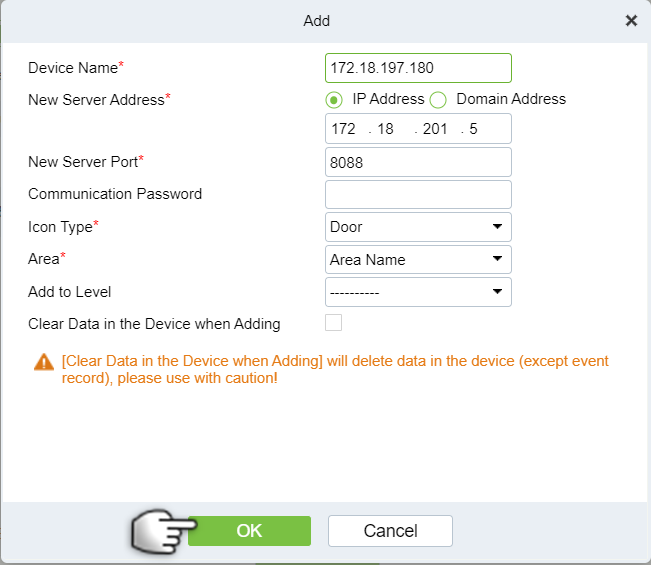

Before adding the device, check the settings and clear data if needed.

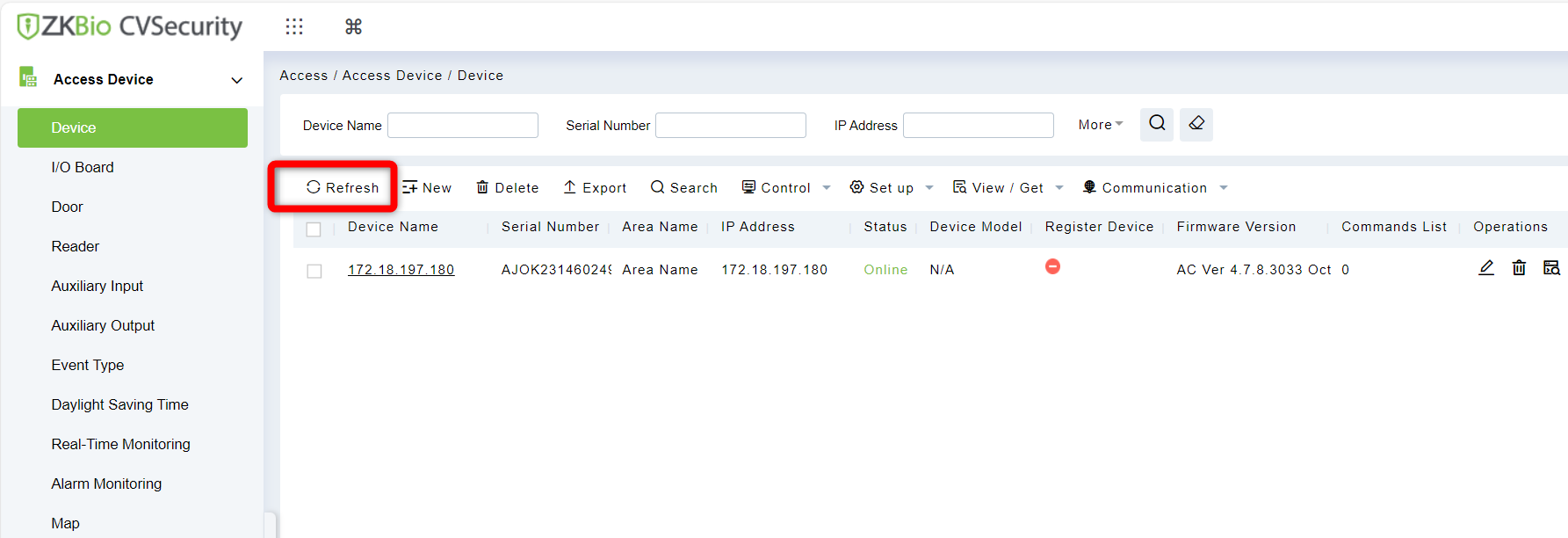

Click on refresh and the device will show up Online.
