The ONVIF-HDMI allows to add up to 4 video signals from cameras to make a quadrant and to be able to visualize their video through its HDMI output.
- Default IP: 192.168.1.169
- User: admin
- Password: admin
The aggregation of the cameras is through the RTSP code of the camera. In the knowledge center are the articles of what is the RTSP chain of the main manufacturers.

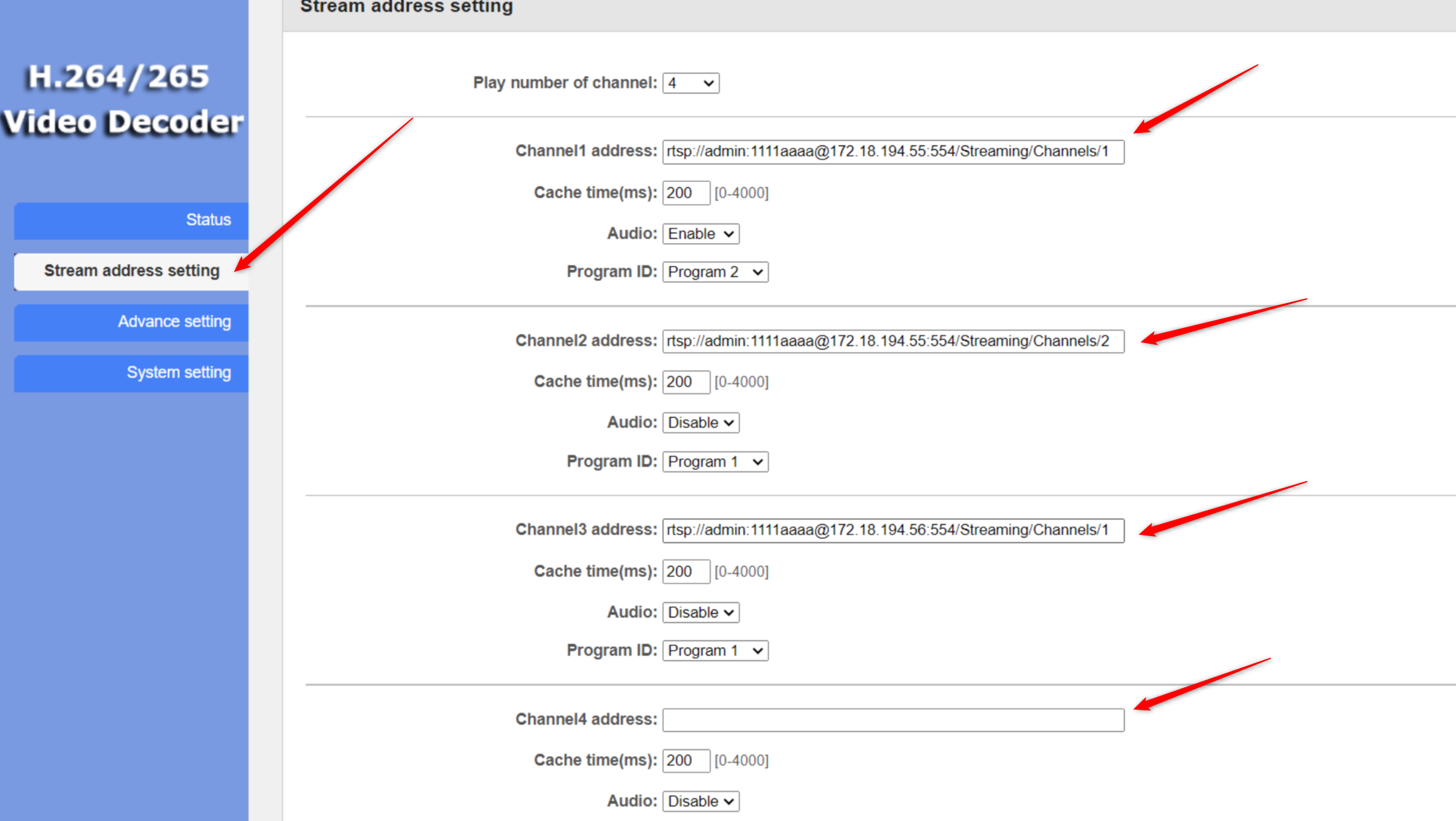

- The addition of the camera RTSP for each of the channels is done in the next section:

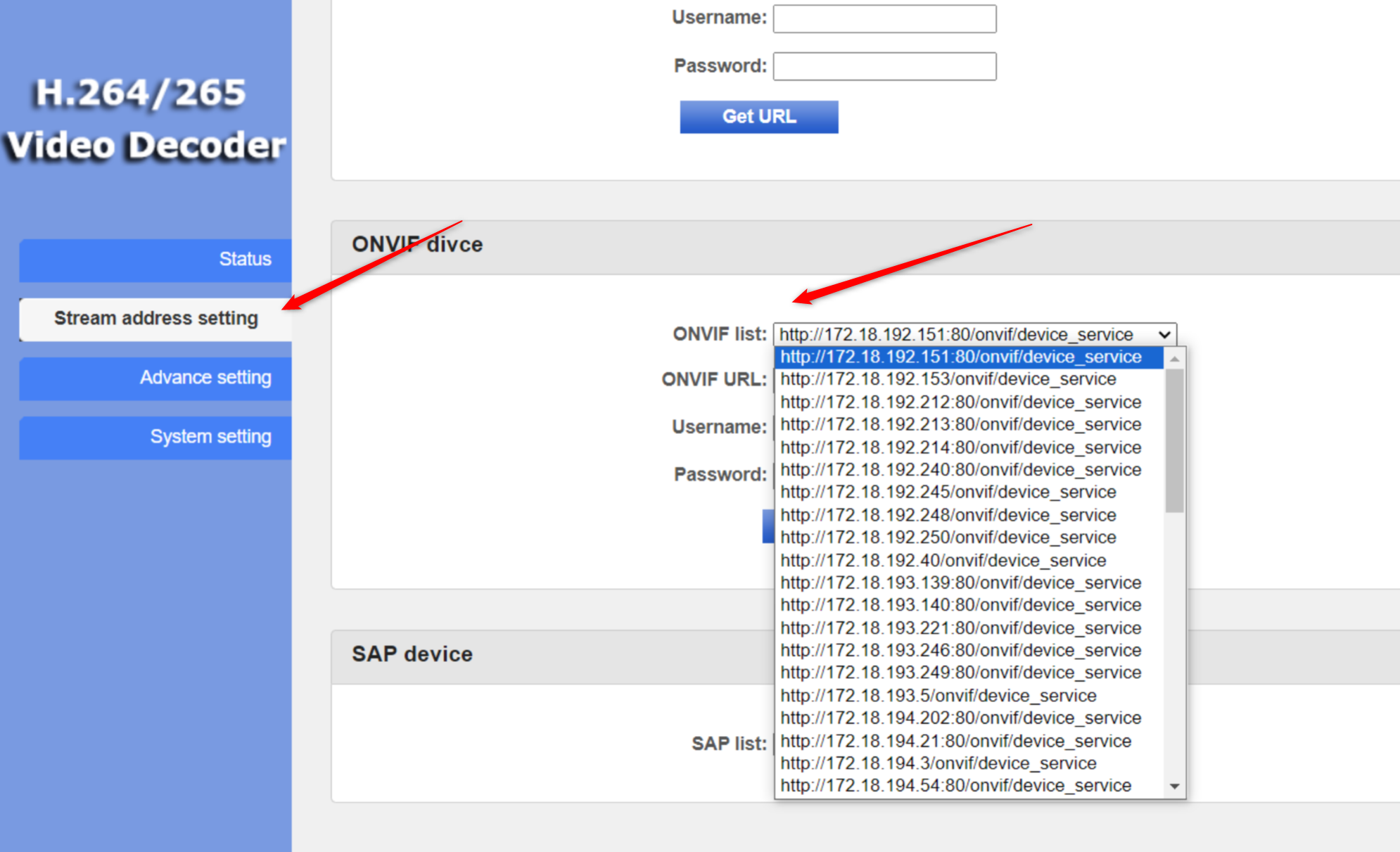

- In case you do not know the RTSP code, the ONVIF-HDMI has an ONVIF equipment finder:

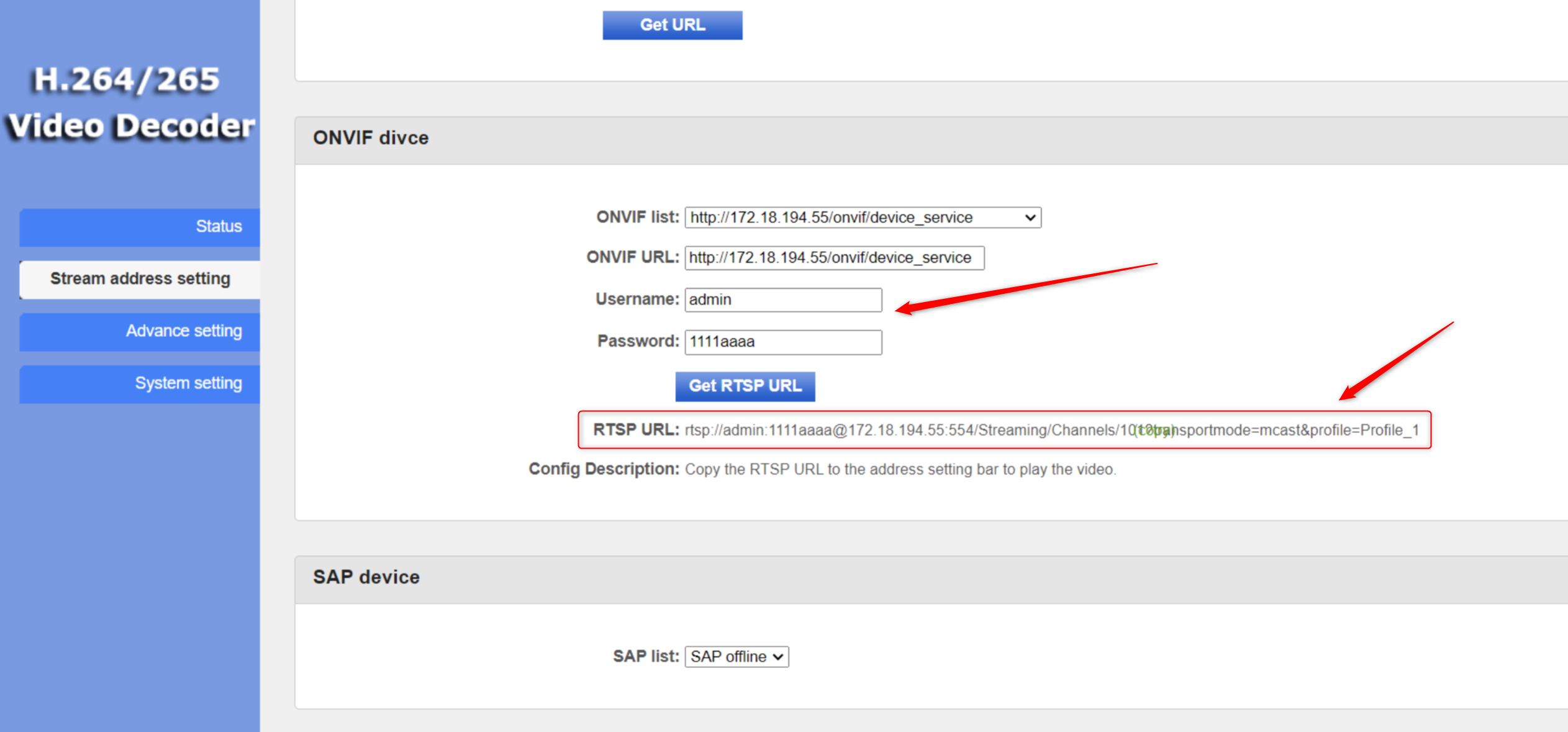

Once the camera is selected, its user and password are indicated, so that the ONVIF-HDMI itself will show the appropriate RTSP for this camera, so that it will only have to be copied and pasted into the desired channel:

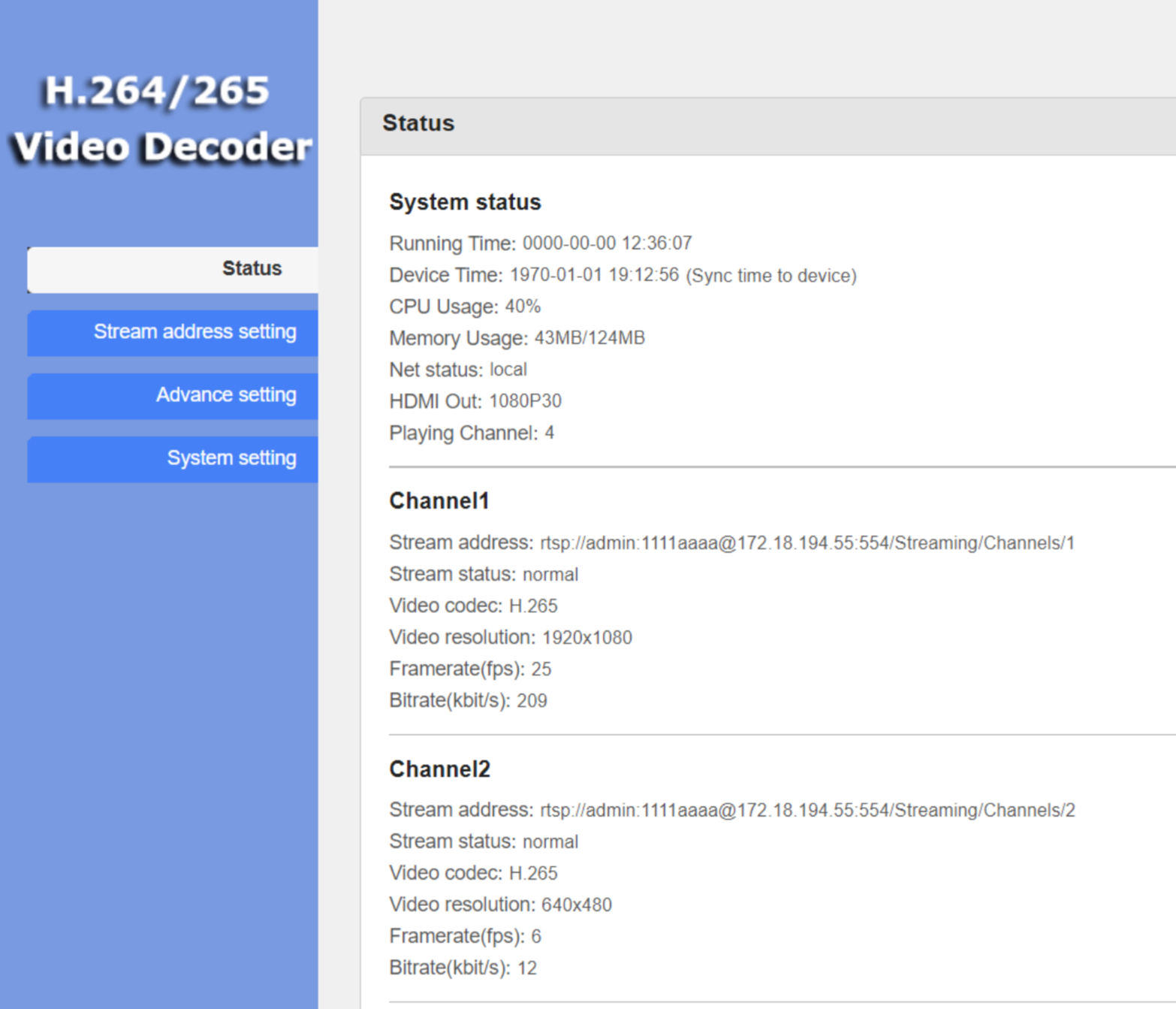

- Once the cameras have been added, their status can be checked in the Status section:

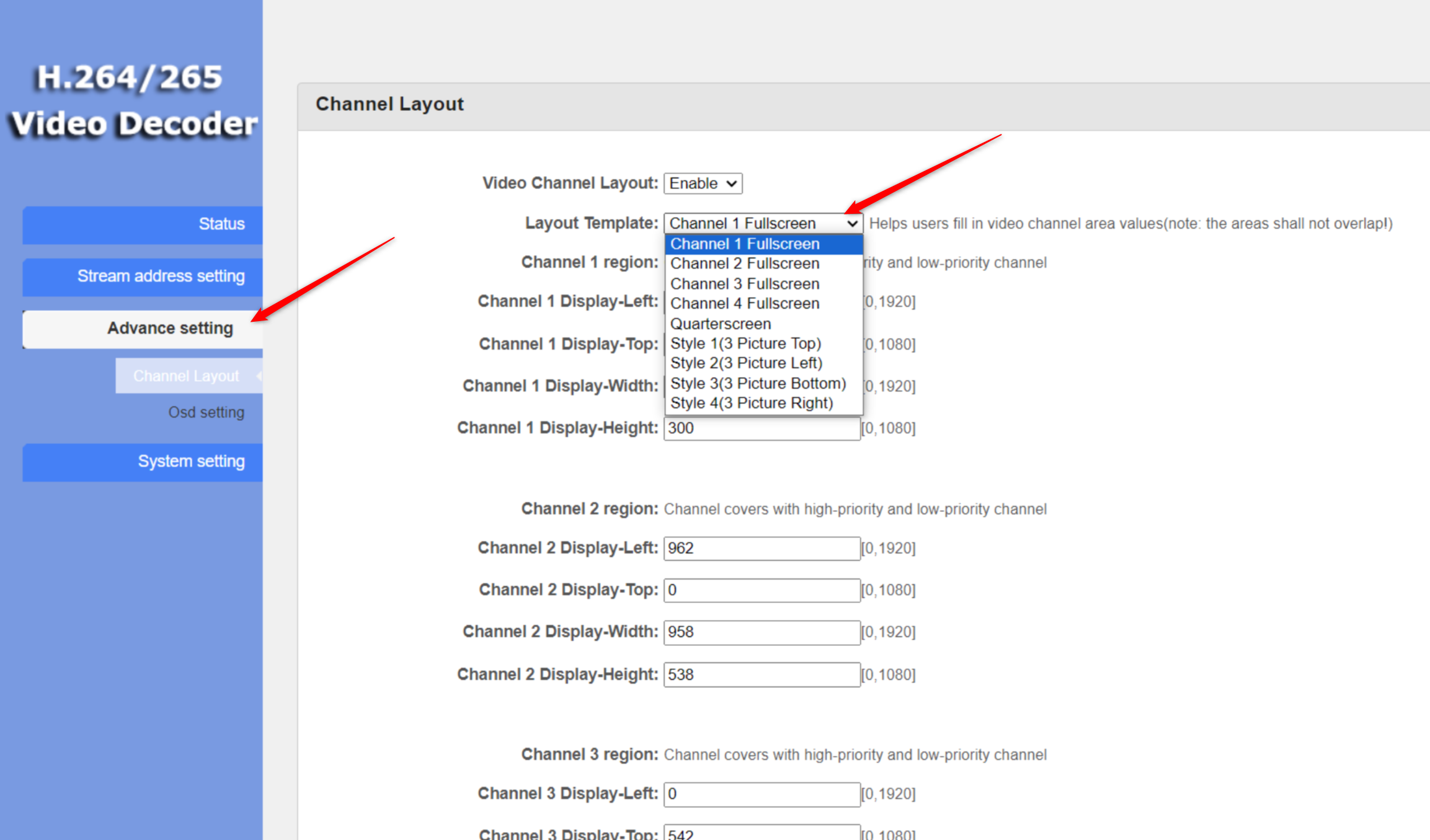

- In the Channel Layaut section is where you can set the type of quadrant desired, whether 1-camera or 4-camera quadrant.
Once configured, the HDMI output will display the video from each of the added cameras.

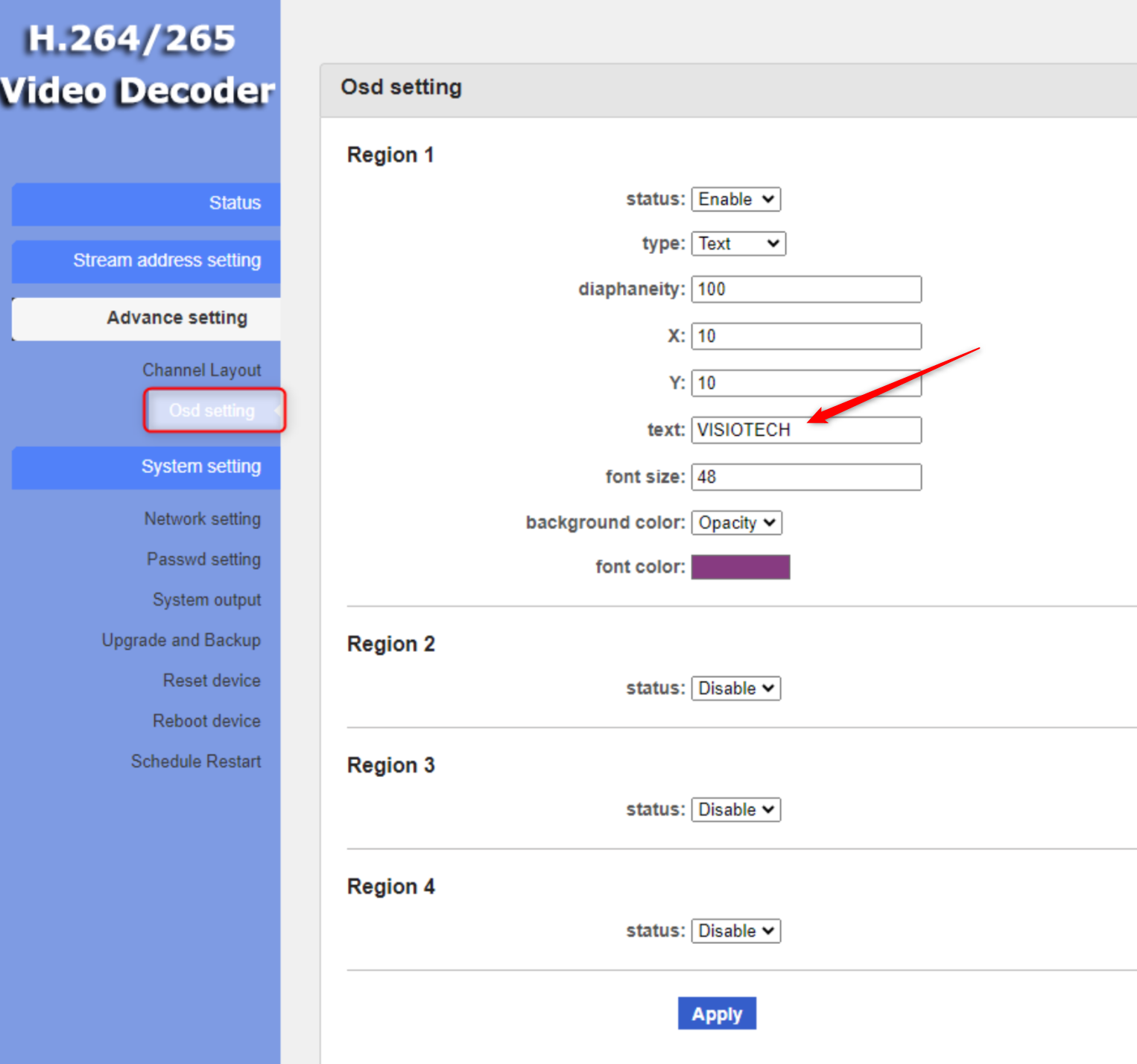

You can also set the name you want to appear for each channel:

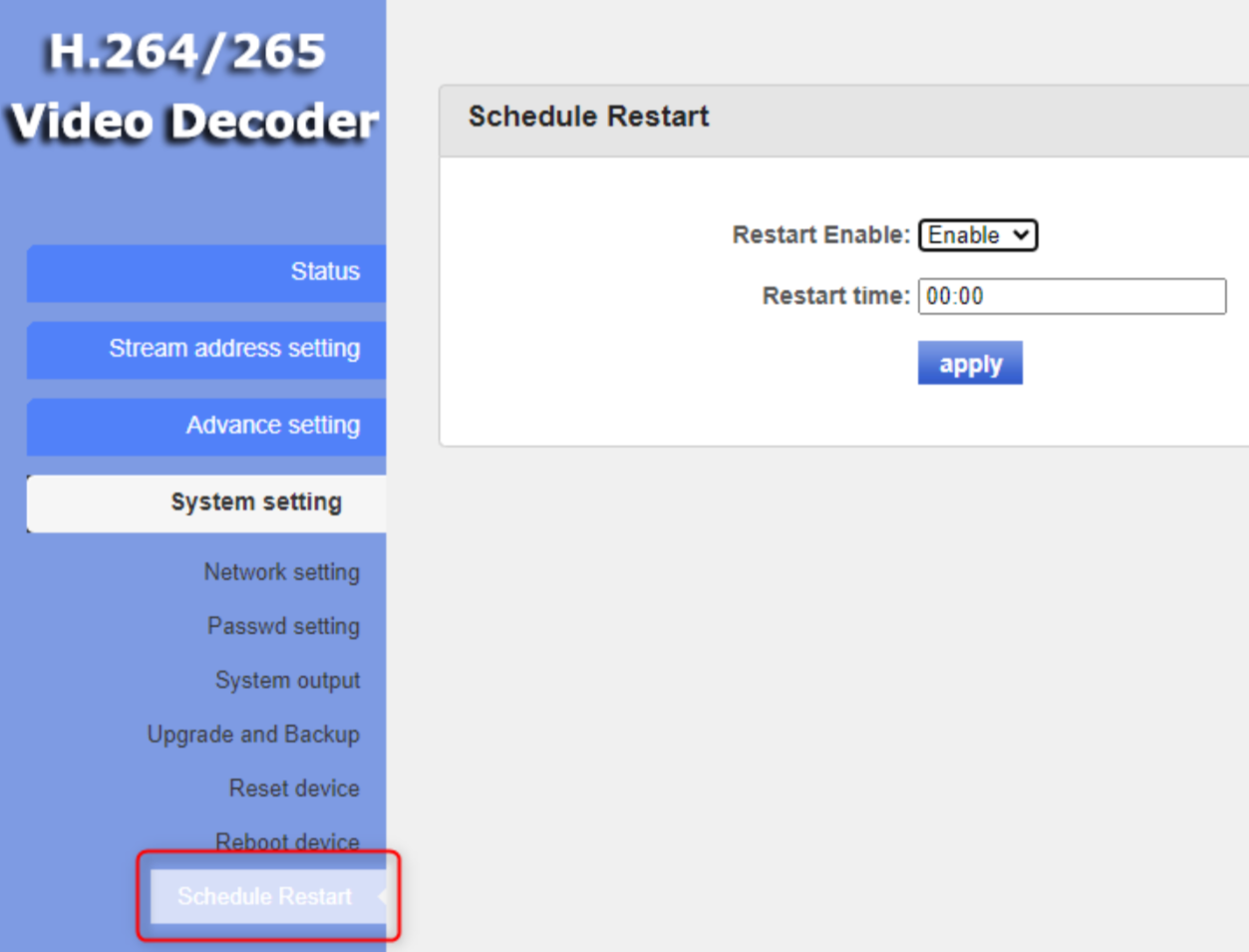

And the device has a self-reset mode.
