Voor dit artikel gbruiken we de Safire Smart camera SF-IPB585ZA-4I1 firmware version: 5.1.3.0(47353)
Event options:
Face detection
Smart Events
Video Metadata
Hoe verander je de verschillende evenementenopties?

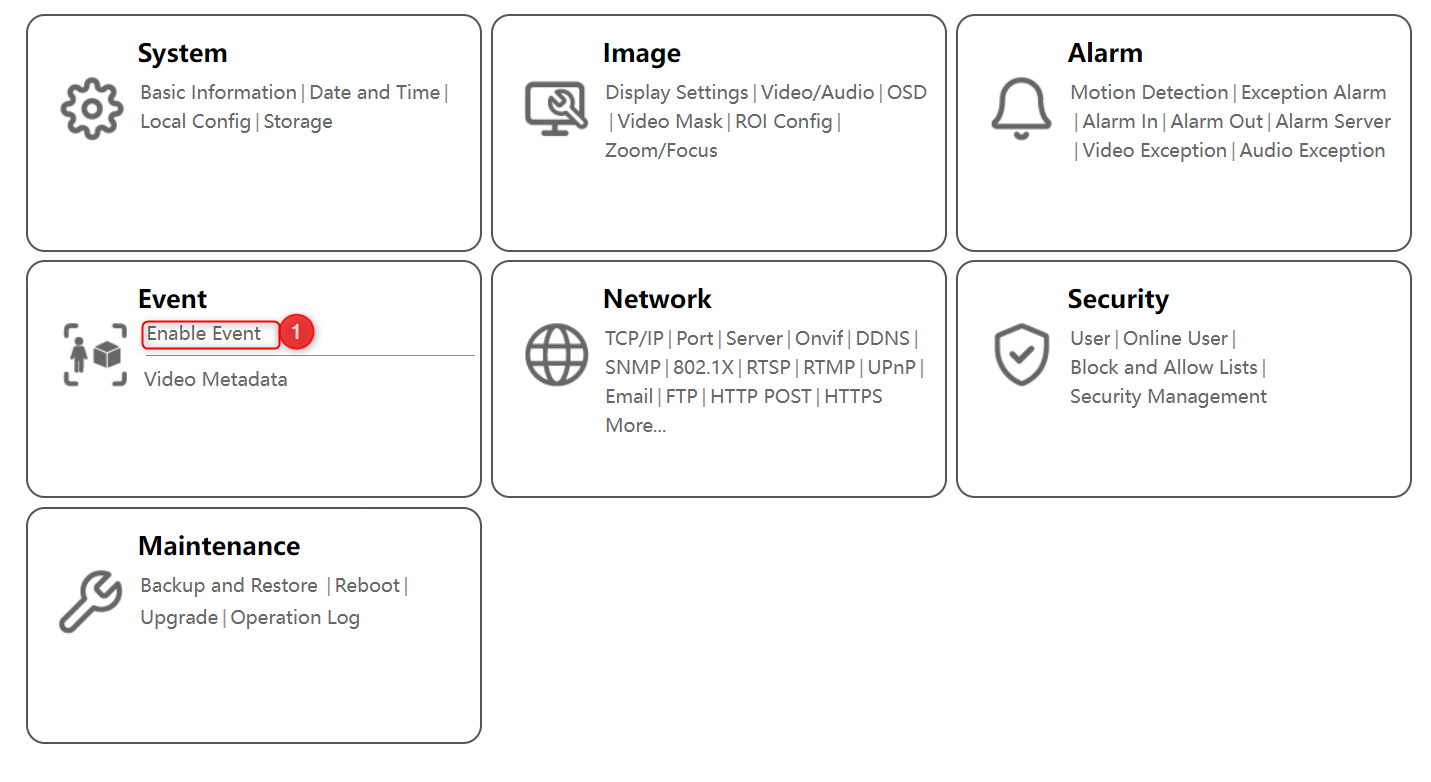

Ga naar het configuratietabblad van de camera en klik op Evenementen

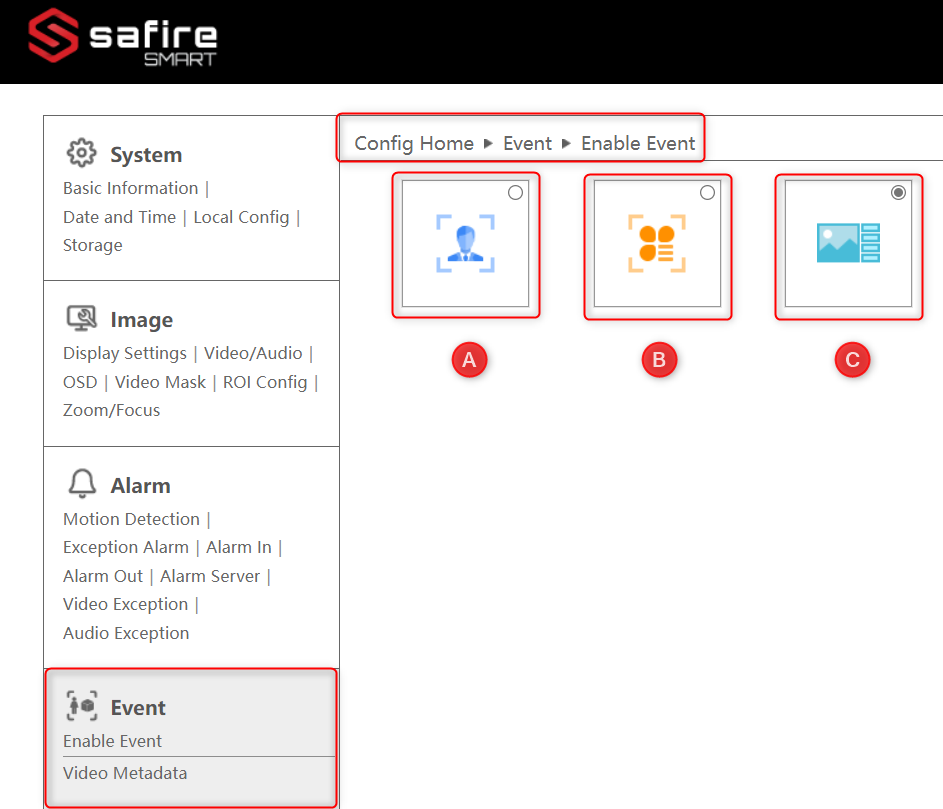

1. Schakel evenement in
Selecteer van daaruit de beschikbare opties.
Gezichtsdetectie

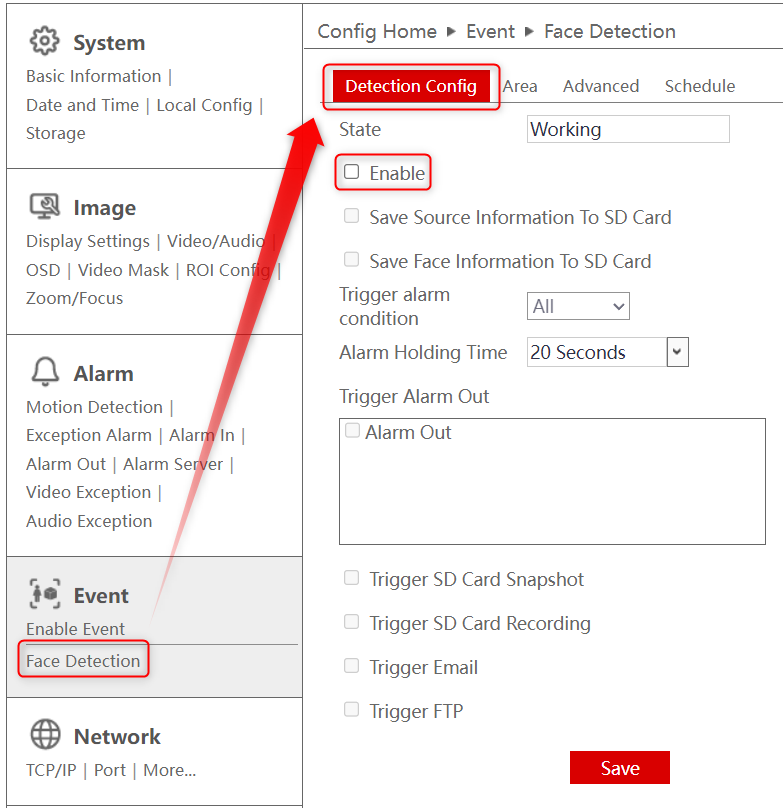

Om gezichtsdetectie te laten werken:
Selecteer het tabblad Detectieconfiguratie en schakel het gebeurtenistype in en selecteer de opties die nodig zijn voor het project.

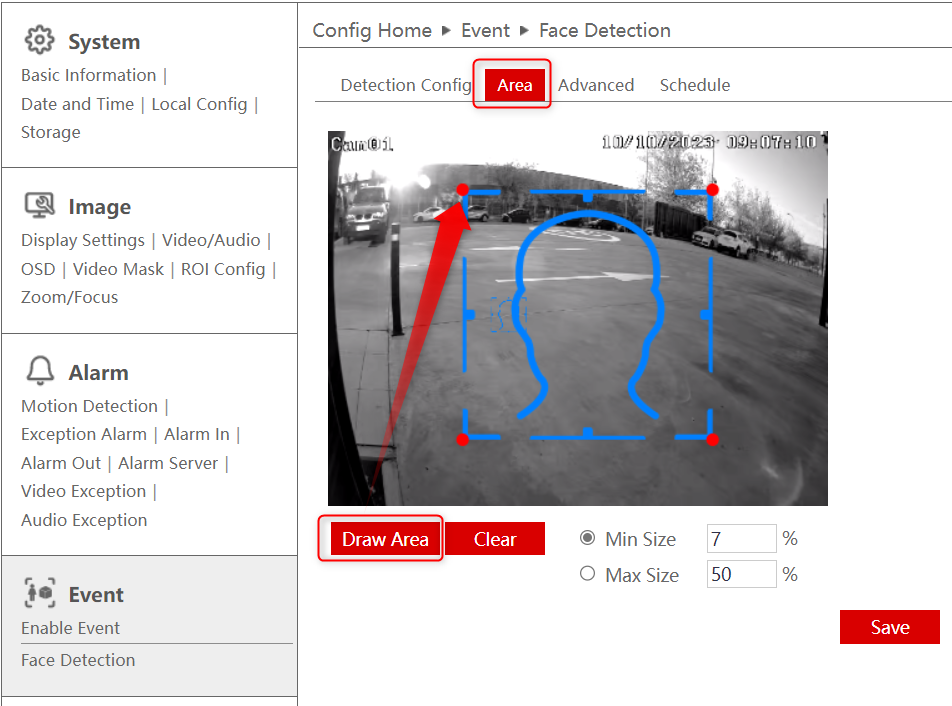

In het Tab-gebied is er de mogelijkheid om het detectiegebied te verplaatsen door op Draw Area te klikken.

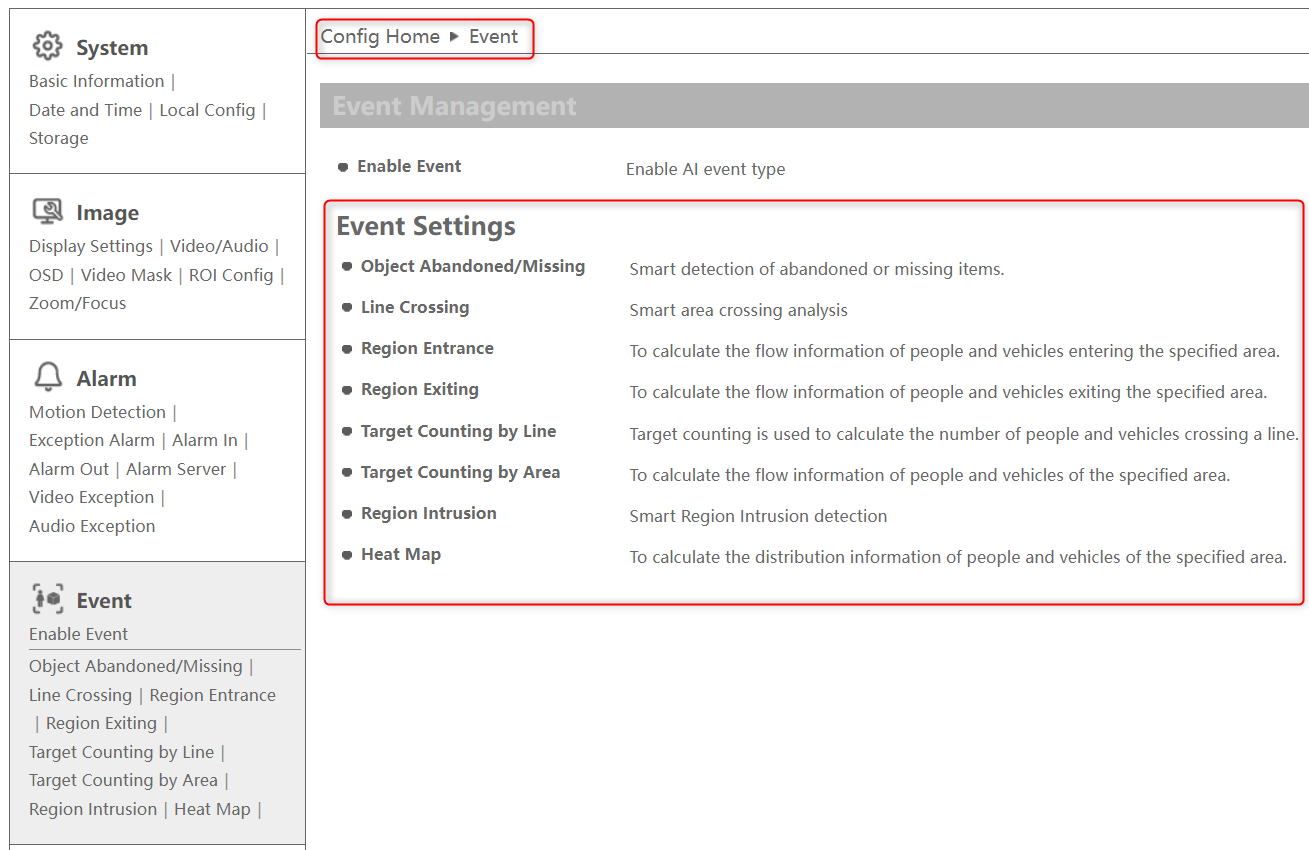

Smart events
| Object Abandoned/Missing | Smart detection of abandoned or missing items. |
| Line Crossing | Smart area crossing analysis |
| Region Entrance | To calculate the flow information of people and vehicles entering the specified area. |
| Region Exiting | To calculate the flow information of people and vehicles exiting the specified area. |
| Target Counting by Line | Target counting is used to calculate the number of people and vehicles crossing a line. |
| Target Counting by Area | To calculate the flow information of people and vehicles of the specified area. |
| Region Intrusion | Smart Region Intrusion detection |
| Heat Map | To calculate the distribution information of people and vehicles of the specified area. |
Meer over de opzet voor het slimme evenement in de artikelen:
- Tech Training Safire Smart - Setup LPR, 360, and Thermal camera
Video Metadata
Om de metagegevens te gebruiken:

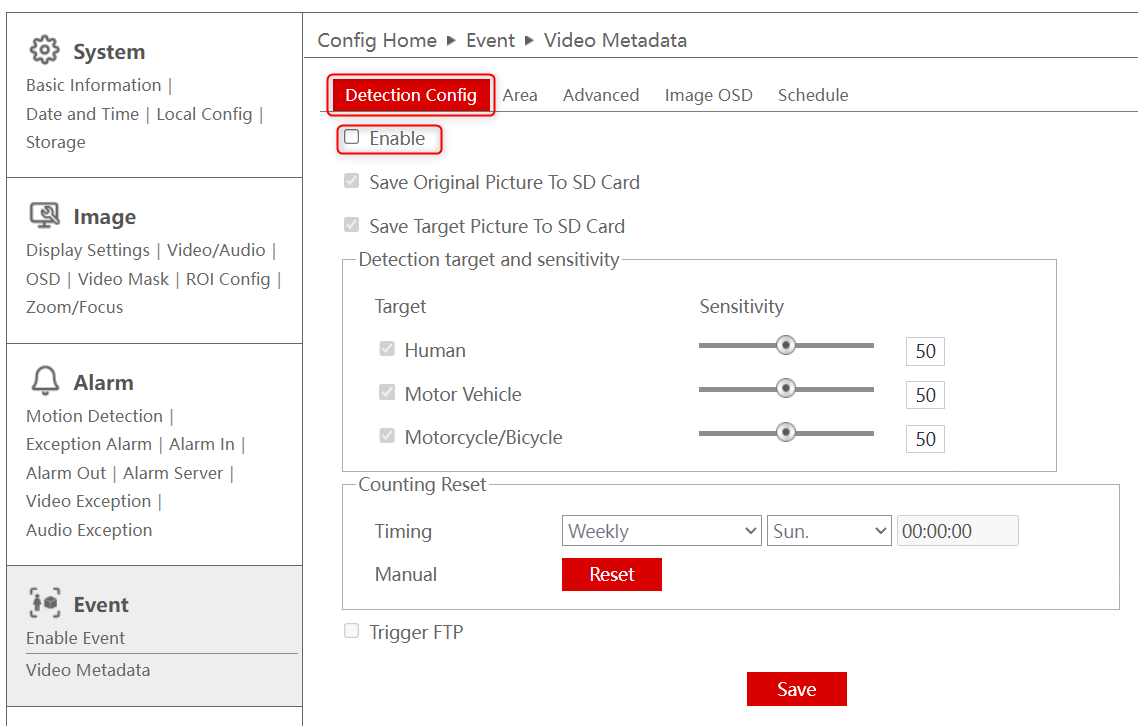

Ga naar de optie Video Metadata via de configuratiepagina.
Schakel de optie in en stel de opties voor het project in of activeer deze.

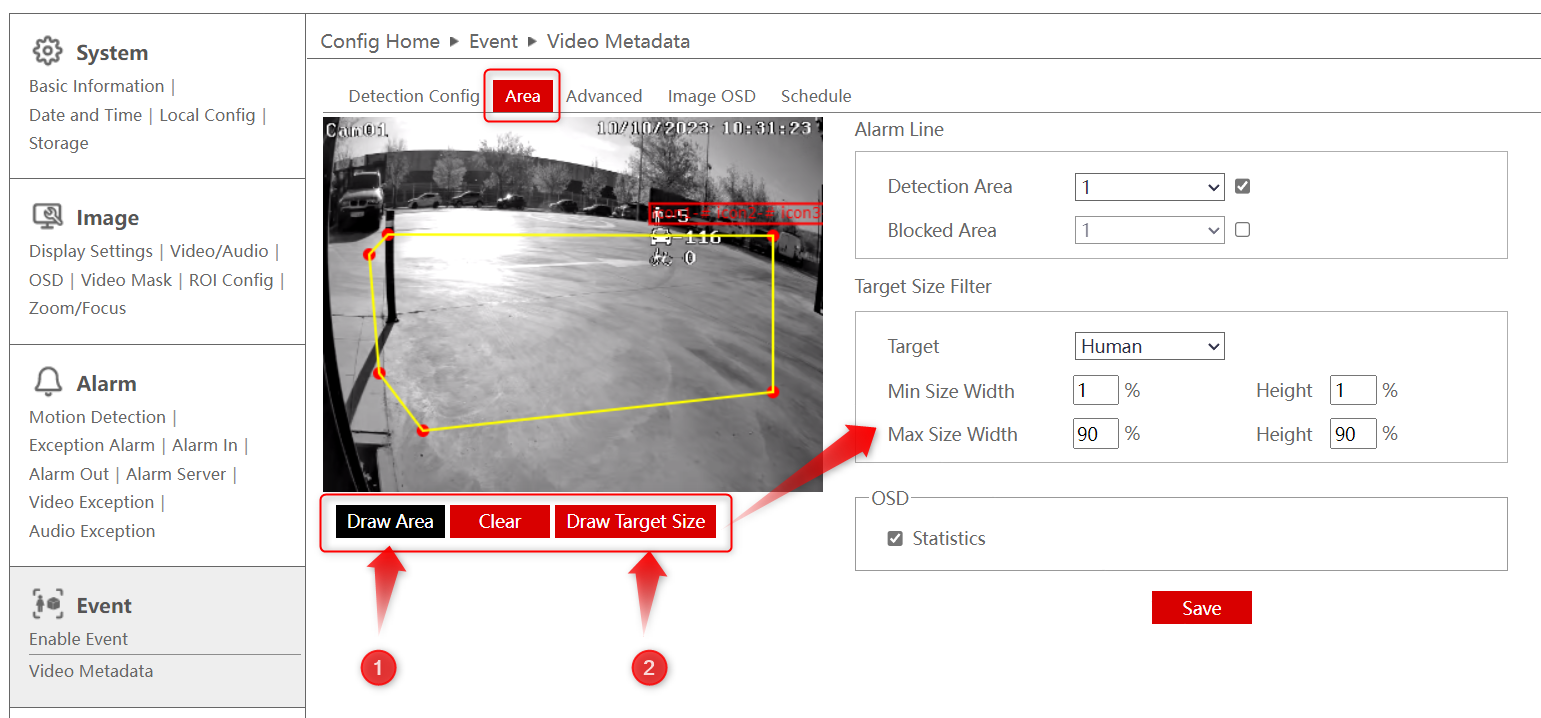

Het gebied instellen.
Selecteer het trekgebied (1) om het gebied voor de metadatadetectie te markeren.
Stel de doelgrootte (2) in of wij de flied om de percentages van de breedte en hoogte in te voeren.

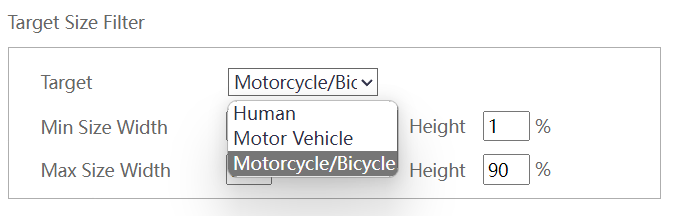

Het Target Size-filter kan worden gebruikt voor mensen, motorvoertuigen en motoren / fietsen

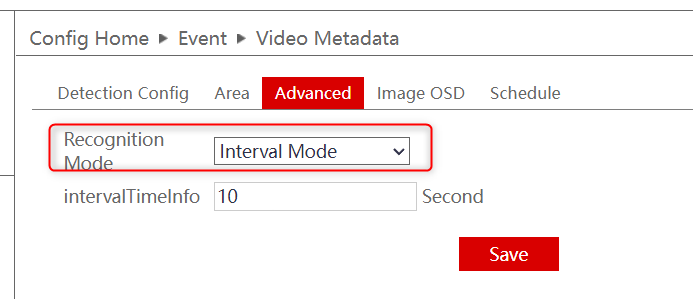

Op het tabblad Geavanceerd is er de optie Intervalmodus of Instant-modus

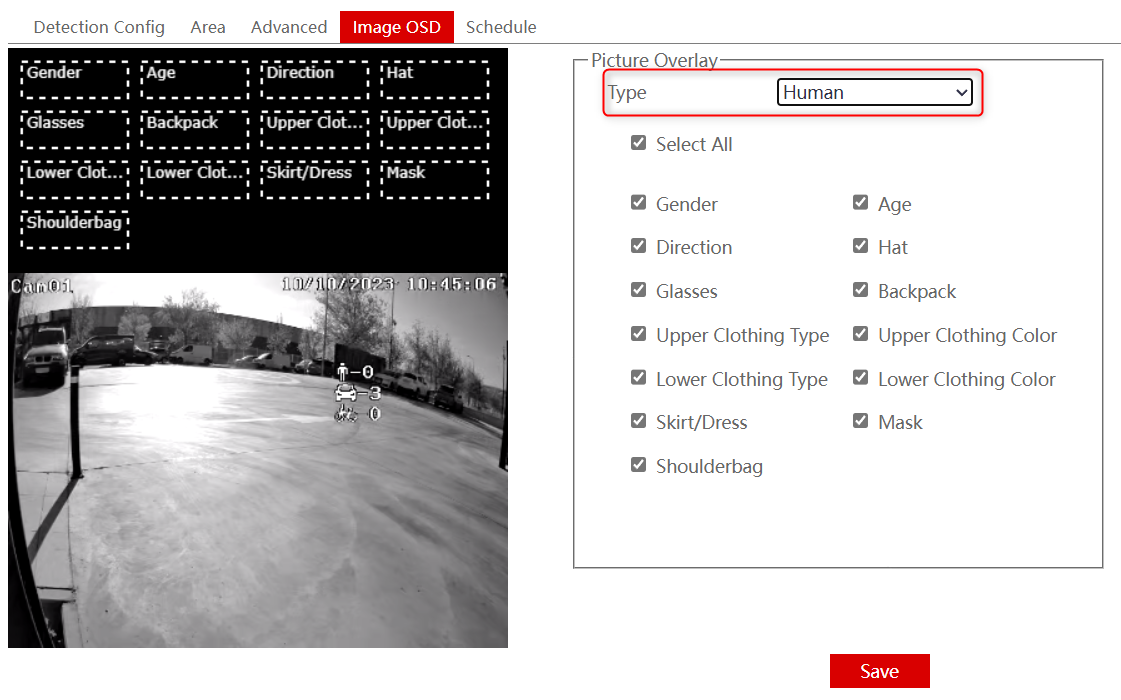

Op het tabblad Afbeelding, OSD, is er de optie om de doelopties weer te geven.

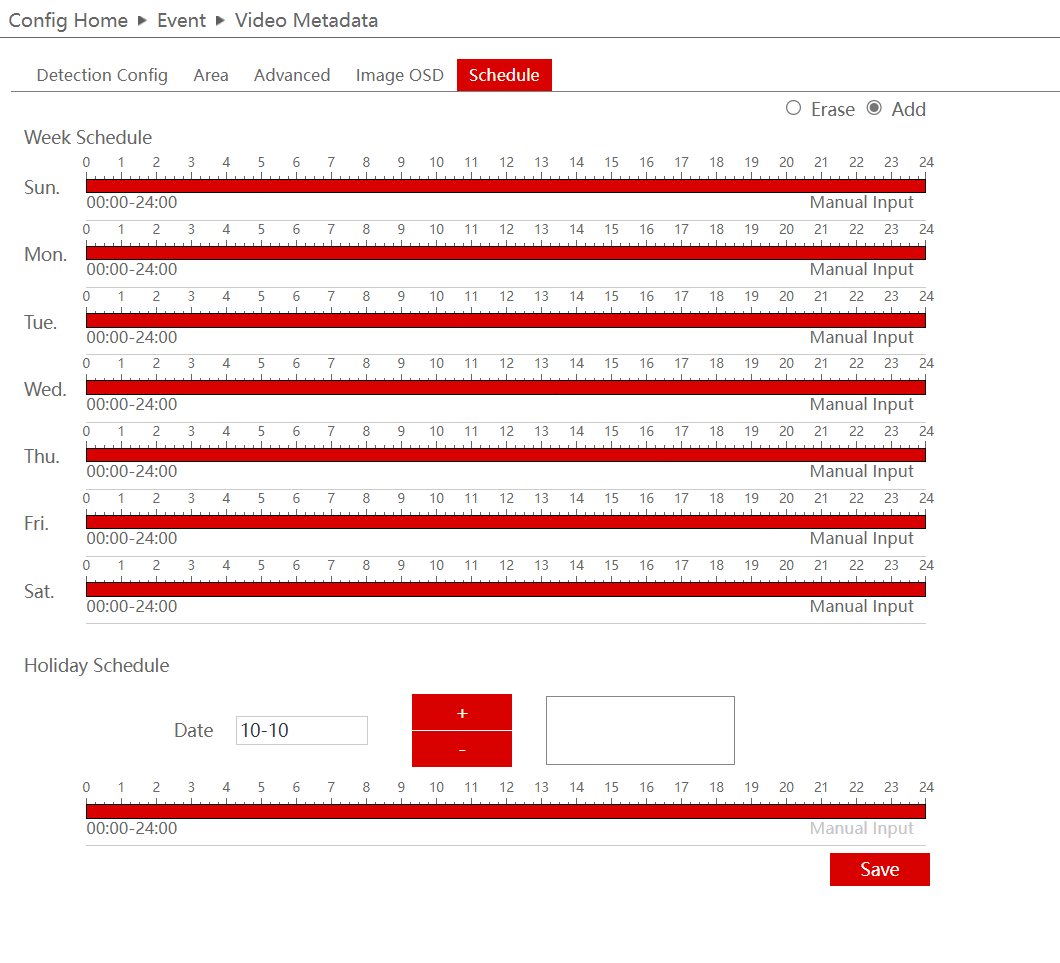

En het laatste tabblad, de schema-instellingen.
