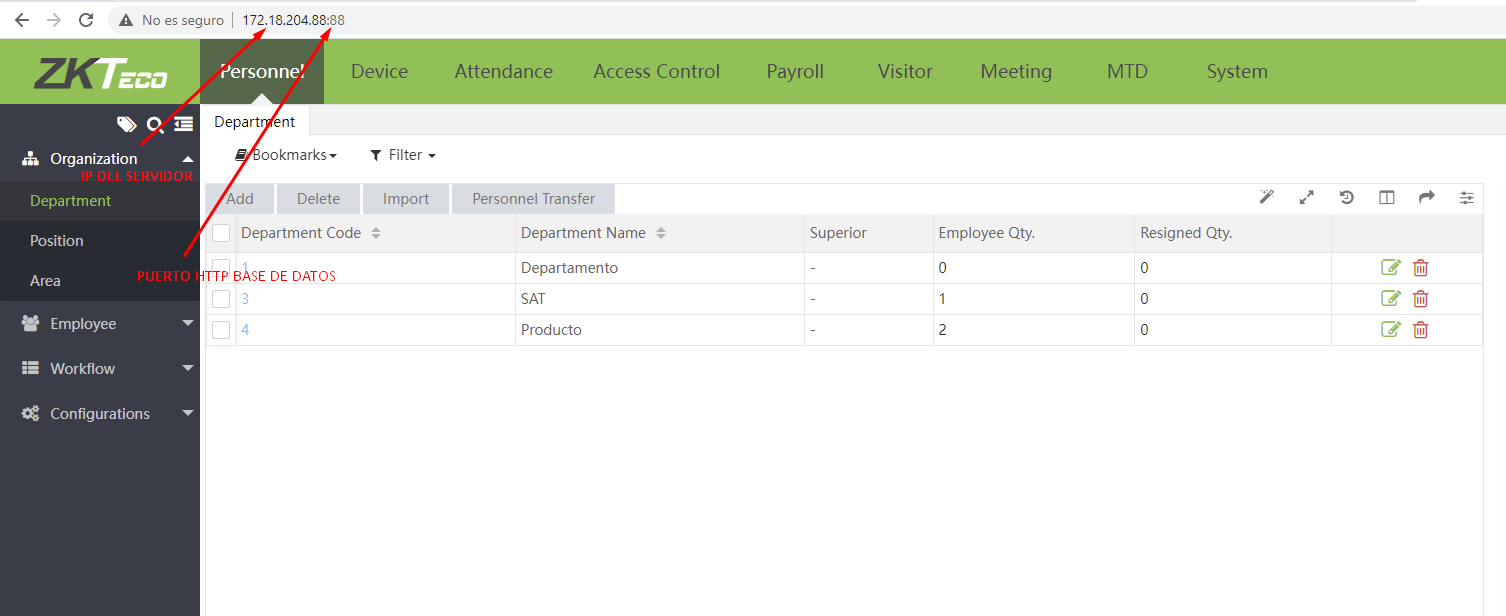

First the software will be installed and the Http and Https ports will be programmed. The Http port will be the one used to connect to the software.
Default the server PORT 80, this PORT has to be changed when installing the software as shown here in example to PORT 88.
Default TCP COMM PORT 4370

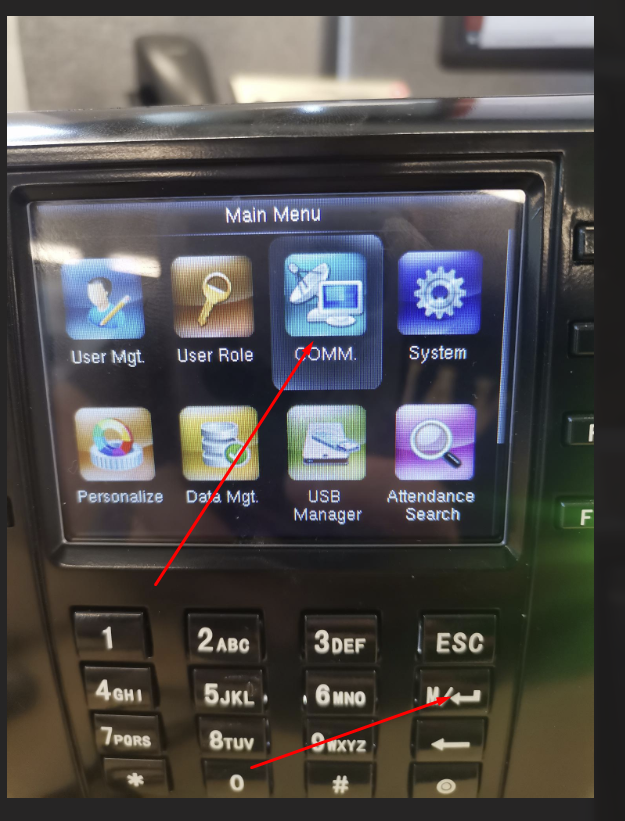

Enter the device menu ---> Communication

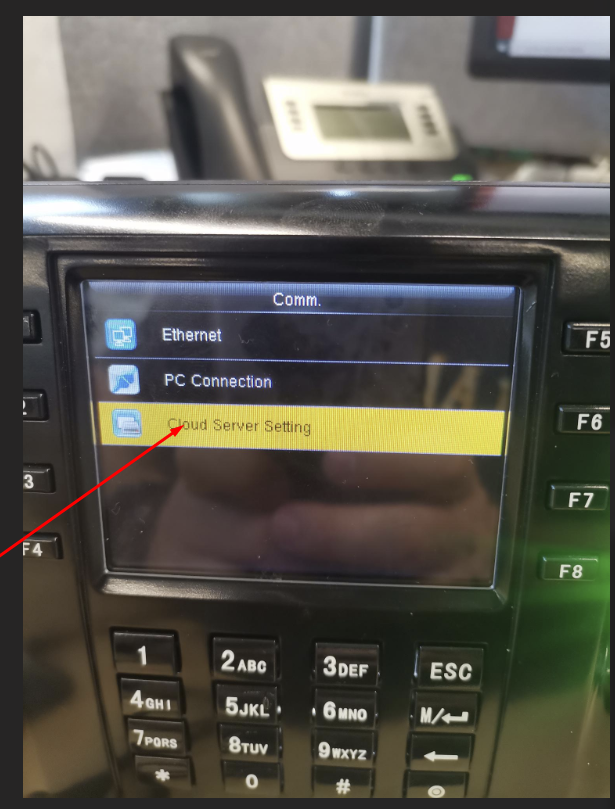

Cloud Server Setting

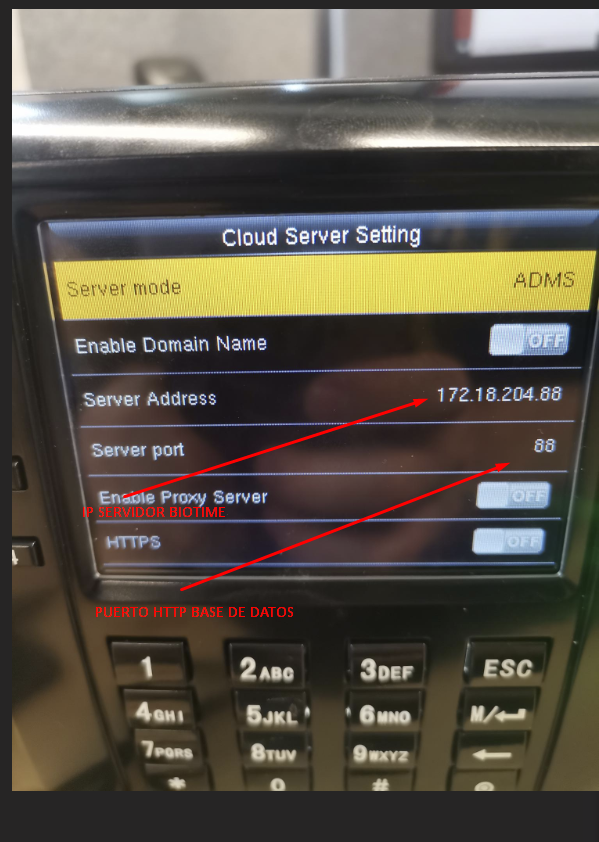

Configure the IP of the software and the Http PORT 88.
** NOTE** Do not leave the HTTPS button enabled.

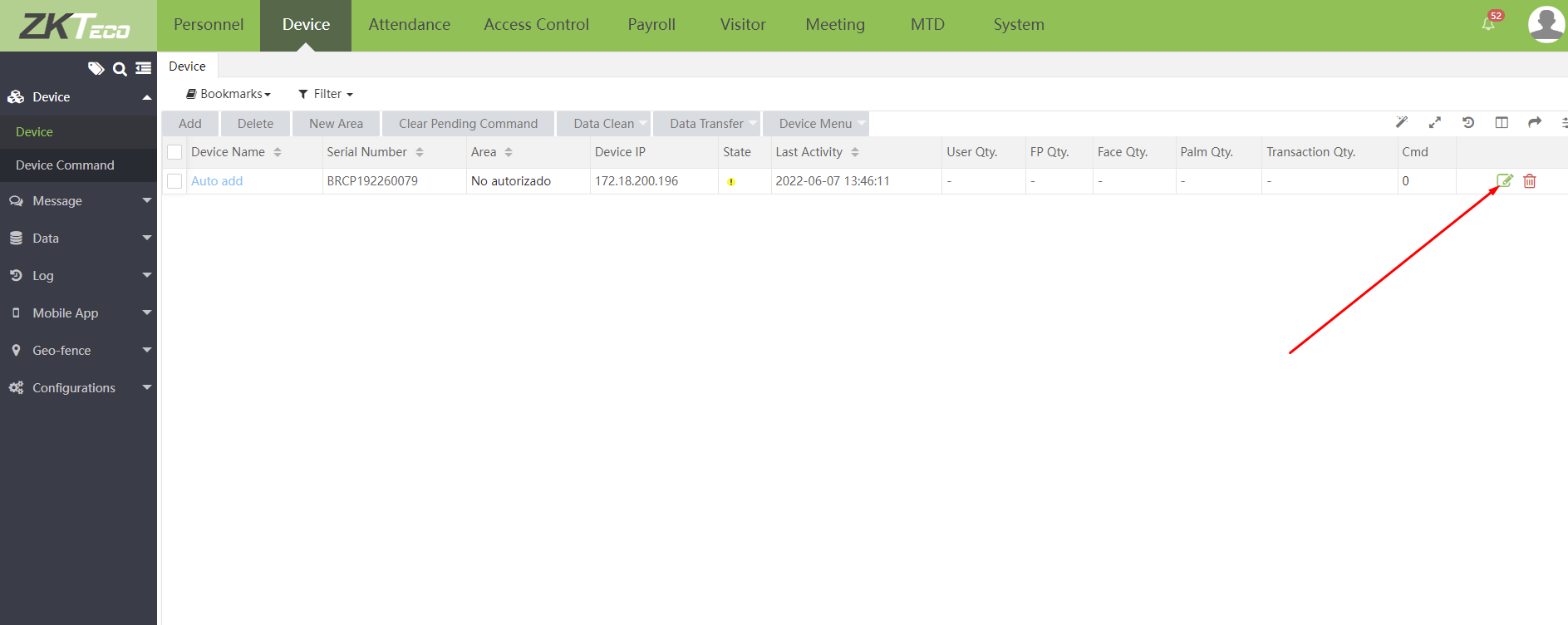

Once this process is finished, the device shows up in the software, but the status is still displayed with an exclamation mark.

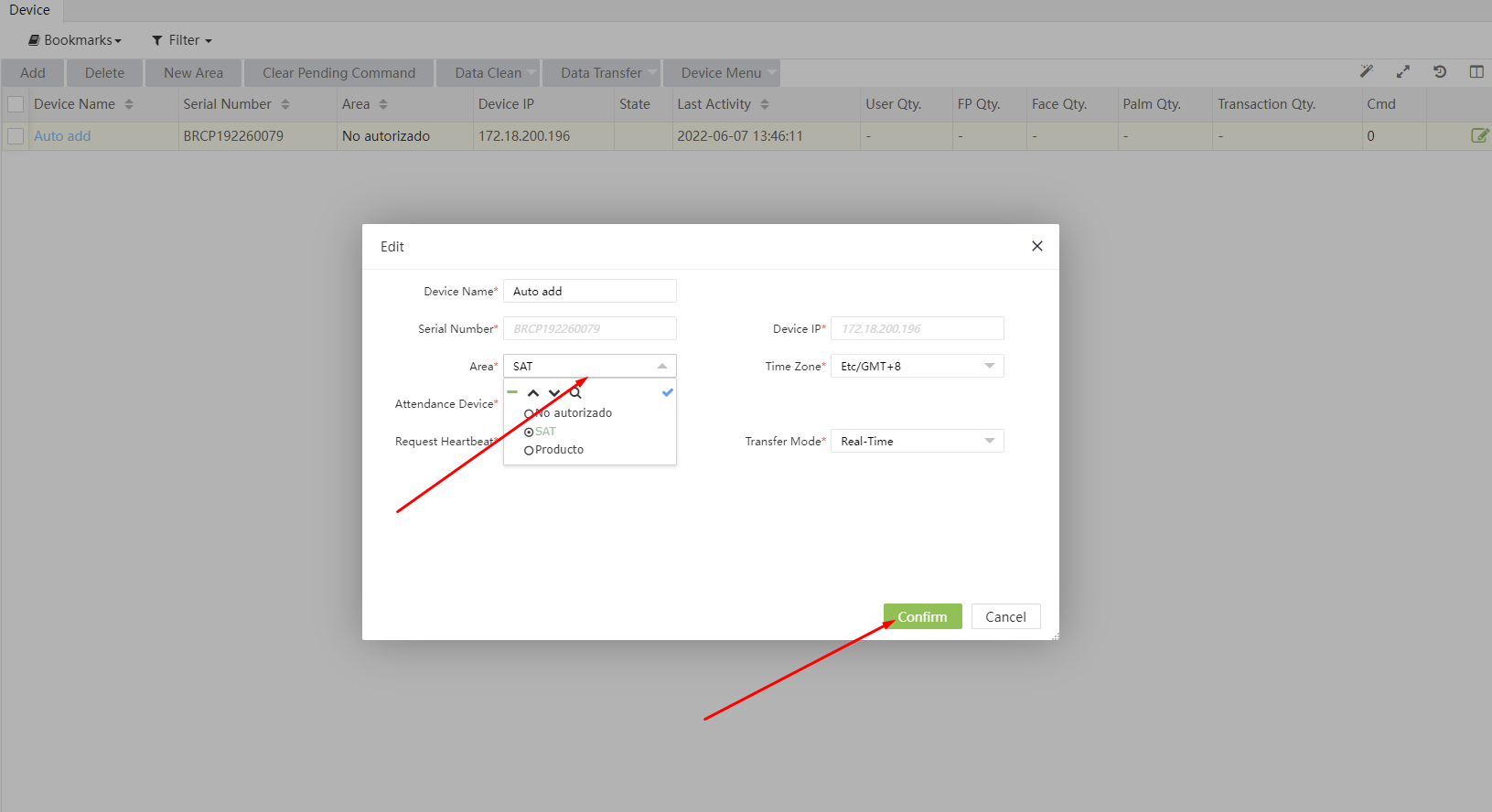

Go to the devices tab, click on the modify icon on the right.
By default, an area is already created (unauthorized). Set up a new area and save.

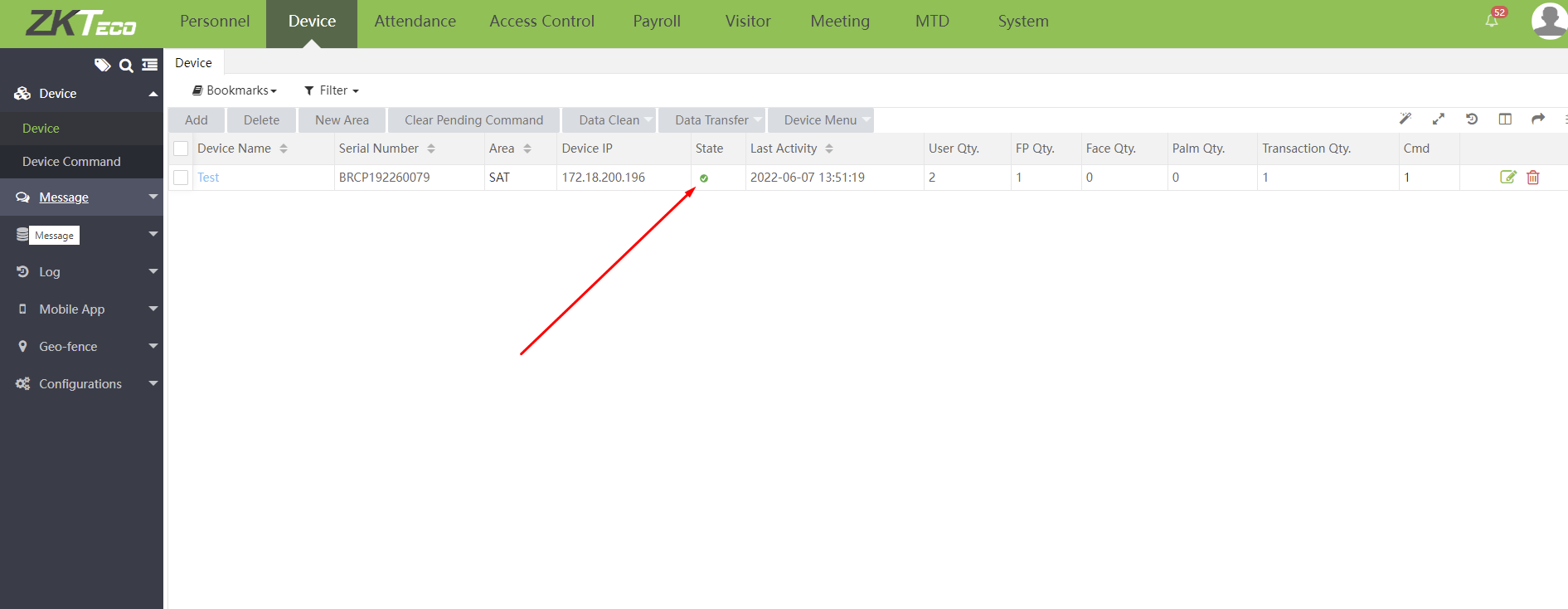

Then the status changes to green.
Once the process is finished, the status of the equipment will change to green, and we will be able to operate normally.
