Safire Smart Camera:
It is recommended to see the items described below.
In this test, the following camera has been used: SF-IPD040A-4I1

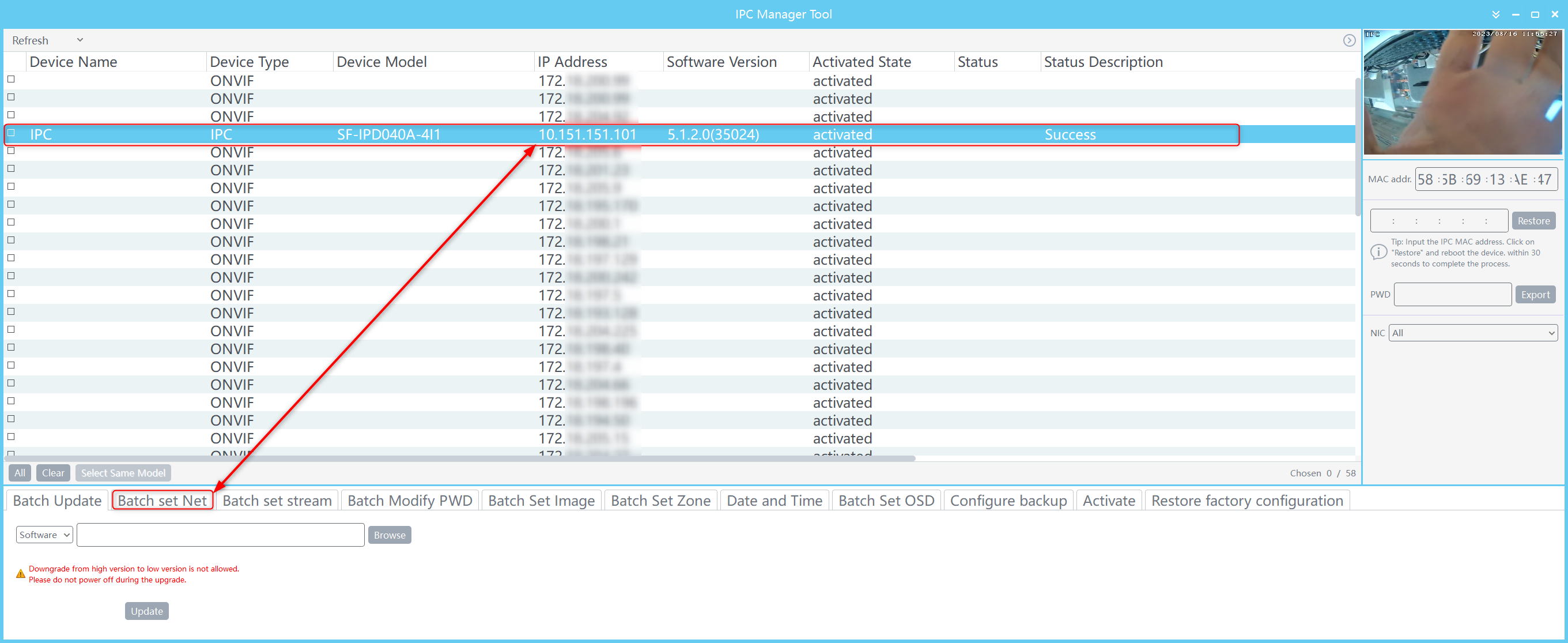

1º Open the IPC Manager Tool software
2º Activate the camera and set the internal IP range of the recorder.
Safire recorder:
In this test, the following recorder has been used: SF-NVR8216A-16P-4K

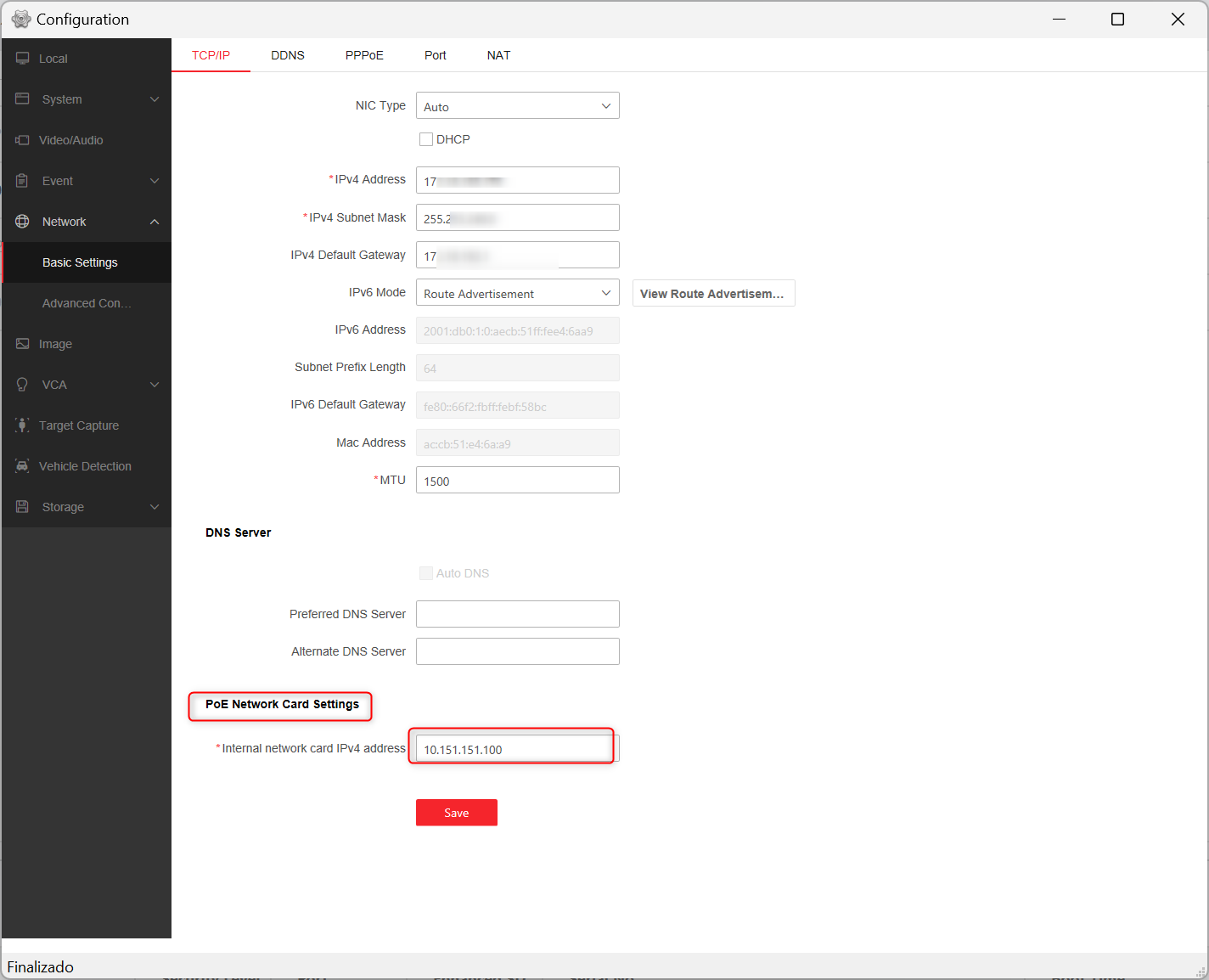

The internal IP of the recorder is: 10.151.151.100, this IP the recorder will give to the cameras connected by POE of the same brand, but in this case as it is a Safire Smart we have to do the step above, the one of putting the camera in the internal IP of the recorder.
Note: If it is a recorder and camera of the same brand, it would not be necessary to do the above step, the new or inactive camera is connected directly to the recorder and the recorder will assign an IP and its password, which by default will be the same as the recorder.

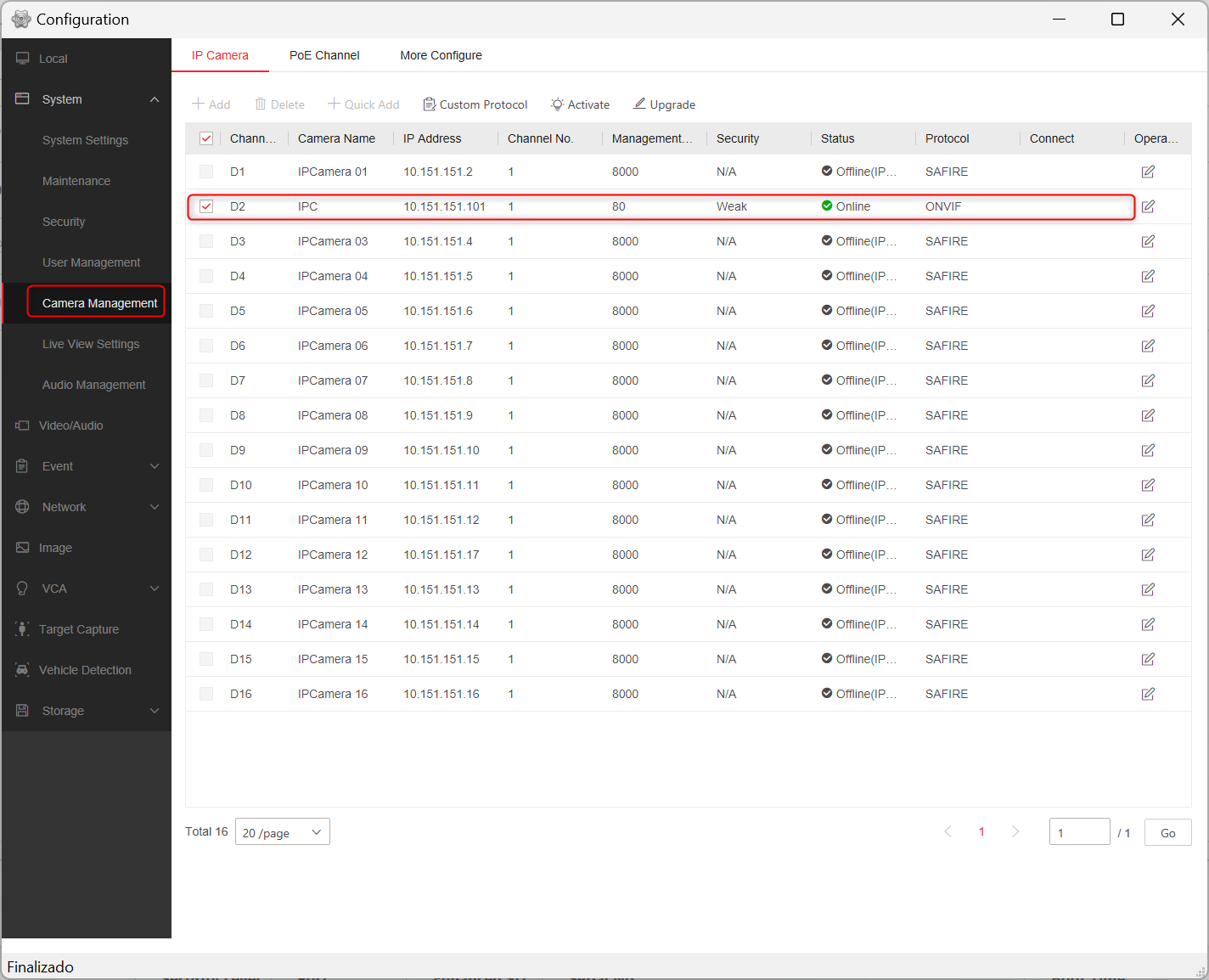

The Safire Smart camera is connected to the Safire POE recorder and its status will be Online with the ONVIF protocol.
Note: “Here are some links to a FAQ on how to activate the Safire Smart camera or change the IP”.
Safire Smart - How to activate an IP camera?
Safire Smart - How to change an IP address from an IP camera?
